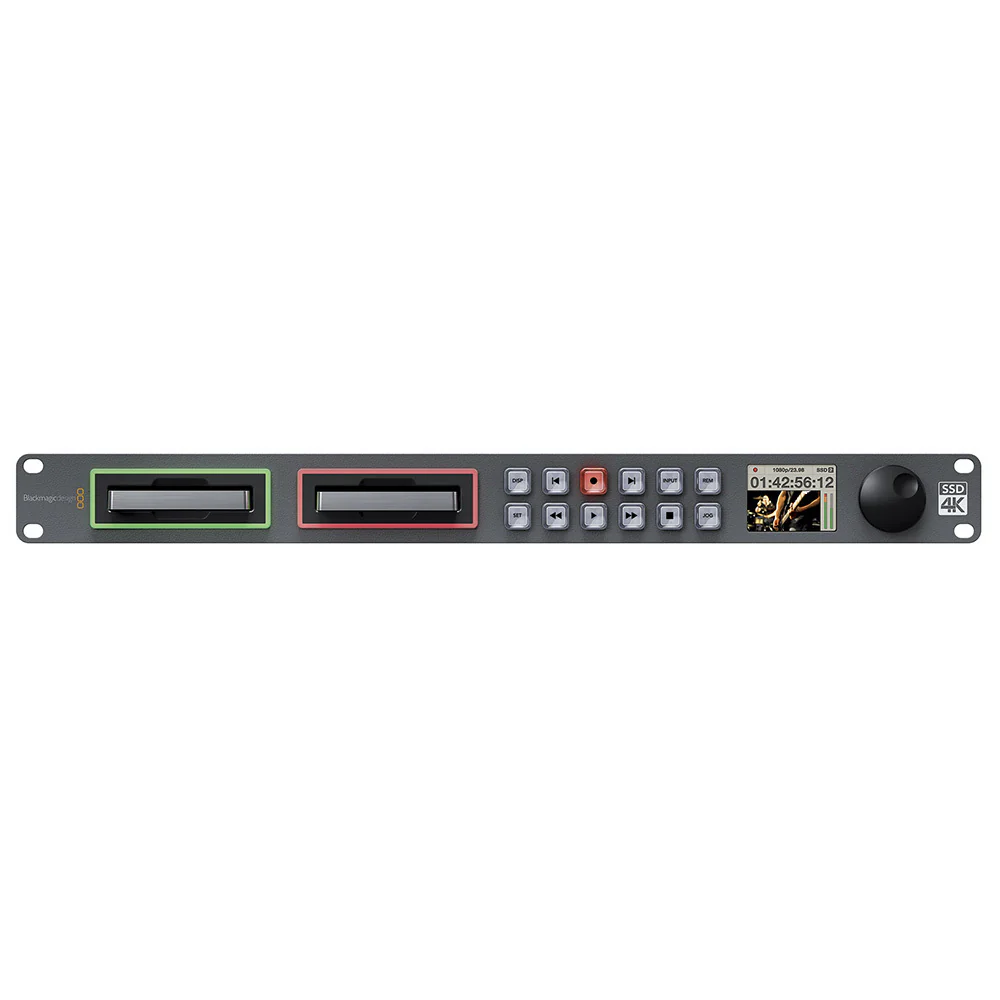

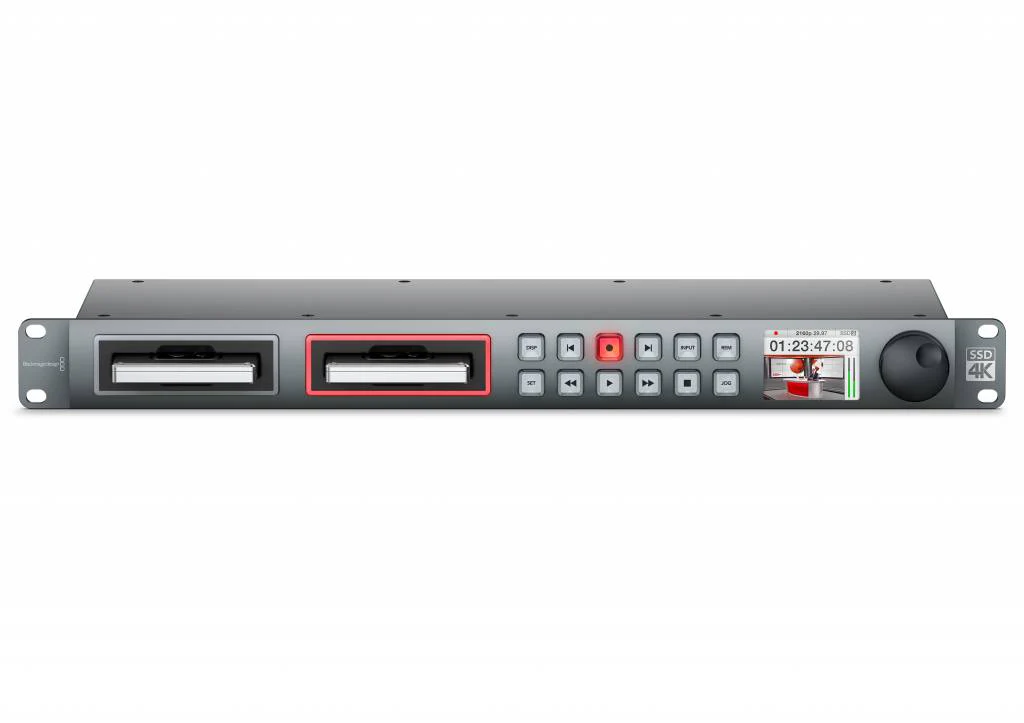

Blackmagic HyperDeck Studio Pro 2

Video Input

Digital Video

3 x SDI (10-Bit SD/HD/3G Switchable)

1 x SDI (10-Bit SD/HD/3G/6G UHD Switchable)

1 x HDMI 1.4 Type-A (Supports UHD 4K)

Analog Video

1 x Component YUV (3 x BNC) SD/HD

Video Output

Digital Video

3 x SDI (10-Bit SD/HD/3G Switchable)

1 x SDI (10-Bit SD/HD/3G/6G UHD Switchable)

1 x SDI Monitor Output (10-Bit SD/HD/3G Switchable)

1 x HDMI 1.4 type A (Supports UHD 4K)

Analog Video

1 x Component YUV (3BNC) SD/HD

Audio Input

Analog

2 x 3-Pin XLR Balanced Connectors

2 x RCA Jacks for Unbalanced Audio

Digital

SDI

16 x Channels Embedded in SD and HD in QuickTime Files

2 x Channels in Avid DNxHD MXF files.

HDMI

8 x Channels Embedded in SD and HD in QuickTime Files

2 x Channels in Avid DNxHD MXF Files

Audio Output

Analog

2 x 3-Pin XLR Balanced Connectors

Digital

SDI

16 x Channels Embedded in SD and HD in QuickTime Files

2 x Channels in Avid DNxHD MXF Files.

HDMI

8 x Channels Embedded in SD and HD in QuickTime Files

2 x Channels in Avid DNxHD MXF Files

Timecode

Input: 1 x XLR

Output: 1 x XLR

Computer Interface

1 x USB 2.0 Mini-B for Initial Setup, Software Updates and HyperDeck Utility Software Control

SSD Interface

2 x 2.5" SATA-II or SATA-III 3Gb/s

Media Formats

ExFAT (Windows/Mac) or HFS+ (Mac)

Sync Input

Blackburst or Tri-Sync

Device Control

Sony-Compatible RS-422 Deck Control Port

Recorder

Recorder Control:

12 Buttons and Jog Wheel for Local Control /

or Use Either RJ45 Ethernet or USB 2.0 High-Speed Interface

Recorder Configuration:

Use USB 2.0 High-Speed Interface

Format Support

UHD 4K (HDMI Only)

2160P: 30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

525i: 59.94 NTSC

625i: 50 PAL

SDI Compliance

SMPTE 259M, 292M, 296M, 425M

SDI Metadata Support

Timecode: HD RP188

Closed Captioning: CEA-708

Video Sampling

4:2:2

Audio Sampling

48 kHz, 24-Bit

Color Precision

10-Bit

Color Space

REC 601

REC 709

Multiple Rate Support

SDI and HDMI Switchable between SD, HD and UHD. SDI Switches between 270 Mb/s Standard Definition SDI, 1.5G-SDI HD, 3G-SDI and 6G-SDI. Analog SD/HD

Copy Protection

HDMI Input is Unable to Capture from Copy-Protected HDMI Sources.

Always Confirm Copyright Ownership Before Capture or Distribution of Content.

Codecs Supported

Uncompressed QuickTime

Apple ProRes 422 (HQ) QuickTime

ProRes 422 QuickTime

ProRes 422 (LT) QuickTime

ProRes 422 (Proxy) QuickTime

Avid DNxHD QuickTime

Avid DNxHD MXF up to 1080i60

Operating Systems

Mac 10.14 Mojave

Mac 10.15 Catalina or Later

Windows 8.1 and 10

LCD Display

Color 2.2" / 5.6 cm

Internal Power Supply

110-240 V, 50-60 Hz

Operating Temperature

41 to 104°F / 5 to 40°C

Operating Humidity

0% to 90% Non-Condensing

Storage Temperature

-4 to 113°F / -20 to 45°C

Rack Size

1 RU / Less than 7" / 18 cm Deep

Dimensions (WxDxH)

19 x 6.18 x 1.75" / 48.26 x 15.7 x 4.45 cm

Weight

4.4 lb / 2 kg
