Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
- Displays Tallies for Video Signals
- Indicates On-air Status
- For ATEM Switchers / Videohub Routers
- 8 Contact Closure Inputs & Outputs
- Connects with Multiple Interfaces
The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.
- Displays tallies for indicating the on-air status of video signals
- 8 contact closure inputs & 8 contact closure outputs
- Compatible with ATEM switchers and Videohub routers
- Connect to multiple interfaces offering enhance flexibility in operation
Technical Specifications:
|
Connections |
dd |
|
Contact Closure |

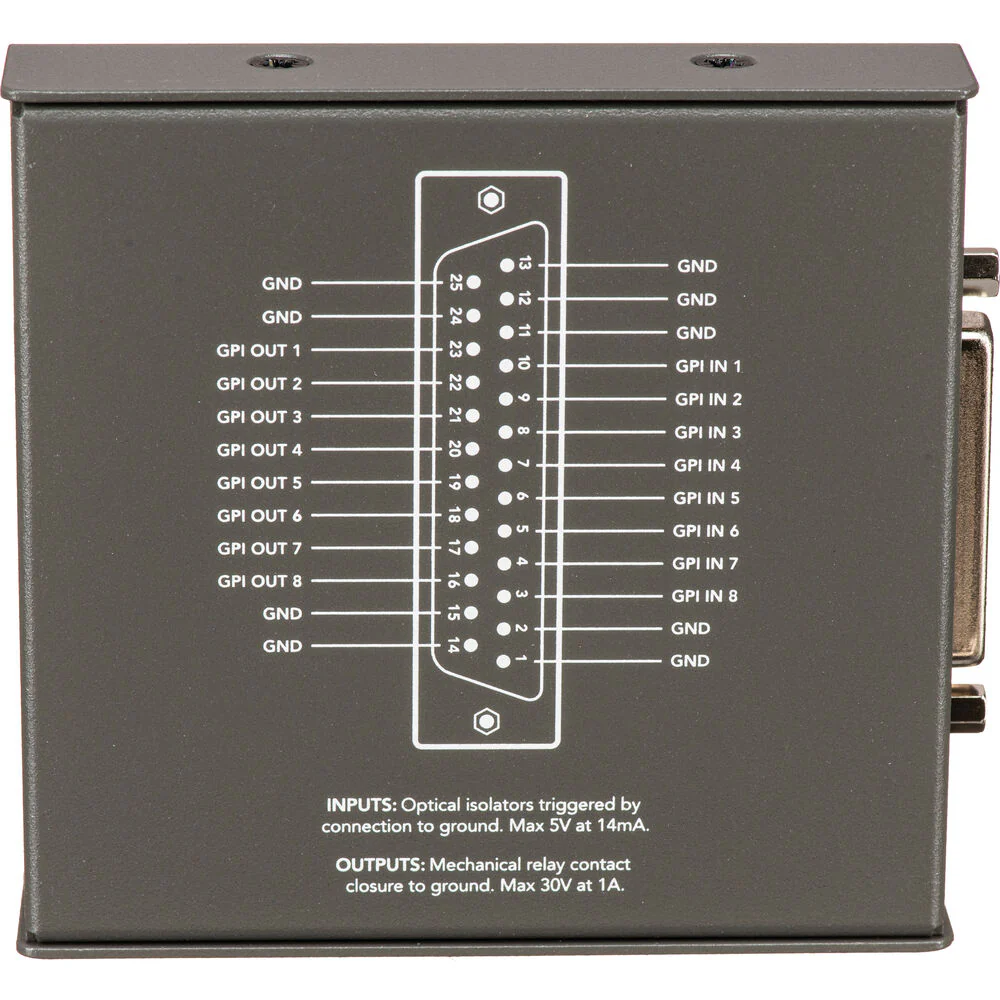

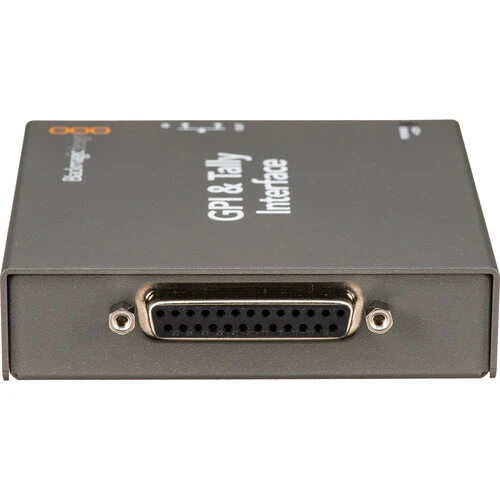

25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs |
|
Inputs |
Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA) |
|
Outputs |
Mechanical relay contact closure to ground (maximum 30 V @ 1 A) |
|
Ethernet |

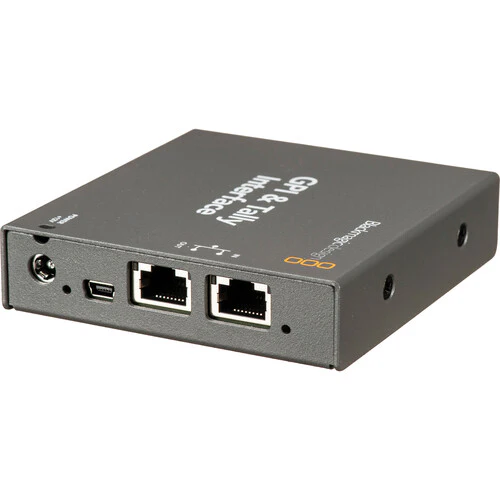

10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment |
|
Computer Interface |
1 x USB 2.0 high speed interface for configuration and firmware updates |
|
Extras |
|
|
Software Included |
Configured via ATEM Switcher utility |
|
Firmware Upgrade |
Firmware built into software driver. Loaded at system startup or via updater software |
|
Operating System |
Microsoft Windows 7 and Apple Mac OS X |
|
Power Supply |
12 V power supply included with international socket adapters for all countries |
In the Box:
- Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
- 12 V Power Supply
- Limited 1-Year Manufacturer Warranty
