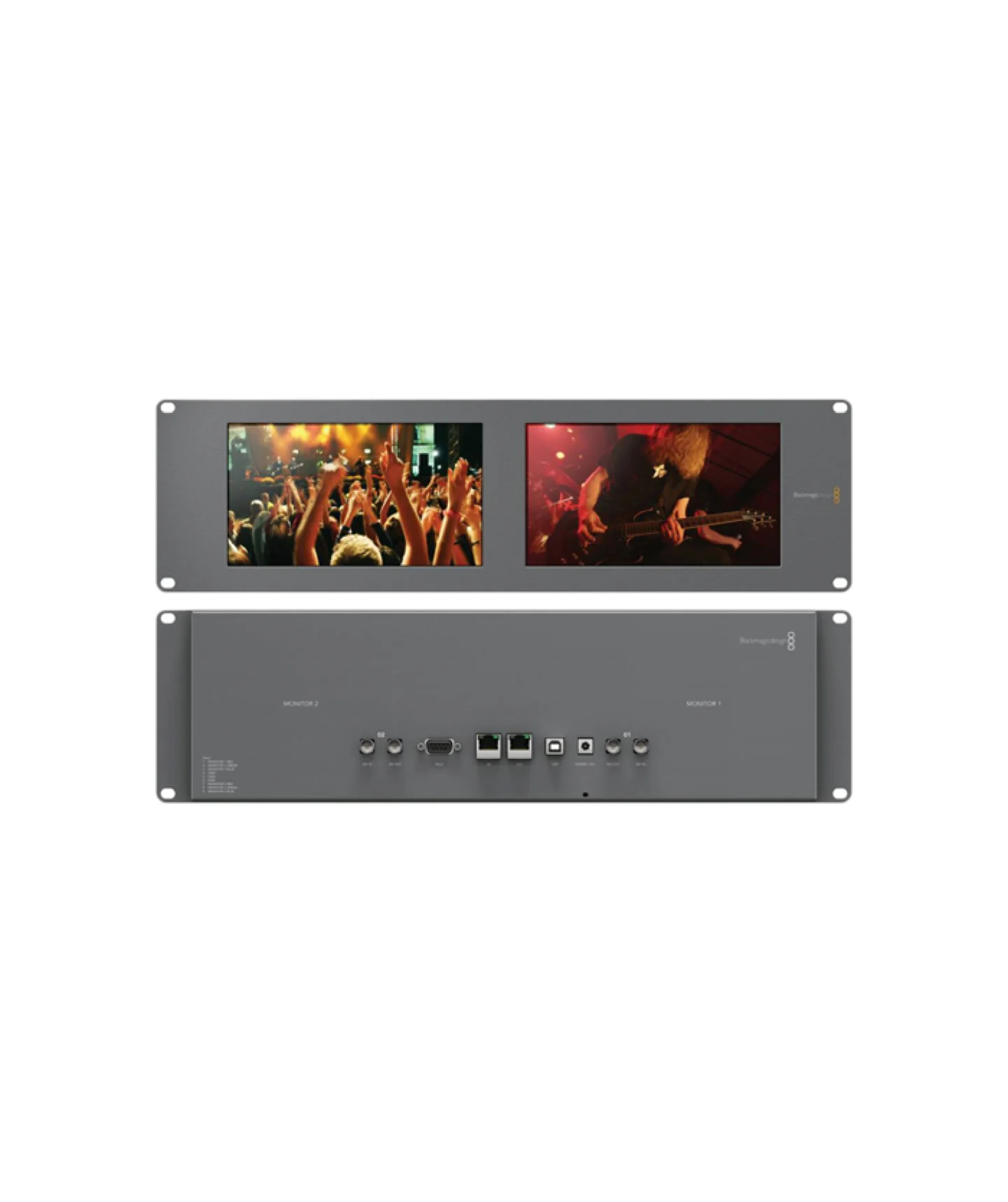

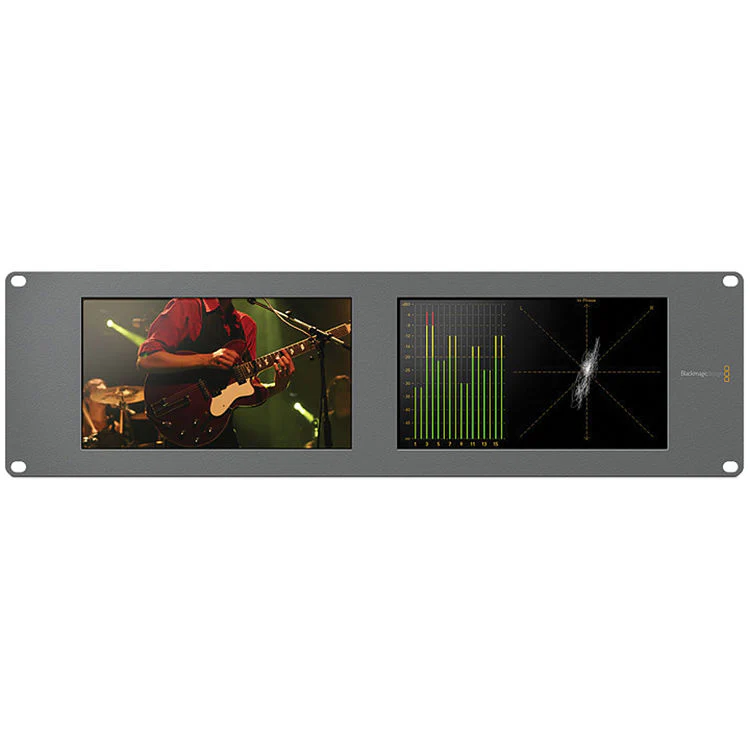

Blackmagic SmartView Duo 2

Panel Type

TFT LCD

Display Size

8.0" / 20.3 cm

Screen Resolution

800 x 480

Contrast Ratio

500:1

Bit Depth / Color Support

8-Bit (16.7 Million Colors)

Response Time

15 ms

Video

2 x BNC (3G-SDI) Output

2 x BNC (3G-SDI) Input

Audio

None

Built-In Speaker

None

Other I/O

1 x USB 2.0 (USB Type-B)

1 x Tally (DE-9/DB-9)

2 x LAN (RJ45)

Card Slot

None

Video Format

SDI (4:4:4)

576i

480i

720p: 50/59.94/60

1080i: 50/59.94/60

1080PsF: 23.98/24/25/29.97/30

1080p: 23.98/24/25/29.97/30/50/59.94/60

DCI 2K: 23.98/24/25

DC Input Power

12 to 15 VDC

Battery Type

None

Power Consumption

20 W (Maximum)

Rack Form Factor

3 RU

Dimensions

19 x 5.24 x 1.38" / 48.3 x 13.3 x 2.5 cm
