Blackmagic Mini Converter SDI Distribution
Key Features:
- (1) SDI Input, (8) SDI Outputs
- 3G/HD/SD-SDI Auto-Switching Input
- Re-Clocked Outputs
- Ancillary Data & Embedded Audio
- 1080p & 2K Distribution
- Supports ASI Signals

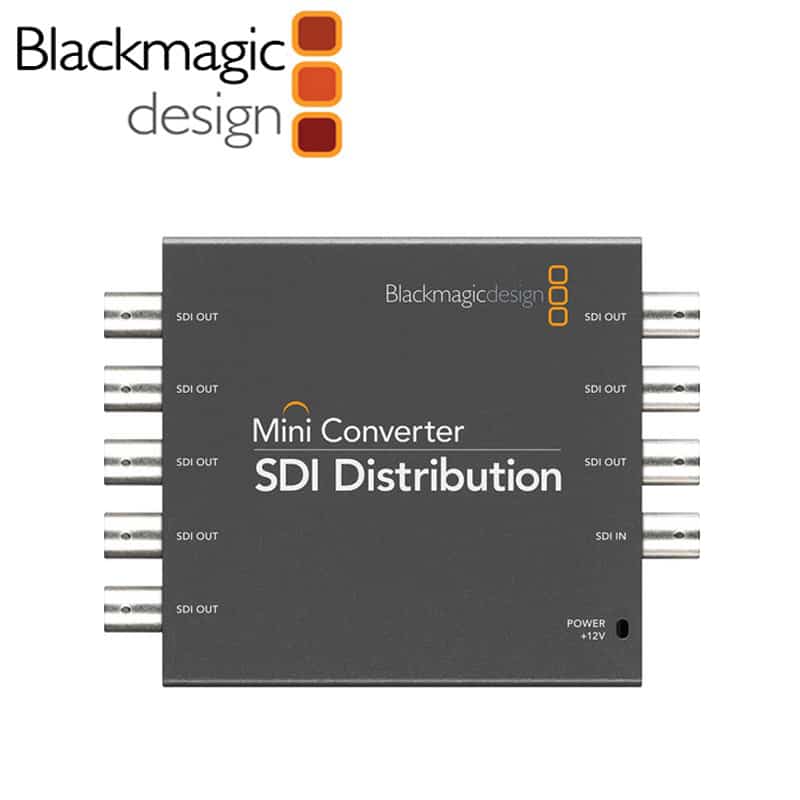

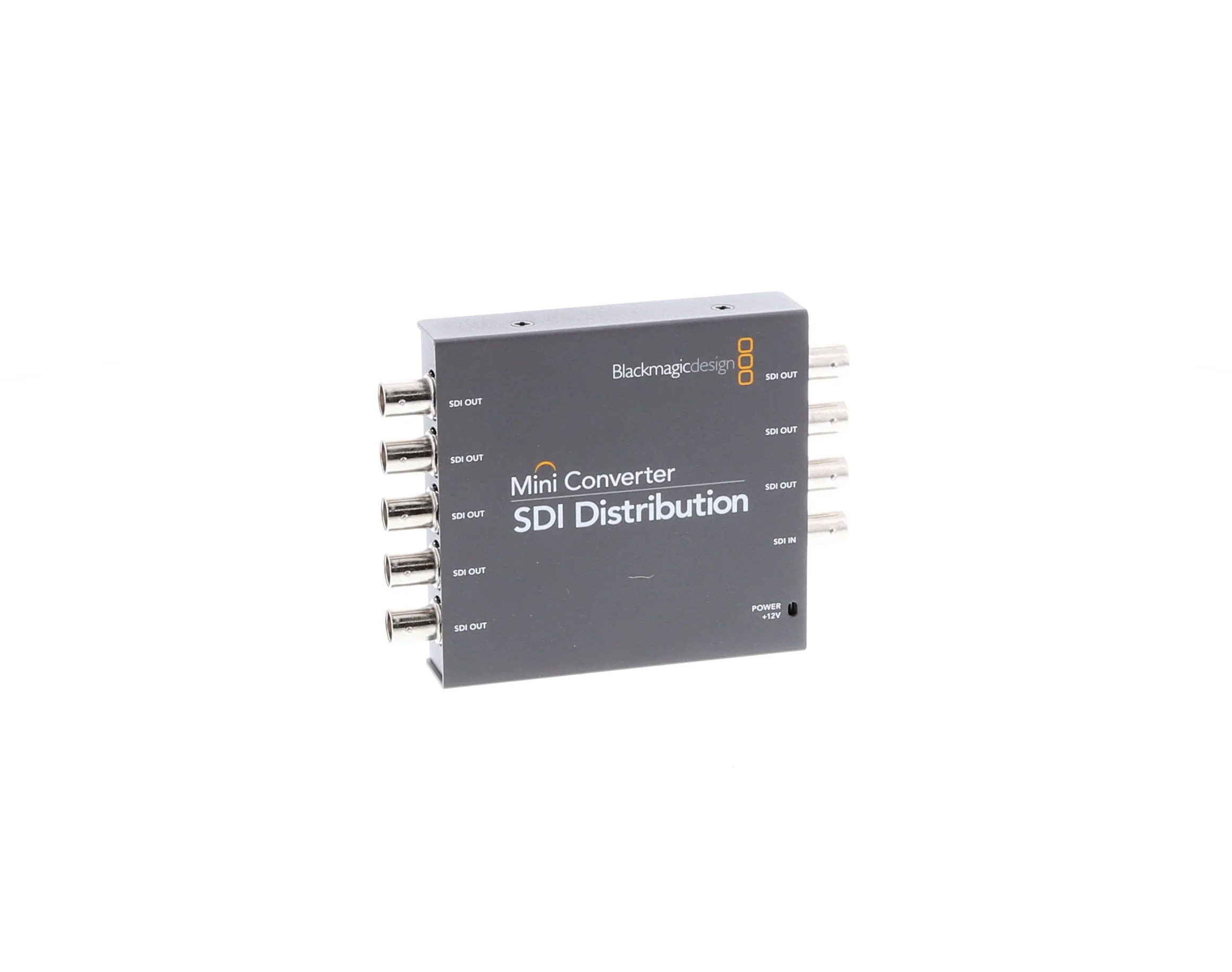

The Blackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input. This device represents an affordable way to distribute SDI signals throughout a facility or truck.
The Mini Converter SDI Distribution supports all SDI-related transmission features, including embedded audio, ancillary data, and the 3 Gb/s transmission rate that accommodates video formats up to 1080p and 2K progressive. It even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.
Technical Specifications:
|
Inputs |
1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI |
|
Outputs |
8x SDI: Automatically match the SDI video input |
|
Re-clocking |
Yes |
|
Supported Formats |
NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M |
|
Video Sampling |
4:2:2 and 4:4:4 |
|
Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit |
|
Color Precision |
4:2:2 and 4:4:4 |
|
Color Space |
YUV and RGB |
|
ASI Support |
Yes |
|
Power Supply |
12V universal power supply included |
|
Power Consumption |
110V: 40mA 220V: 20mA |
|
Voltage Range |
12-30V |
In the Box:
- Blackmagic Design Mini Converter SDI Distribution
- 12V Universal Power Supply
- 3 Year Limited Warranty
