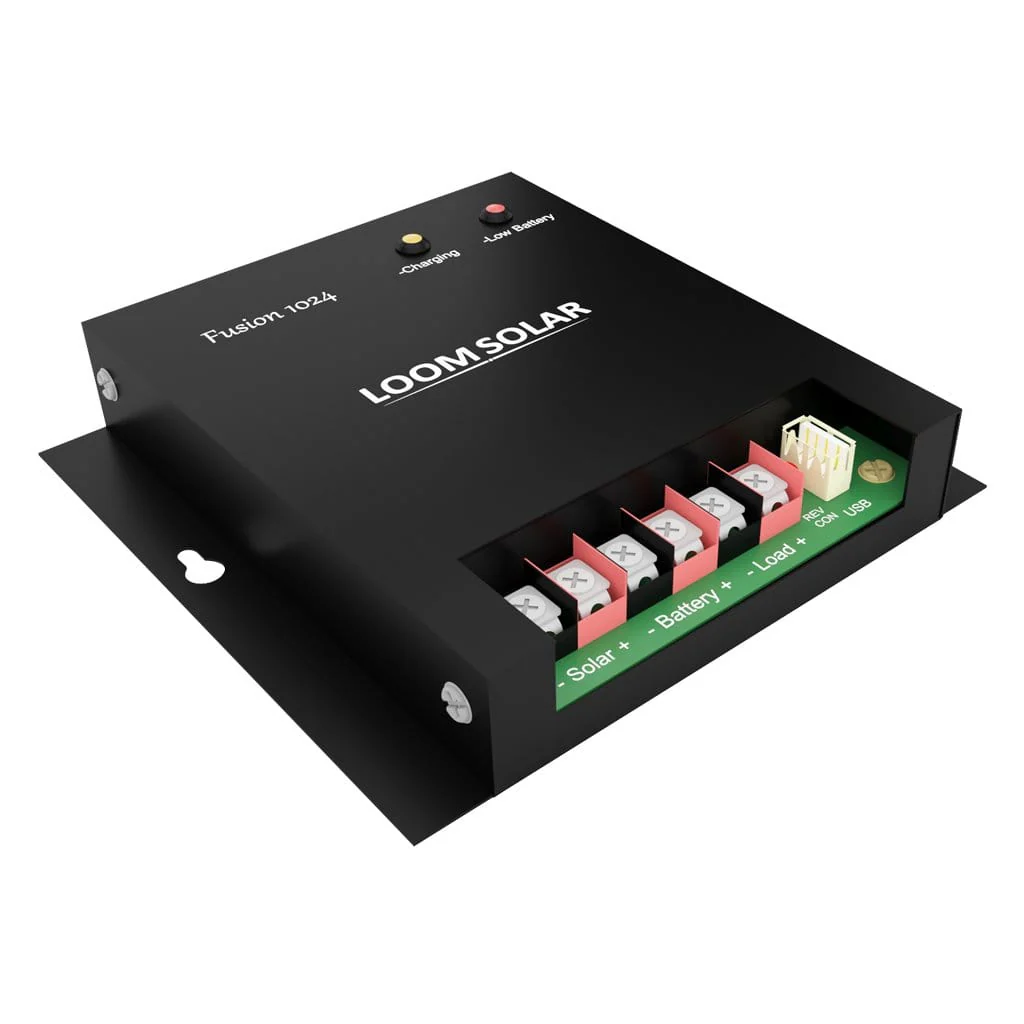

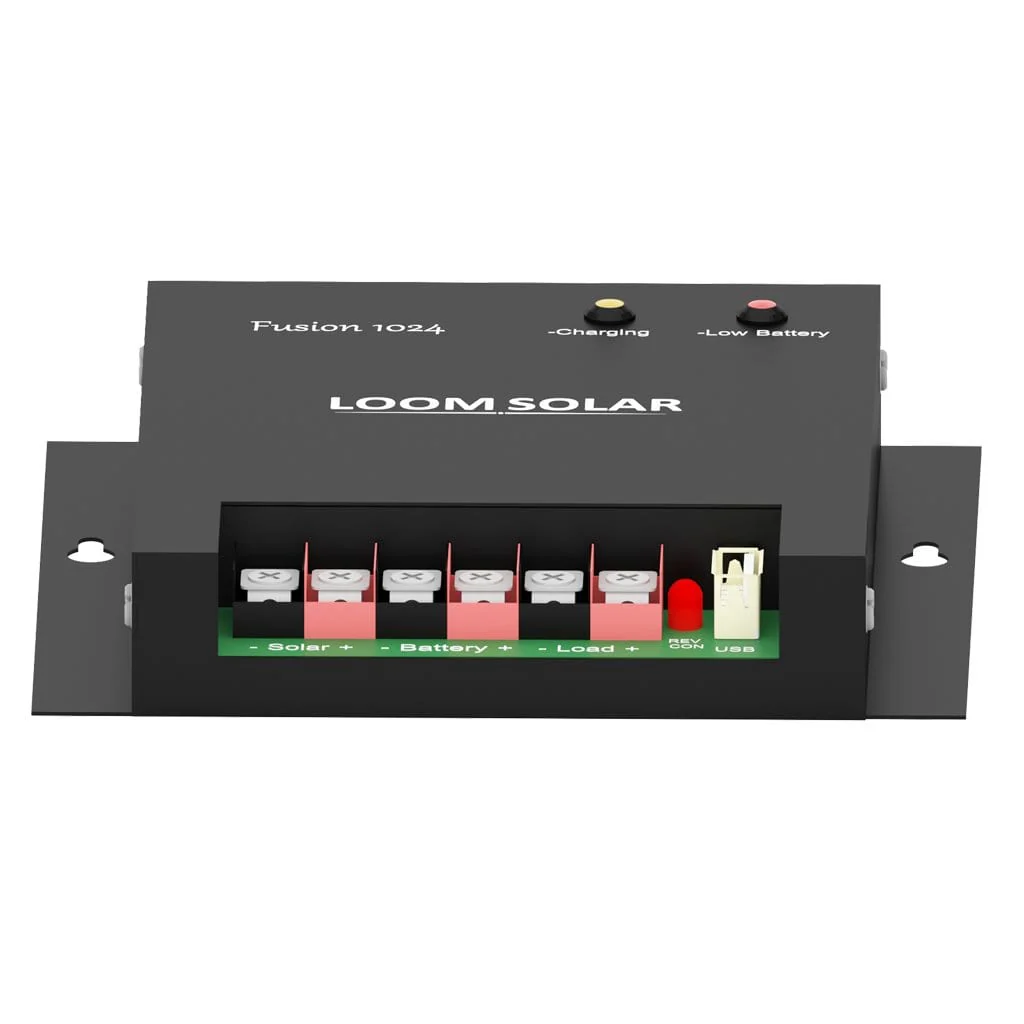

Loom solar, Fusion 1024 charge controller - 10 amp, 12-24V
Solar Charge Controller is required to charge battery using solar panels. The other use of solar charge controller is to run DC load.
The Charge Controllers are PWM based controllers with 98% efficiency. It has USB charging Option for mobile charging & dusk to dawn feature. Dusk and down feature is used in street light application where lights is switched off in the morning and Automatically it turns on in the evening. It comes with Electronic & Software controlled protections. Maintenance Free. USB Mobile charger Output.
Product Video
Descriptions
|
Model Name |
Fusion 1024 |
|
Manufacturer warranty |
12 months |
|
Maximum Charging current |
10 Amp |
|
Output |
12 Volt / 24 Volt DC |
| Panel Support | 200 Wp @ 12V and 400 Wp @ 24 V |
Features
- Automatic selection of 12V / 24V battery
- 0.5 amp / 5 Volt USB port for Mobile charging
- Load controller with LVD & dusk to dawn feature
Technical
- PWM based technology
- Protections from battery deep discharge, Over charge, over load, short- circuit, wrong wiring connection.
Display
- Low Battery / Fault - Red Led
- Battery Charging/ Full Charged - Yellow Led
Download product user manual. to understand detailed technical product information and how to install it.
