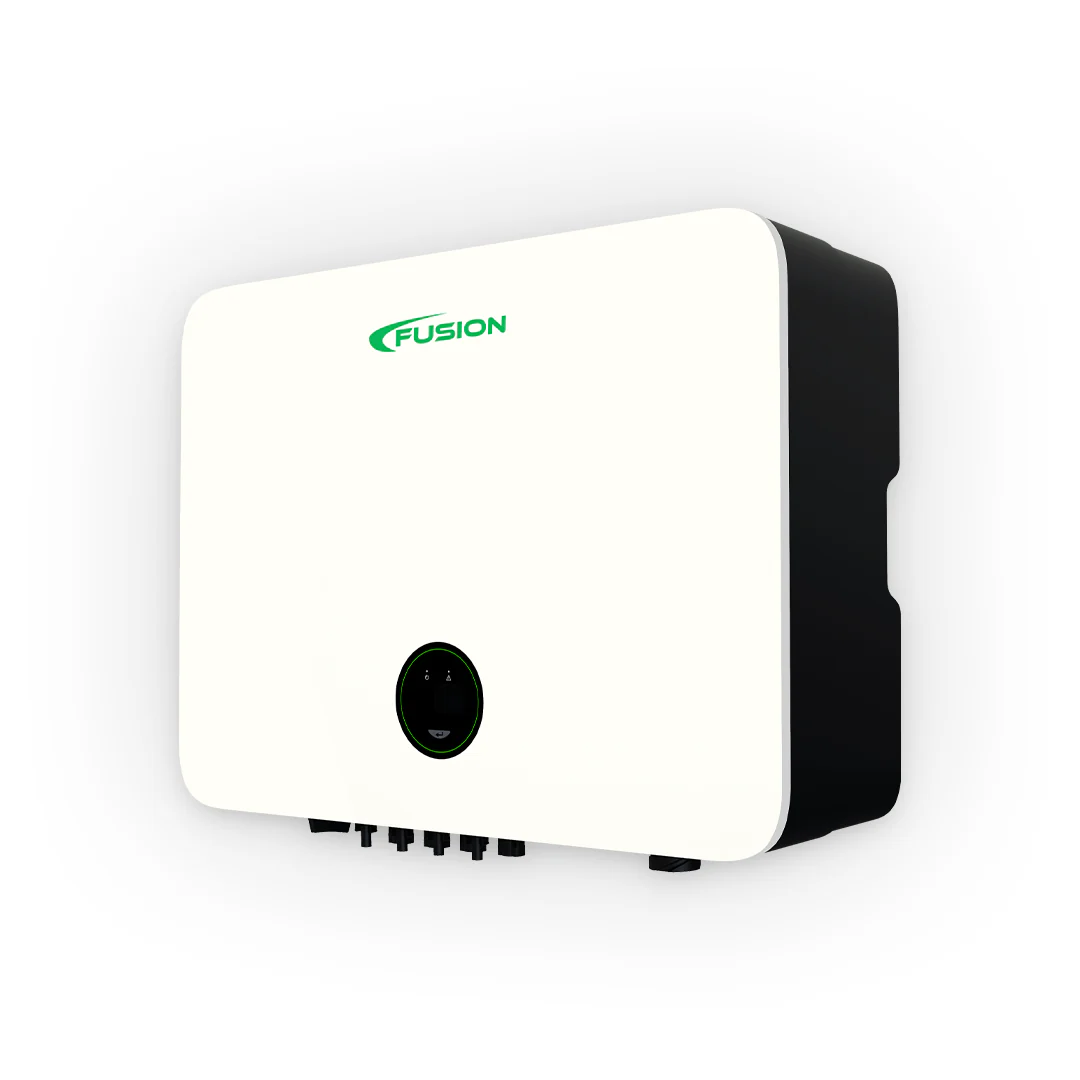

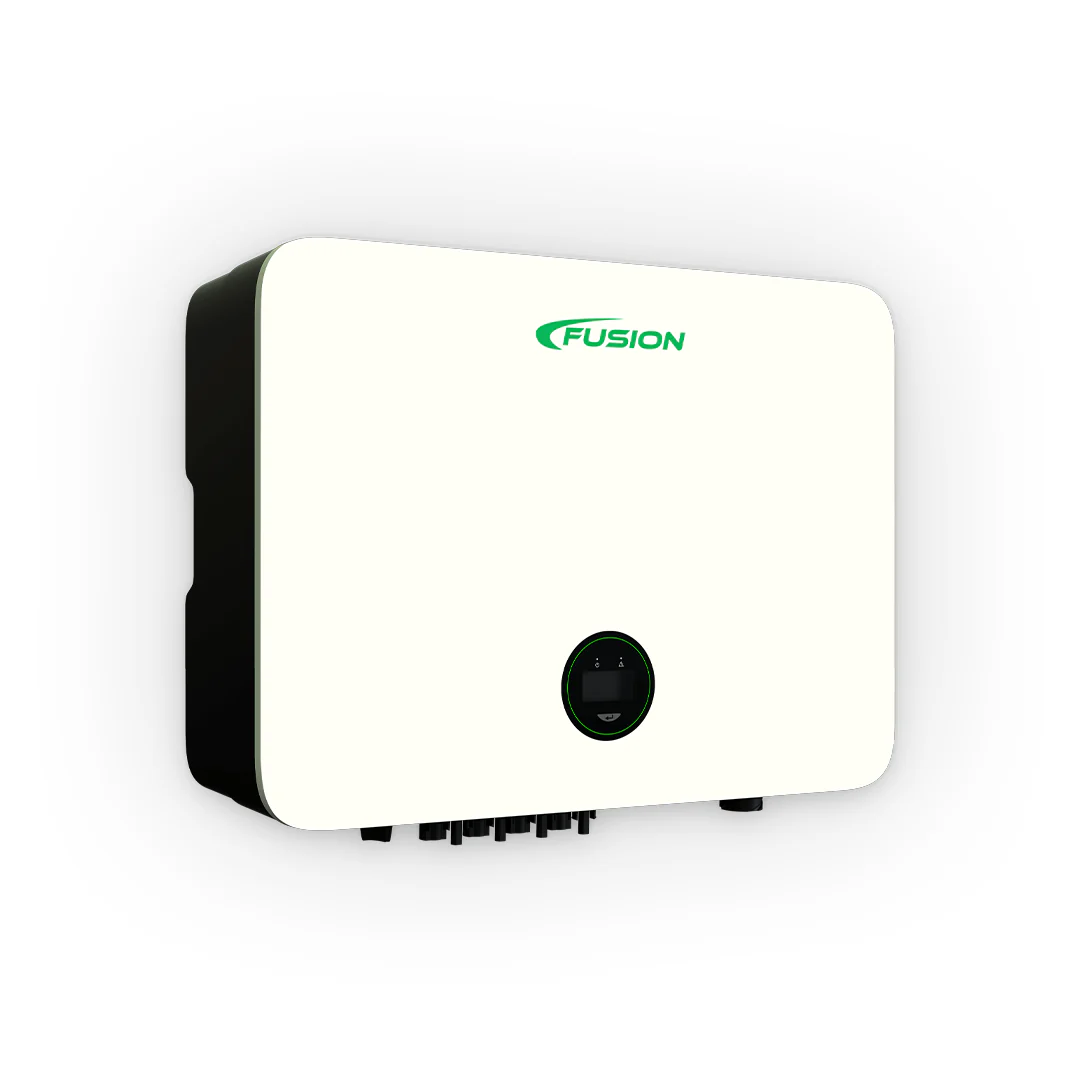

Fusion 20 kw on grid solar inverter
Loom Solar Grid Tied Inverters are powerful inverters that convert direct current (DC) electricity into alternating current (AC), It is also called an On-grid system which works without a battery. The main purpose of a Grid-tied inverter is to supply power from the main supply to homes/offices and feed the Generation of solar Power to the main supply.
Grid Tie Inverters are designed to quickly disconnect from the grid if the utility grid goes down. It ensures that in the event of a blackout, the grid-tie inverter will shut down to prevent the energy it transfers from harming any line workers who are sent to fix the power grid.
Key Features
- On Gird/ Gird Tied inverter for Saving electricity bill by selling access generation of Solar Power to the Power Distribution Company through Net metering system.
Video

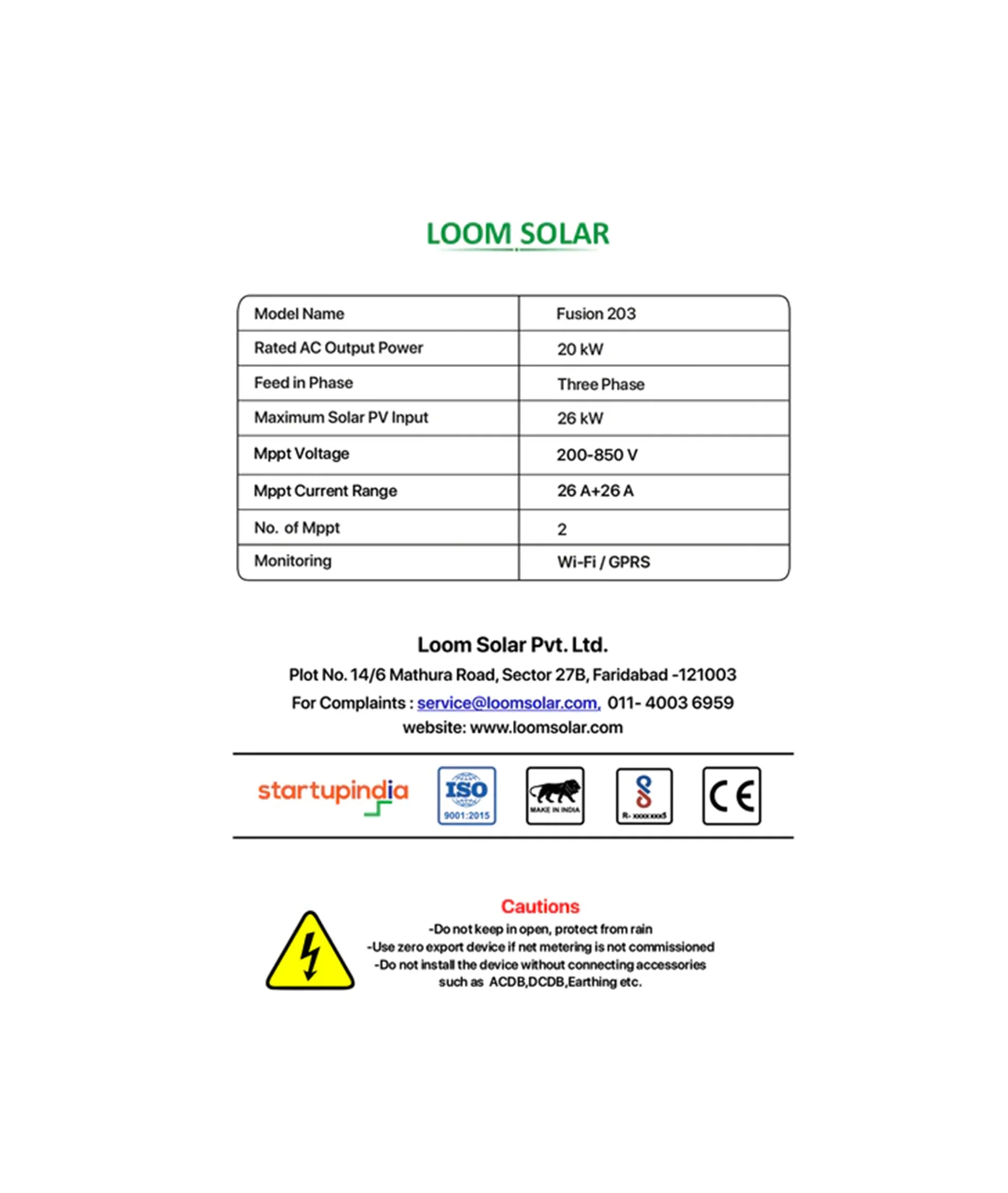

Key Technical
|
Model Name |
Fusion 203 |
| System Rating |
20 KW, Three Phase |
|
Maximum Solar Panel Connection (Watts) |
26000 Watts |
|
Efficiency |
96.80% |
|
Feed-in Phase |
Three-phase |
|
Topology |
Transformerless |
|
Number of MPPT Controller |
2 |
|
Noise |
< 30dBA |
|
Weight (kg) |
25.5 Kg |
|

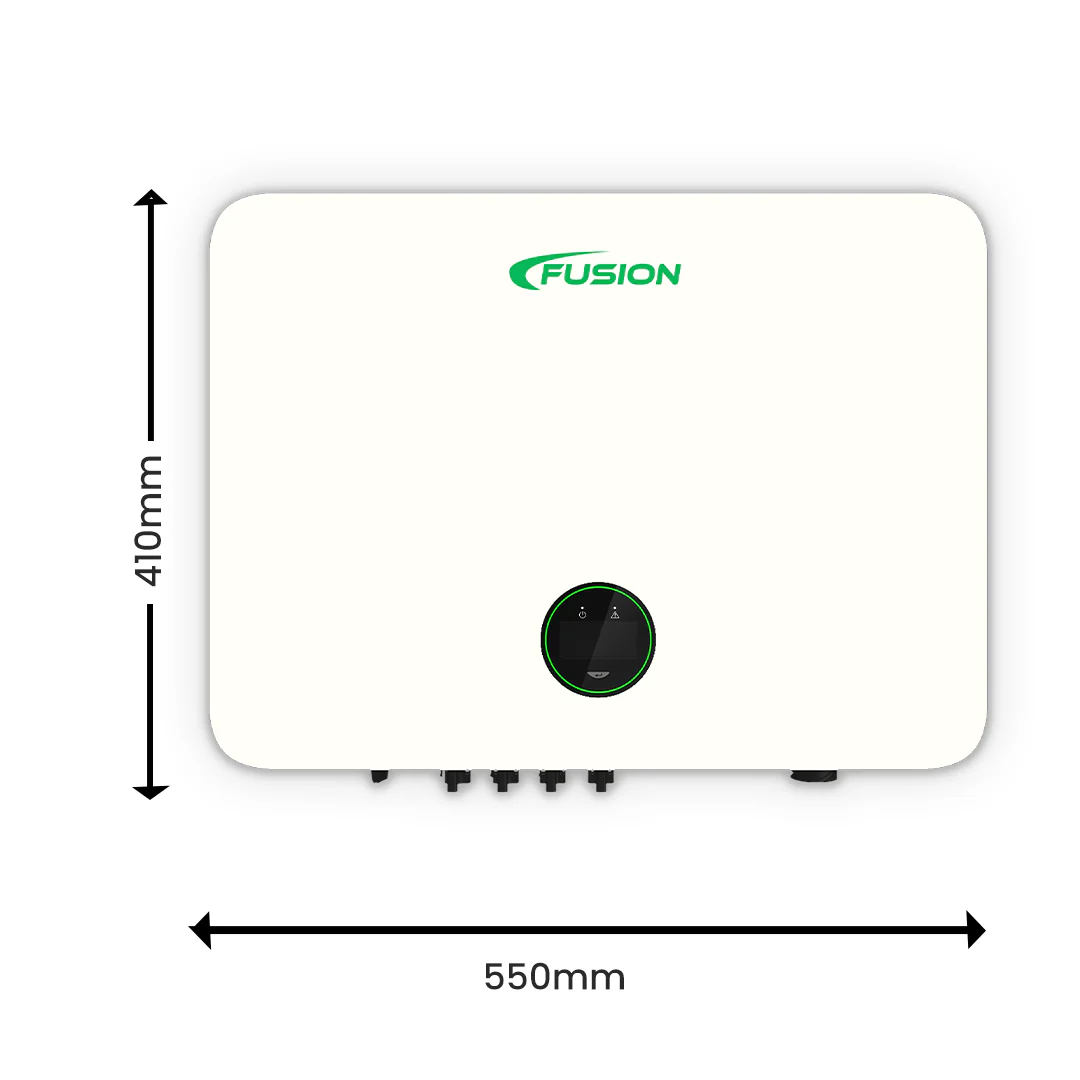

Dimensions [L * H * W] mm |
362 * 577 * 215 |
Product Manual: Download the product data sheet to know electrical parameters
