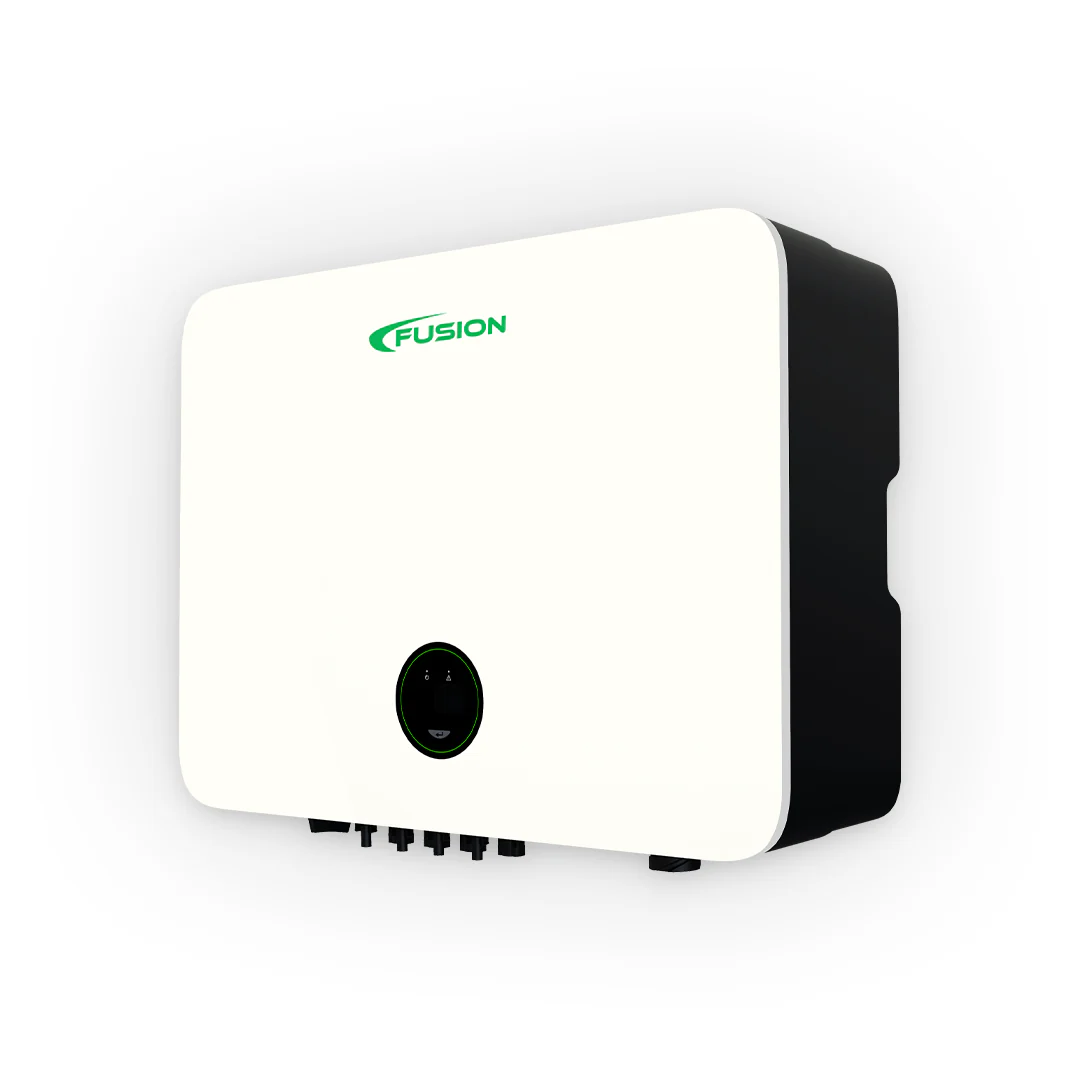

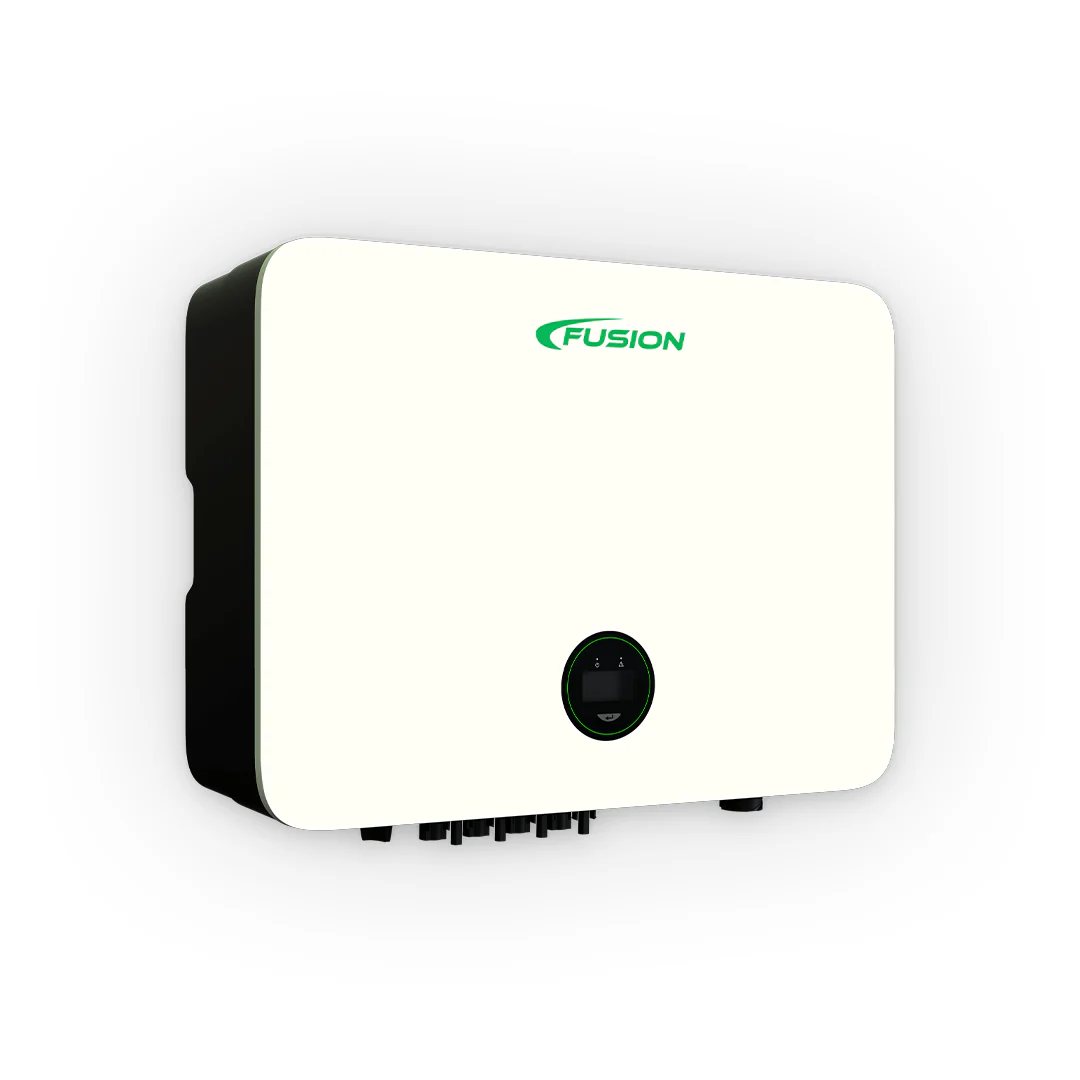

Fusion 10 kW, 3 ø on grid solar inverter
Loom Solar Grid Tied Inverters are powerful inverters that convert direct current (DC) electricity into alternating current (AC), It is also called On grid system which works without a battery. The Main purpose of Grid tied inverter is to supply power from the Mains supply to homes/offices and feed the Generation of solar Power to the Mains supply
Grid Tie Inverters are designed to quickly disconnect from the grid if the utility grid goes down. It ensures that in the event of a blackout, the grid-tie inverter shuts down to prevent the energy it transfers from harming any line workers who are sent to fix the power grid.
Key Features
- On Gird/ Gird Tied inverter for Saving electricity bill by selling access generation of Solar Power to Power distribution Companies through Net metering system.
Video

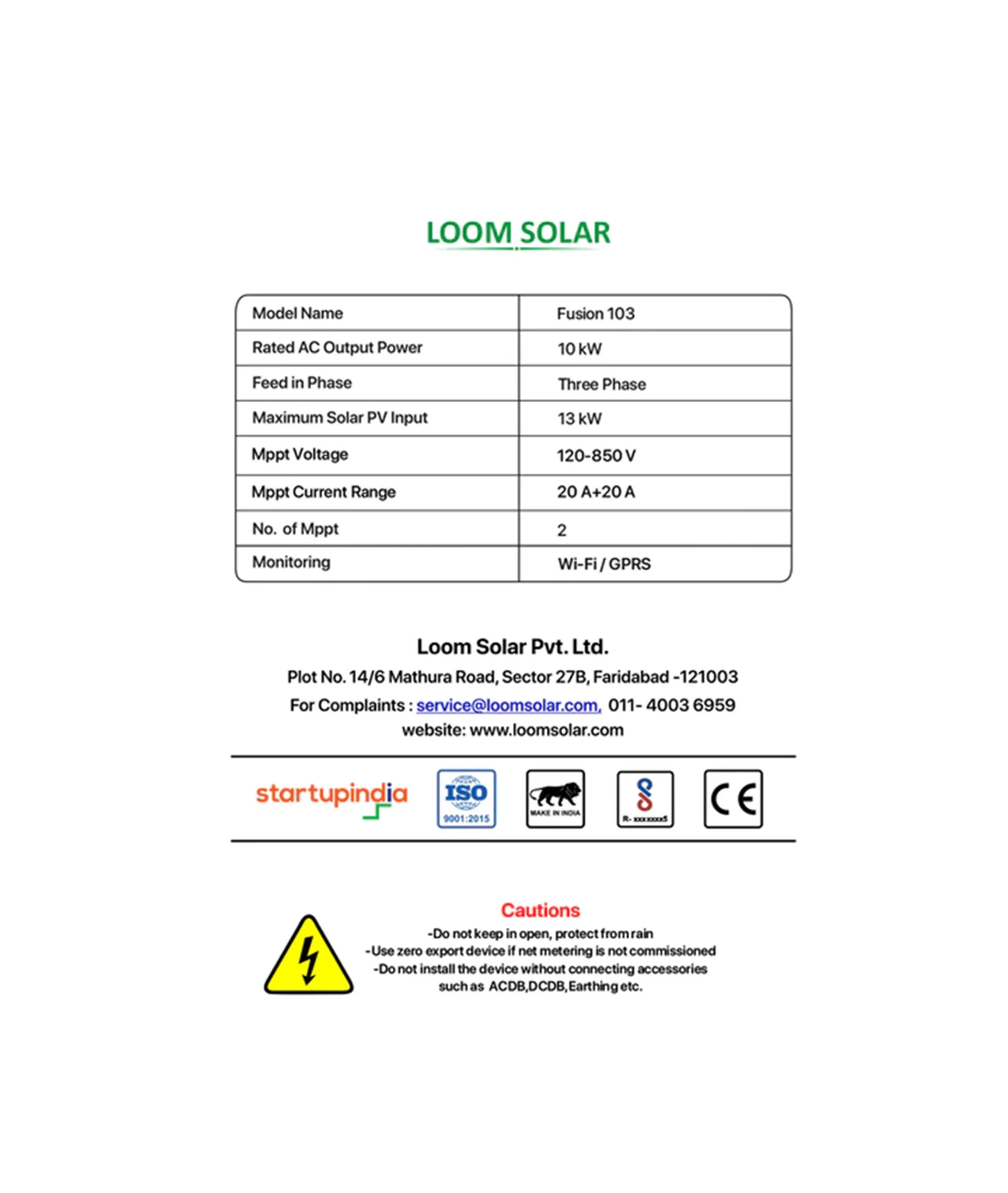

Technical Specifications
|
Model Name |
Fusion 103 |
| System Rating |
10 KW, Three Phase |
|
Maximum Solar Panel Connection (Watts) |
12000 Watts |
|
Efficiency |
96.80% |
|
Feed-in Phase |
Three-phase |
|
Topology |
Transformerless |
|
Number of MPPT Controllers |
1 |
|
Noise |
< 30dBA |
|
Weight (kg) |
15 Kg |
|
Dimensions [L * H * W] mm |
330 * 472 * 202 |
Product Manual: Download the product data sheet to know the electrical parameters
