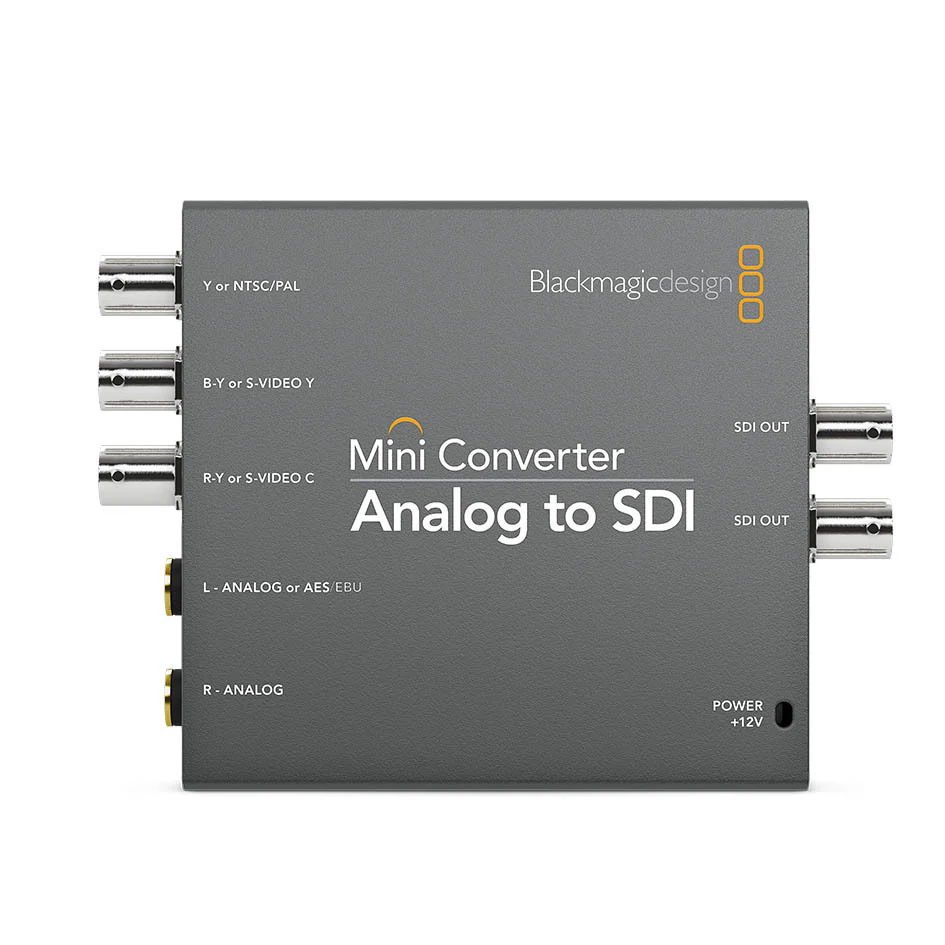

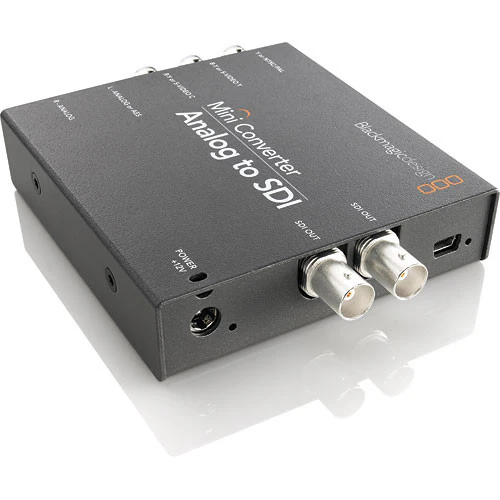

Blackmagic Mini Converter Analog to SDI
Key Features:
- Analog to SDI Conversion
- Embedded Audio
The Mini Converter Analog to SDI from Blackmagic will accept an HD/SD component, NTSC, PAL, or S-video signal and convert it to an SDI output. You can also choose to embed SDI audio from balanced AES/EBU or analog audio inputs. Use this device to convert video from Betacam SP, VHS, set-top boxes, HDV cameras, and other similar devices.
Analog to SDI Conversion
Embedded Audio
|
Input |
(1) component, NTSC, PAL, and S-video via 3x BNCs |
|
Output |
(2) SDI (switchable between SD, HD & 3Gbs SDI) |
|
Audio |
Analog: (2) channels of professional balanced analog with standard 1/4" jack connections Digital: (2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard (Audio inputs are shared) |
|
Power |
12VDC |
|
Dimensions (HxWxD) |
Not specified by manufacturer |
|
Weight |
Not specified by manufacturer |
In the Box:
- Blackmagic Design Mini Converter Analog to SDI
- Power Supply
- Limited 3-Year Warranty
