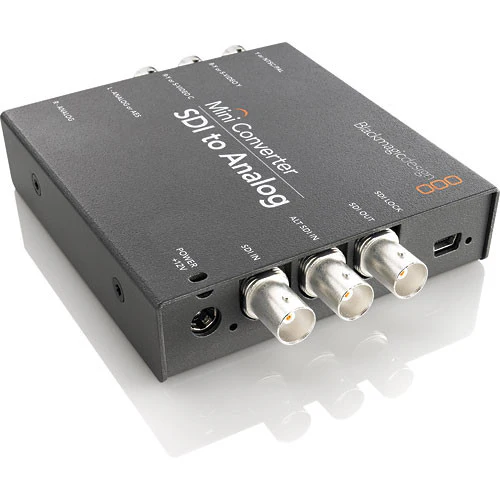

Blackmagic Mini Converter - SDI to Analog
Key Features:
- SDI to Analog Conversion
The Mini Converter SDI to Analog from Blackmagic will accept an SDI input signal and convert it to HD/SD component, NTSC, PAL, or S-video output. Also, if your SDI signal has audio embedded, the Converter will let you first de-embed the audio so that you can output it via the analog outs.
SDI to Analog Conversion
Embedded Audio
|
Input |
(1) SDI (switchable between SD, HD & 3Gbs SDI) |
|
Output |
(1) component, NTSC, PAL, and S-video (1) SDI (switchable between SD, HD & 3Gbs SDI) |
|
Audio |
Analog: (2) channels of professional balanced analog with standard 1/4" jack connections Digital: (2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard |
|
Power |
12VDC |
|
Dimensions (HxWxD) |
Not specified by manufacturer |
|
Weight |
Not specified by manufacturer |
In the Box:
- Blackmagic Design Mini Converter SDI to Analog
- Power Supply
- Limited 3-Year Warranty
