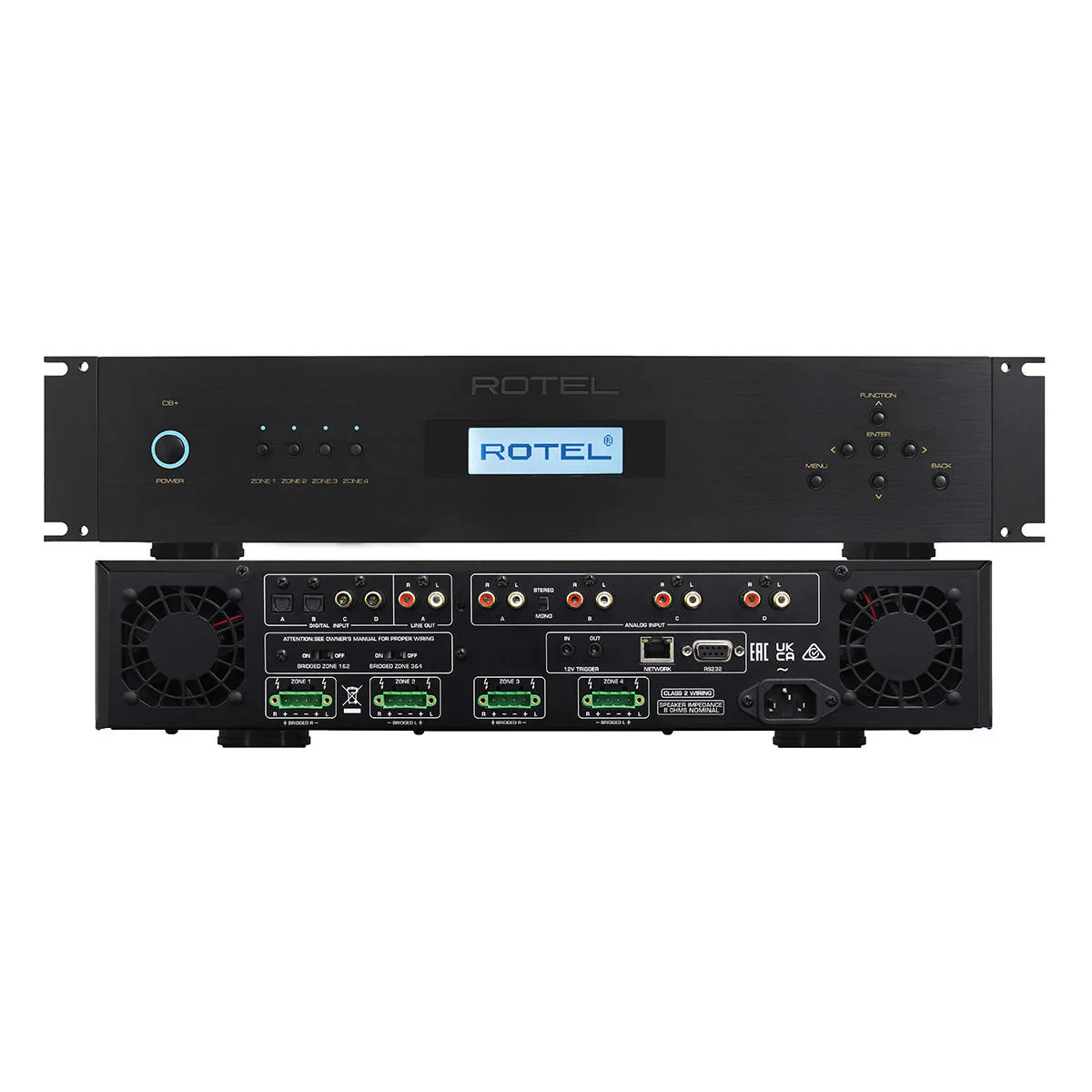

Rotel C8+ 8-channel Distribution Amplifier
The feature-packed Rotel C8+ 8-channel Distribution Amplifier is now available on Ooberpad. Performance amalgamates efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm loads. The C8+ comprises 4 Analog and 4 Digital inputs matrixed to all Zones. Front panel display and controls render source selection and independent volume, bass and treble settings. The custom 2U height requires no top or bottom clearance when rack mounting.
Warranty
2-year manufacturer's warranty
Key Features
- 8 x 150 Watts of robust Class AB power, 4 Ohms
- Class AB amplifier Design
- Custom engineered toroidal transformer
- 4 individual 24-bit/192kHz Digital to Analogue Converters
- Rack Ears included
-
12 volt trigger input
Benefits of Rotel C-8+ 8-channel Distribution Amplifier
Performance meets Efficiency
Performance meets efficiency in Rotel’s C8+ Class AB Custom Installation Amplifier, driving 8-channels of premium audio at 150 Watts per channel, or bridged at 300 Watts into 4-ohm speakers utilizing Rotel’s proprietary amplification technology. The oversized in-house manufactured toroidal transformer drives thirty-two output devices for effortless, controlled bass energy. For ultimate installation flexibility the C8+ includes 4 Analog, 4 Digital inputs matrixed to all Zones. Front panel display and controls provide source selection and independent volume, bass and treble settings. Control system integration is available via IP and RS232 interfaces and 12-Volt trigger. The custom 2U height requires no top or bottom clearance when rack mounting. The C8+ is available in black only.
Where to buy?
Buy the Rotel C8+ 8-channel Distribution Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.
Technical Specifications of Rotel C-8+ 8-channel Distribution Amplifier
| Brand & Model # | Rotel C-8+ |
| Maximum Power Output | 150W/Ch (8 channels driven, 4Ω) |
| Continuous Power Output |
100W/Ch (8 channels driven, 8Ω)
|
|
|
<0.1%
|
| Frequency Response |
Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB
Digital Inputs: 10Hz - 20kHz, 0 ± 0.5dB
|
|
|
Line Level Inputs: 100dB
Digital Inputs: 102dB
|
| Gain |
26dB
|
| Intermodulation Distortion (60Hz:7kHz, 4:1) | <0.01% |
| Damping Factor |
80
|
| Tone Controls | ±10dB at 100Hz / 10kHz |
| Crosstalk/Separation | >50dB |
| Digital to analo Instruments | Texas Instruments |
| Input Sensitivity |
Line Level Inputs: 0.43V
Digital Inputs: -13.5dBfs
|
| Input Impedance |
Line Level Inputs: 31kΩ
Digital Inputs: 75Ω
|
| Input Overload | Line Level Inputs (RCA): 2.8V |
| Optical Digital Signals | SPDIF LPCM (up to 192kHz/24-bit) |
| Power Requirements |
120V, 60Hz
|
|
|
|
| Standby Power Consumption |
Normal: <0.5W
Network Standby: <2W
|
|
|
|
| Dimensions (W x H x D) |
430 × 97 × 414mm
17" × 3.9" × 16.3" |
|
|
2U / 88.1mm (3.5")
|
|
|
18.35kg (40.79lbs.)
|
Frequently Asked Questions
The following are some common questions asked about this product:
Can I control the volume independently in each zone?
Yes, the C8+ allows independent volume control for each of the four zones, enabling customized listening experiences in different areas of your home or installation.
Is there a remote control available?
The Rotel C8+ does not come with a dedicated remote control; however, it can be integrated into a broader control system via IP and RS232 interfaces, allowing for automation and remote management through compatible systems.
