Specifications
| Supported CPU |
Intel Celeron / Pentium / i3 / i5 / i7 (4th & 5th Generation) Series Processors in LGA 1150 | |
| Chipset |
Intel H81 Chipset | |
| Memory supported |
2 x DDR3 DIMM memory slots, Memory up to 16GB, Supports DDR3 1066/1333/1600 MHz memory |
|
| BIOS |
AMI BIOS | |
| I/O Interface |

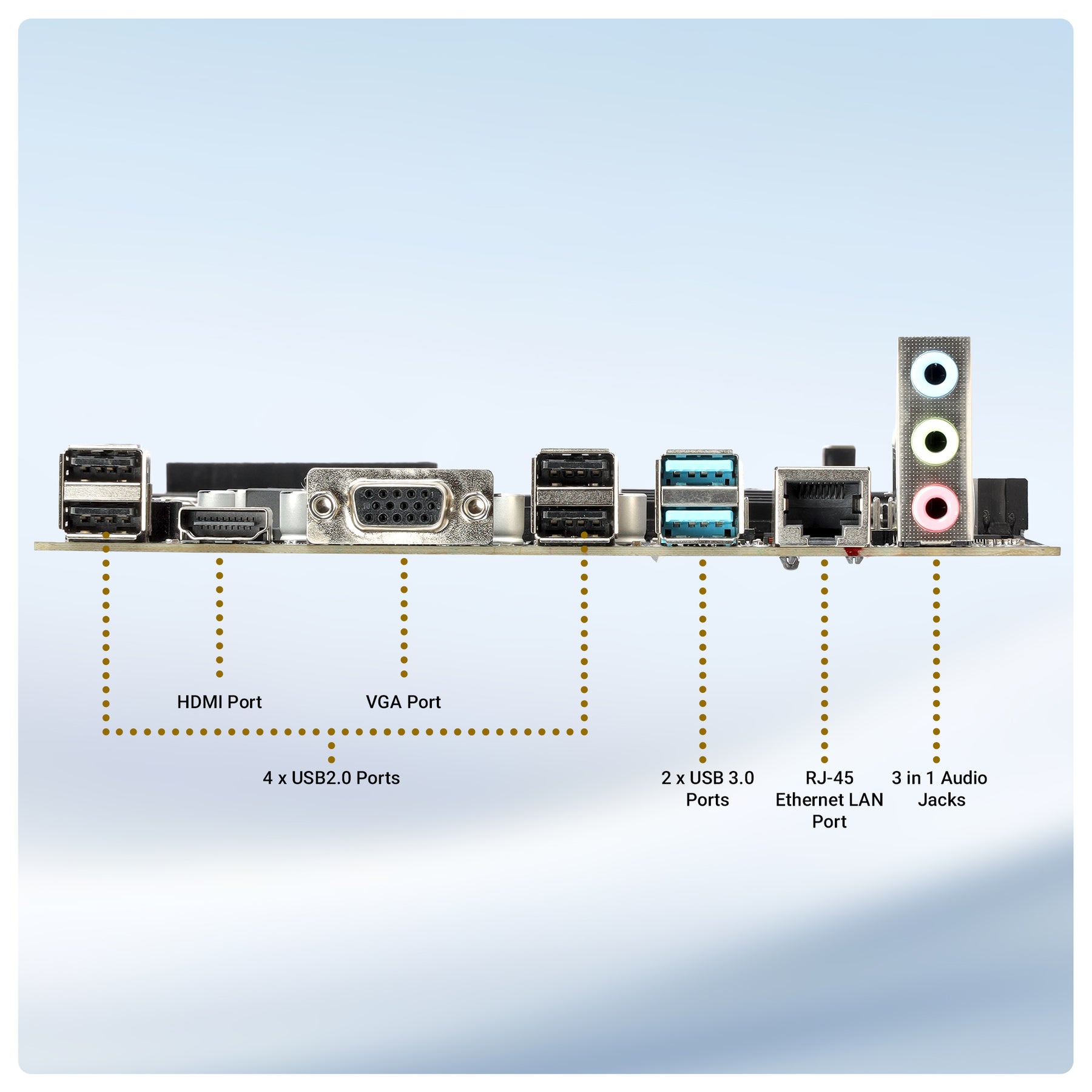

1 x HDMI, 1 x VGA, 4 x USB2.0, 2 x USB3.0, 1 x RJ45, 1 x 3-in-1 Audio Jacks | |
| Onboard interface |

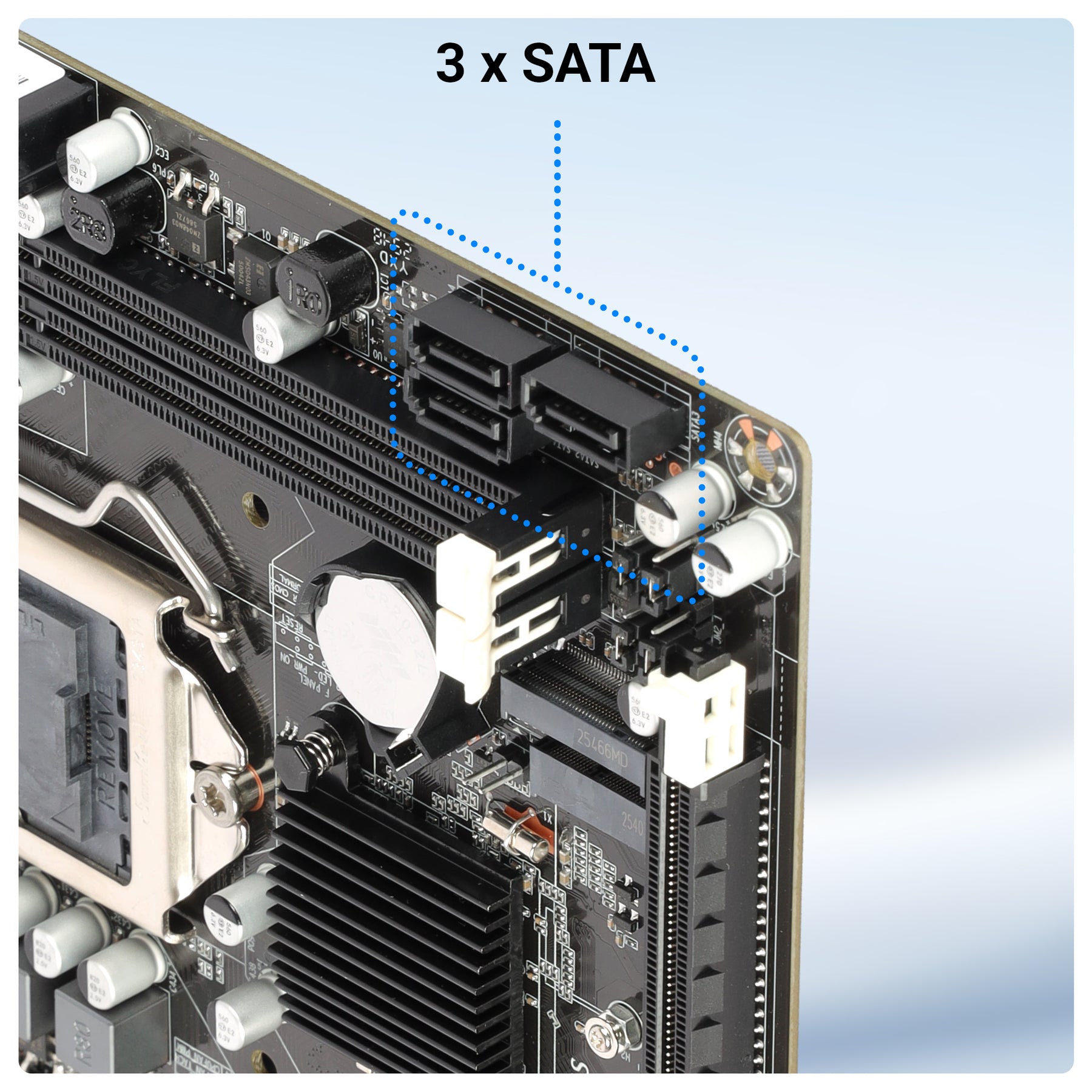

1 x 24 pin ATX Power Connector, 1 x 4 pin ATX 12V Power Connector, 2 x USB 2.0 Connectors, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 1 x 4 pin CPU Fan Connector, 1 x 3 pin SYS Fan Connector, 1 x SATA3.0 Port, 2 x SATA2.0 Port, 1 x Clear CMOS Connector, 1 x M.2 for WIFI Module, 1 x M.2 (NVMe/SATA) Slot, 1 x TPM LPC Connector |
|
| Integrated Sound |
With 5.1-Channel HD Audio | |
| Integrated LAN |
Supports RTL8105E 10/100 Mbps Ethernet LAN | |
| Expansion Slot |
1x PCI Express 2.0 x16 Size Slot, 1 x M.2 for WIFI Module, 1 x M.2 (NVMe/SATA) Slot | |
| Country of Origin | People's Republic of China | |
|
|
||
| Motherboard | 1 U | |

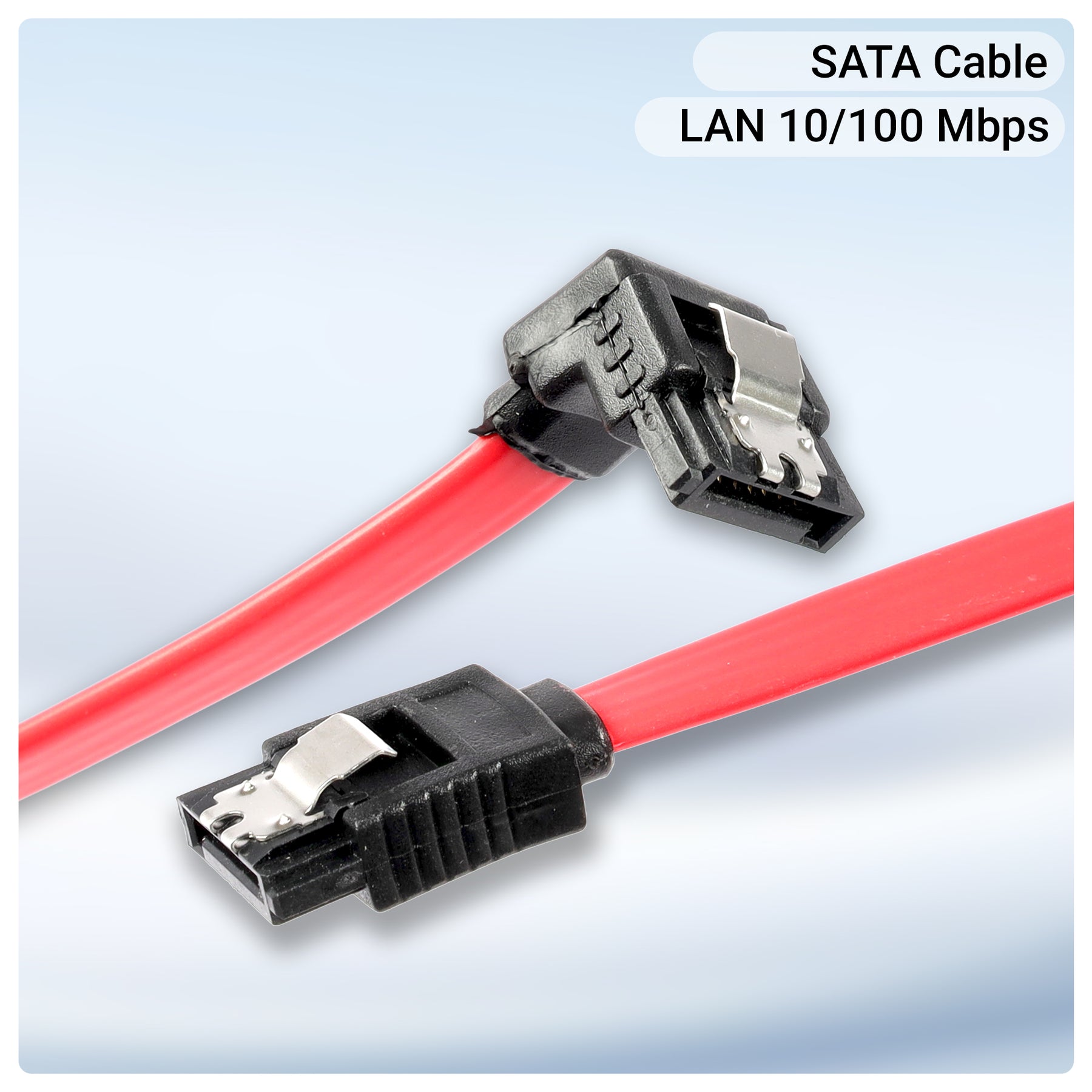

| SATA Cable |
1 U | |

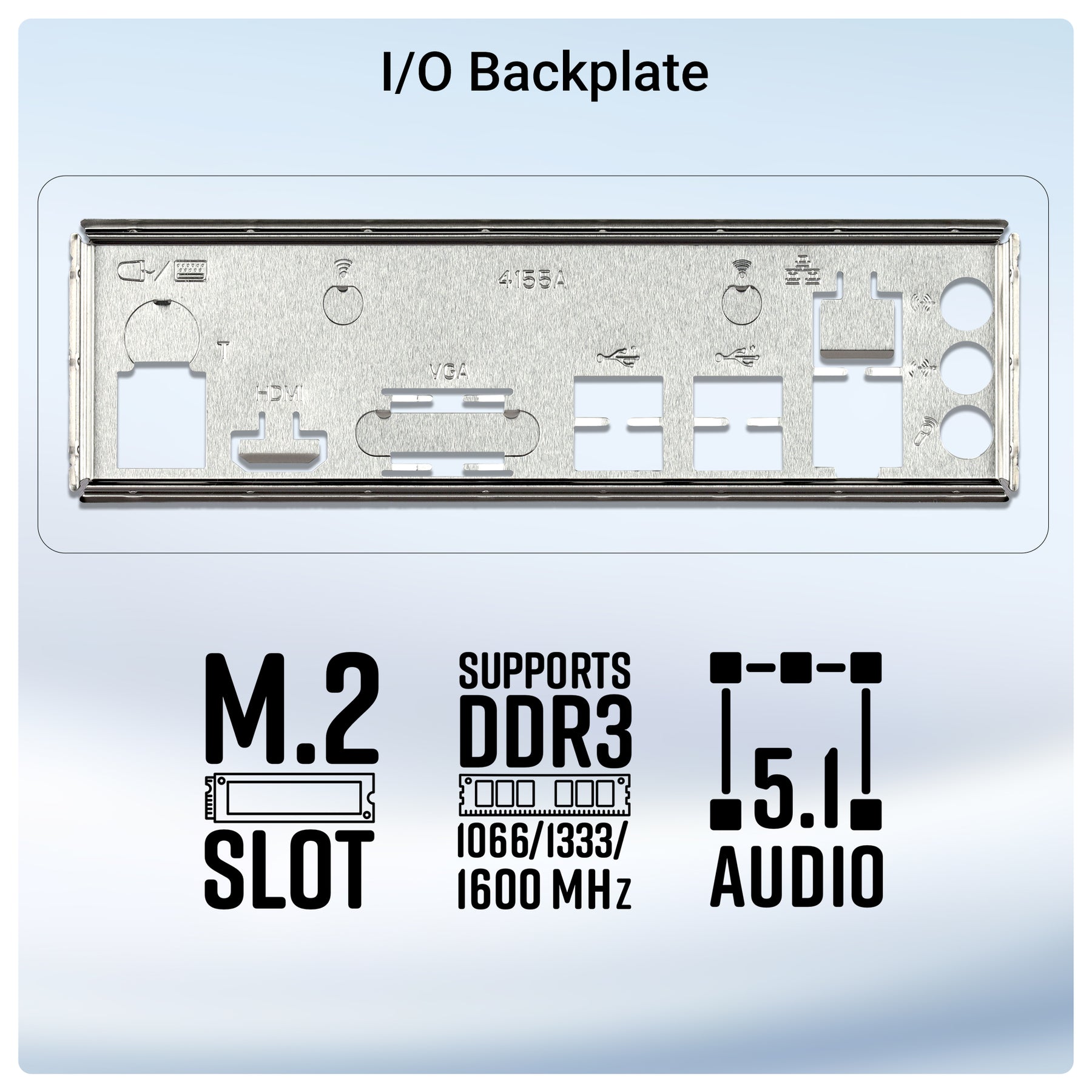

| I/O Backplate |
1 U | |
| Driver Disc |
1 U | |
| User Manual |
1 U |
