Zeb H81SN M2 - LGA 1150 SOCKET

Specifications

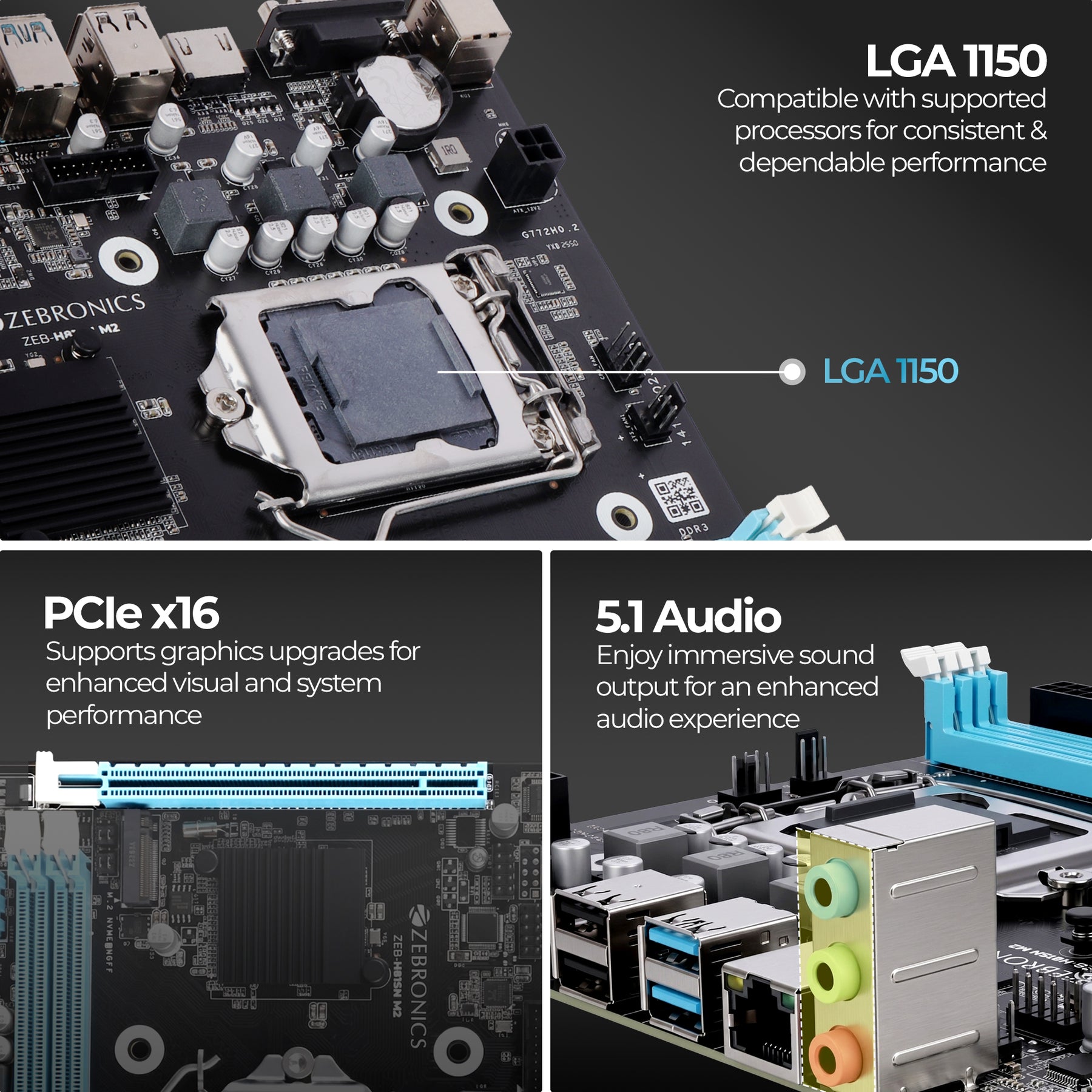

	Supported CPU	Intel Celeron  / Pentium / i3 / i5 / i7 (4th & 5th Generation) Series Processors in LGA 1150

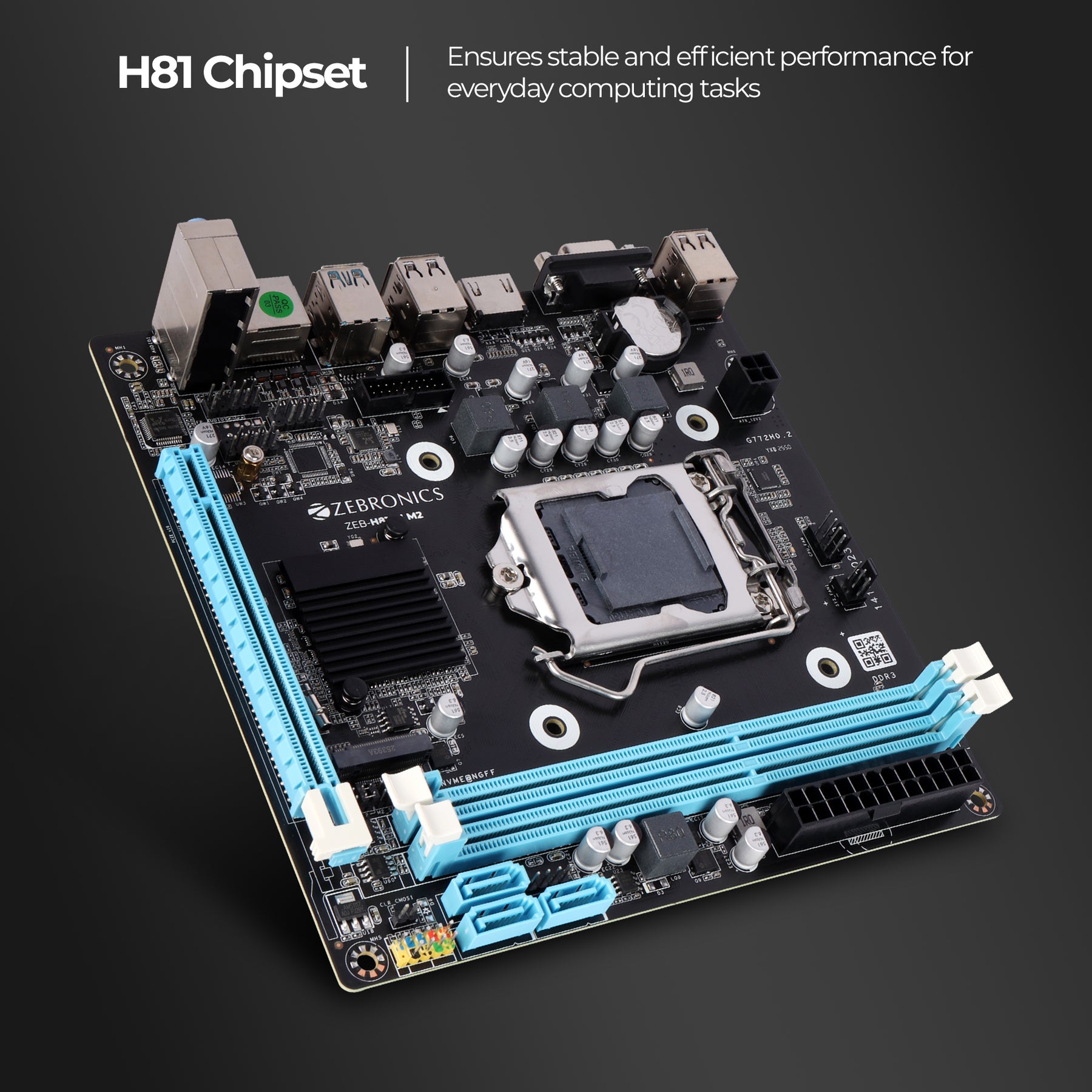

	Chipset	Intel H81 Chipset

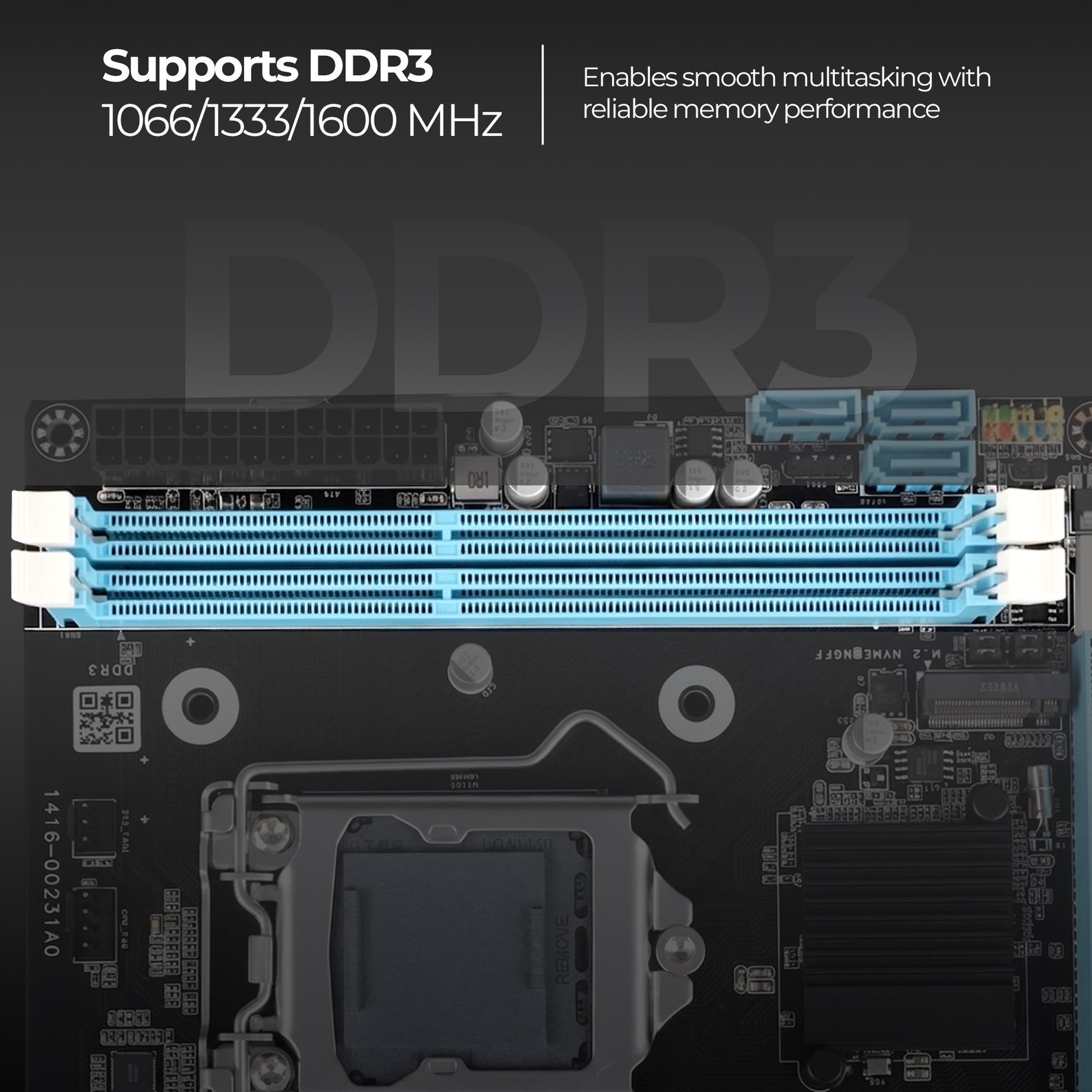

	Memory supported	2 x DDR3 DIMM memory slots, Memory up to 16GB, Supports DDR3 1066/1333/1600 MHz memory
	BIOS	AMI BIOS

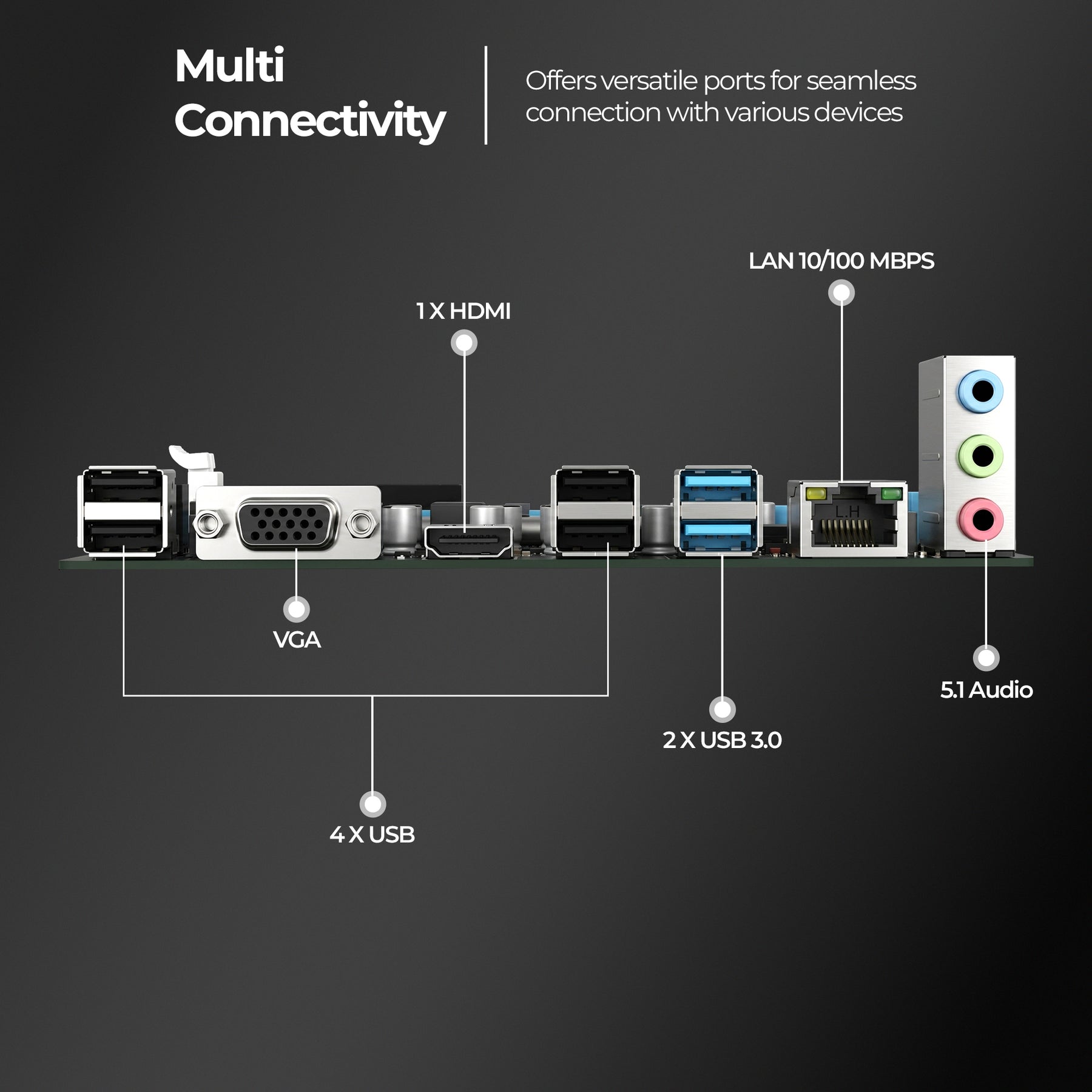

	I/O Interface	1 x HDMI, 1 x VGA, 4 x USB2.0, 2 x USB3.0, 1 x RJ45, 1 x 3-in-1 Audio Jacks

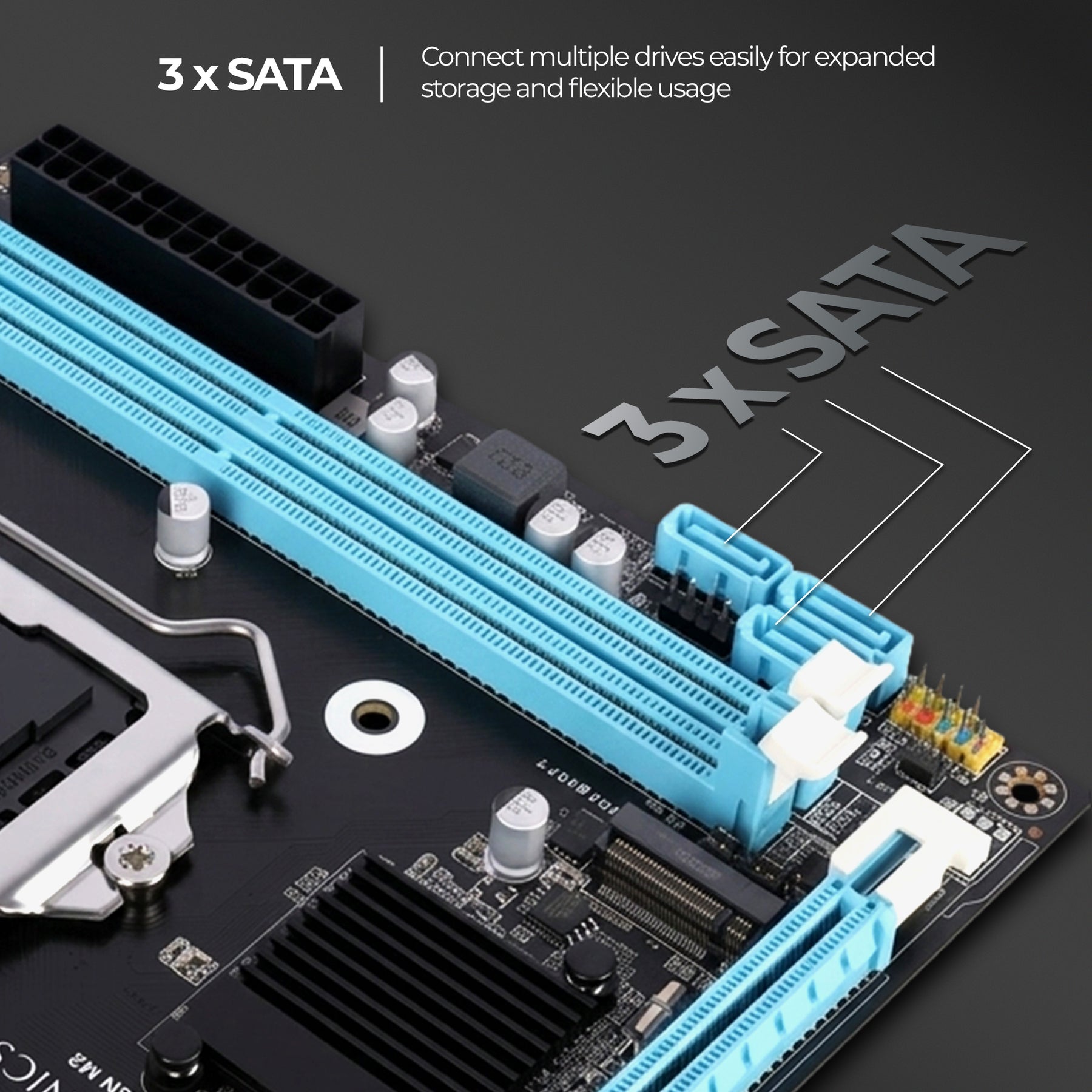

	Onboard interface	1 x 24 pin ATX Power Connector, 1 x 4 pin ATX 12V Power Connector, 2 x USB 2.0 Connectors, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 1 x 4 pin CPU Fan Connector, 1 x 3 pin SYS Fan Connector, 1 x SATA3.0 Port, 2 x SATA2.0 Port, 1 x Clear CMOS Connector, 1 x M.2 (NVMe/SATA) Slot.
	Integrated Sound	With 5.1-Channel HD Audio

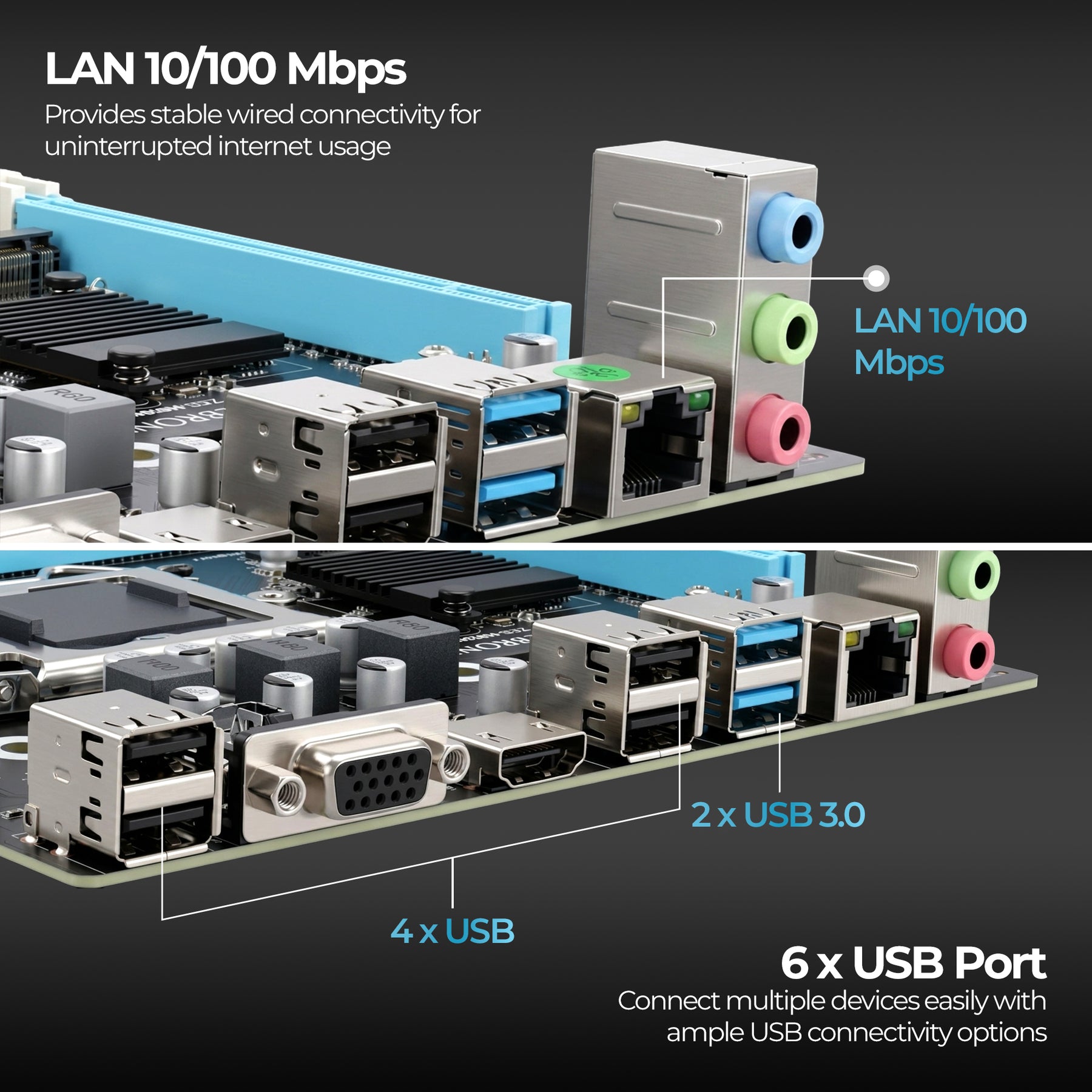

	Integrated LAN	Supports RTL8105E 10/100 Mbps Ethernet LAN

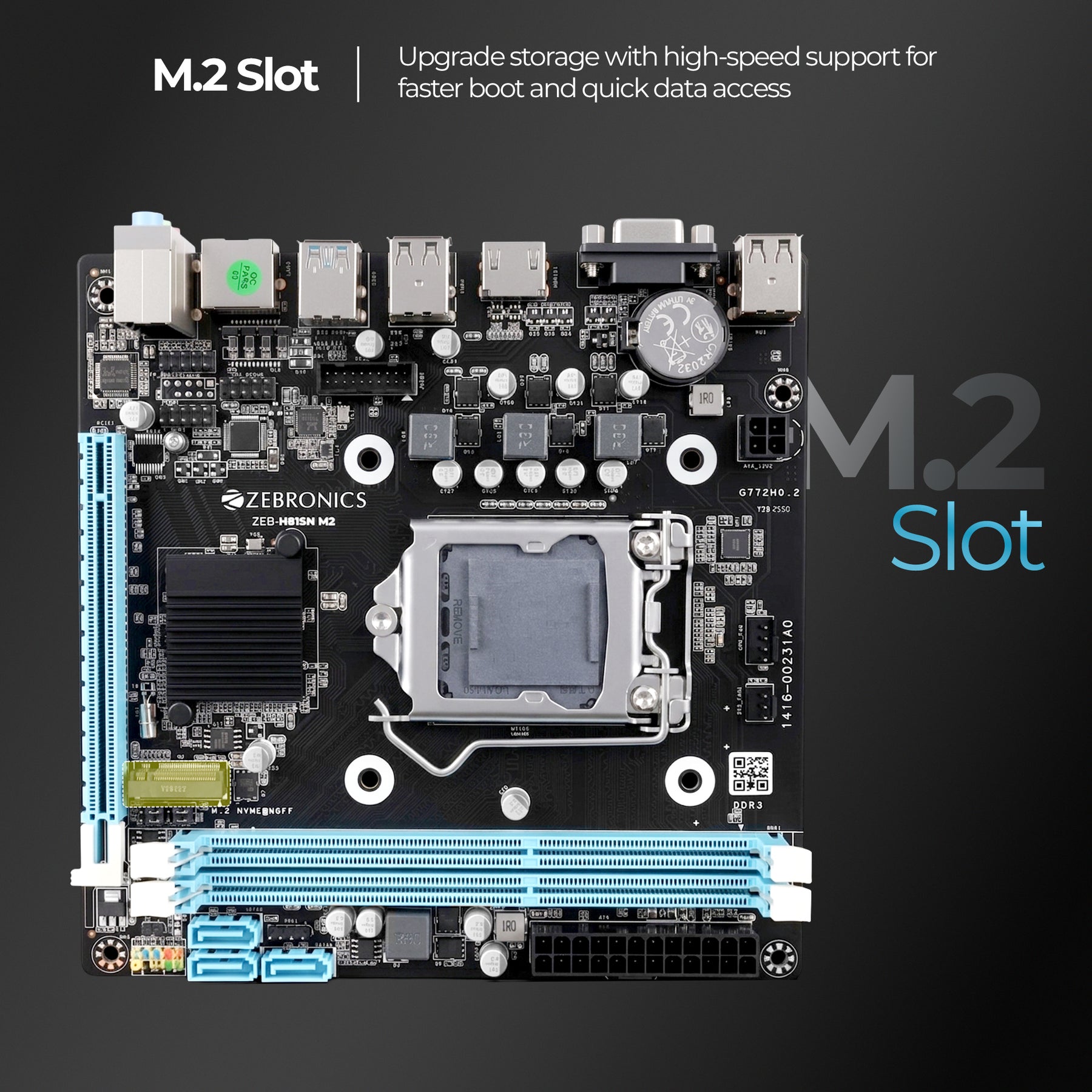

	Expansion Slot	1x PCI Express 2.0  Size Slot, 1 x M.2 (NVMe/SATA) Slot
	Country of Origin	People's Republic of China
	Package contents
	Motherboard	1 U
	SATA Cable	1 U
	I/O Backplate	1 U
	Driver Disc	1 U
	User Manual	1 U
