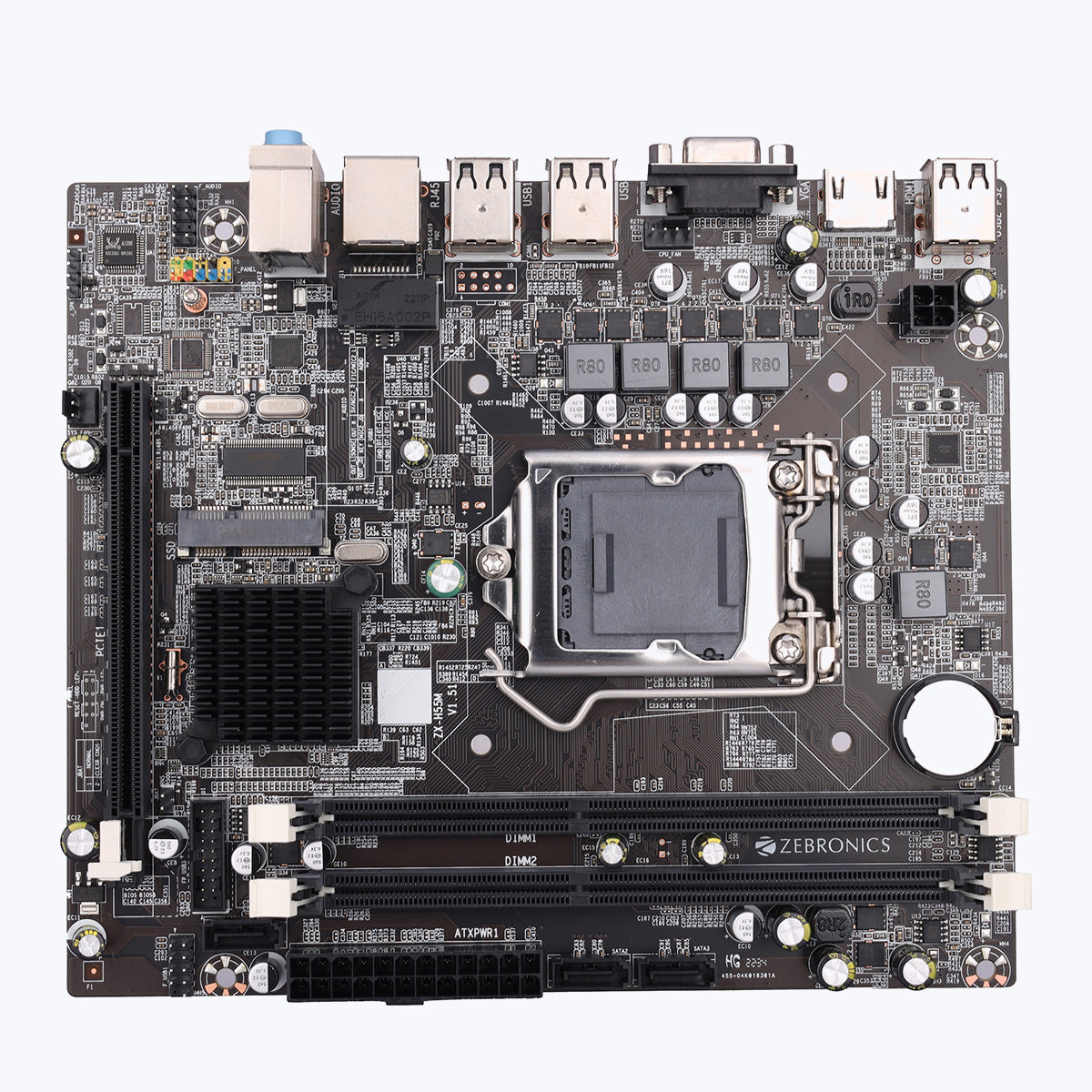

Features

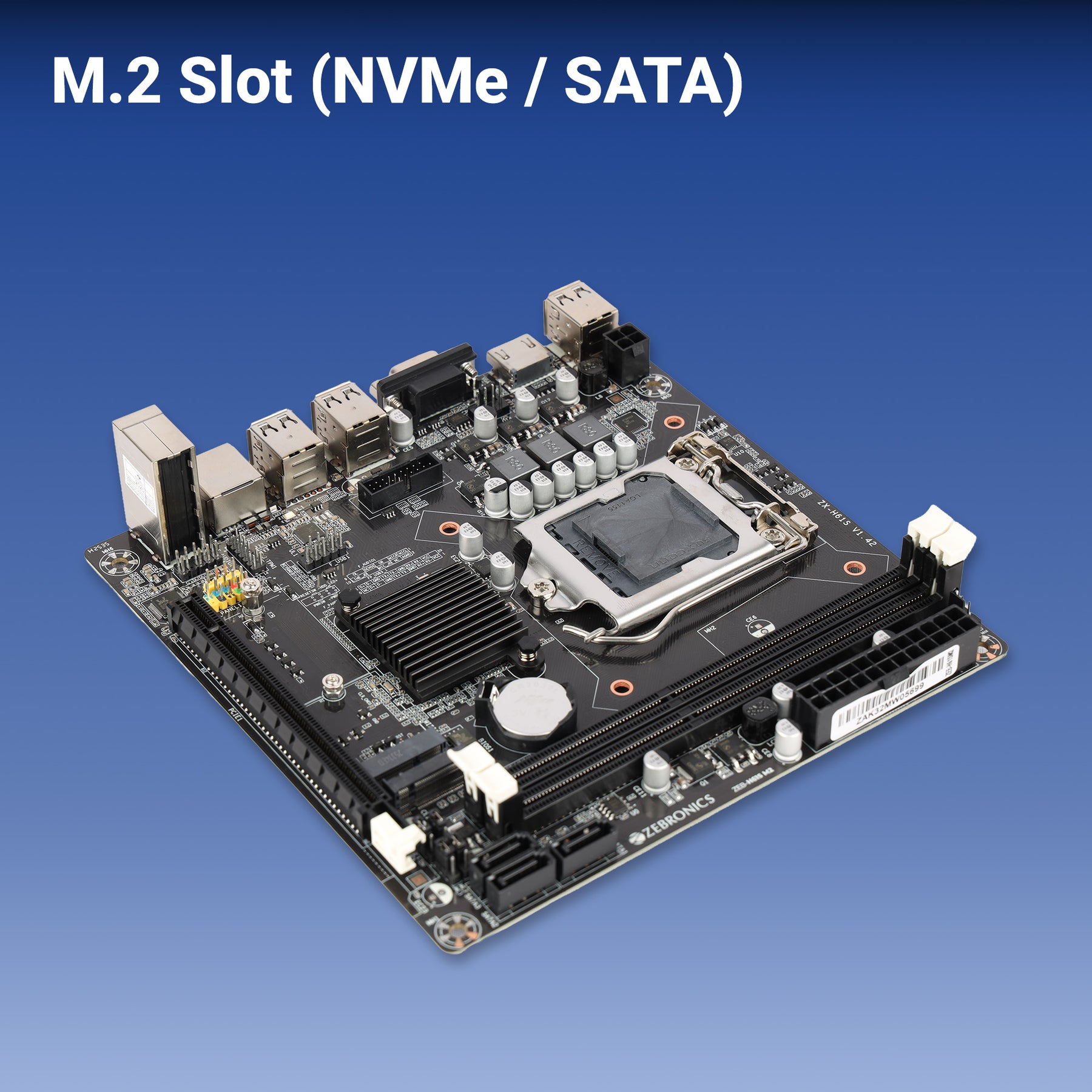

| M.2 Slot (NVM/ SATA) |

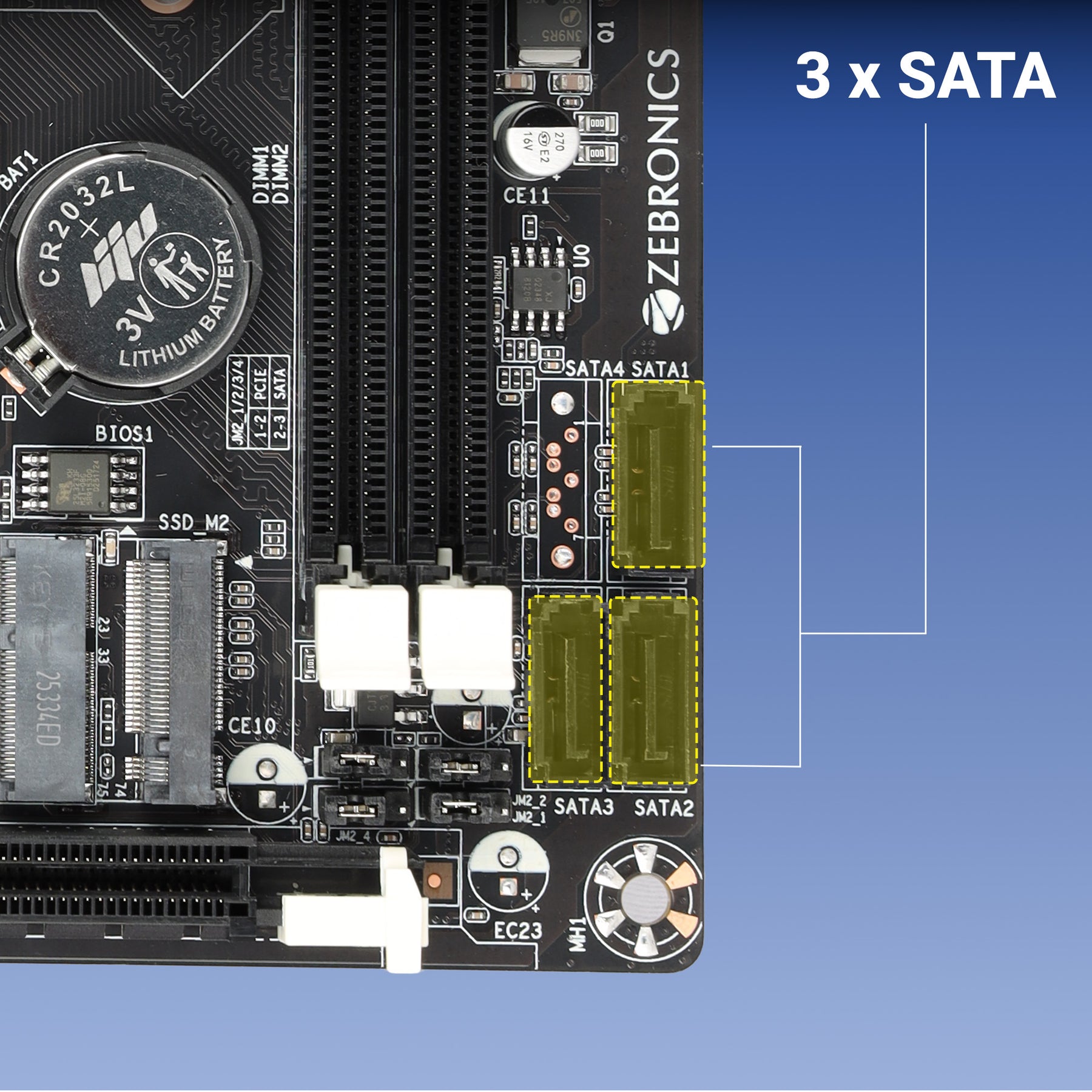

| 3 SATA II |

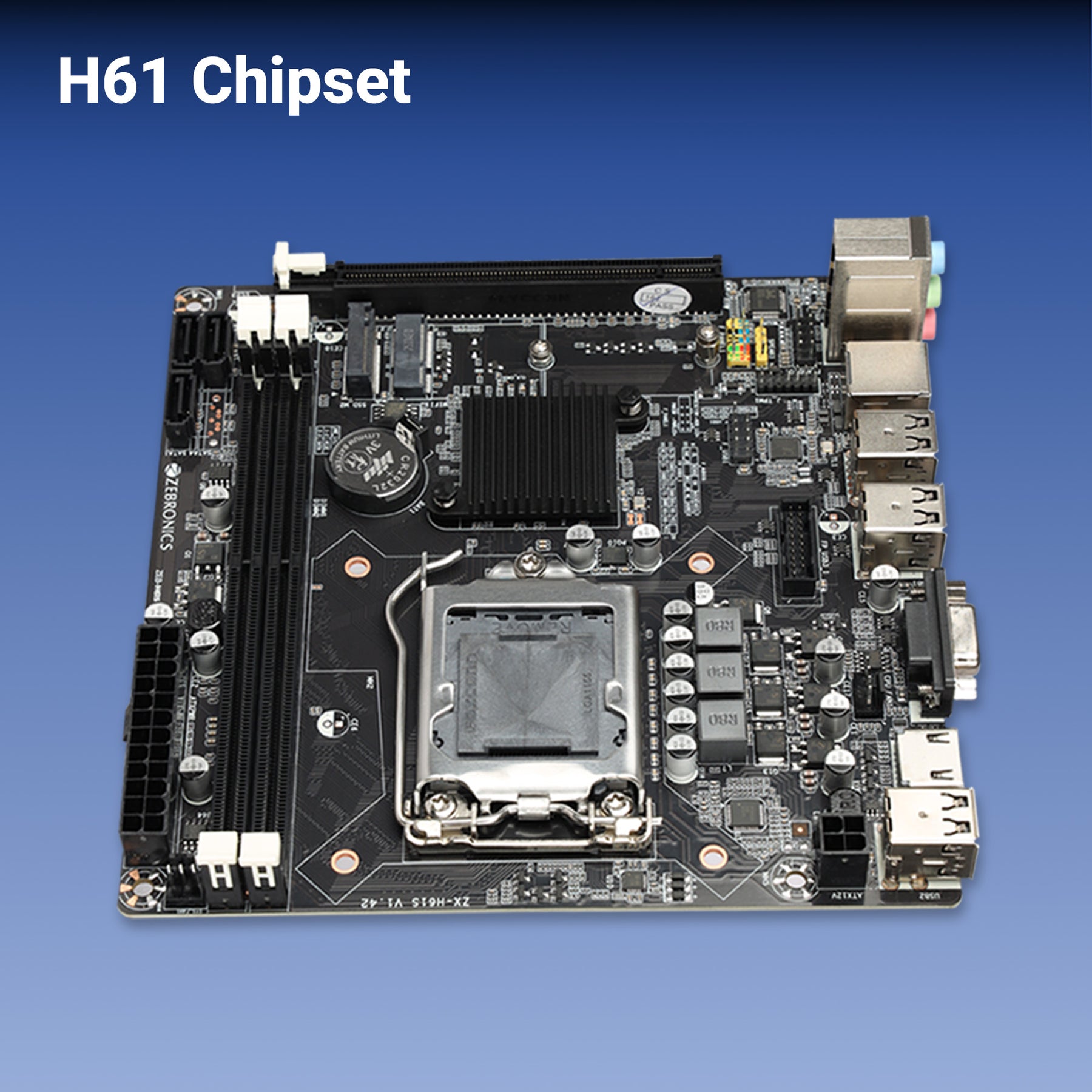

| H61 Chipset |

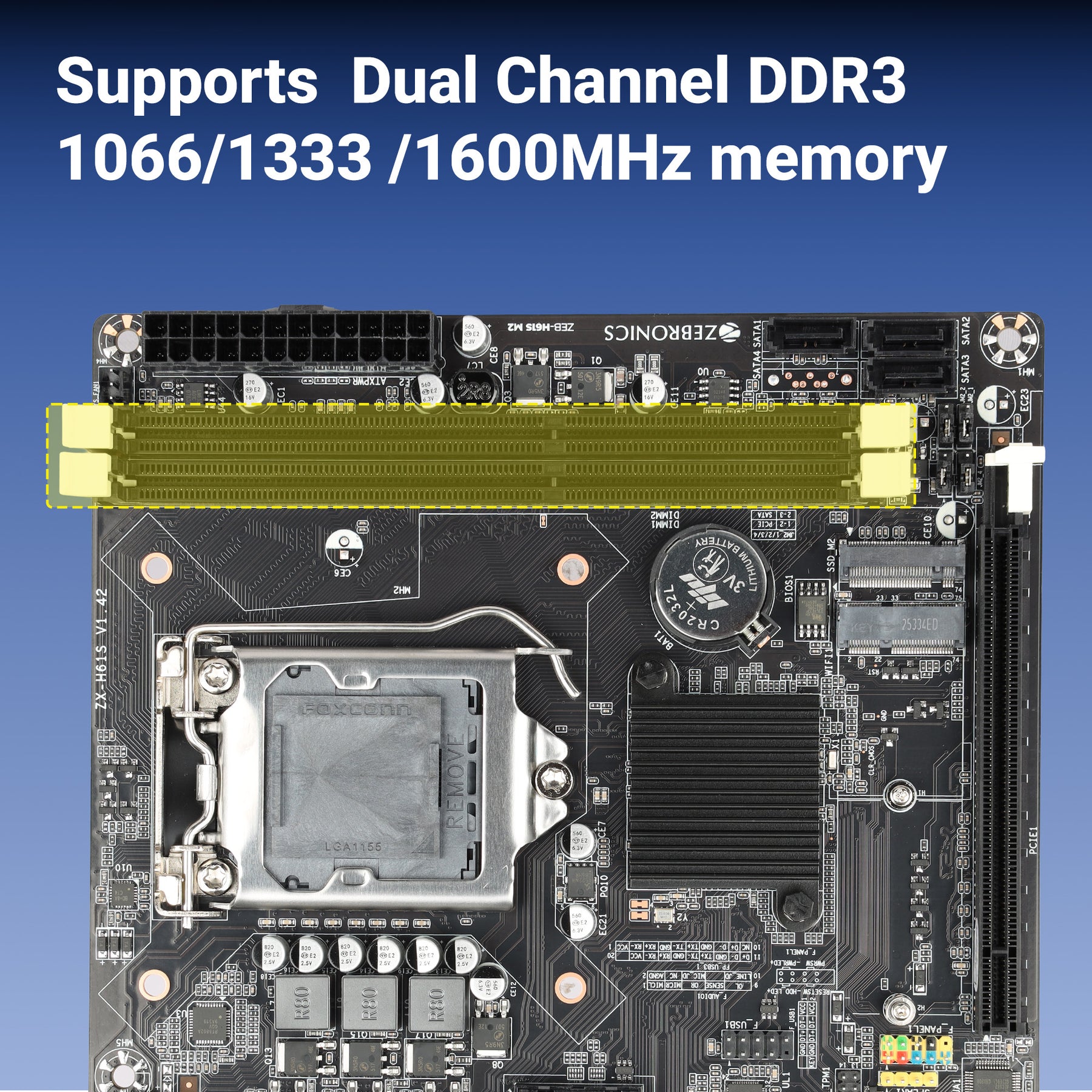

| Supports DDR3 1066/1333/1600 MHz |

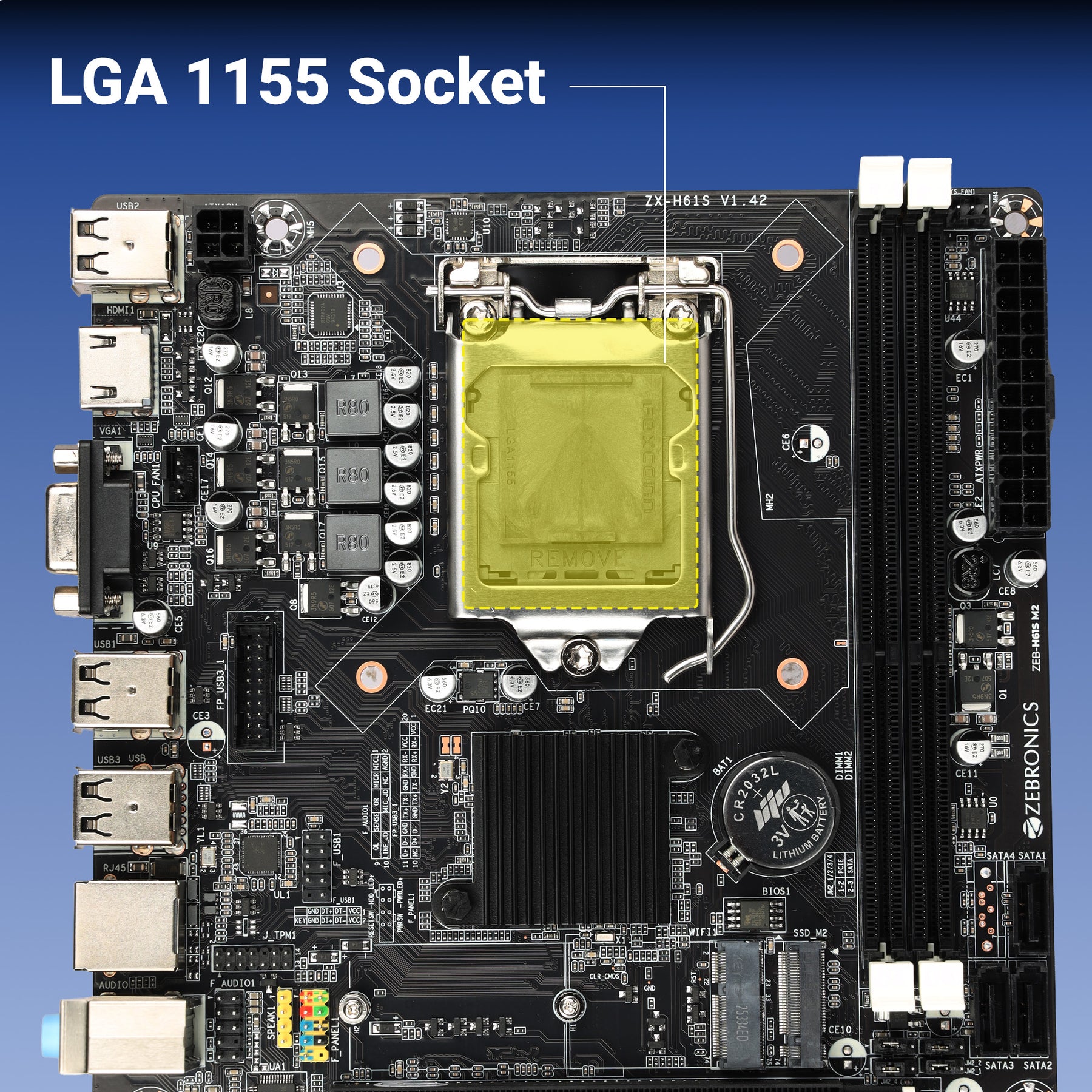

| LGA 1155 |

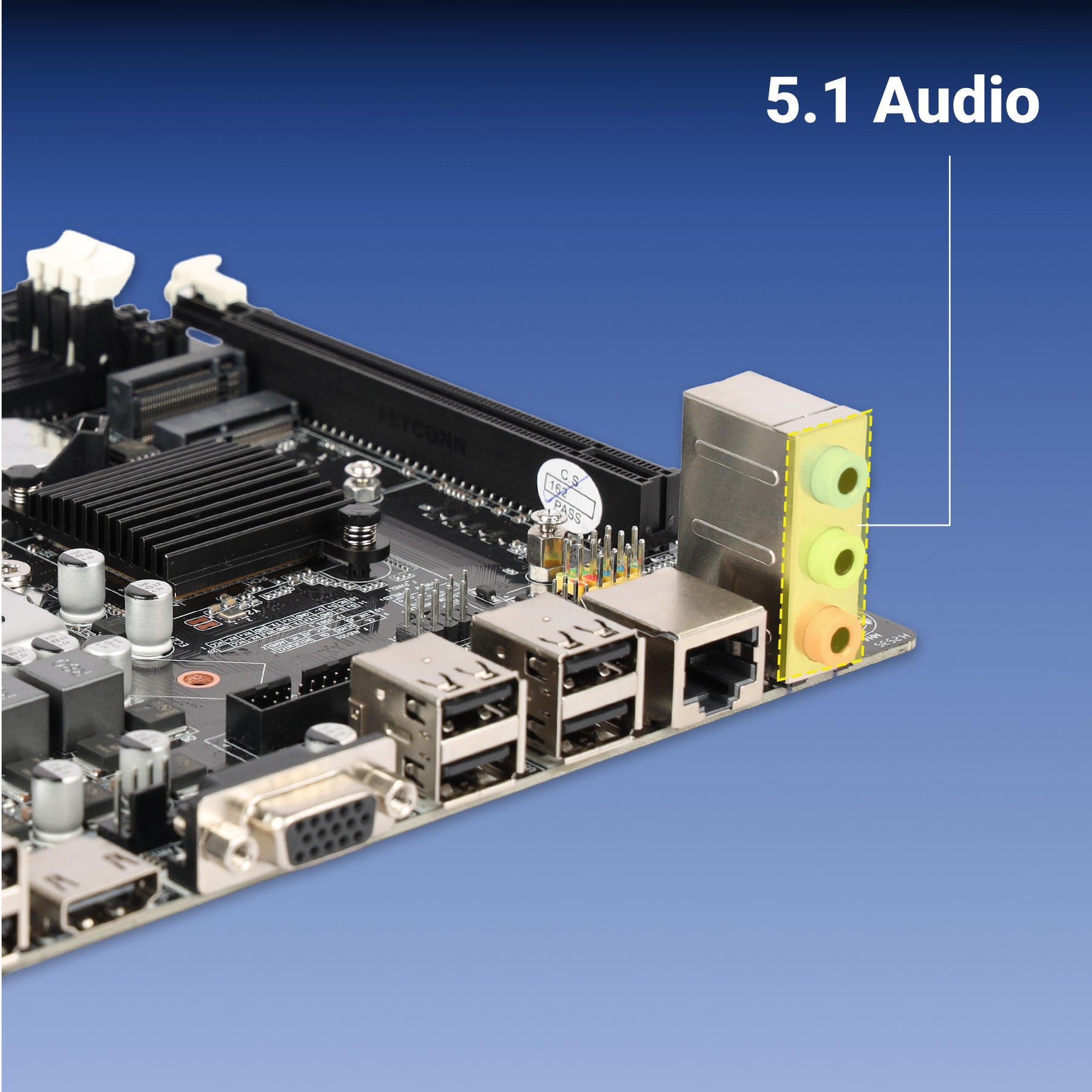

| 5.1 Audio |

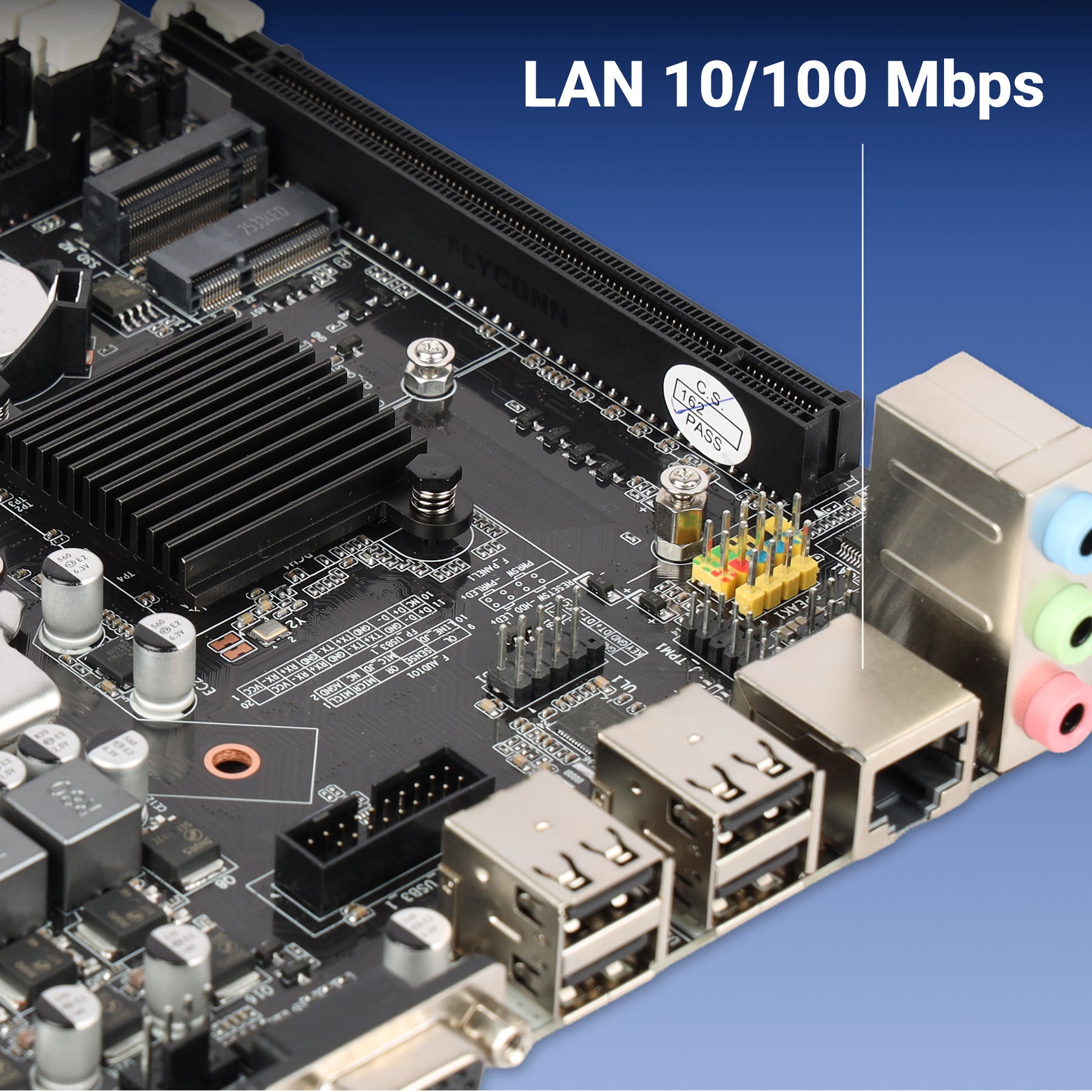

| LAN 10/100 Mbps |

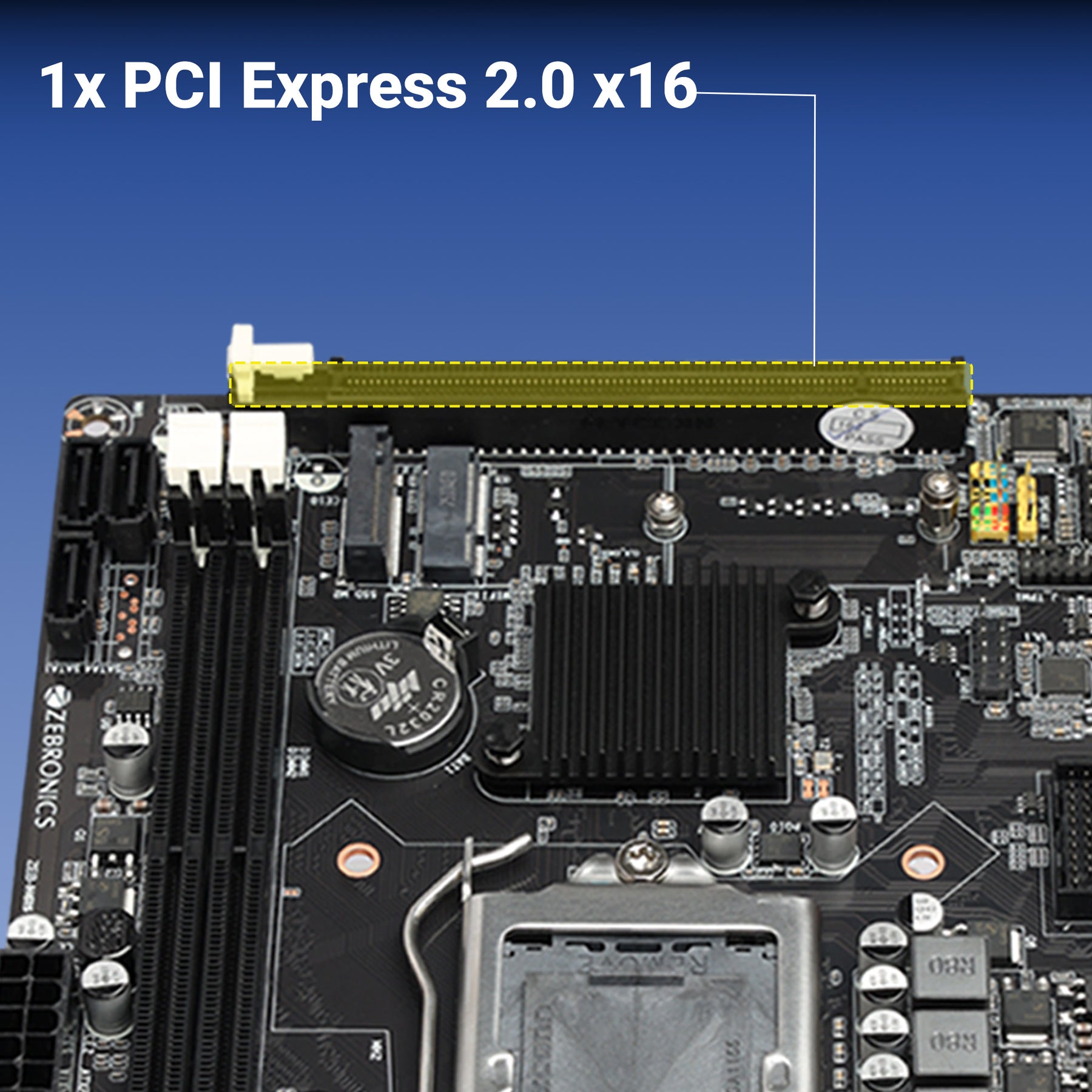

| PCle 2.0 x 16 |

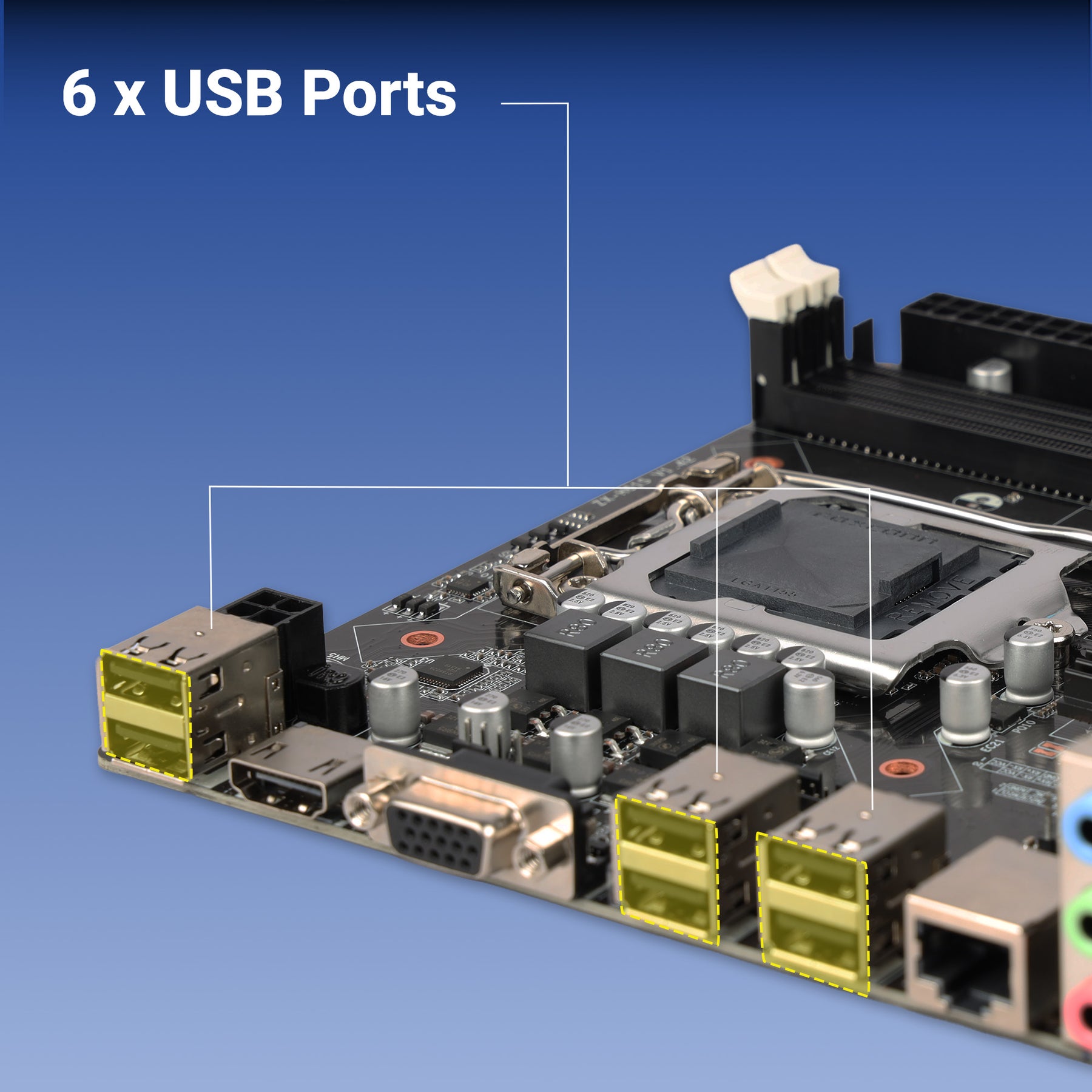

| 6 x USB Ports |
Specifications
| Supported CPU* | Socket 1155 Intel Pentium/Celeron Series Processors/i7/i5/i3 series CPU |
| Chipset | Intel H61/H67 Chipset |
| Memory Supported |
2nos DDR3 Dual Channel RAM Slots Memory up to 16GB Supports Dual Channel DDR3 1066/1333/1600 MHz Memory |
| BIOS | AMI BIOS |
| I/O Interface |

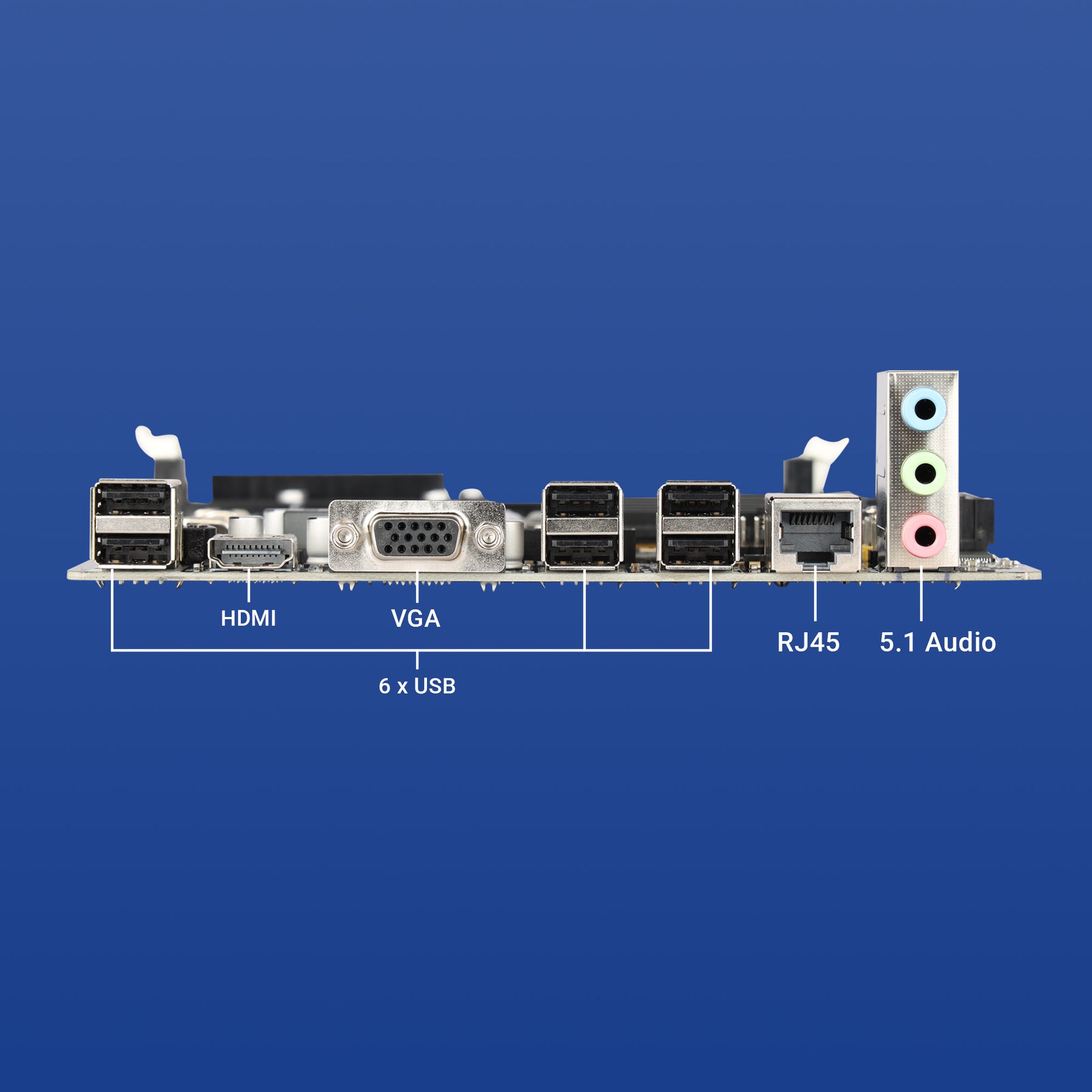

1 x HD port, 1 x VGA Port, 6 x USB 2.0 Ports, 1 x RJ45 Port, 1 x 3-in-1 |
| Onboard Interface | 1x 24 Pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 1 x Front Audio Connector, 1 x Front Panel Connector , 1 x Speaker Connector, 2 x Fan Connector, 3 x SATA II Connector, 2 x USB 2.0 Header, 2 x TPM 2.0 Connector , 1 x M.2 Slot, 1 x M.2 Slot for WIFI Module |
| Integrated Sound |
With 5.1-Channel Audio |
| Integrated LAN |
Supports Realtek 8105E 10/100 Mbps |
| Expansion Slot | 1 x PCI Express 2.0 x 16 size slot |
| Country of Origin | People’s Republic of China |
| Package contents | |
| Motherboard | 1 U |
| SATA Cable | 1 U |
| I/O Backplate | 1 U |
| Driver Disc | 1 U |
| User Manual | 1 U |
Coupons
FIRST — discount
FIRST10 — discount
FIRSTBUY — discount
FIRSTORDER — discount
FLAT10 — discount
EMAIL10 — discount
Delivery
You may also like
Zeb H61M2 - LGA 1155 Socket
Zebronics
₹4,999
Zeb H61NVMe - LGA 1155 Socket
Zebronics
₹4,999
Zeb H81S M2 - LGA 1150 SOCKET
Zebronics
₹5,199
Zeb H61, Socket 1155
Zebronics
₹3,749
Zeb H81M2 - LGA 1150 SOCKET
Zebronics
₹5,399
Zeb H110M2 - LGA 1151 Socket
Zebronics
₹8,999
Zeb H55 - 1156 Socket
Zebronics
₹5,999

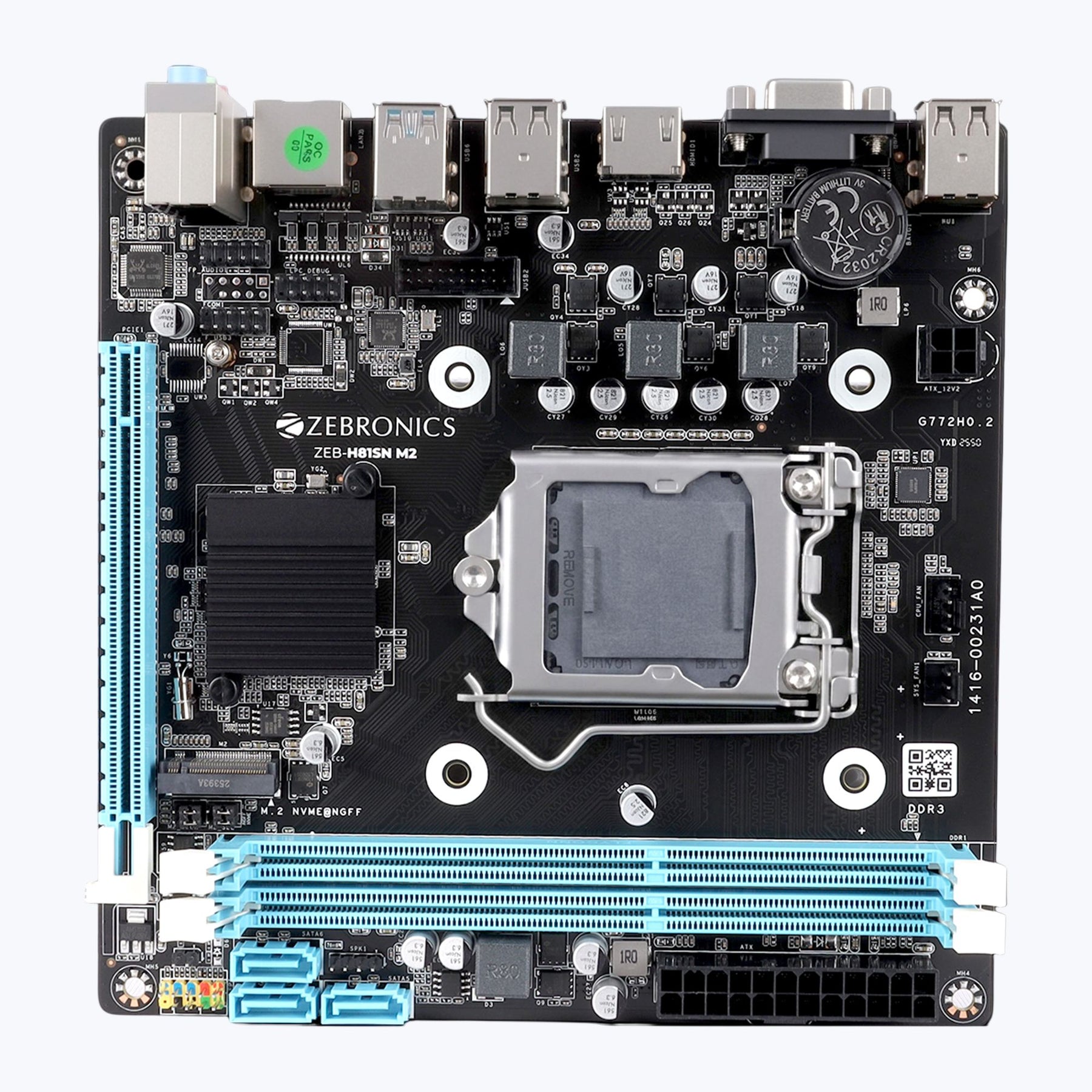

Zeb H81SN M2 - LGA 1150 SOCKET
