Blackmagic Video Assist 7” 3G

Panel Type

LCD

Display Size

7.0" / 17.8 cm

Aspect Ratio

16:9

Viewing Angle

Horizontal: 135°

Touchscreen

Yes

Maximum Brightness

310 cd/m2

Pixels Per Inch (ppi)

323 ppi

Color Gamut

100% Rec. 709

Real-Time LUT Monitoring

SDR

Image Controls

Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

Wi-Fi

None

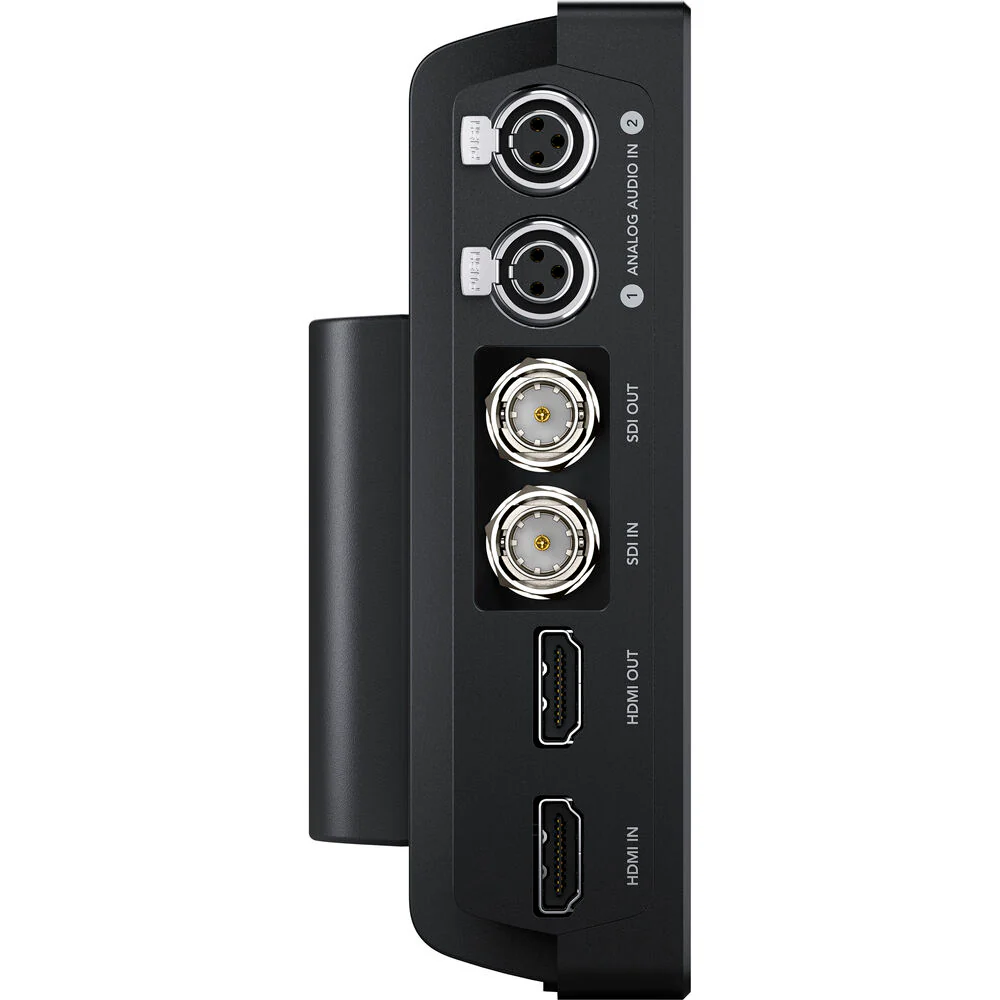

Video

1 x HDMI Type A Input

1 x BNC (3G-SDI/HD-SDI/SD-SDI) Input

1 x HDMI Type A Output

1 x BNC (3G-SDI/HD-SDI/SD-SDI) Output

HDCP Support

Yes

Embedded Audio

HDMI: 8-Channel

SDI: 16-Channel

Audio

2 x Mini-XLR Input

1 x 1/8" / 3.5 mm Headphone Output

Built-In Speaker

1

Power

1 x Barrel (12 VDC) Input

Other I/O

1 x USB Type-C

1 x LANC (2.5 mm) Input

Video Format

SDI (10-Bit 4:2:2 YUV)

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

576i: 50

480i: 59.94

HDMI (10-Bit)

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

576i: 50

480i: 59.94

Pulldown Conversion

None

Camera Trigger

None

Pre-Roll Record

None

Encoding Formats

Up to 1920 x 1080

ProRes 422 HQ, 422, LT, Proxy 10-Bit 4:2:2 at up to 60 fps

DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF 10-Bit 4:2:2 at up to 60 fps

Maximum Audio Tracks

16

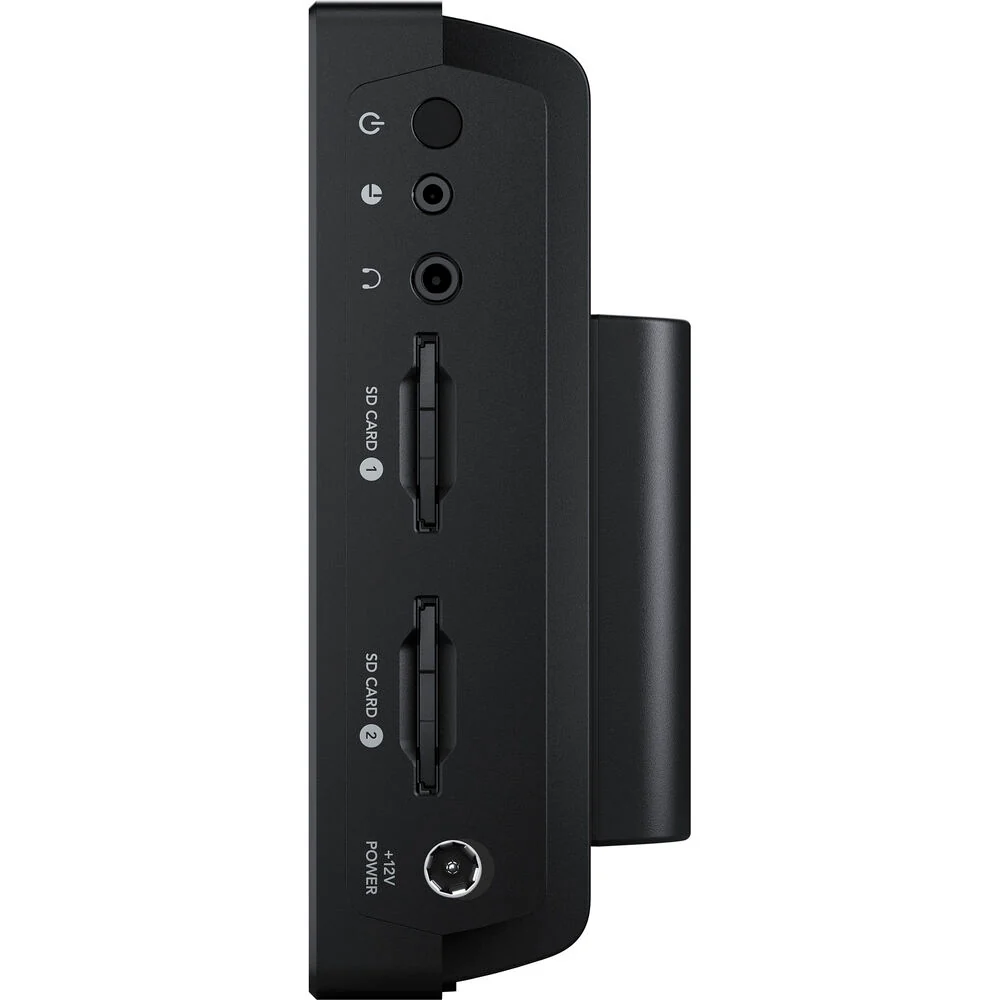

Recording Media

1 x SDXC (UHS-I)

Metadata Tagging

Yes

Phantom Power

None

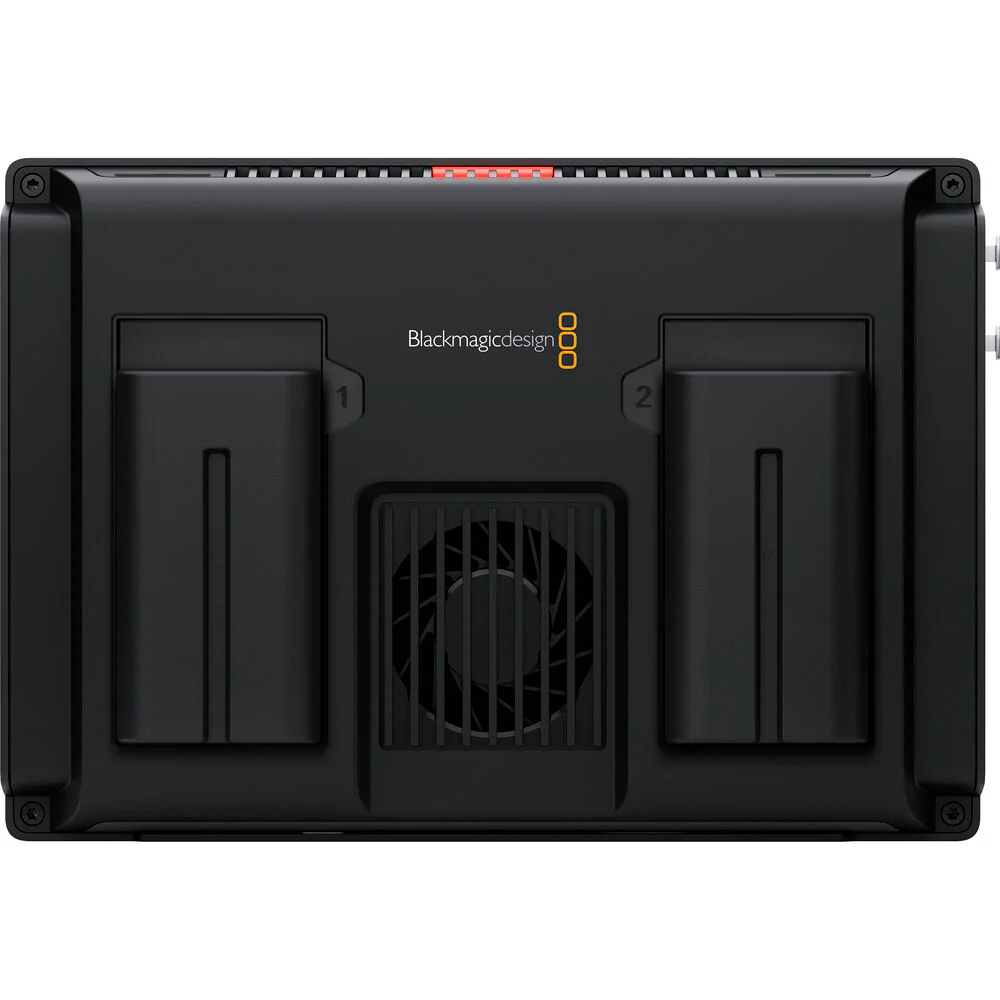

Battery Type

2 x L-Series

Mounting

6 x 1/4"-20 Female

Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

0 to 90%

Storage Temperature

-4 to 113°F / -20 to 45°C

Material of Construction

Aluminum

Dimensions

7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm

Weight

1.82 lb / 825 g

Warranty Length

Limited 1-Year Warranty
