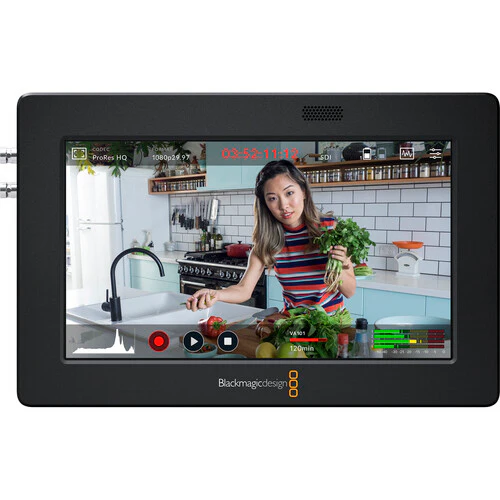

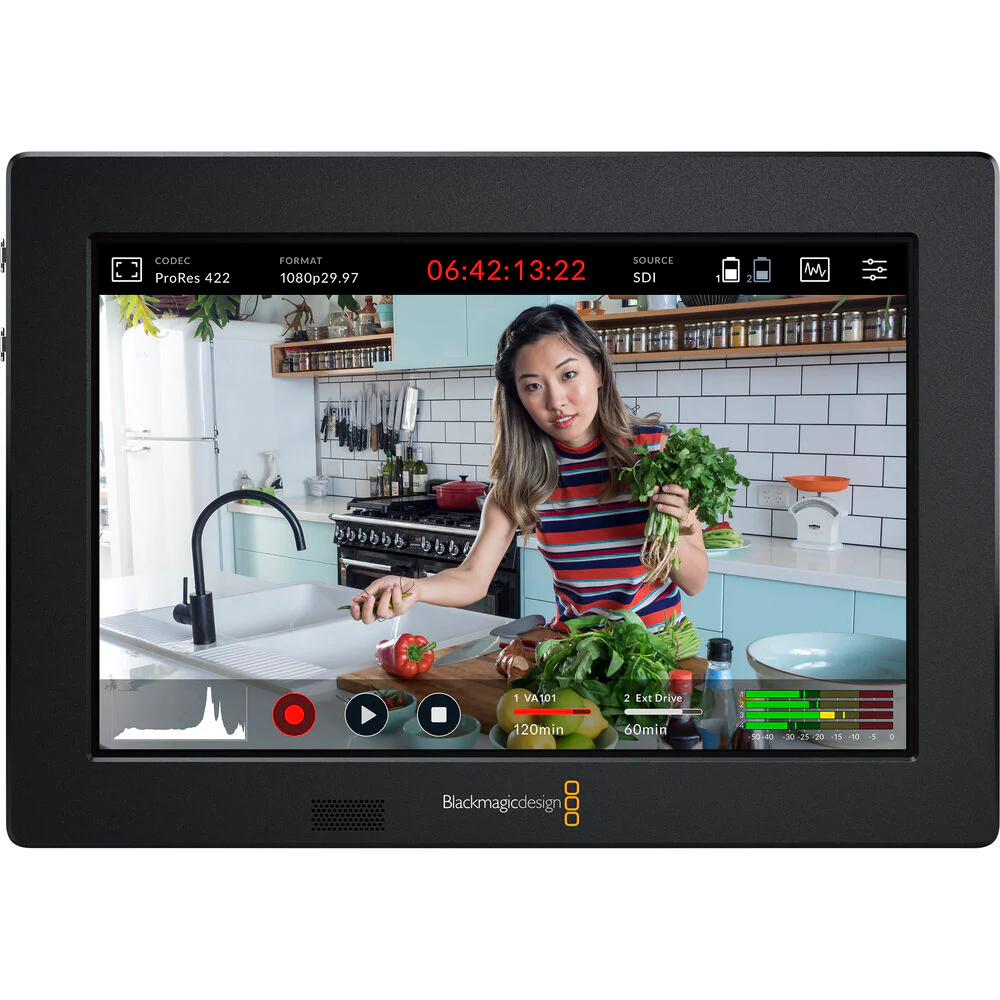

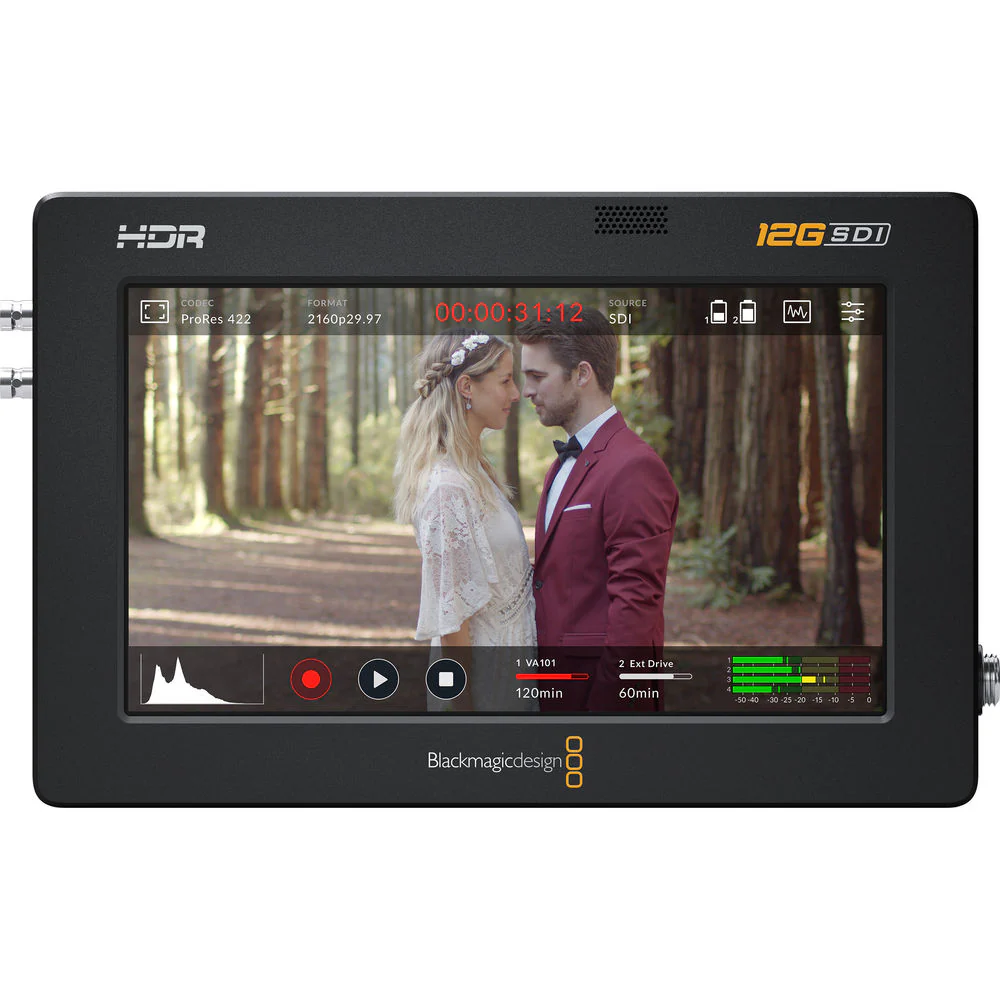

Blackmagic Video Assist 7" 12G HDR

Panel Type

TFT LCD

Display Size

7.0" / 17.8 cm

Resolution

1920 x 1200

Aspect Ratio

16:10

Touchscreen

Yes

Maximum Brightness

2500 cd/m2

HDR Compatibility

Advanced HDR

Pixels Per Inch (ppi)

323 ppi

Image Controls

Histogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform

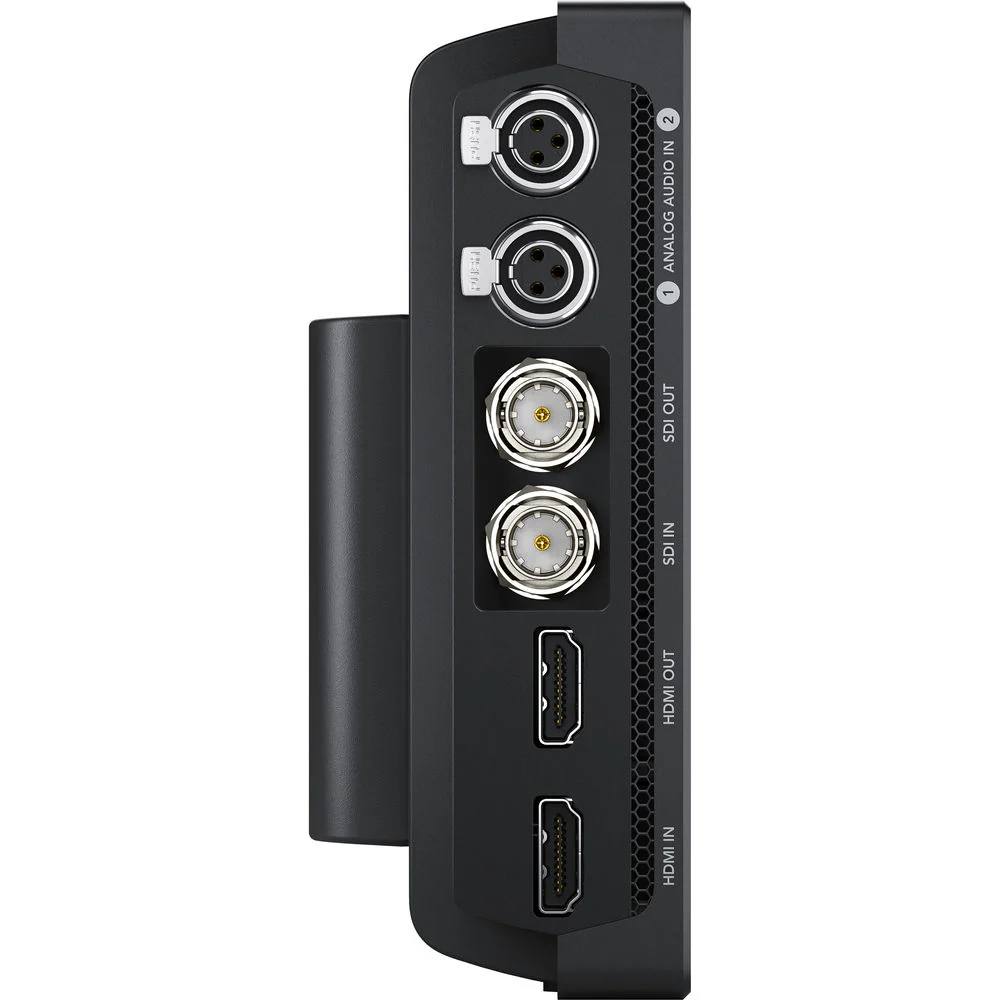

Video

1 x HDMI Type A (HDMI 2.0a) Input

1 x BNC (12G-SDI) Input

1 x HDMI Type A (HDMI 2.0a) Output

1 x BNC (12G-SDI) Output

HDCP Support

No

Embedded Audio

HDMI: 8-Channel

SDI: 16-Channel

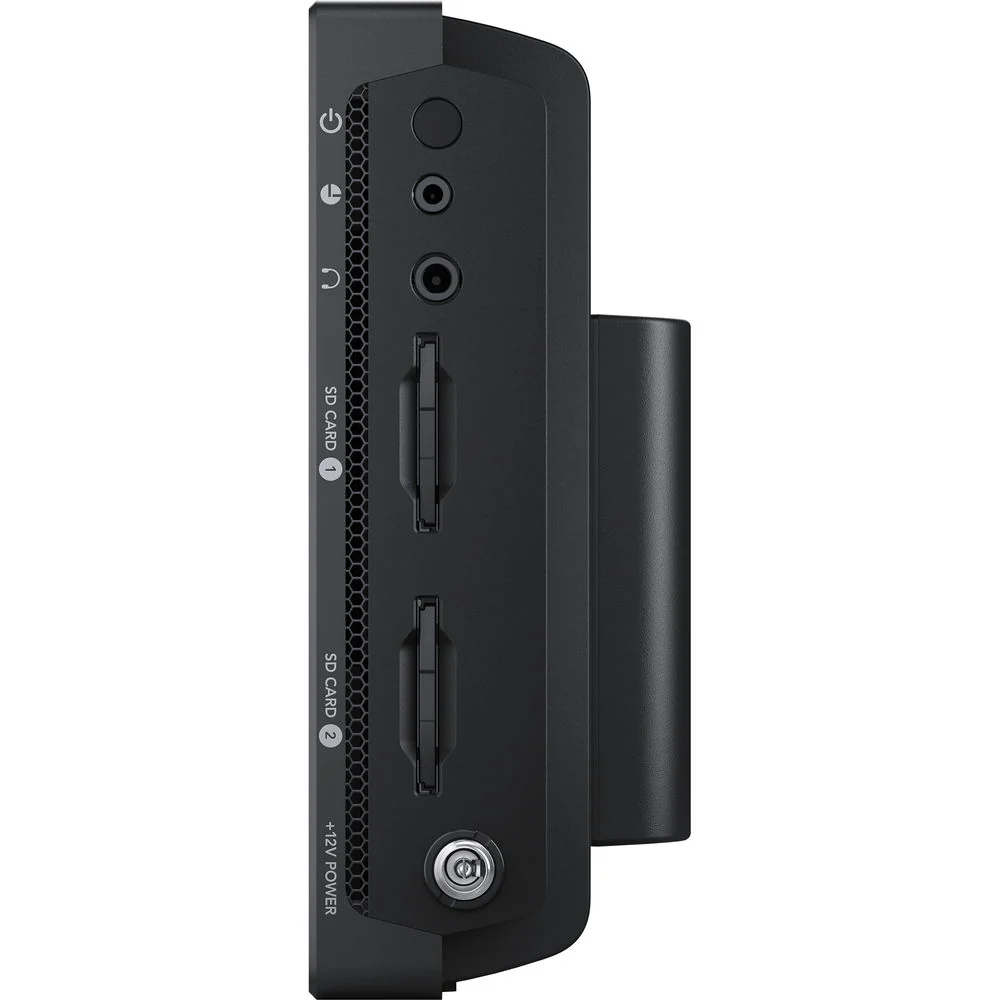

Audio

1 x 1/8" / 3.5 mm Headphone Output

2 x Mini-XLR Mic/Line Input

Built-In Speaker

1

Power

1 x Barrel (12 VDC) Input

Other I/O

1 x USB Type-C

1 x LANC (2.5 mm)

Wi-Fi

None

Video Format

SDI (10-Bit 4:2:2 RGB)

DCI 4K: 25/24/23.98

UHD 4K: 60/59.94/50/30/29.97/25/24/23.98

DCI 2K: 25/24/23.98

DCI 2K PsF: 25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

576i: 50

480i: 59.94

HDMI (10-Bit)

DCI 4K: 25/24/23.98

UHD 4K: 60/59.94/50/30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

576i: 50

480i: 59.94

Gamma Curve

HDR-HLG, Rec2020, Rec709

Timecode

Yes

Pre-Roll Record

None

Encoding Formats

Up to 4096 x 2160

ProRes 422, HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps

DNxHD 145, 145 MXF, 220x, 220x MXF, 45, 45 MXF, HQX, LB, LB MXF, SQ, SQ MXF 10-Bit 4:2:2 at up to 60 fps

Maximum Audio Tracks

16

Phantom Power

+48 V

AC Input Power

100 to 240 VAC, 50 / 60 Hz

DC Input Power

12 VDC

Built-In Battery

None

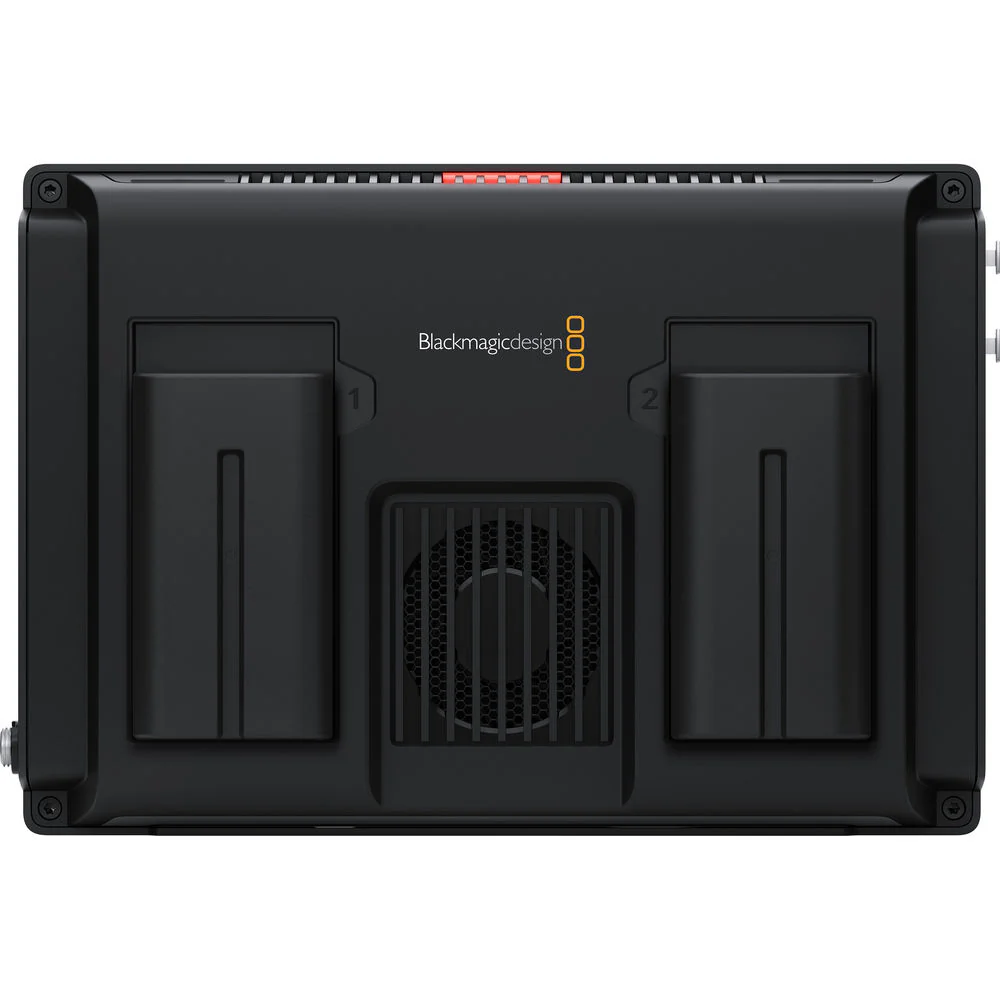

Battery Type

2 x L-Series

Power Consumption

36 W

Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

0 to 90%

Storage Temperature

-4 to 113°F / -20 to 45°C

Dimensions

7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm

Weight

29.1 oz / 824.99 g

Warranty Length

Limited 1-Year Warranty
