Features
| 7" Large Screen | |
| external storage of up to 32GB (supports mSD cards) | |

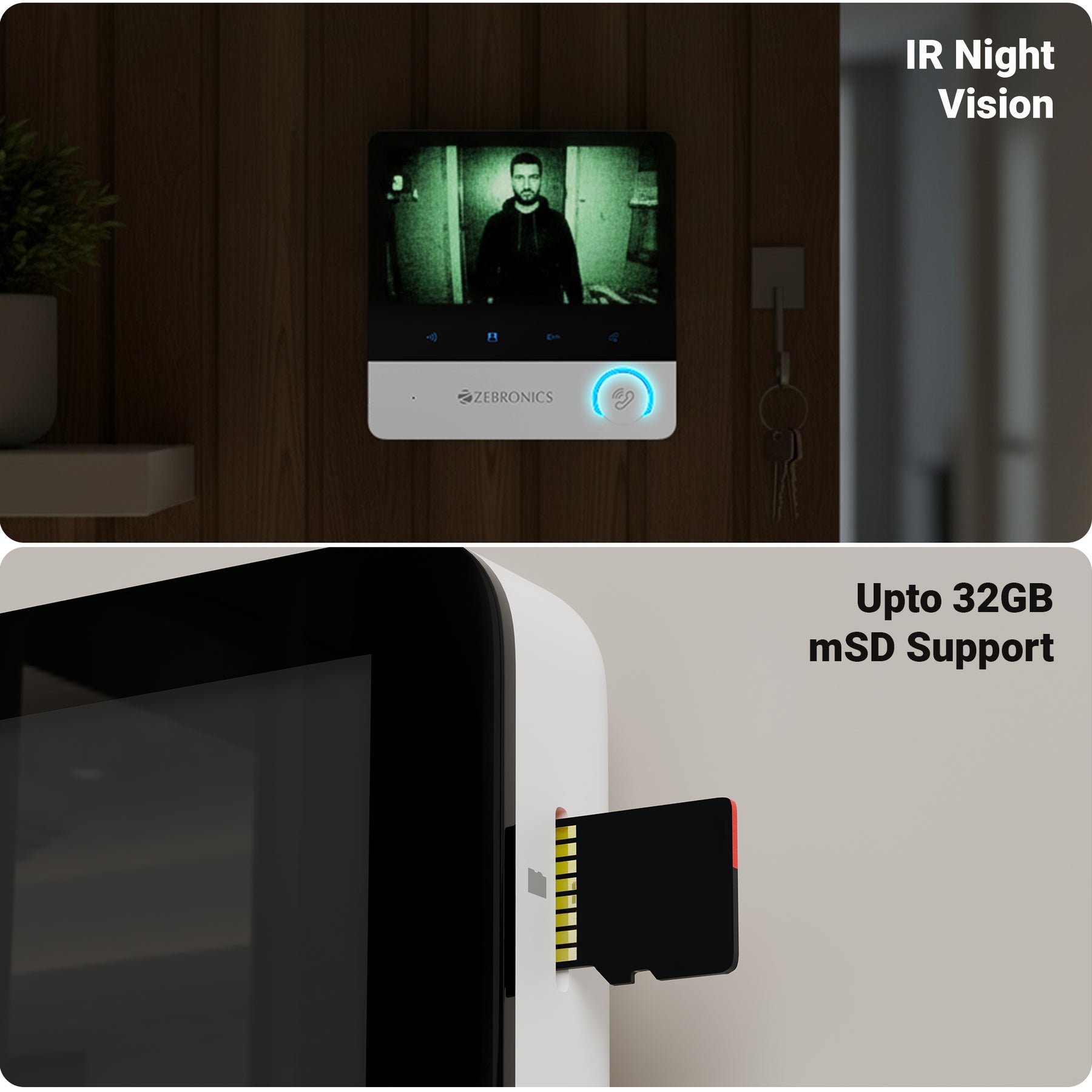

| IR Night Vision | |
| Two-way Talkback | |
| Image or Video* Capturing | |
| Door Lock Release | |

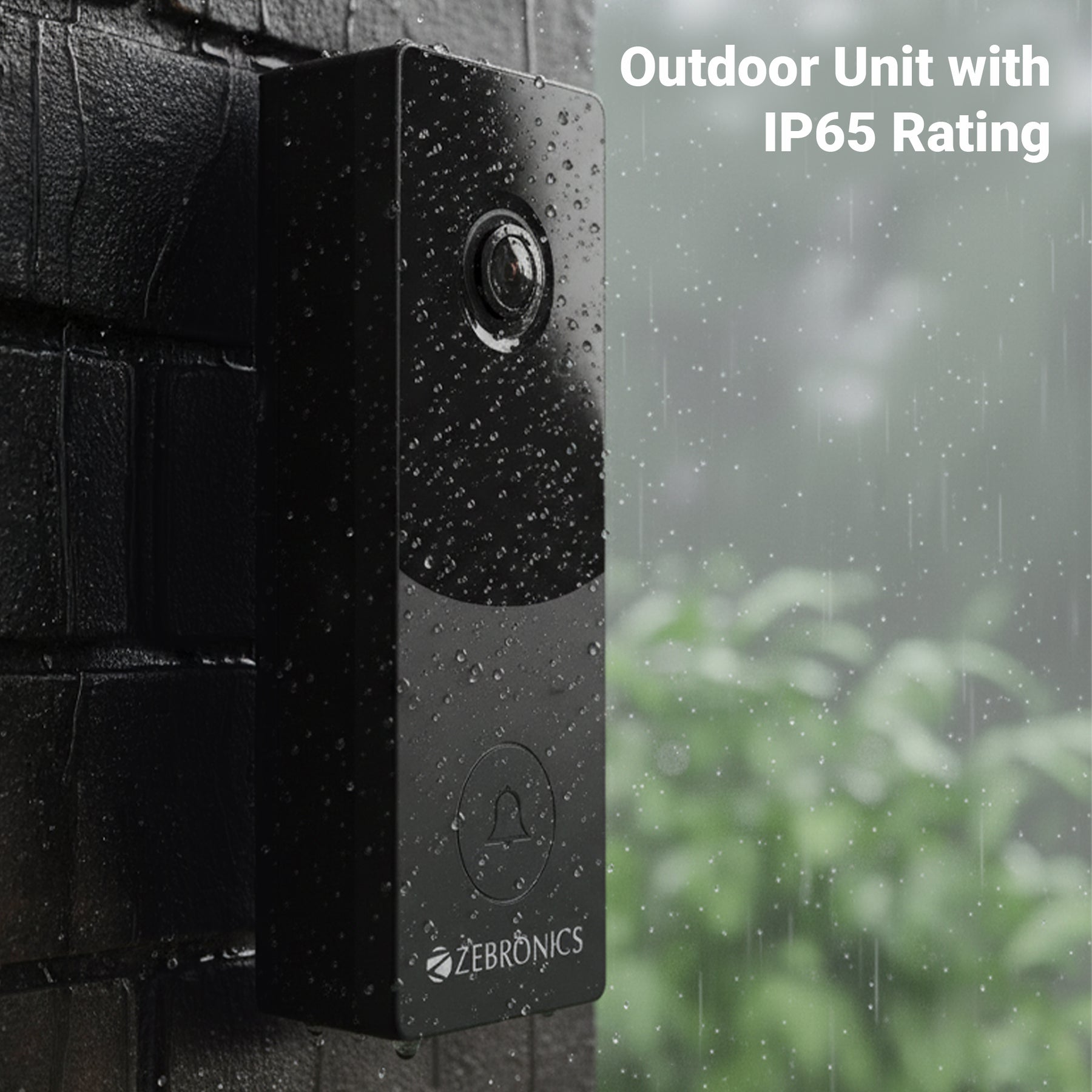

| IP65-rated Waterproofing for Outdoor Unit | |

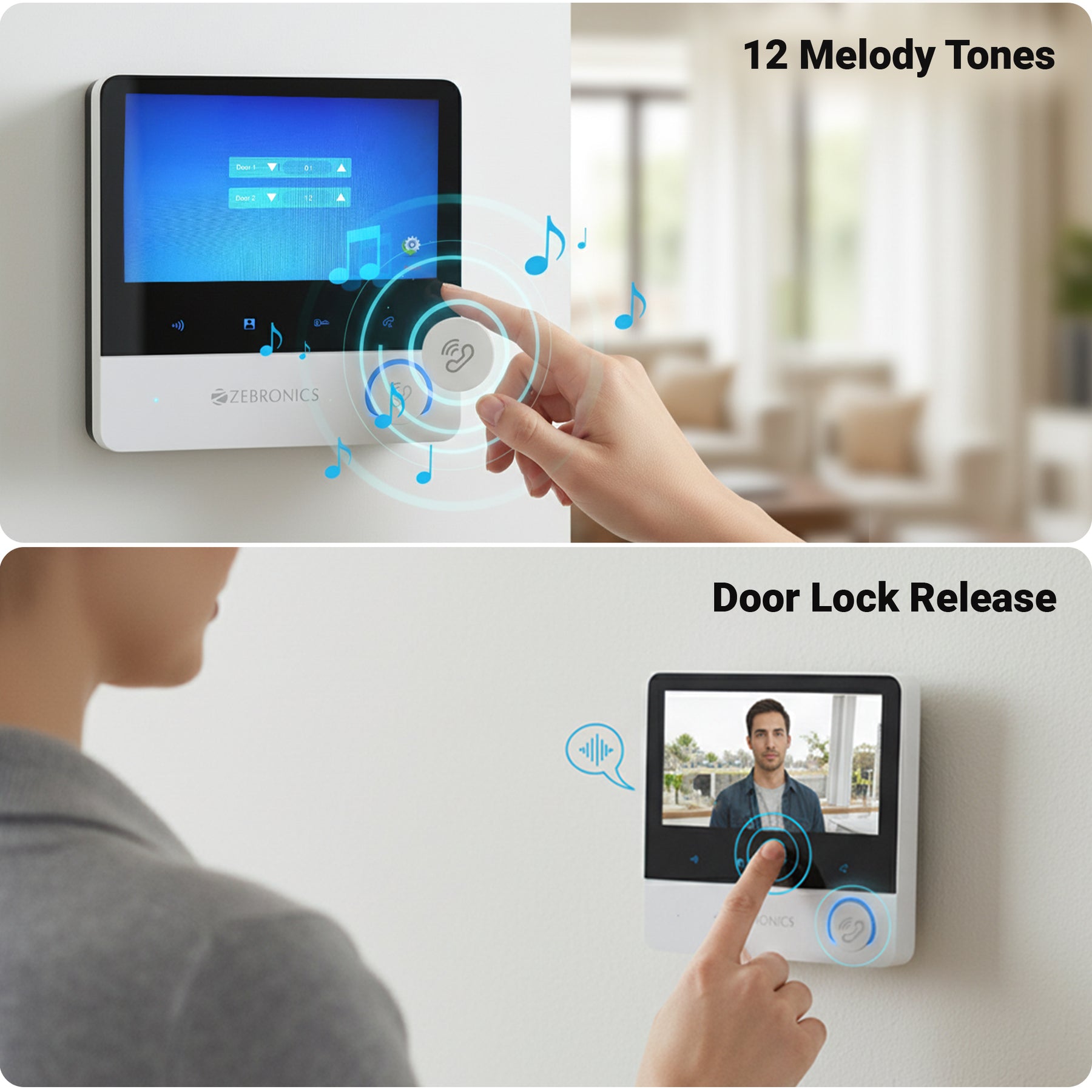

| 12 Melodic Tones | |
| Enables Video Monitoring (up to 1 minute) | |

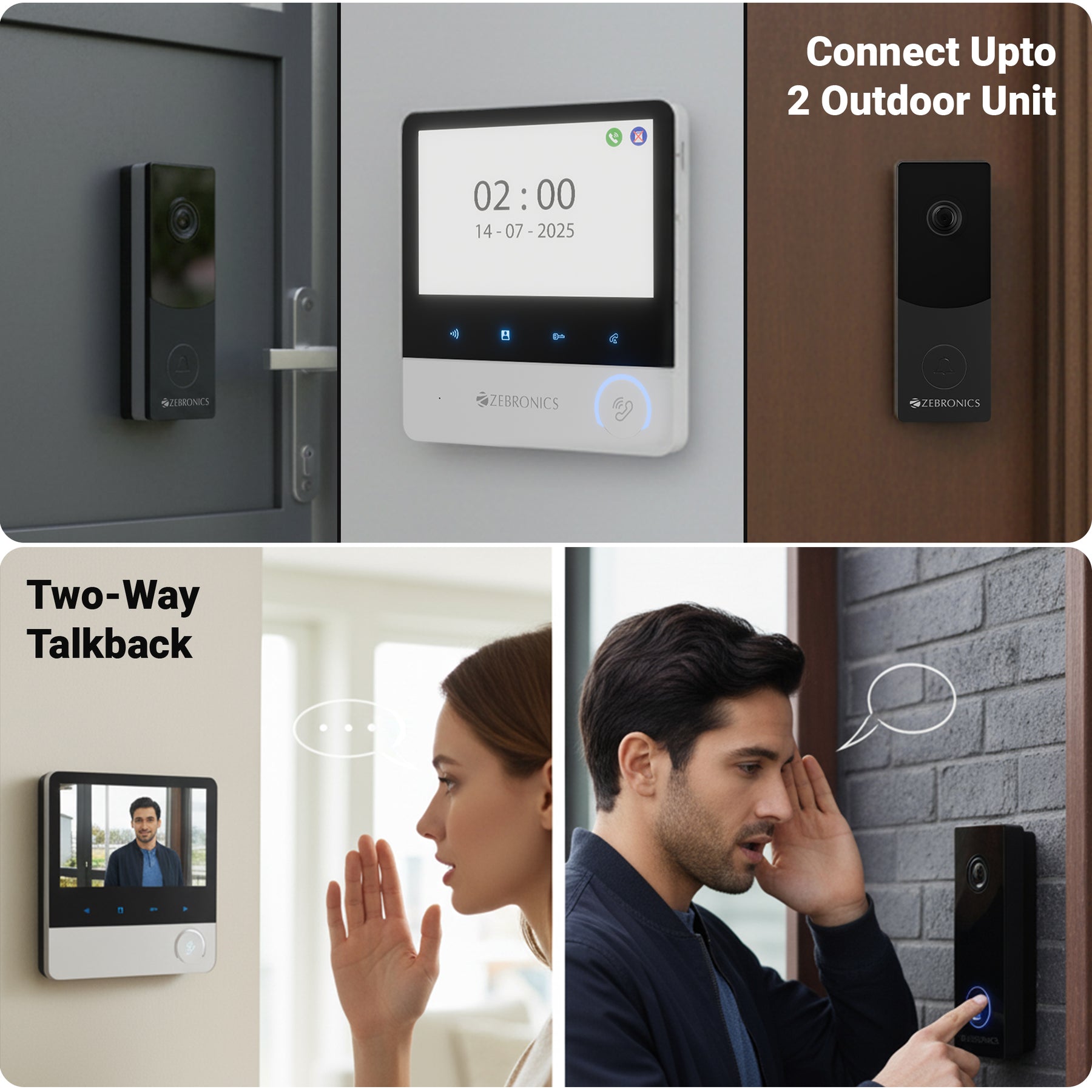

| Works Upto 2 door bell | |

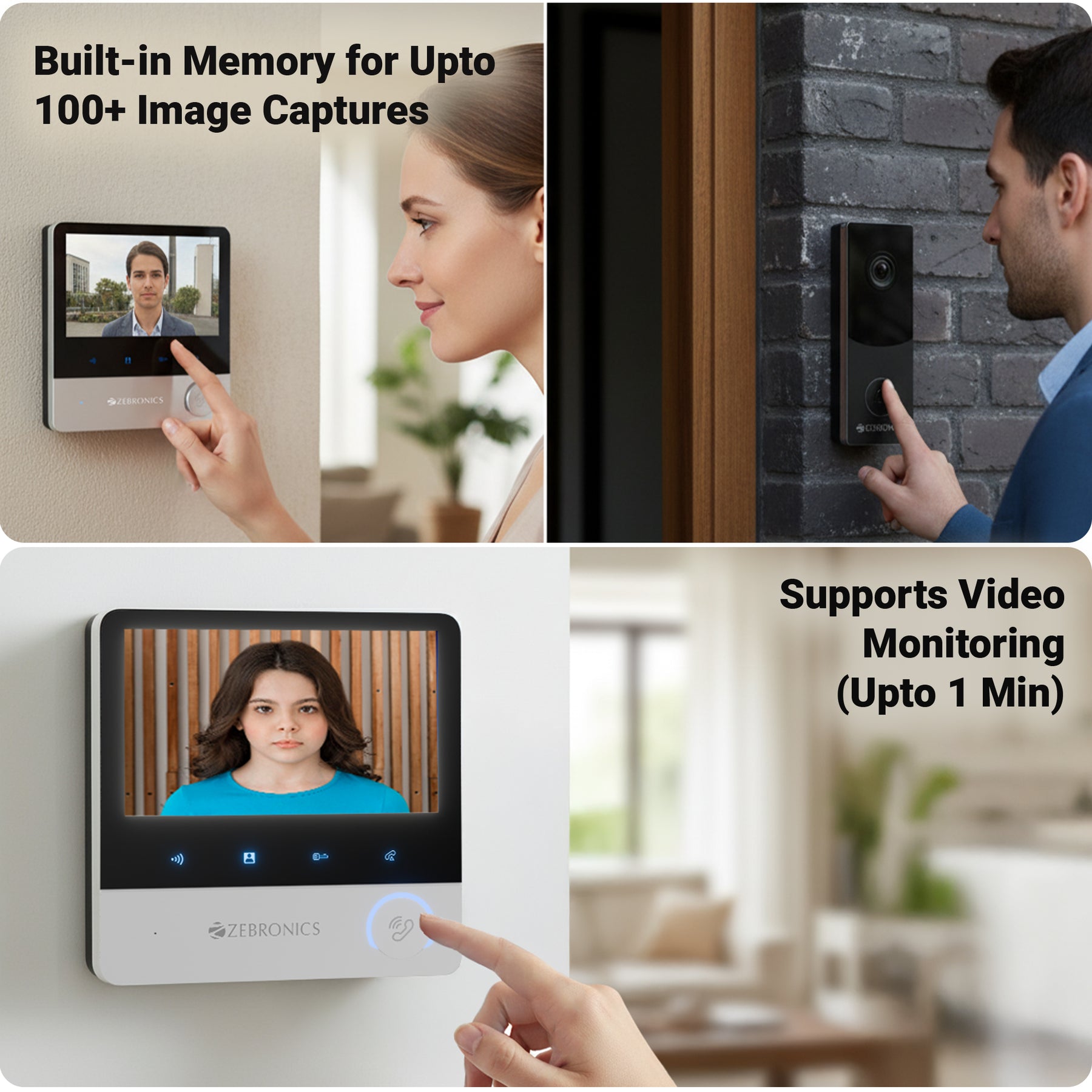

| Integrated storage for up to 150 images. |
Specifications
| Outdoor Unit | ||
| Image Sensor Config. | 2MP 1/3" CMOS | |
| Image Resolution | 960 x 576 | |
| Frame Rate | 25 FPS | |
| Lens | 1/3" @F2.94mm | |
| Night Vision | up to 5m in distance | |
| Outdoor Unit Net. Weight | 105g | |
| Outdoor Unit Dimension (W x D x H) | 5 x 2.8 x 13.6 cm | |
| Motion Detection | No | |
| Voice Messages | NA | |
| Camera | 700TVL | |
| Surface Mount | Yes | |
| Adjustable Microphone and Speaker Volume | Yes | |
| LED for Night Vision | IR LED | |
| Angular Bracket | Yes | |
| Wifi Enabled | No | |
| Housing | Plastic | |
| IP level | IP65 | |
| View Angle | 120° wide angle | |
| Indoor Unit | ||

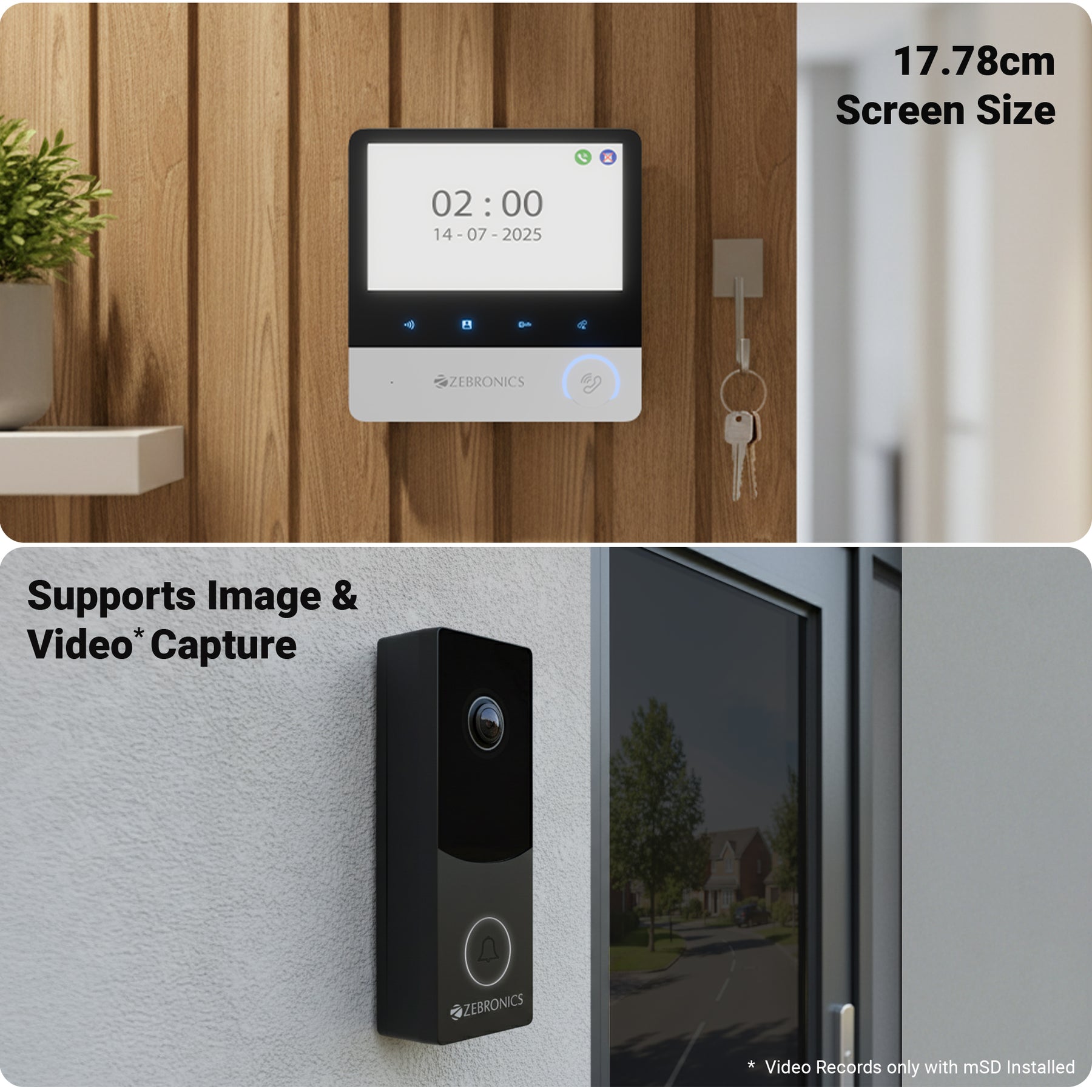

| Screen Size | 17.78 cm | |
| Screen Resolution | 1024x600 pixel | |
| Brightness Setting | Adjustable | |
| Contrast Setting | Adjustable | |
| Image Adjustment | yes | |
| Colour Setting | Adjustable | |
| Volume Adjustment | Yes | |
| Night Vision | IR Night vision | |
| Talkback Type | Yes | |
| Door Lock Release | Yes | |
| External mSD Card Support | Yes, upto 32GB | |
| Image Storage Capacity | 150 Images | |
| Video Storage Capacity | Yes (In mSD card) | |
| Recorded Video Length | 15 seconds | |
| Indoor Monitors | 1 Indoor unit | |
| Input power | DC 14.5V | |
| Melody | 12 melody options | |
| Digital Photo Frame | No | |
| SDRAM | 64MB DDR2 (Built-in CPU) | |
| Effective Area | Horizontal 120°，Diagonal 145°，Vertical 65° | |
| Microphone | -42dB | |
| Relative Humidity | < 90% | |
| Input Voltage | DC 14.5V, 1A max. | |
| Power Consumption | Static State ≤ 3W , Working State ≤ 10W | |
| Operating Temparature | -20 °C to 50 °C | |
| Indoor Unit Net. Weight | 385g | |
| Indoor Unit Dimension (W x D x H) | 18 x 2.1 x 18 cm | |
| Country of Origin | People's republic of China | |
| Package Content | ||
| QR code Guide | 1 U | |
| Indoor Unit | 1 U | |
| Outdoor Unit | 1 U | |
| Mounting Kit | 1 SET | |
| Connectors Kit | 1 SET | |
| Power Adaptor | 1 U |
