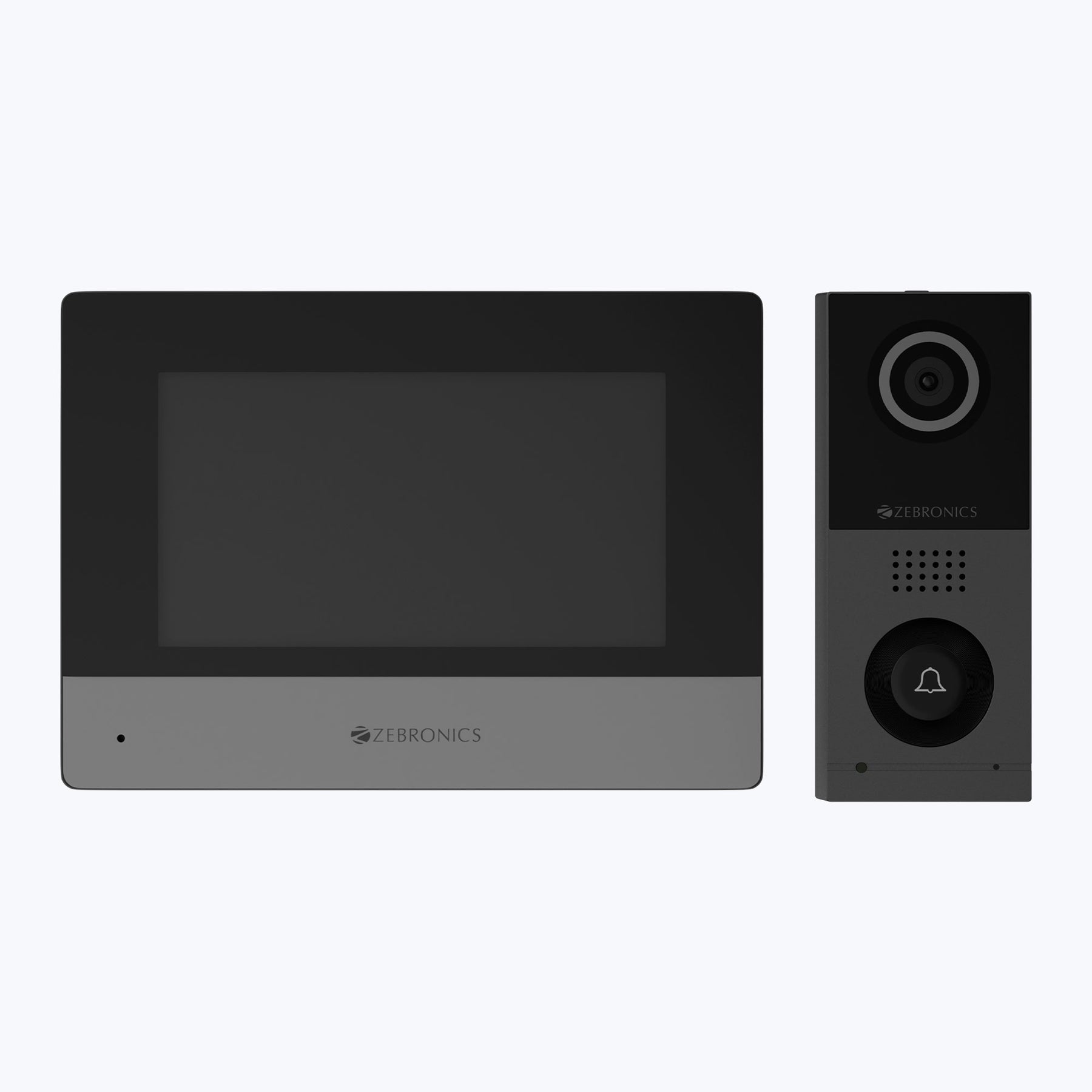

Features
| 7" Large Screen | |

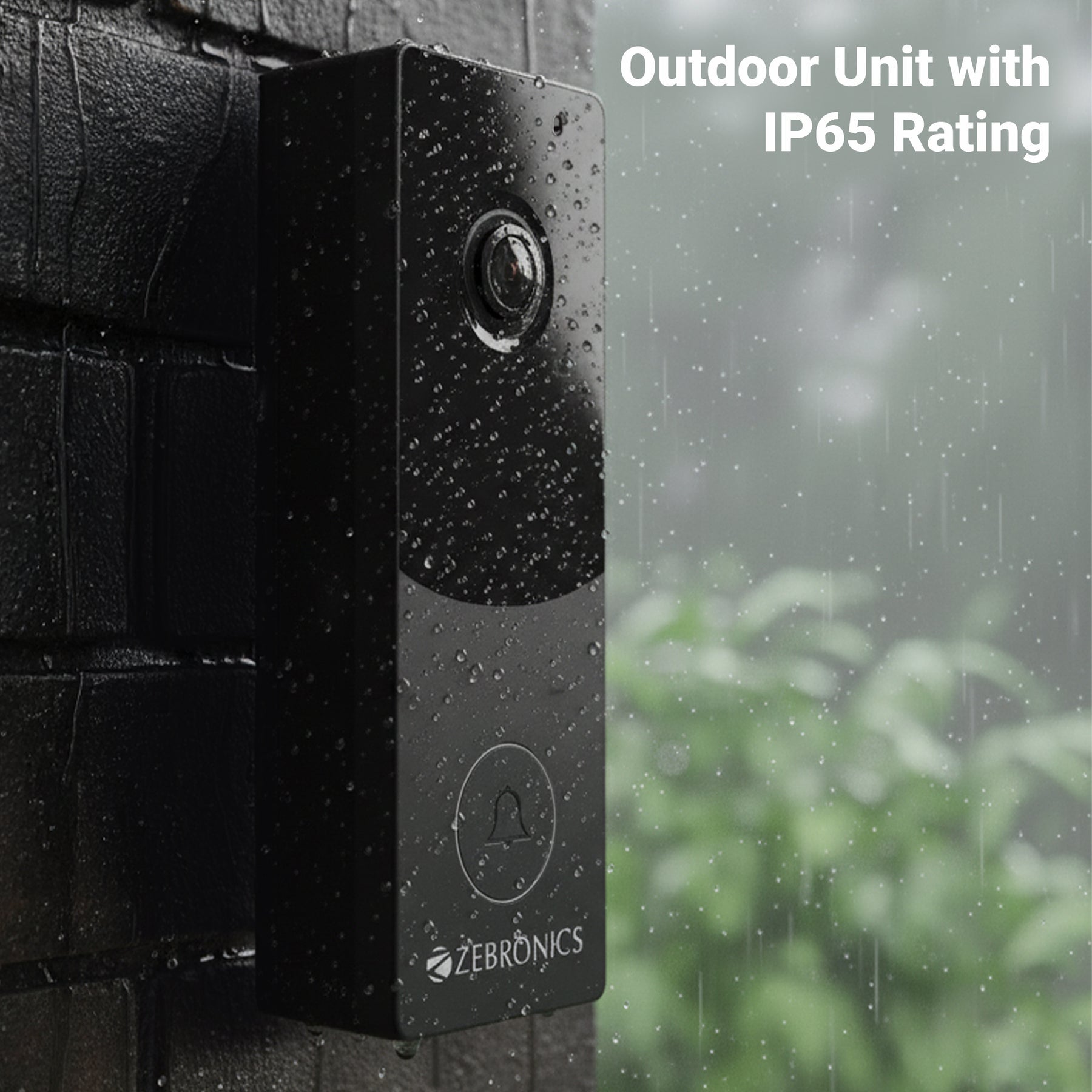

| IP65-rated Waterproofing for Outdoor Unit | |

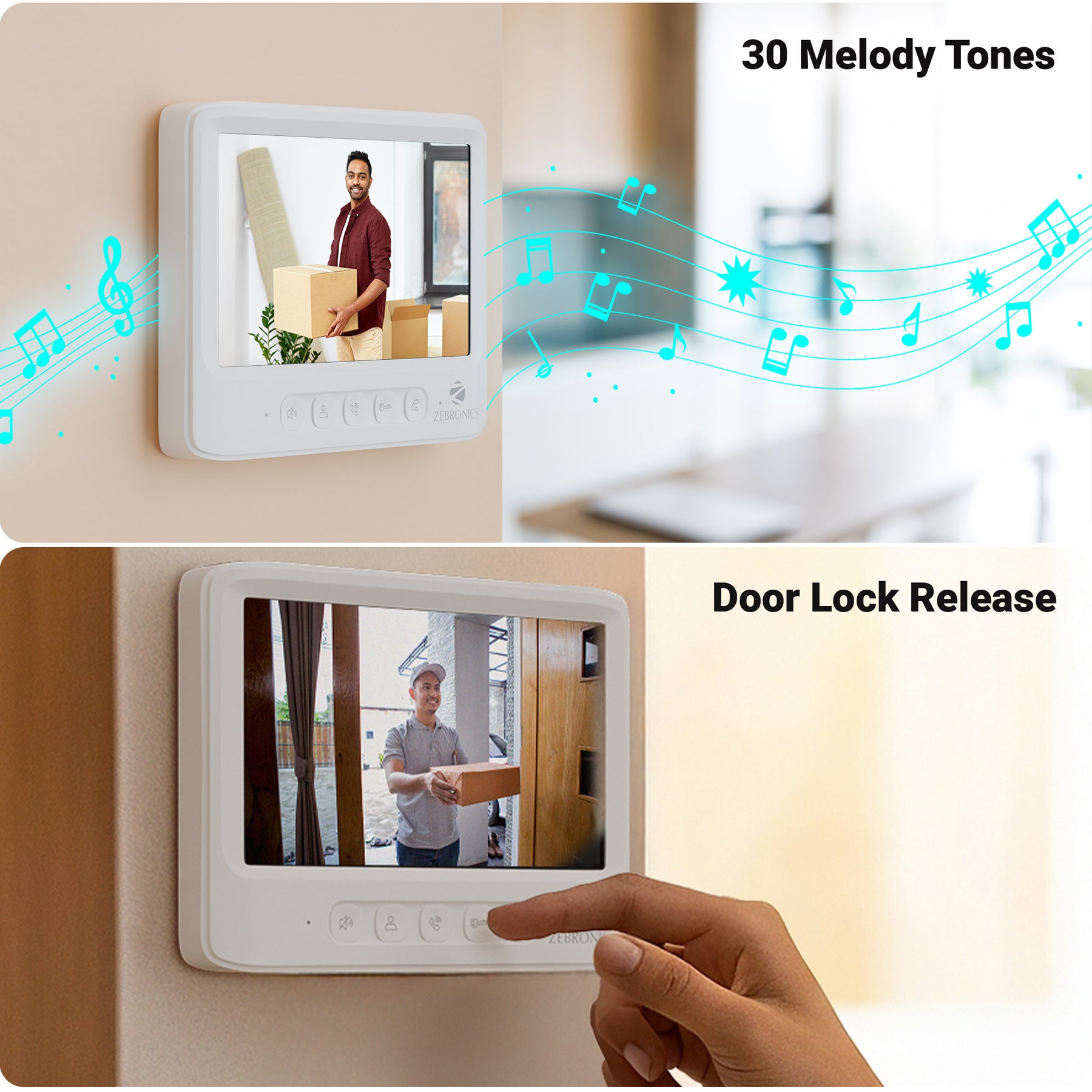

| Door Lock Release | |

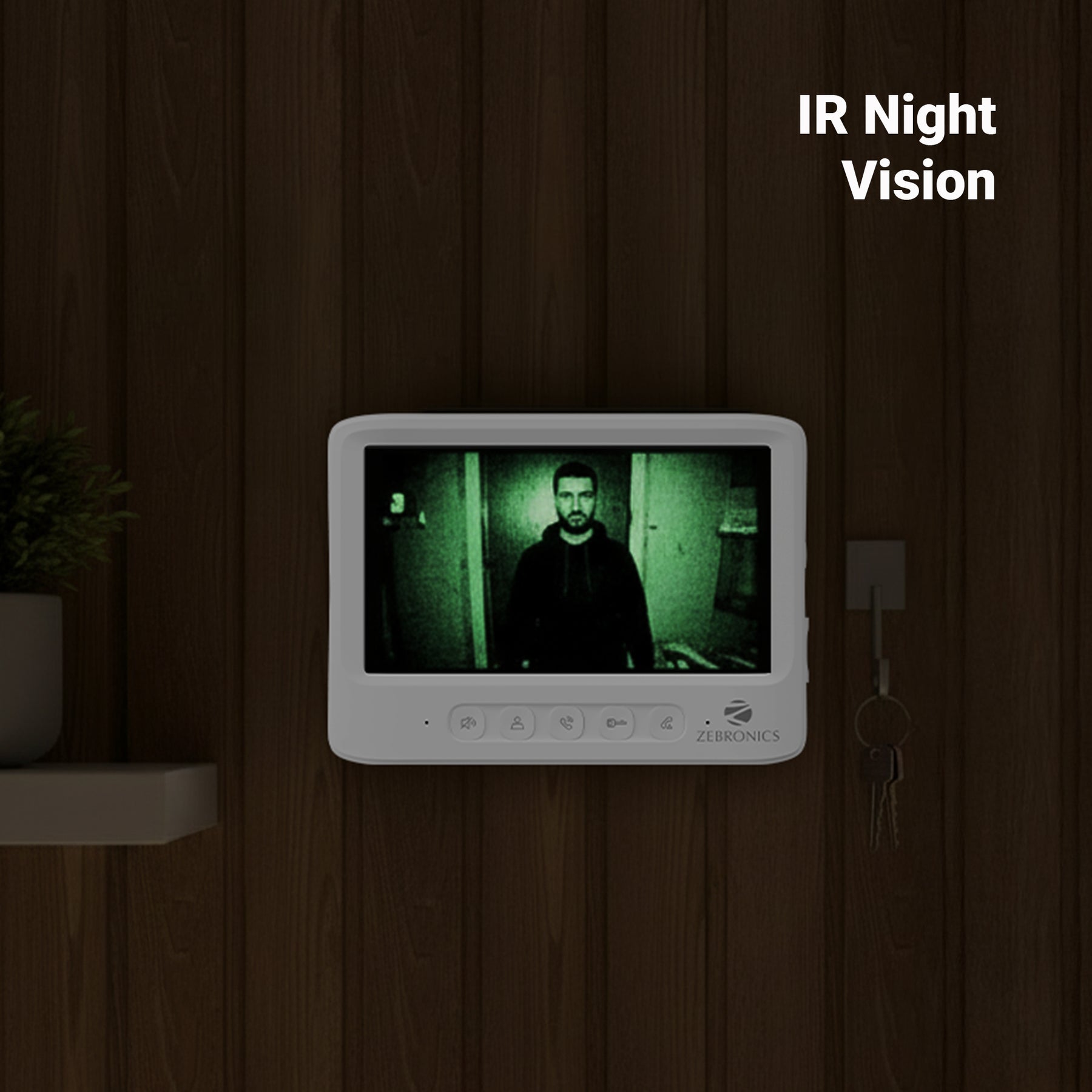

| IR Night Vision | |

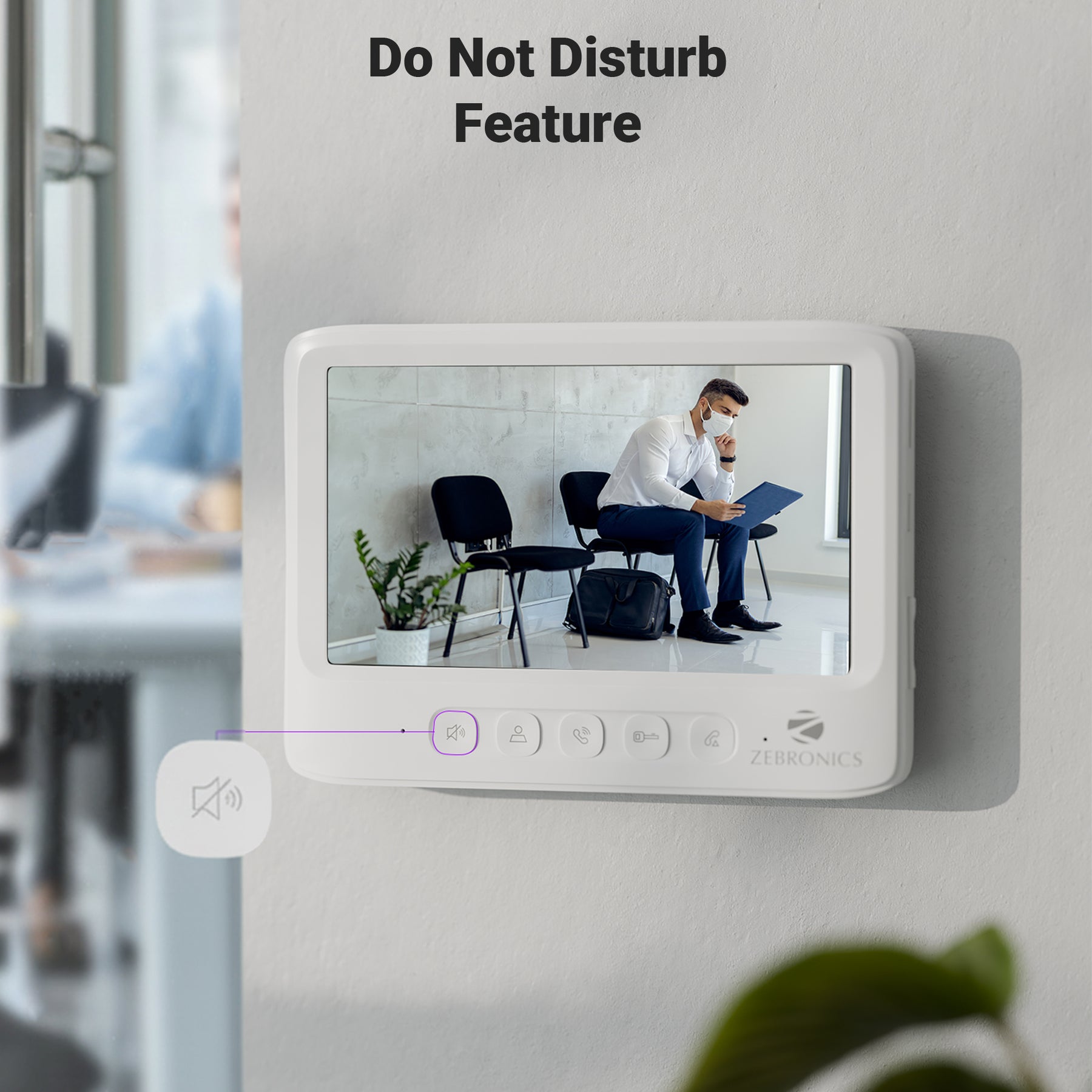

| Do not disturb mode | |
| 30 Melodic Tones | |

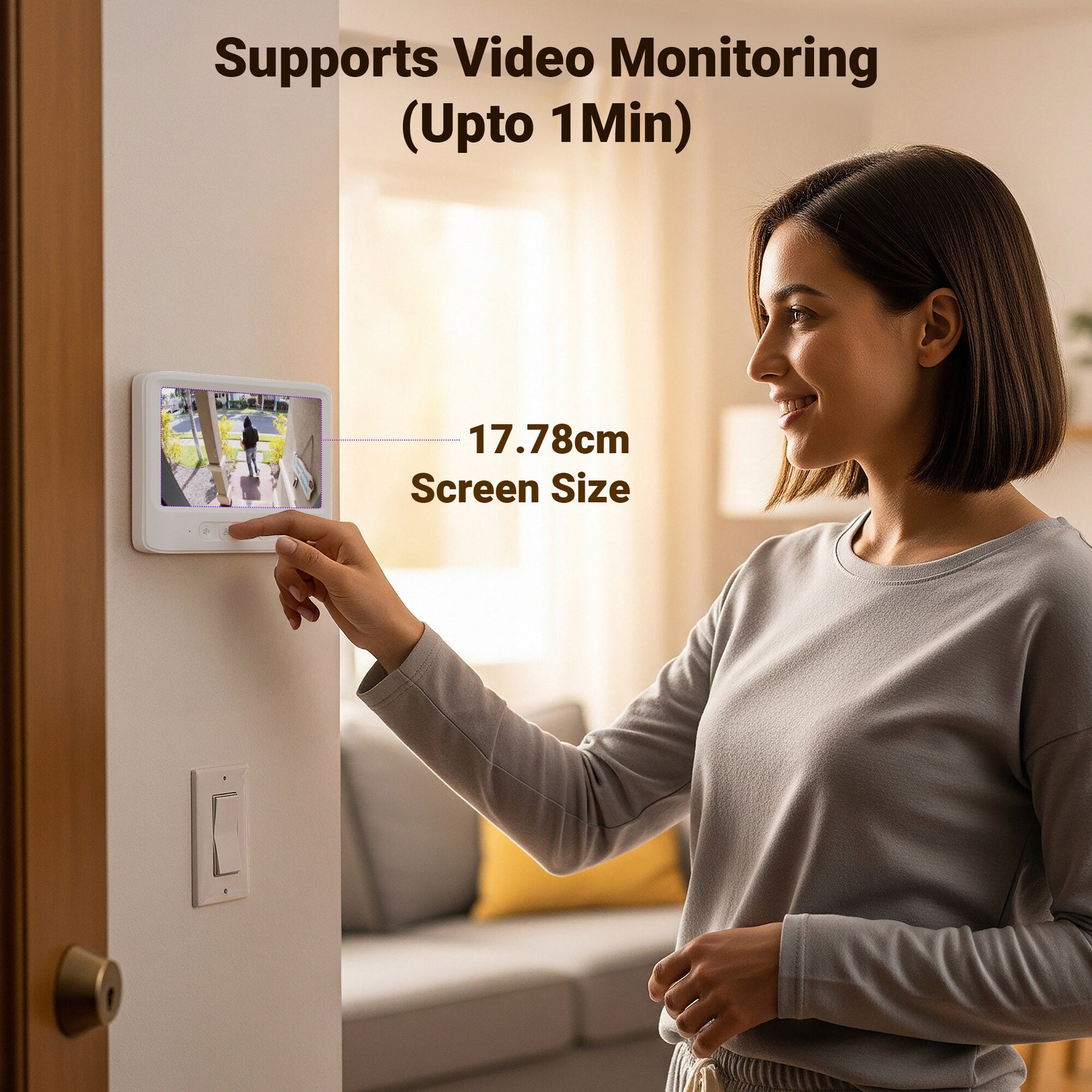

| Enables Video Monitoring (for up to 1 minute) | |

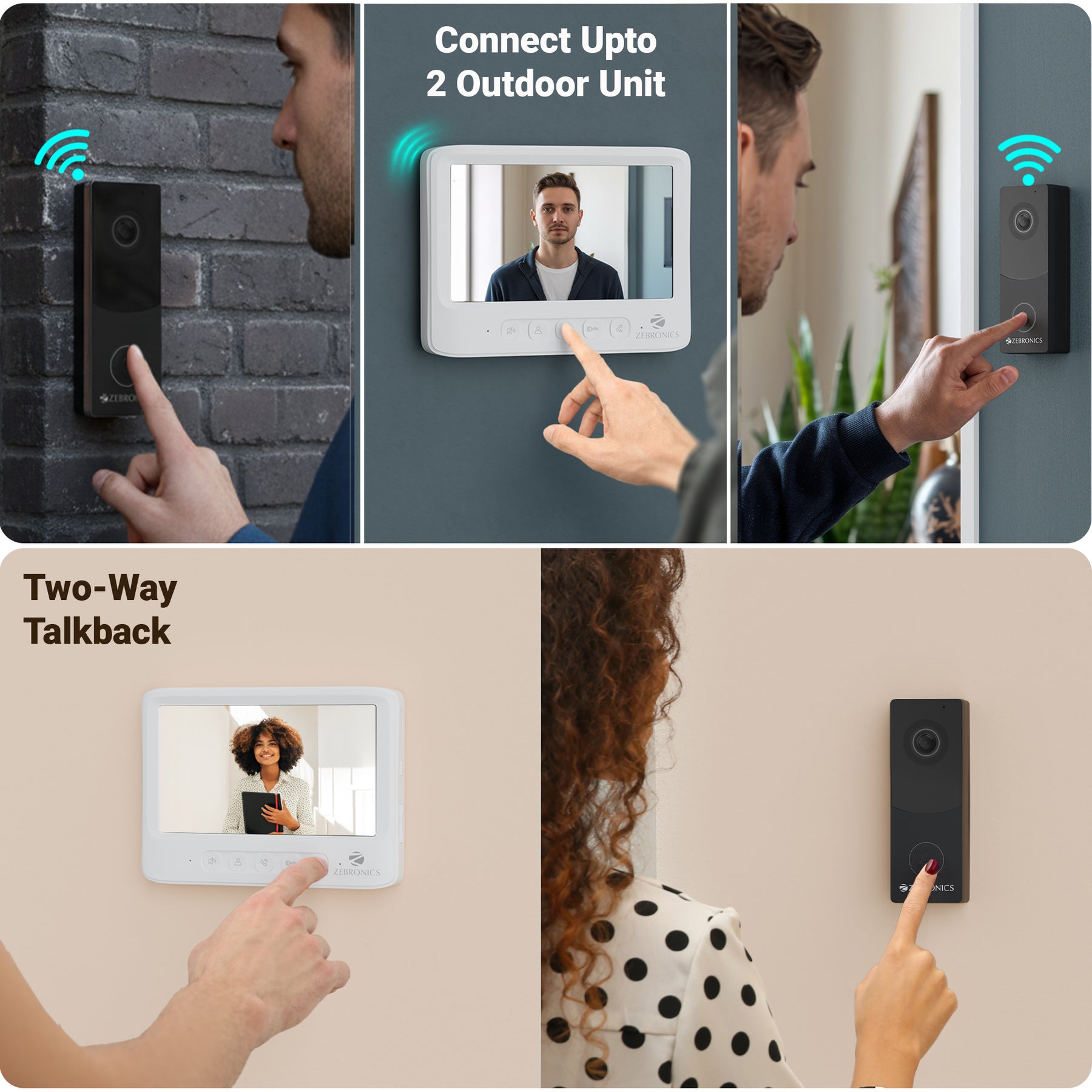

| Two-way Talkback | |
| Connect Upto 2 Outdoor Unit |
Specifications
| Outdoor Unit | ||
| Image Sensor Config. | 2MP 1/3" CMOS | |
| Image Resolution | 960 x 576 | |
| Frame Rate | 25 FPS | |
| Lens | 1/3" @F2.94mm | |
| Night Vision | up to 5m | |
| Outdoor Unit Net. Weight | 160g | |
| Outdoor Unit Dimension (W x D x H) | 5 x 2.8 x 13.6 cm | |
| Motion Detection | No | |
| Voice Messages | NA | |
| Surface Mount | Yes | |
| Adjustable Microphone and Speaker Volume | Yes | |
| LED for Night Vision | IR LED | |
| Angular Bracket | Yes | |
| Wifi Enabled | No | |
| Housing | Plastic | |
| IP level | IP65 | |
| View Angle | 120° wide angle | |
| Indoor Unit | ||
| Screen Size | 17.78 cm | |
| Screen Resolution | 1024x600 pixel | |
| Brightness Setting | Adjustable | |
| Contrast Setting | Adjustable | |
| Image Adjustment | yes | |
| Colour Setting | Adjustable | |
| Volume Adjustment | Yes | |
| Night Vision | IR Night vision | |
| Talkback Type | Yes | |
| Door Lock Release | Yes | |
| External SD Card Support | No | |
| Image Storage | No | |
| Image Storage Capacity | NA | |
| Video Storage | No | |
| Video Storage Capacity | NA | |
| Recorded Video Length | NA | |
| Indoor Monitors | 1 Indoor unit | |
| Input power | DC 14.5V | |
| Melody | 30 melody options | |
| Digital Photo Frame | No | |
| SDRAM | 4MB DDR2 (Built-in CPU) | |
| Effective Area | Horizontal 120°，Diagonal 145°,Vertical 65° | |
| Microphone | -42dB | |
| Relative Humidity | < 90% | |
| Input Voltage | DC 14.5V, 1A max. | |
| Power Consumption | Static State ≤ 3W , Working State ≤ 10W | |
| Operating Temparature | -20 °C to 50 °C | |
| Indoor Unit Net. Weight | 285g(With Mounting Bracket) | |
| Indoor Unit Dimension (W x D x H) | 18.3 x 2.37 x 13.1 cm | |
| Package Content | ||
| QR code Guide | 1 U | |
| Indoor Unit | 1 U | |
| Outdoor Unit | 1 U | |
| Mounting Kit | 1 Set | |
| Connectors Kit | 1 Set | |
| Power Adaptor | 1 U |
