Specifications
| Supported CPU |
Socket 1155 / Intel Pentium / Celeron / i3 / i5 / i7 (2nd & 3rd Generation) Series Processors | |
| Chipset |
Intel B75 Chipset | |
| Memory Supported |
2nos DDR3 Dual channel RAM slots Memory up to 16GB Supports DDR3 1066/1333/1600MHz memory |
|
| BIOS |
AMI BIOS | |
| I/O Interface |
1 x HDMI port, 1 x VGA Port, 4 x USB 2.0 Port, 2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio |
|
| Onboard Interface |
1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 3 x SATA II, 1 x SATA III, 1 x USB 2.0 Header, 1 x USB 3.0 Header, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 2 x Fan Connectors, 1 x clear CMOS header, 1 x PCIe 16 x Slot, 1 x Debug Card Header, 1 x M.2 slot |
|
| Integrated Sound |
With 5.1-Channel HD Audio |
|
| Integrated LAN |
Supports RTL8106E 10/100 Mbps Ethernet LAN | |
| Expansion Slot | 1 x PCI Express 2.0 x16 size slot | |
| Form Factor |
Micro-ATX | |
| Country of Origin | People's Republic of China | |
|
||

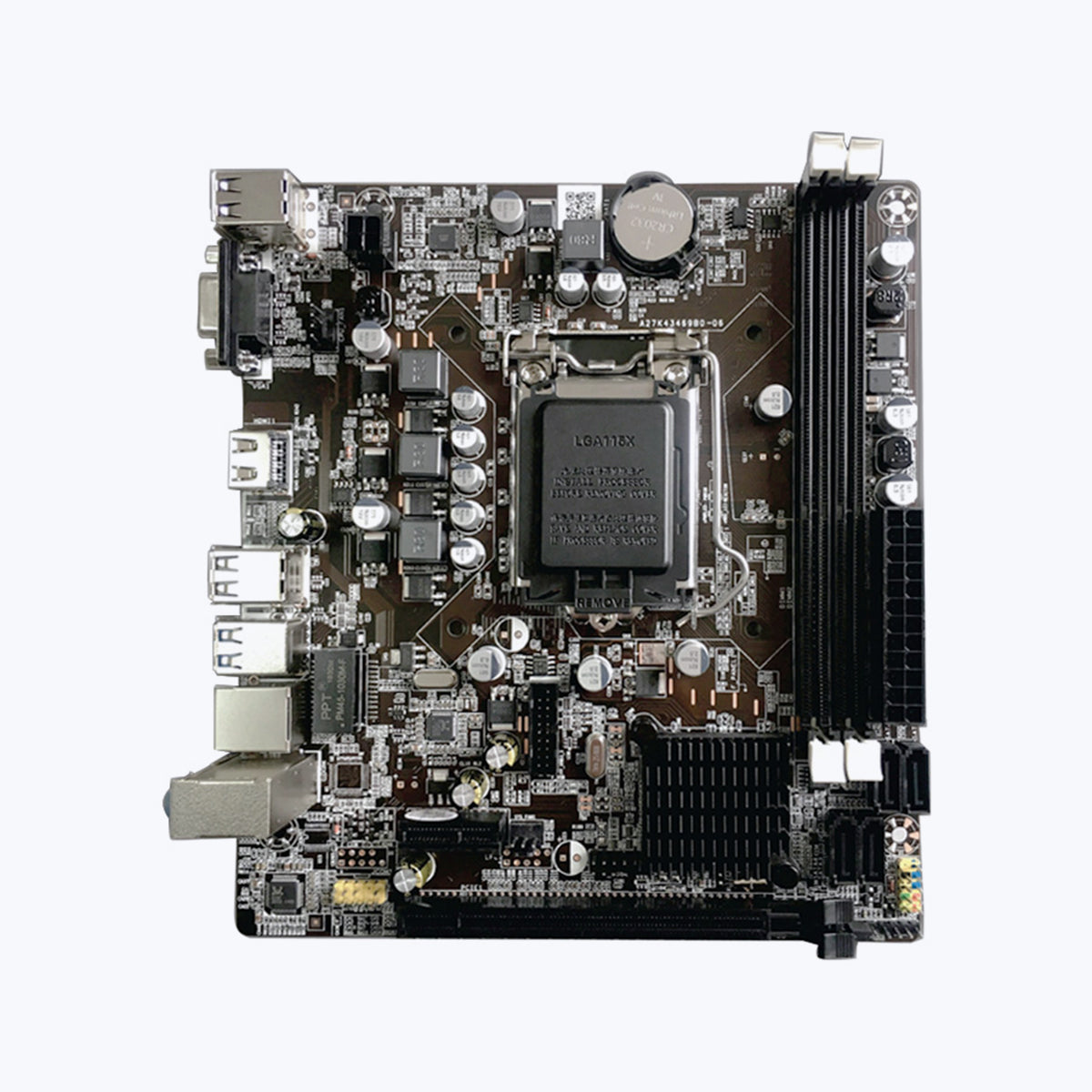

| ZEB-B75M2 Motherboard |
1 U | |
| SATA Cable |
1 U | |
| I/O Backplate |
1 U | |
| Driver Disc |
1 U | |
| User Manual |
1 U |
