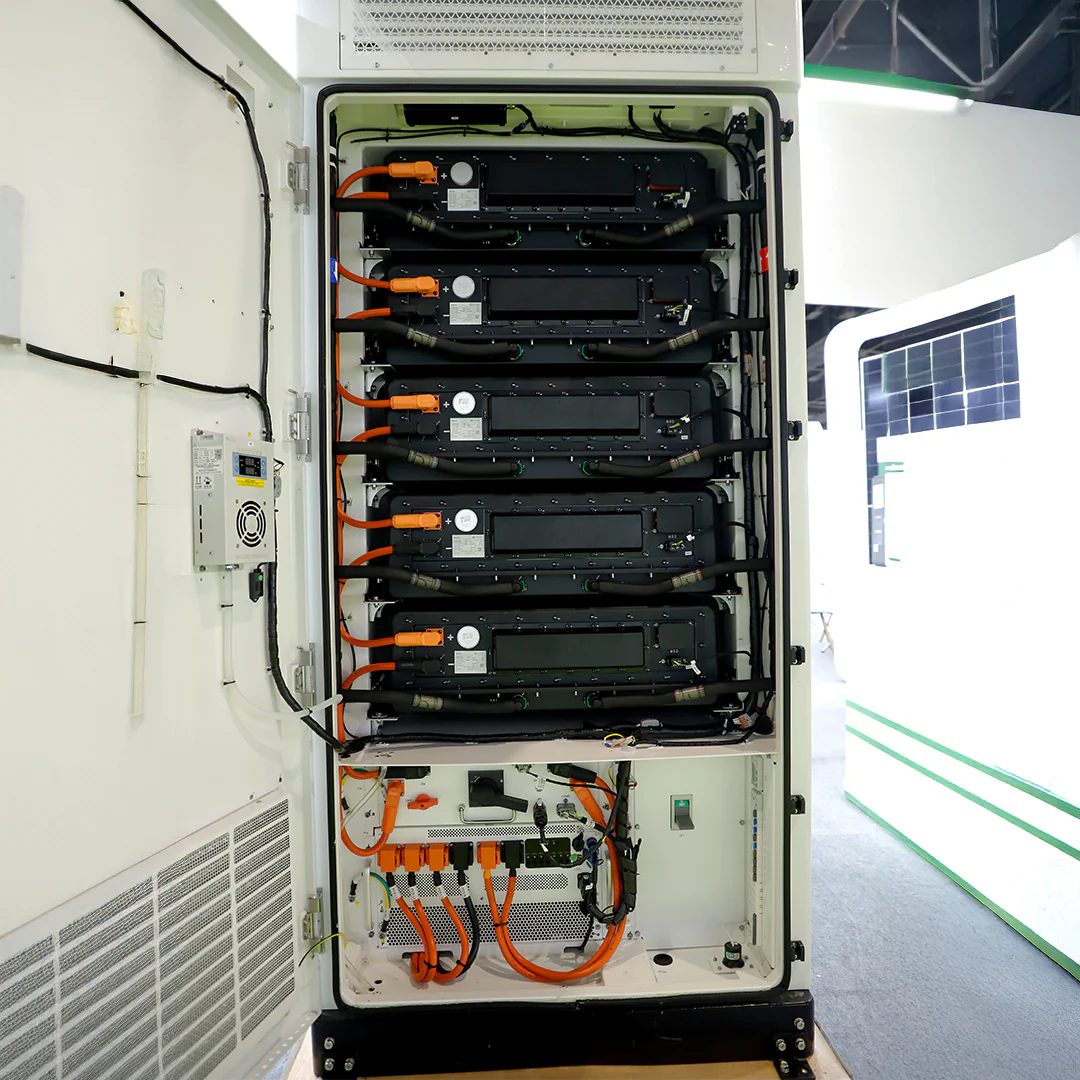

CAML 125kW/261kWh All-in-One BESS for C&I Applications
Loom introduces the CAML C&I BESS Solution, with capacities starting from 125 kW AC and 261 kWh DC, providing a 2-hour power backup solution. It is an all-in-one, liquid-cooled Battery Energy Storage System that can be expanded up to 1 MWh for commercial and industrial applications. It is a highly integrated LiFePO4 battery, BMS, PCS, EMS, STS, fire protection system, temperature control system and cloud platform. The energy storage system adtops integrated innovative design, with higher safety standards, easier management and higher benefits. This system is suitable for manufacturing plants, showrooms, hospitals, hotels, marriage halls, rice mills, cold storage facilities, ground-mounted solar power plants, and more.
Key Features

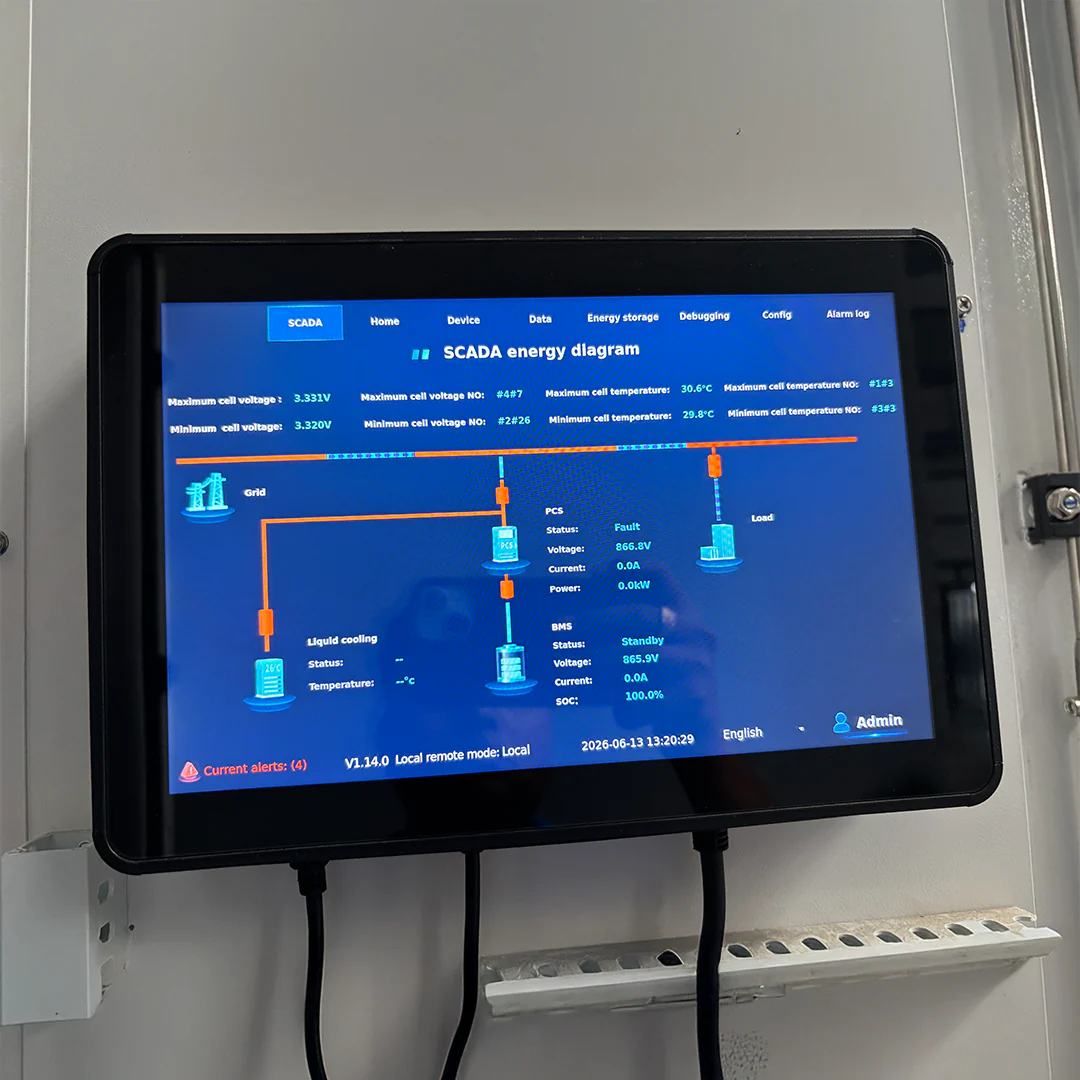

- Highly integrated battery, BMS, PCS, EMS, STS, fire protection, temprature control and other systems
- Standardized and modular design, plug-and-pay, building block expansion
- Full coverage of application scenarios, supporting AC three-phase three-wire and three-phase four-wire
- Supports on-grid and off-grid applications, with PQ, VF, VSG, contant DC voltage and other operating modes
- With primary frequency modulation function
- With three-phase 100% unbalanced load
- Support black start, anti-back flow, overload protection and other functions
- Support Ethernet and wireless communication
Product Video
System Details
| Nominal capacity | 261kWh |
| Nominal output power | 125kW |
| Battery cycle time | > 6000 times (>45°C) |
| Protection level | -25°C ~ +50°C (>45°C Derating) |
| Cooling method | Aerosol |
| Altitude | ≤4000m (>2000m Derating) |
| Dimension | 1100*1500*2100mm |
| Weight | ~2800kg |
AC (on-grid)
| Nominal power | 125kW |
| Nominal voltage | 400V |
| Nominal current | 180A |
| Nominal frequency | 50Hz/60Hz |
| Power factor | -1~1 |
| AC access method | 3W/3W+N |
| Overload capacity | 1.1times (long term), 1.2times (1min) |
DC battery
| Cell type | LFP3.2V/314Ah |
| Battery system configuration | 261kWh/1P260S |
| Maximum charge/ discharge power | 150kW |
| Nominal voltage | 832V |
| Battery voltage range | 728V-936V |
AC (off-grid) (optional)
| Max power of important load | 137.5kW |
| Nominal voltage | 400V |
| Nominal frequency | 50Hz/60Hz |
| Long term overload capacity | 110% |
| On-grid and off-grid switching time | <20mS |
MPPT module (2 pcs, optional)
| Nominal power | 4*15kW |
| Max MPPT current (PV side) | 4*37.5A |
| Max short-circuit current (PV side) | 4*50A |
| Nominal voltage (PV side) | 450V |
| Max open circuit voltage (PV side) | 650V |
| Voltage range (PV side) | 200V~650V |
| Max current (battery side) | 110A |
| Nominal current (battery side) | 830V |
| Voltage range (battery side) | 650V~1000V |
Download datasheet from here.
For more details, speak with our BESS expert, Mr. Nishi Chandra, at 9650443724 or email nishi@loomsolar.com
