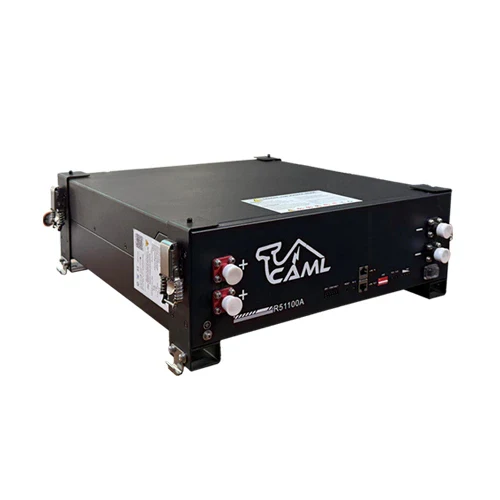

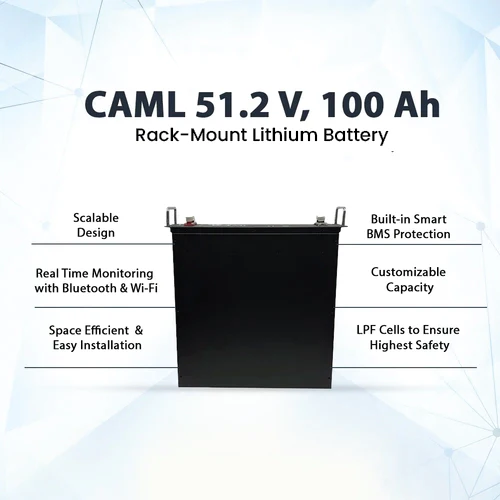

CAML 51.2 V 100 Ah, 5.12 kWh Rack-Mount Lithium Battery

CAML LiFePO4 Rack-Mount Lithium Battery is designed to offer both space efficiency and high performance. This energy storage solution provides a battery management system (BMS) compatible with various inverters available on the market. It offers fast charging capabilities, allowing the battery to get fully charged in just 2-4 hours. This lithium battery is easy to maintain and carry and offers a space-saving storage solution, ideal for domestic and commercial applications. Its durability, long lifespan, and excellent performance make it a superior choice over traditional Lead Acid SMF batteries. This battery operates efficiently in a diverse temperature range and weighs almost ¼ of traditional SMF and Lead Acid batteries. Additionally, the system is expandable and supports parallel configuration to increase battery bank capacity.

• Safety: Smart BMS (Battery Management System) to ensure safety.
• High Discharge/Charge Efficiency: More than 94.5%.
• Flexible System Expansion: Modular and flexible, supports up to 32 batteries connected to expand the system's energy.
• Space-Efficient: Compact design and rack-mounted form factor optimize space utilization.
• Pre-Charge Protection: Built-in pre-charge circuit to avoid rush current when connecting with different inverters/charges.
• Reliable Performance: Built with high-quality materials and advanced battery management technology, ensuring stable and consistent performance over the battery's lifespan.
• Customizable Capacity: Available in multiple capacities (100 Ah, 200 Ah, 300 Ah, 400 Ah), allowing homeowners to tailor the battery system to their specific energy requirements.
• Higher Ah efficiency: The efficiency of Ah (Ampere-Hour) is up to 100%.
• Longevity: Designed for long-term durability and reliability, with minimal maintenance requirements, providing.
• Warranty: Comes with a 5-year manufacturing and performance warranty for long-term reliability.

Features

Applications

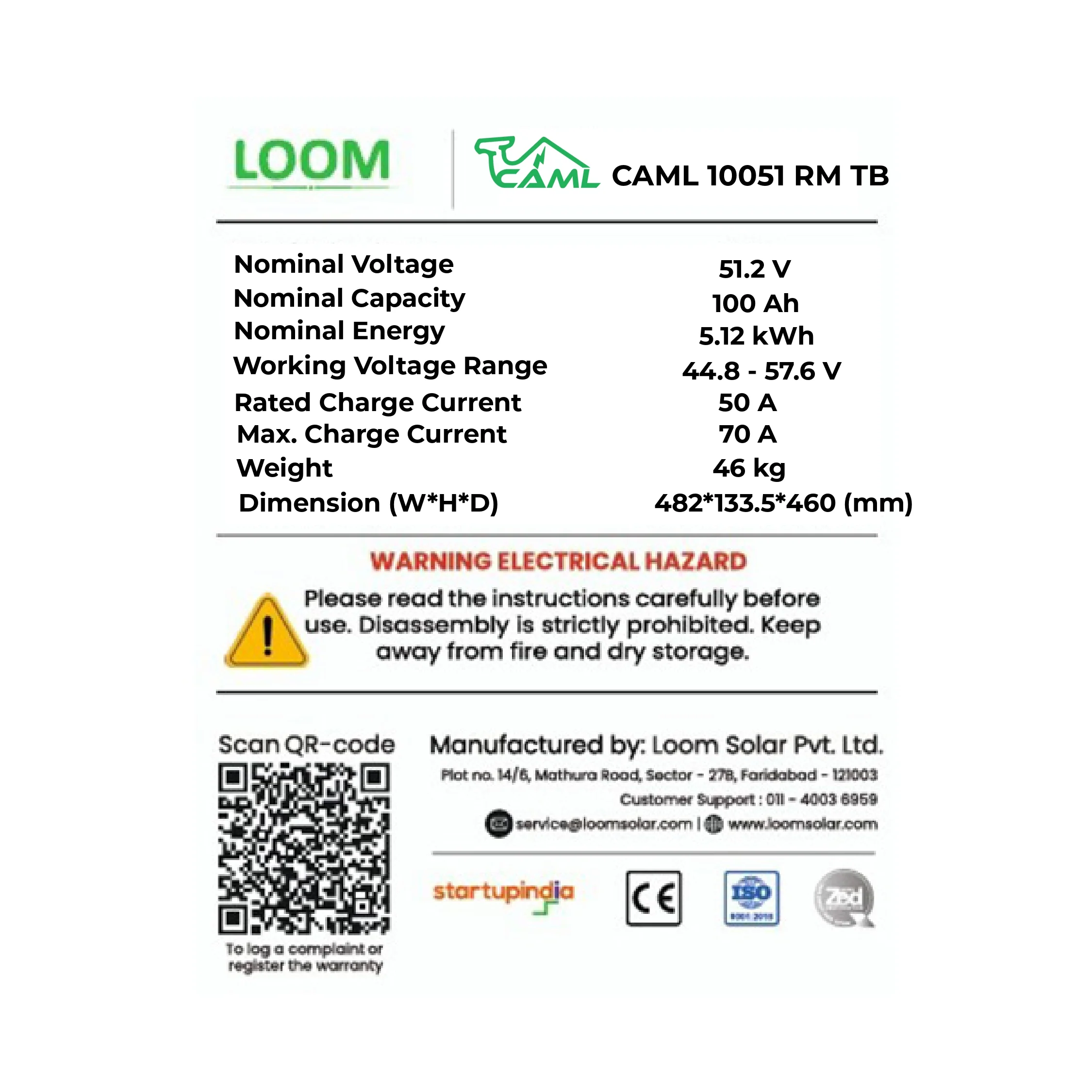

Technical Specifications

Manufacturer	Loom Solar
Cell Type	Lithium Iron Phosphate (LiFePO4)
Rated Voltage (V)	51.2 V
Max. Voltage Range (V)	44.8 – 57.6 V. Shipping Voltage > 51.2 V
Charges Voltage (V)	56.0
Float Charge Voltage (V)	54.6
Nominal Energy @ 0.2C (kWh)	4.92
Nominal Capacity @ 0.2C (Ah)	100
Standard Charge Current (A)	< 50
Max. Charge Current (A)	70
Standard Discharge Current (A)	< 50
Max. Discharge Current (A)	100 (Initial Temp. < 30℃)
Peak Discharge Current (A)	101-119 A @ 5 mins | 120-200 A @ 15S
Communication	RS-485 / CAN
Max. No. of Parallel Connections	32 pcs ((scalable to 160 kWh))
Operation Temperature 1	Charge:  -5-50℃ Discharge: -10-50℃
Storage Temperature @ Off Mode	< 6 Months ( 0℃ < T < 30℃ )
	< 3 Months ( -10℃ < T < 45℃ )
	Recommended Environment: 15-35℃, 5-75% RH

Shipping Details

Weight	46 kg

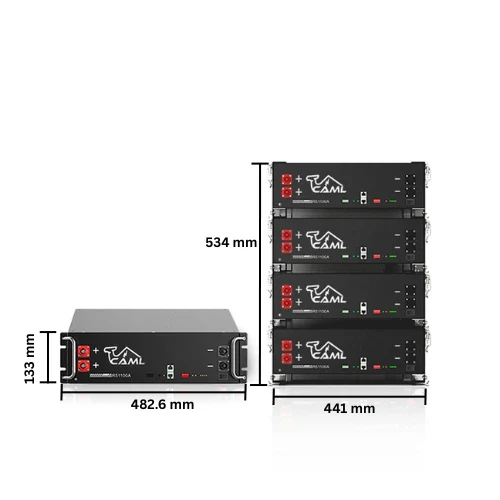

Dimensions (mm)	482 x 460 x 133.5



Certifications

UN38.3, IEC62619, UL1973, CE

Download the Datasheet and User Manual here.
