CAML 100 Ah, 204.8 V / 20kWh High-Voltage Lithium Battery

The CAML 100 Ah, 204.8 V High-Voltage Lithium Battery from Loom Solar with a high-voltage Battery Management System (BMS) is the ultimate solution for high energy demands, making it perfect for restaurants, hotels, hospitals, and large homes. It provides an impressive lifespan of up to 6000 charge cycles, ensuring long-lasting performance. The battery gets fully charged in only 2-3 hours due to its fast-charging capabilities. It is easy to maintain, lightweight, and offers a space-saving solution, making it suitable for domestic and commercial purposes. BMS is compatible with various inverters on the market, including Growatt, Goodwe, Deye, Luxpower, and Voltronics, which feature transfer-less hybrid inverters. This lithium battery offers a longer lifespan and higher durability, and weighs almost ¼ of other SMF and Lead Acid batteries.

• Scalable Modular Design: This design supports easy system expansion by connecting multiple battery units in parallel. It is suitable for growing energy demands in residential, commercial, or industrial settings.
• Easy for Installation: Compact, stackable design for quick and clean setup. Standard connectors and layout reduce installation time and effort.
• Multiple Communication: Integrated CAN, RS-485,  interfaces for inverter and energy management system (EMS) integration. Enables real-time data monitoring, system control, and diagnostics.
• 20 Years+ Lifespan: Designed to last over 6000 charge cycles at 80% usage,
  providing reliable performance with very little loss over time.
• Advanced Battery Management System: Monitors temperature, voltage, and current to ensure safety and balanced charging. Provides reliable protection and optimal performance.

Features

Applications

Technical Specifications

No. of Battery Modules	Battery System Capacity (kWh)	Battery System Voltage (V)	Operating Voltage Range (V)
3	15.68	153.6	134.4~168.48
4	20.48	256	179~224.64
5	25.6	256	224~280.8
6	30.72	307.2	268.8~336.96
7	35.84	358.4	313.6~393.12
8	40.96	409.6	358.4~449.28
9	46.08	460.8	403.2~505.44
10	51.2	512	448~561.6

Shipping Details

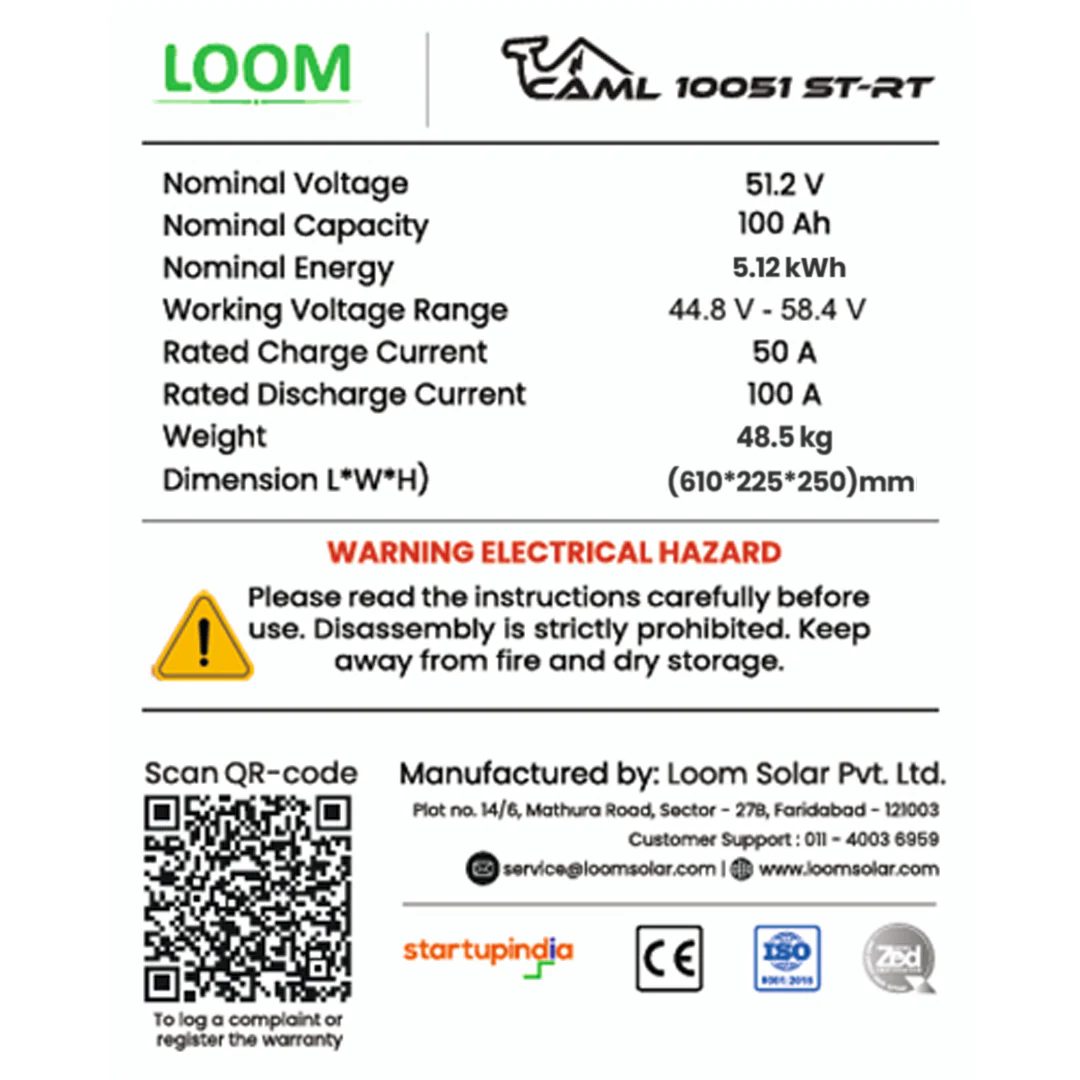

Weight	High Voltage Box:16 kg  Battery Box: 48.5 kg

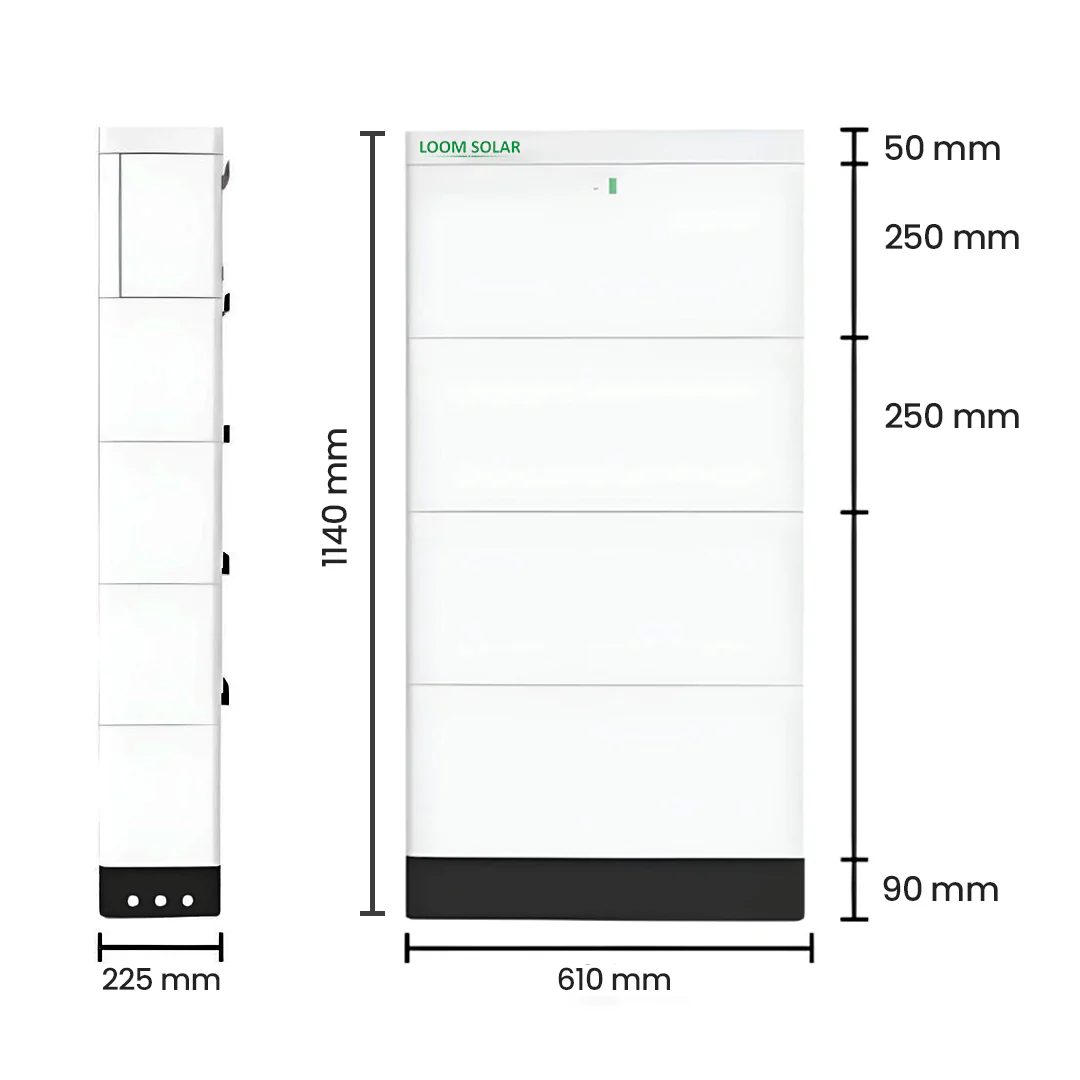

Dimensions (mm)	High Voltage Box: 610 x 225 x 250 Battery Box: 610 x 225 x 250

Certifications

UN38.3, RoHS, MSDS, CE

Download

Download the CAML High Voltage Series Datasheet and User Manual from here.
