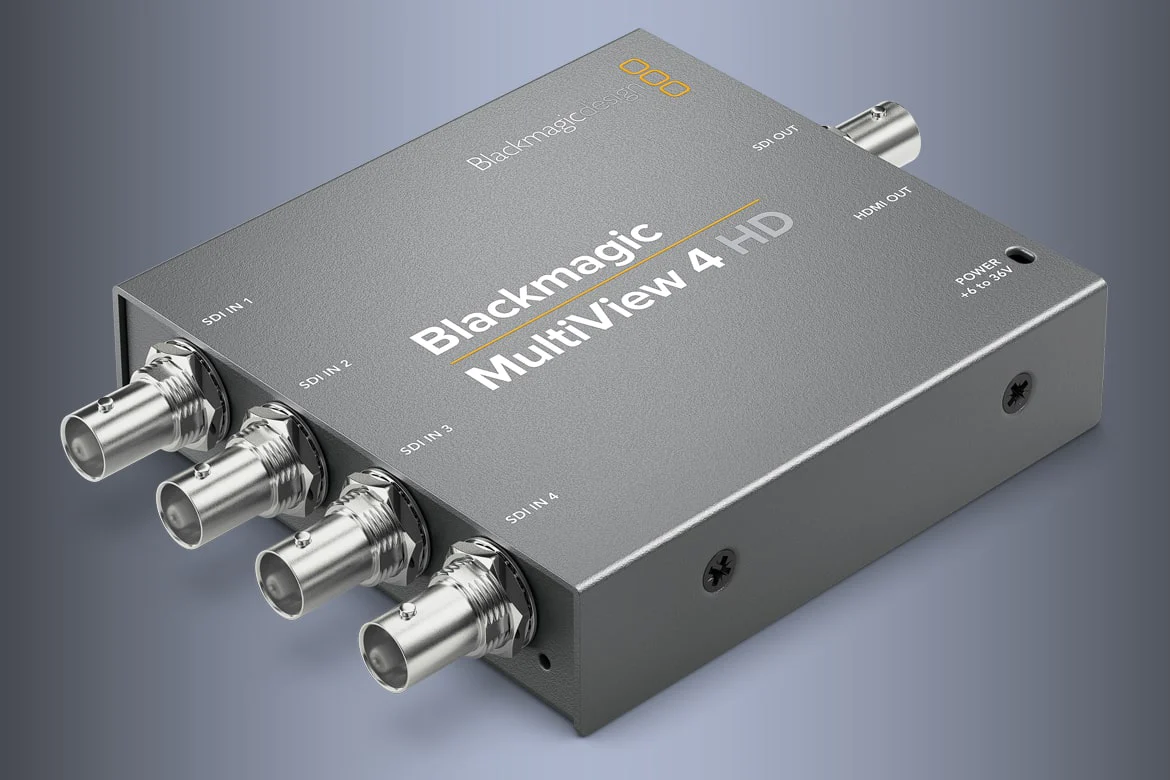

Blackmagic MultiView 4 HD
Key Features:
- 4 x SD/HD/3G-SDI Inputs
- 1 x SDI & 1 x HDMI Outputs
- Automatic Signal Detection
- SDI Re-Clocking on Output
- Monitor EDID Support
- Display Custom Labels & Audio Metering
- Compact Metal Housing
- Quad Multiviewer

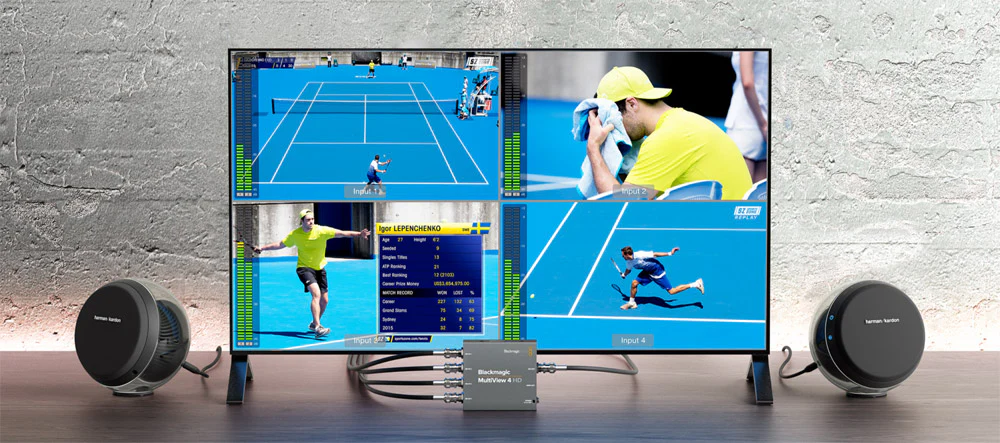

The Blackmagic Design MultiView 4 HD is a compact mini-converter that enables you to display up to four separate SDI streams via its HDMI or 10-bit SDI multiview outputs. This unit supports SD/HD/3G-SDI formats, and features automatic signal detection, SDI re-clocking, and monitor EDID support.
Each view can display custom overlays like labels and audio meters, and the integrated USB 2.0 interface can be used for updates. The MultiView 4 HD's metal housing measures approximately 5.3 x 3.6", and it includes a power supply with international adapters.
Features:
- Four SDI inputs output to one SDI and one HDMI multiview
- Automatic signal detection, SDI output re-clocking
- Monitor any combination of HD or SD formats, and frame rates
- Display custom labels, audio metering, and more on each view
Technical Specifications:
|
Input Connectors |
4 x BNC (3G-SDI) |
|
Output Connectors |
1 x BNC (3G-SDI) 1 x HDMI |
|
Video Standard Compliance |
SMPTE 259M/292M/296M/310M/425M-B ITU -R BT.601/BT.656 |
|
Video Format |
SDI (10-Bit 4:4:4/4:2:2 RGB, YUV) DCI 2K 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps |
|
Max Sample Rate/Resolution |
48 kHz / 24-Bit |
|
OS Compatibility |
macOS 10.12 macOS 10.13 Windows 8.1 Windows 10 |
|
Power Consumption |
6 to 36 VDC (5.5 W) |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
-4 to 113°F / -20 to 45°C |
|
Operating Humidity |
0 to 90% |
|
Dimensions |
4.8 x 3.1 x 1.2" / 123.0 x 79.5 x 29.5 mm |
|
Weight |
8.53 oz / 0.24 kg |
In the Box:
- Blackmagic Design MultiView 4 HD
- 12V Universal Power Supply
- International Socket Adapters
- Limited 3-Year Warranty
