Specifications
| Supported CPU |
Intel i3/i5/i7/Celeron/Pentium 10th & 11th Generation Series Processor in LGA 1200 | |
| Chipset |
Intel H510 | |
| Memory Supported |

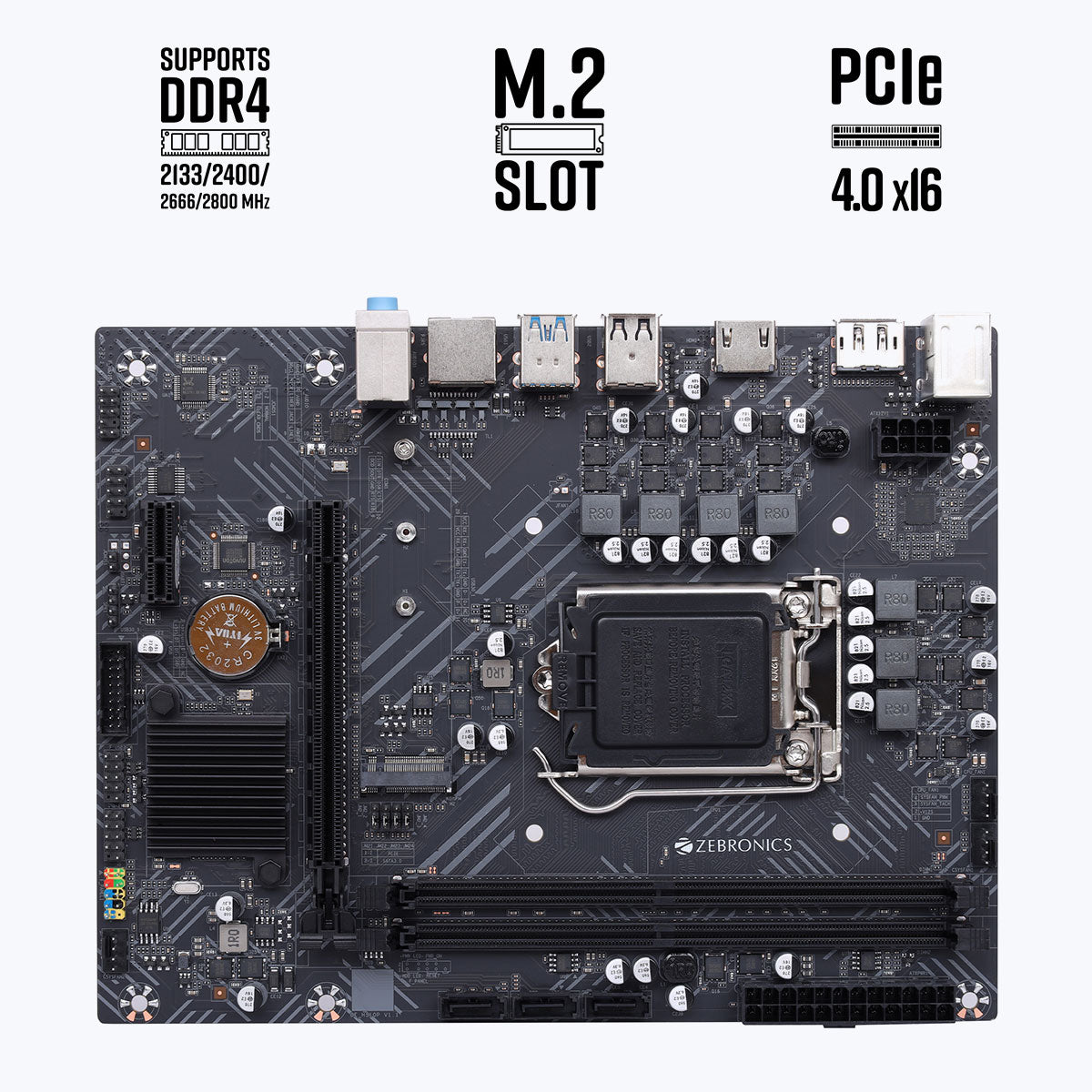

2 Nos. DDR4 DIMM Memory Slots Memory up to 64GB Supports DDR4 2133/2400/2666/2800 MHz Memory |
|
| BIOS | AMI BIOS | |
| I/O Interface |

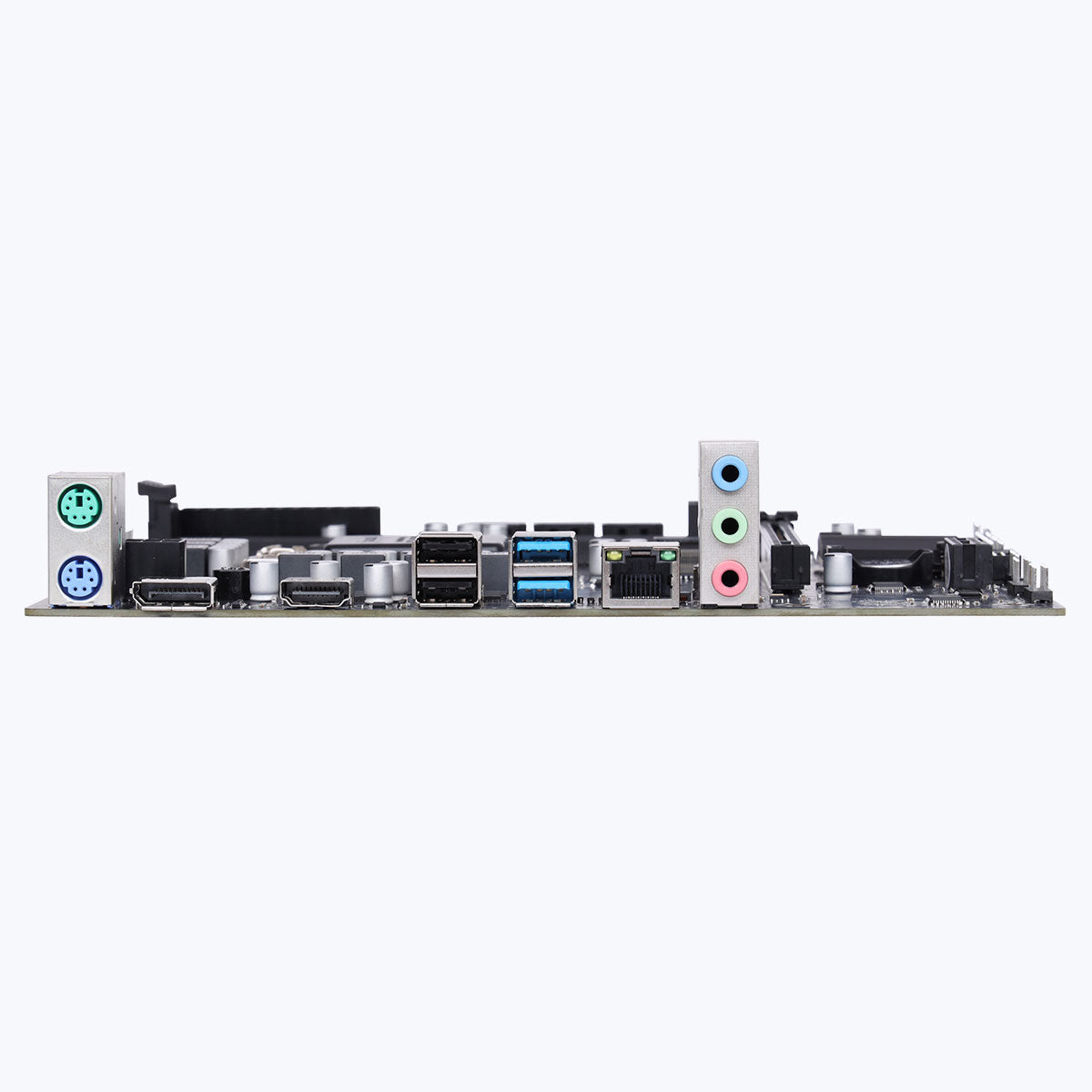

1 x HDMI Port, 2 x USB 2.0 Port, 2 x USB 3.0 Port, 1 x RJ45 Port 1 x 3-in-1 Audio Jacks, 1 x Display Port , 1 x PS/2 for Keyboard & Mouse |
|

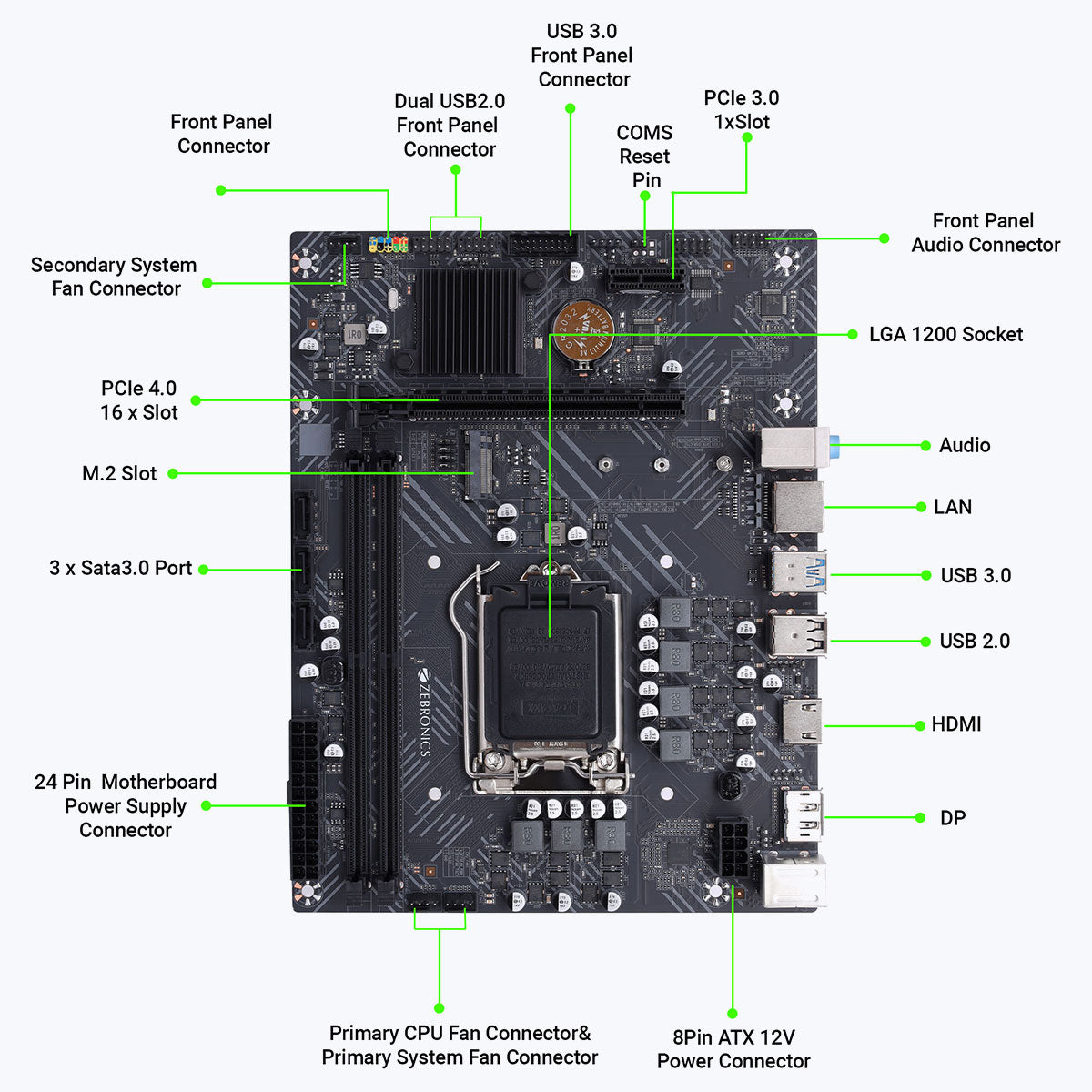

| Onboard Interface | 1 x 24 Pin ATX Power Connector, 1 x 8 Pin ATX 12V Power Connector, 1 x Front Panel Connector, 1x Front Audio Connector 1 x Speaker Connector, 2 x USB 2.0 Connectors, 1 x USB 3.0 Connector 1 x CPU Fan Connector, 2 x SYS Fan Connector, 3 x SATA 3.0 1 x COM Port Connector, 3 x SATA 3.0, 1 x CMOS reset connector |
|
| Integrated LAN |
Supports 10/100/1000 Mbps Ethernet LAN | |
| Expansion Slot | 1 x PCI Express 4.0 x16 Slot, 1 x M.2 Slot, 1 x PCI Express 3.0 x1 Slot | |
| Form Factor | Micro-ATX | |
| Country of Origin | People’s Republic of China | |
|
||
| ZEB-H510 Motherboard | 1 U |
|

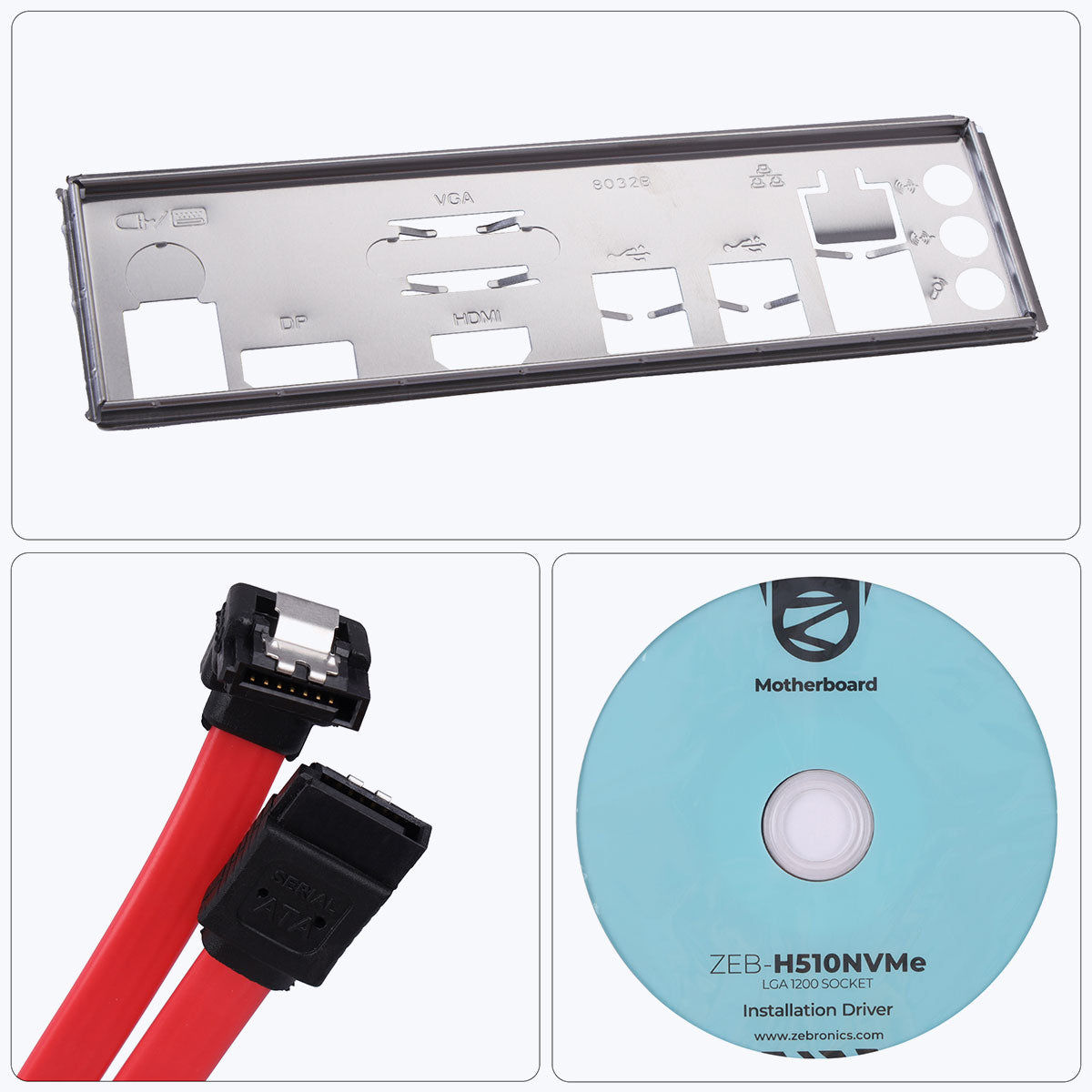

| SATA Cable | 1 U | |
| I/O Backplate | 1 U | |
| Driver Disc | 1 U | |
| User Manual | 1 U |
