Specifications
| Supported CPU* | Intel Celeron / Pentium / i3 / i5 / i7 / i9 12th, 13th & 14th Generation Series Processor in LGA 1700 |
|
| Chipset | Intel H610 | |
| Memory Supported |

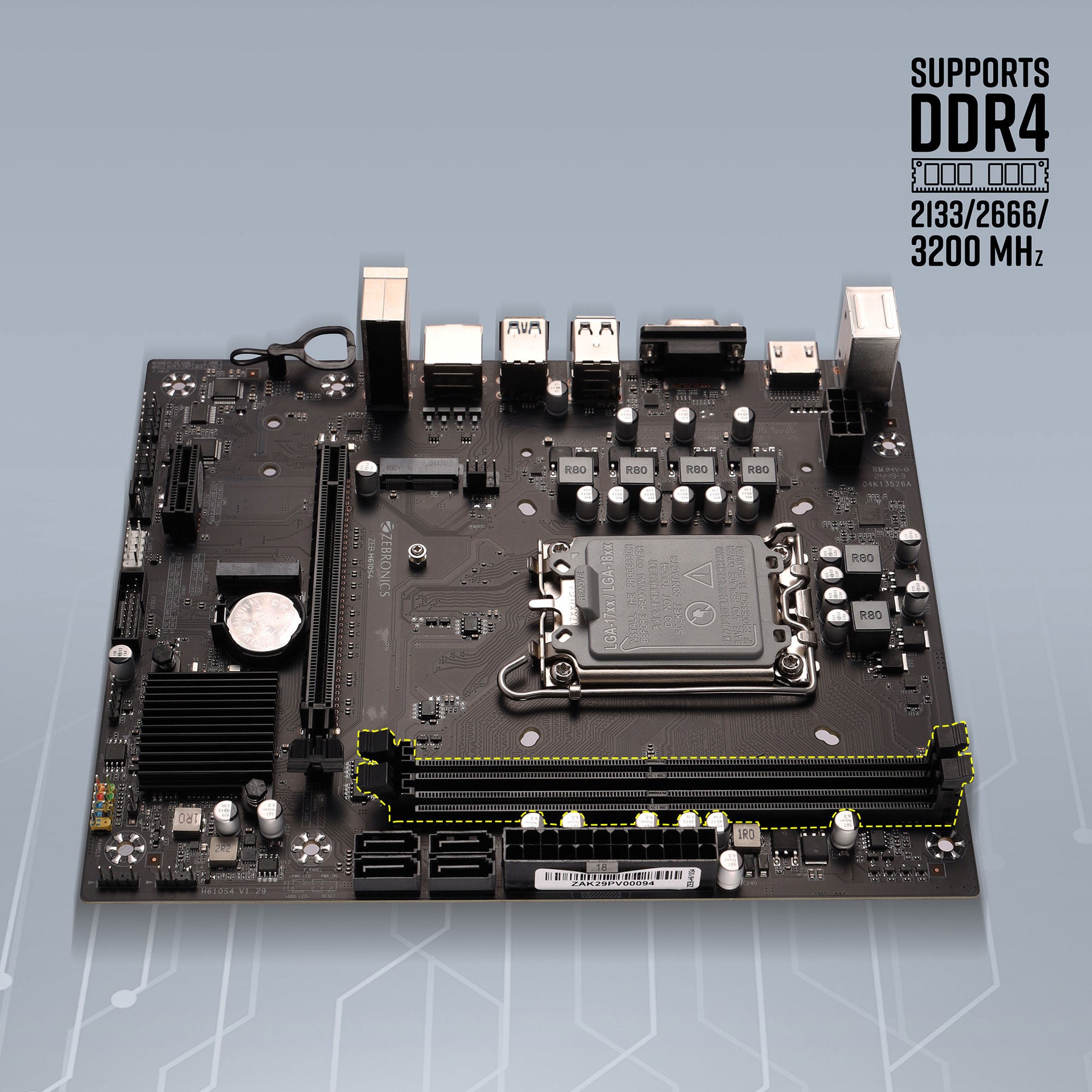

2 x DDR4 Memory Slots Memory up to 64GB Supports DDR4 2133/2666/3200 MHz Memory |
|
| BIOS | AMI BIOS | |
| I/O Interface |

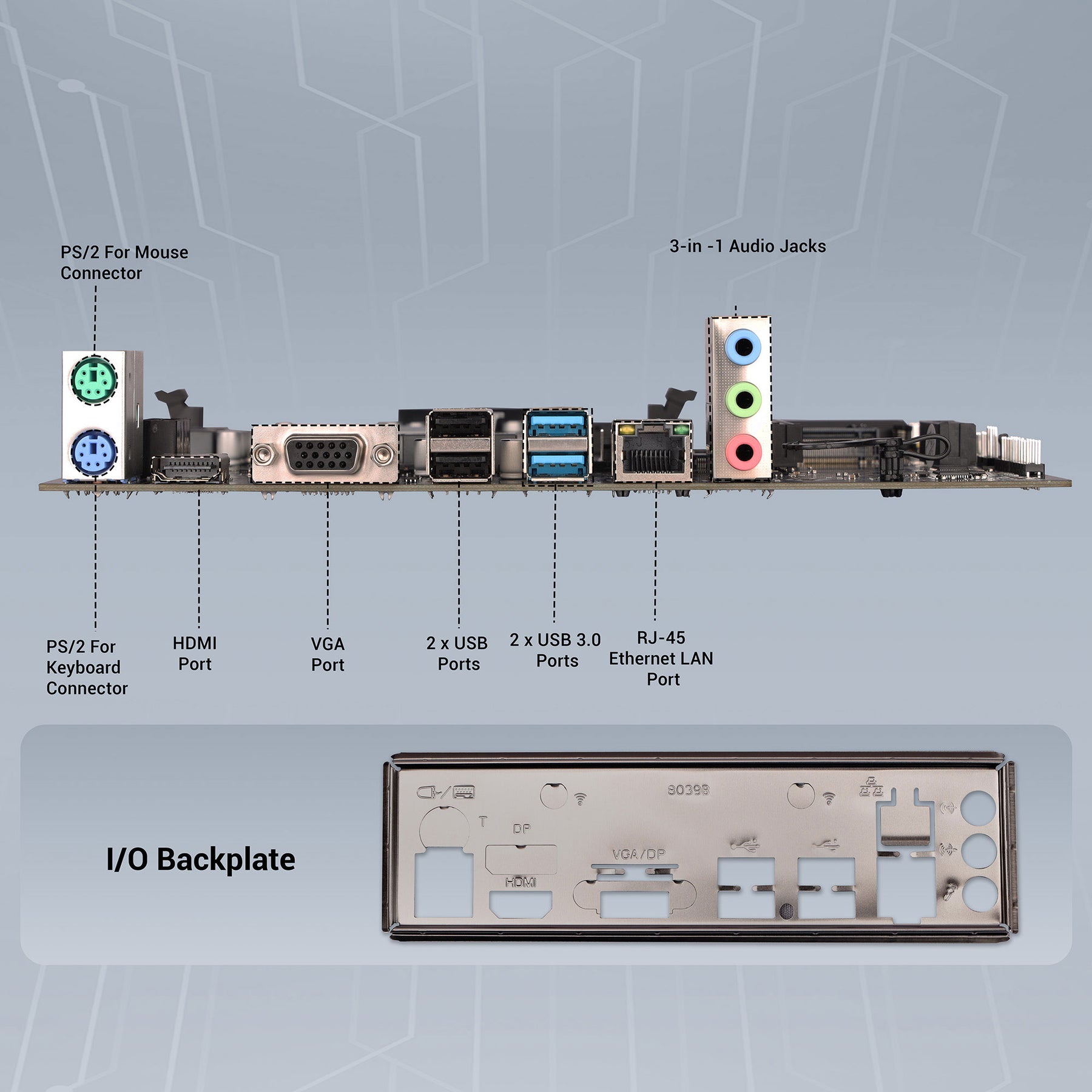

1 x HDMI port, 1 x VGA Port, 2 x USB 2.0 Ports, 2 x USB 3.2 Ports, 1 x RJ45 Port, 1 x 3-in-1 Audio Jacks, 1 x PS/2 for Keyboard, 1 x PS/2 for Mouse |
|
| Onboard Interface | 1x 24 Pin ATX Power Connector, 1 x 8 Pin ATX Power Connector, 1 x USB 3.0 Connector, 1 x USB 2.0 Connector, 1 x Front Panel Connector, 1 x Front Audio Connector, 1 x CPU Fan Connector, 1 x SYS Fan Connector, 1 x COM Port Connector, 1 x SPK Connector, 2 x LED Header, 4 x SATA 3.0 Ports |
|
| ntegrated Sound |
With 5.1-Channel Audio | |
| Integrated LAN |

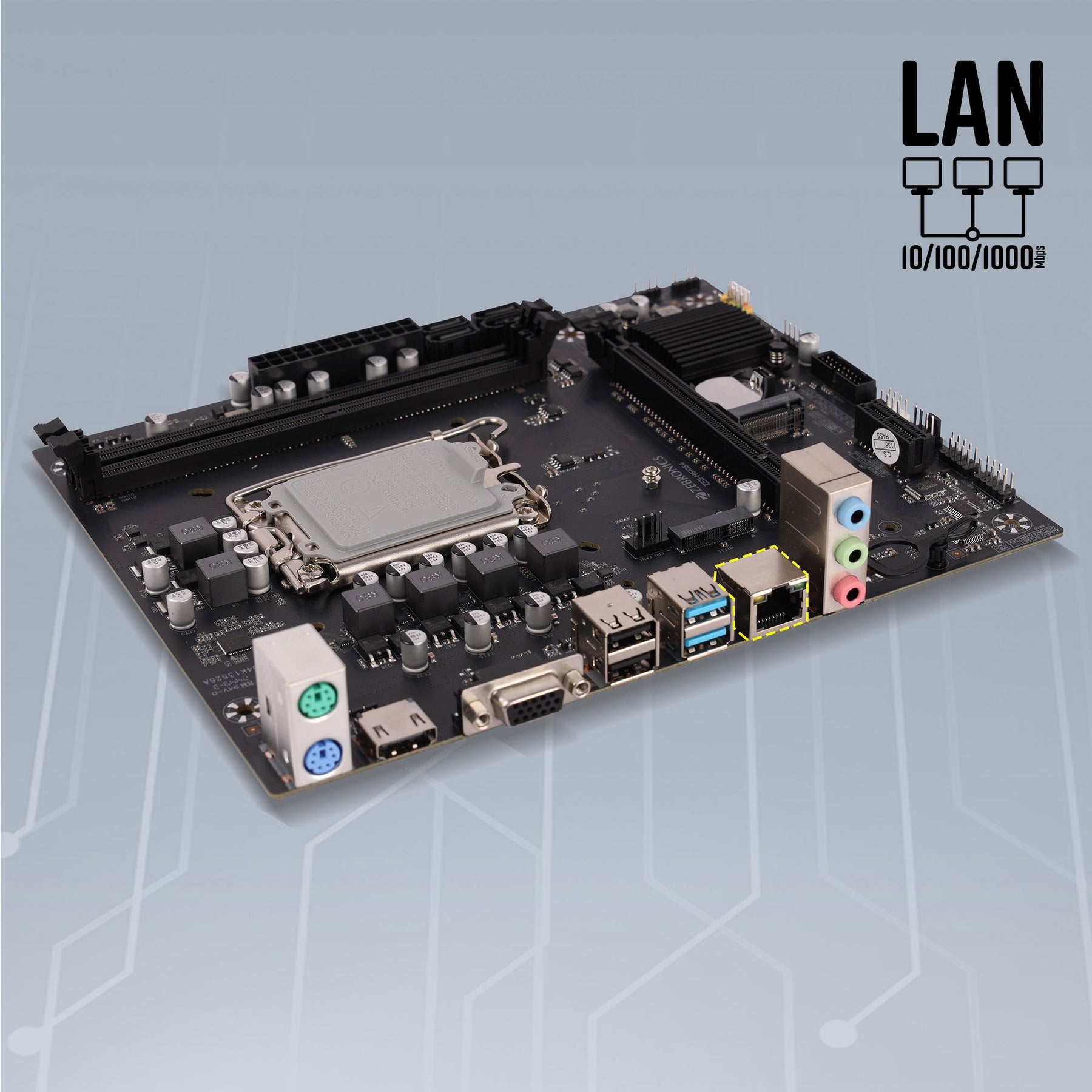

Supports RTL8111H 10/100/1000 Mbps Ethernet LAN | |

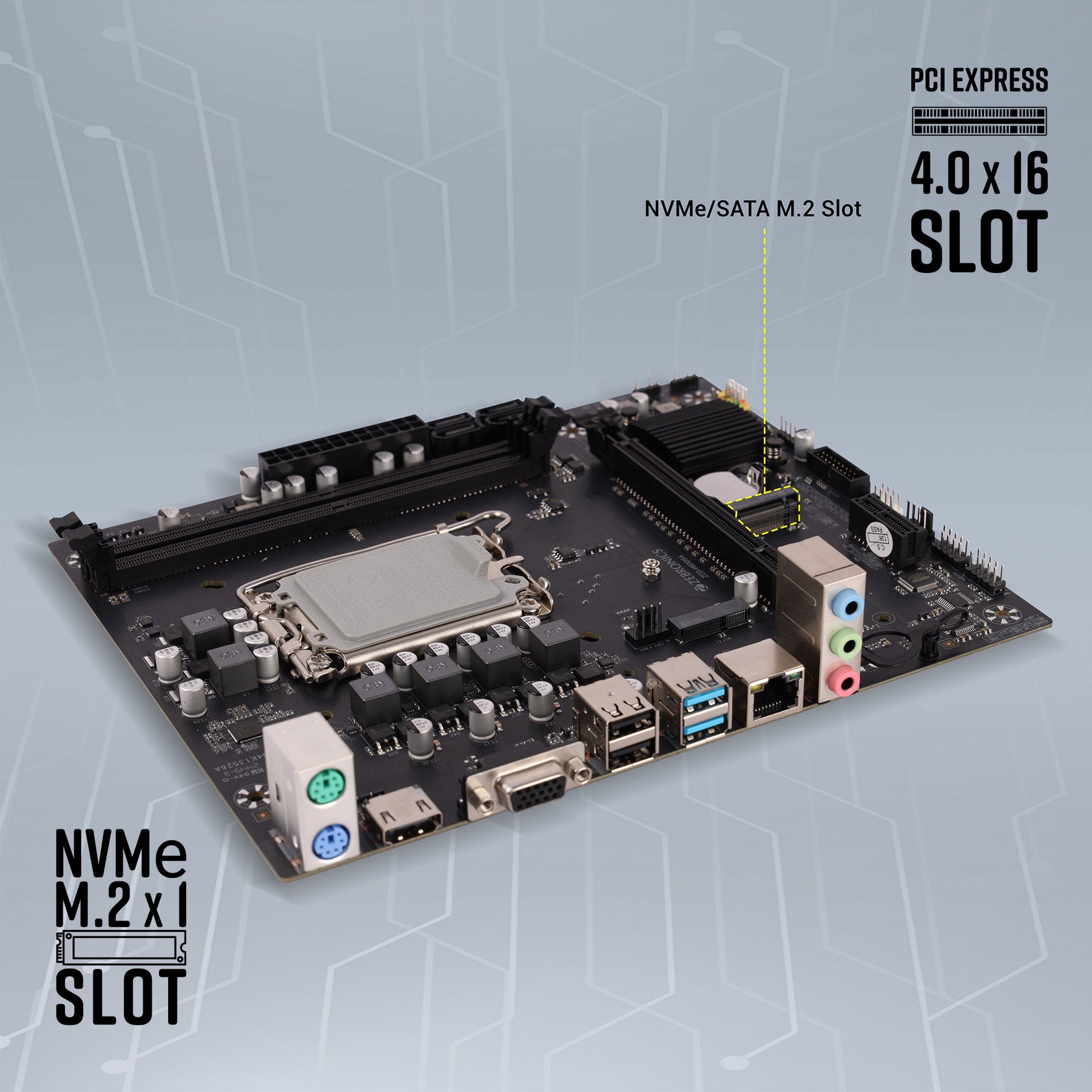

| Expansion Slot | 1 x PCI Express 4.0 x16 Slot, 1 x PCI Express x1 slot, 1x NVMe M.2 Slot, 1 x M.2 for WIFI Module |
|
| Form Factor | Micro-ATX | |
| Net Dimension(W x H) |
18 x 22 cm | |
| Country of Origin | People’s Republic of China | |
| Package contents | ||
| ZEB-H610S4 Motherboard | 1 U |
|

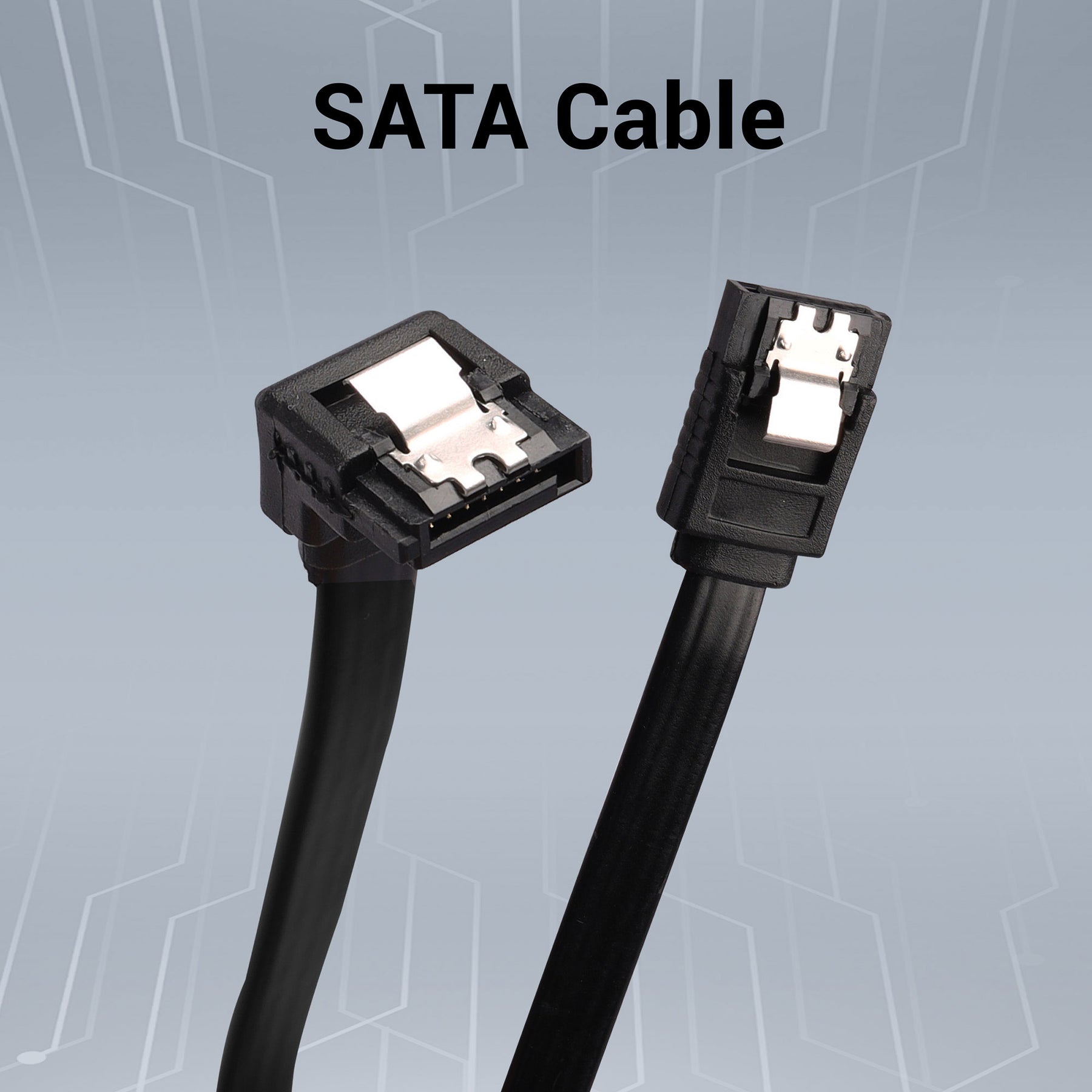

| SATA Cable | 1 U | |
| I/O Backplate |
1 U | |

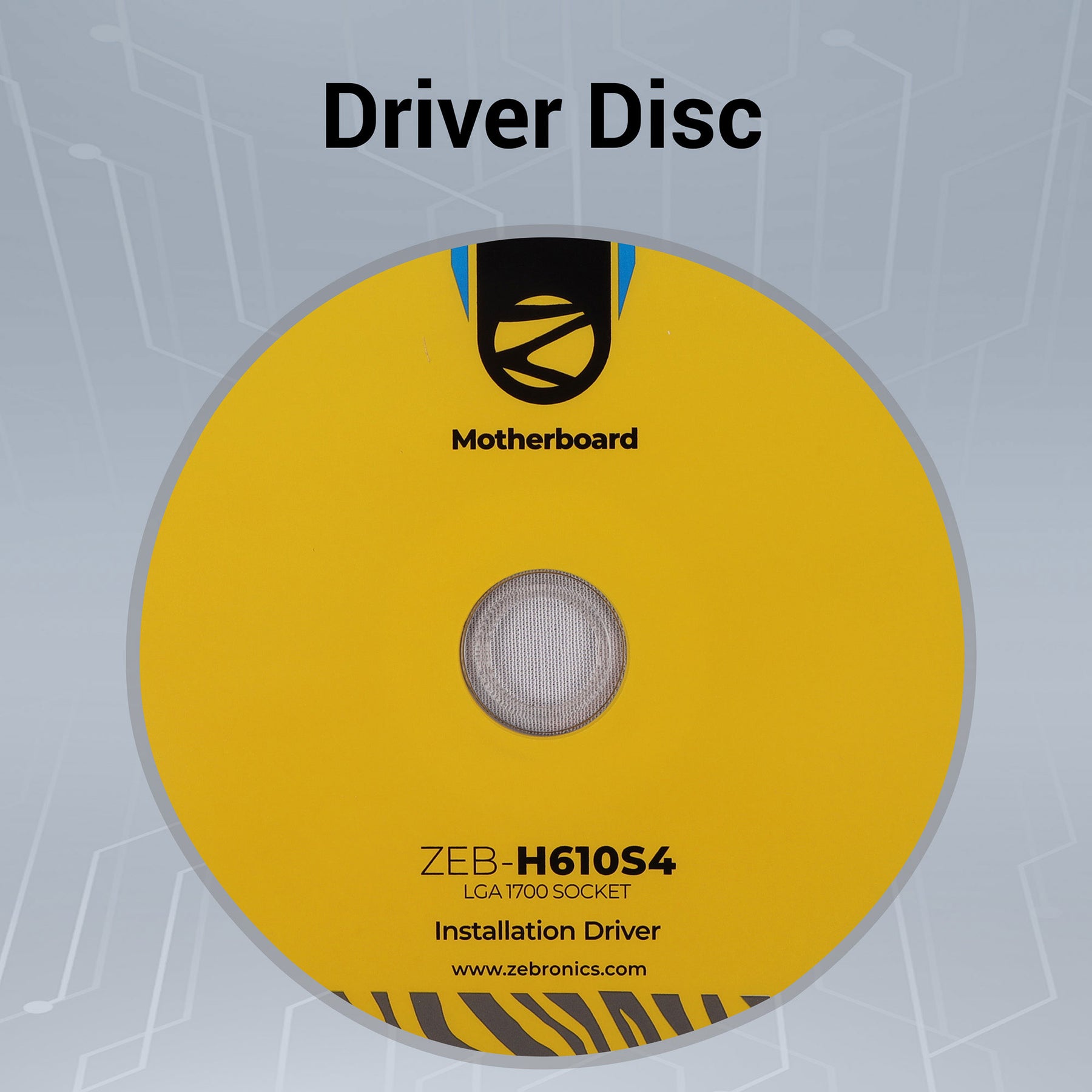

| Driver Disc | 1 U | |
| User Manual | 1 U |
**When using a processor exceeding 95 Watts, the device may not achieve peak performance
