Specifications
| Supported CPU | Intel Celeron / Pentium / i3 / i5 / i7 / i9 12th & 13th generation series processor in LGA 1700 | |
| Chipset |
Intel H610 Chipset | |
| Memory Supported |
2 no's DDR4 Memory slots Memory up to 64GB Supports DDR4 2133/2666/3200 MHz memory |
|
| BIOS | AMI BIOS | |
| I/O Interface |

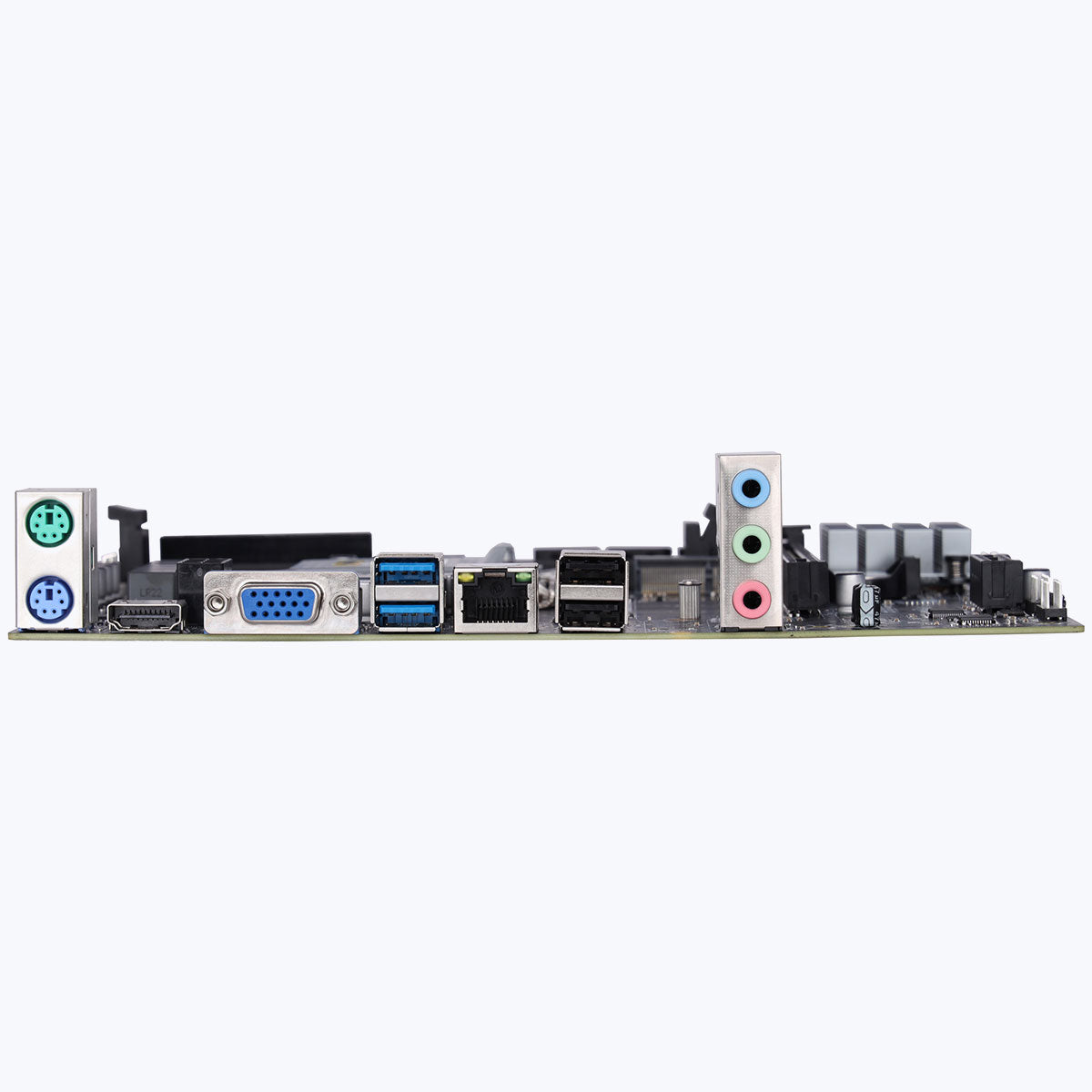

1 x HDMI port, 1 x VGA Port, 2 x USB 2.0 Port, 2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio - 5.1 audio, 1 x PS/2 keyboard port and 1 x PS/2 Mouse port |
|

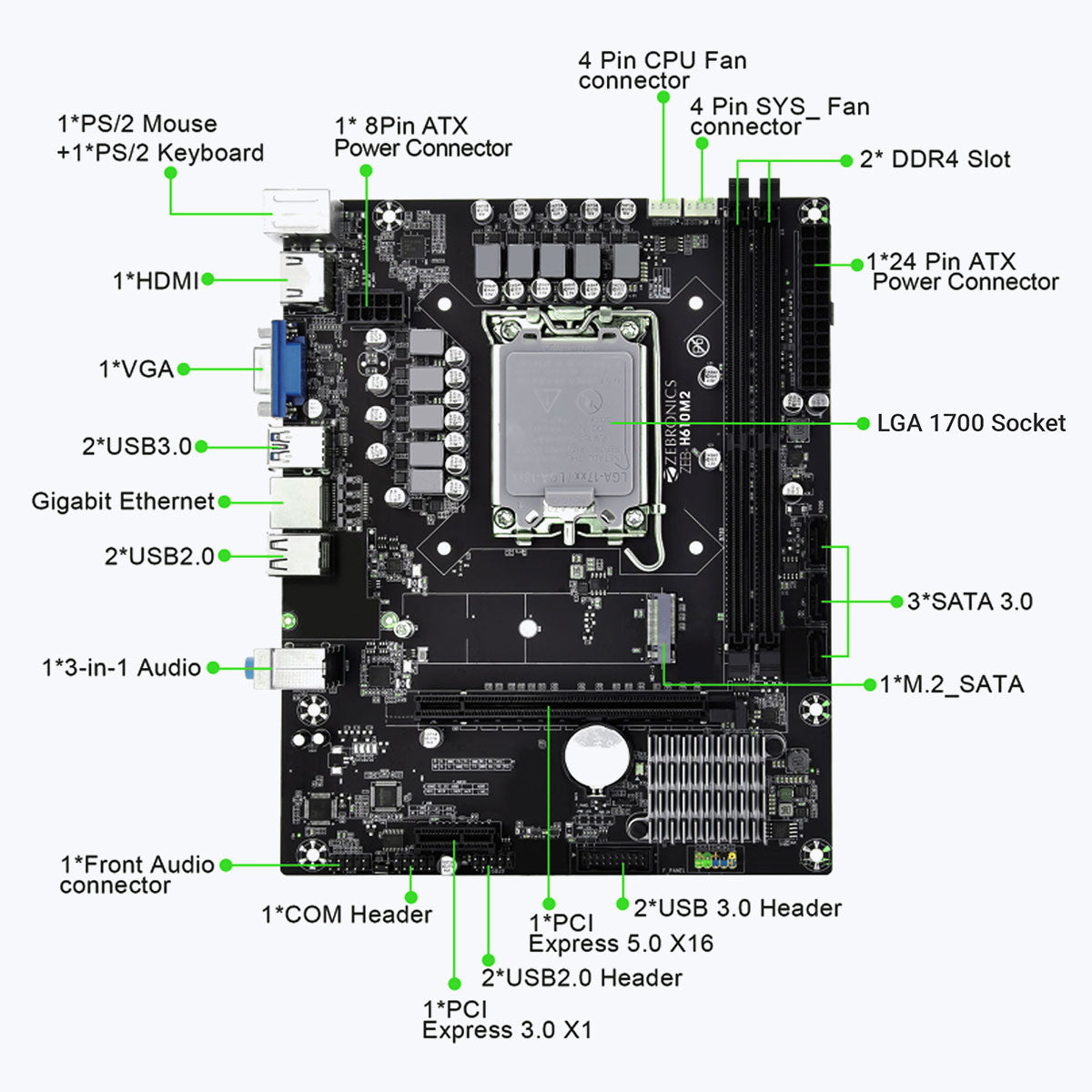

| Onboard Interface | 1x 24 pin ATX Power Connector, 1 x 8 Pin ATX 12V Power Connector 1 x USB 3.0 header, 1 x USB 2.0 header,1 x Front Audio Connector 3 x SATA 3.0, 1 x COM pin, 1 x Front Panel connector 1 x 4 pins CPU FAN, 1 x 4 pins SYS FAN. |
|
| ntegrated Sound |
With 5.1-Channel Audio | |
| Integrated LAN |
Supports RTL8111G 10/100/1000 Mbps Ethernet LAN | |

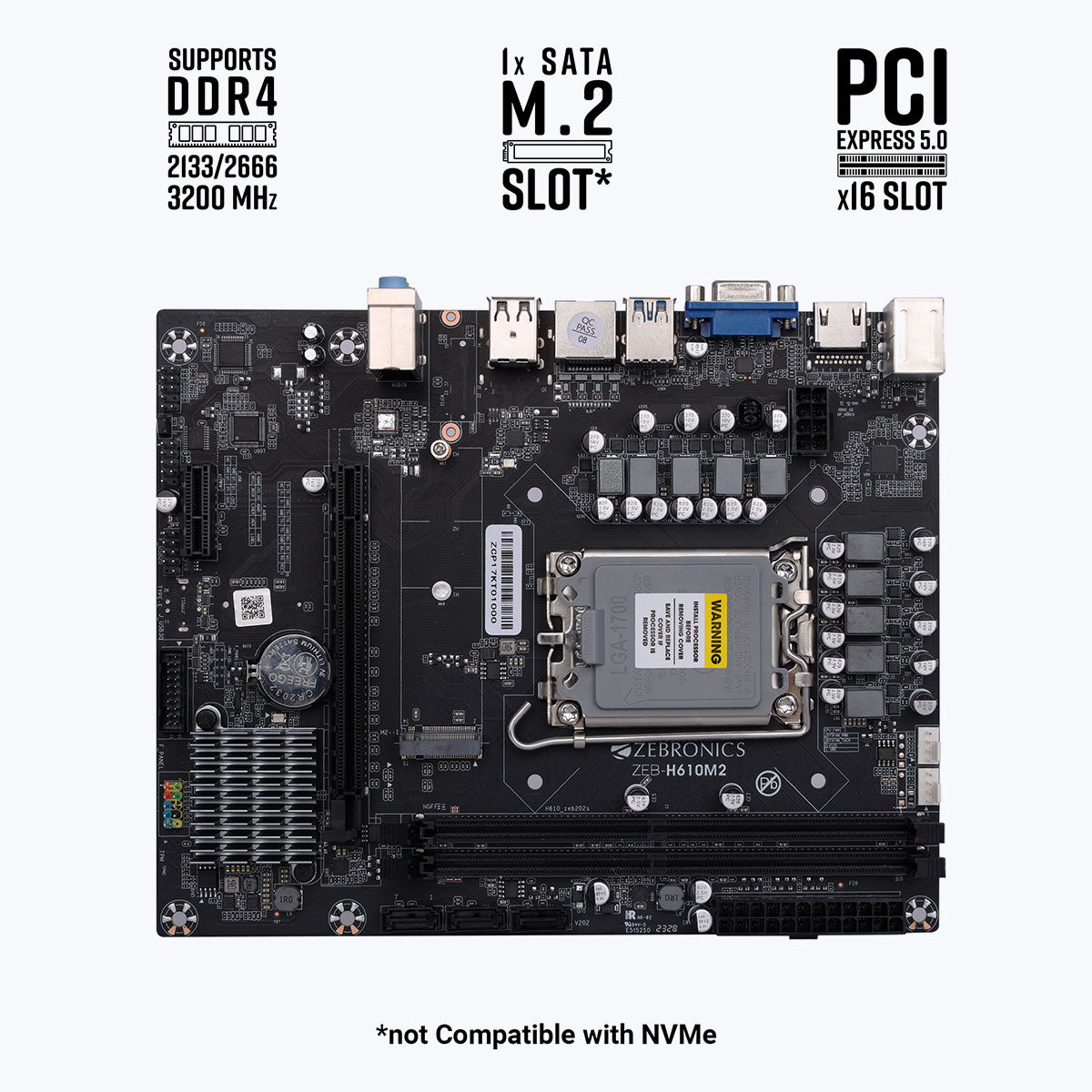

| Expansion Slot | 1 x PCI Express 5.0 x16 Slot, 1 x PCI Express 3.0 x1 Slot, 1 x SATA M.2 Slot* | |
| Form Factor | Micro-ATX | |
| Country of Origin | People’s Republic of China | |
|
||

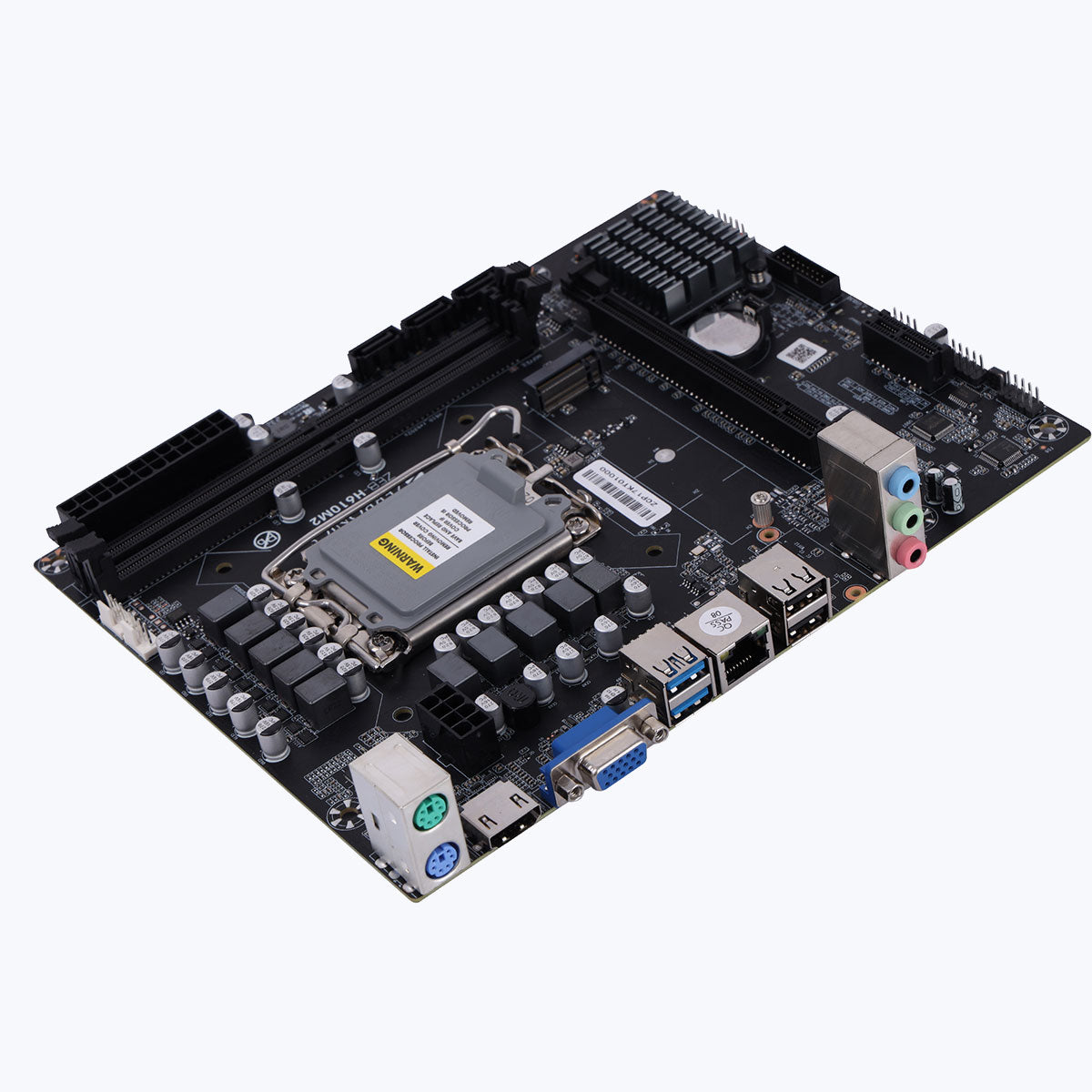

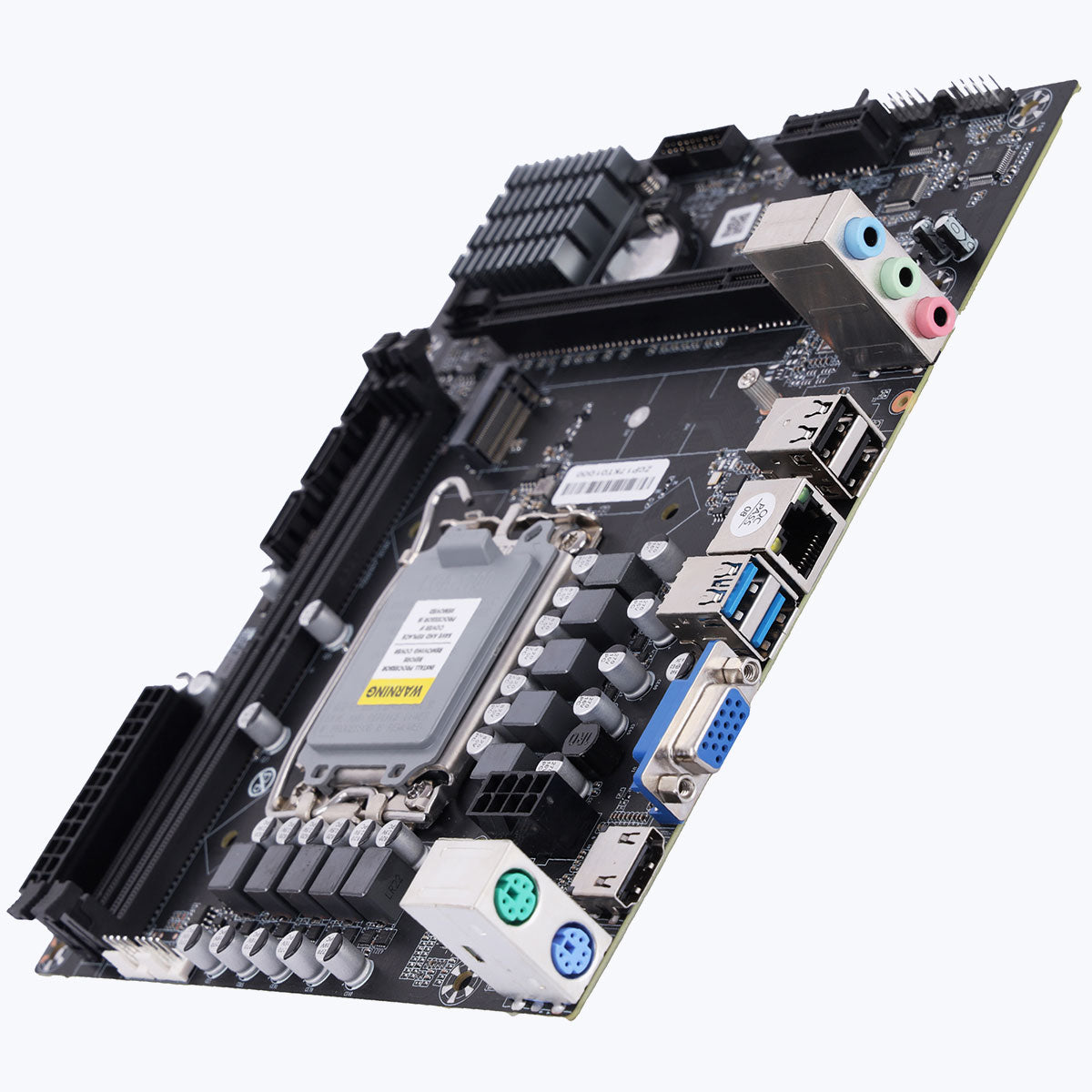

| ZEB-H610 Motherboard |
1 U |
|
| SATA Cable |
1 U | |

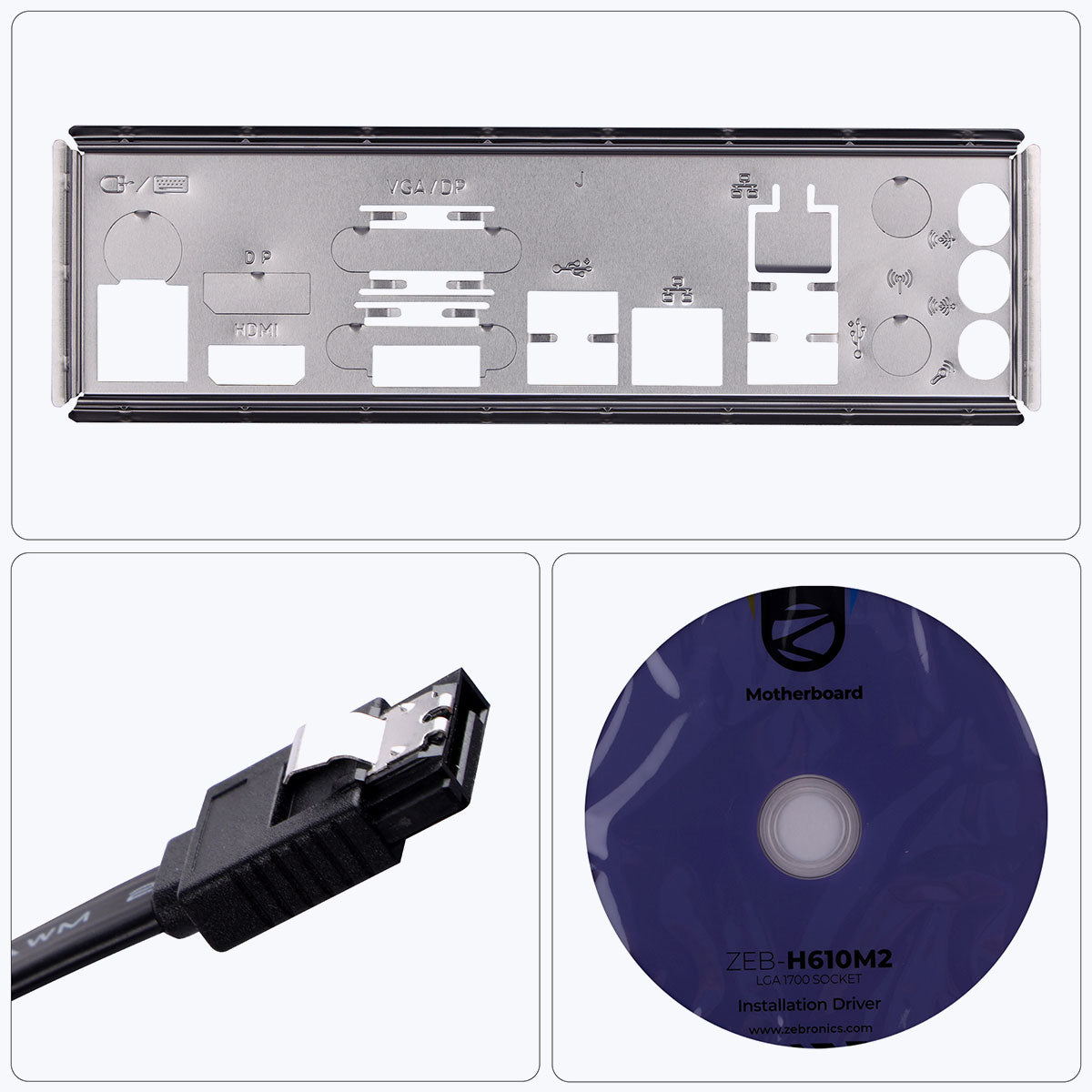

| I/O Backplate |
1 U | |
| Driver Disc |
1 U | |
| User Manual |
1 U | |
| *not compatible with NVMe |
