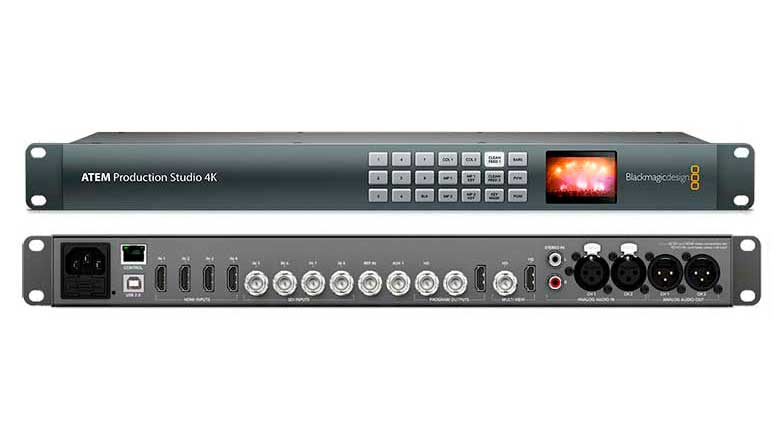

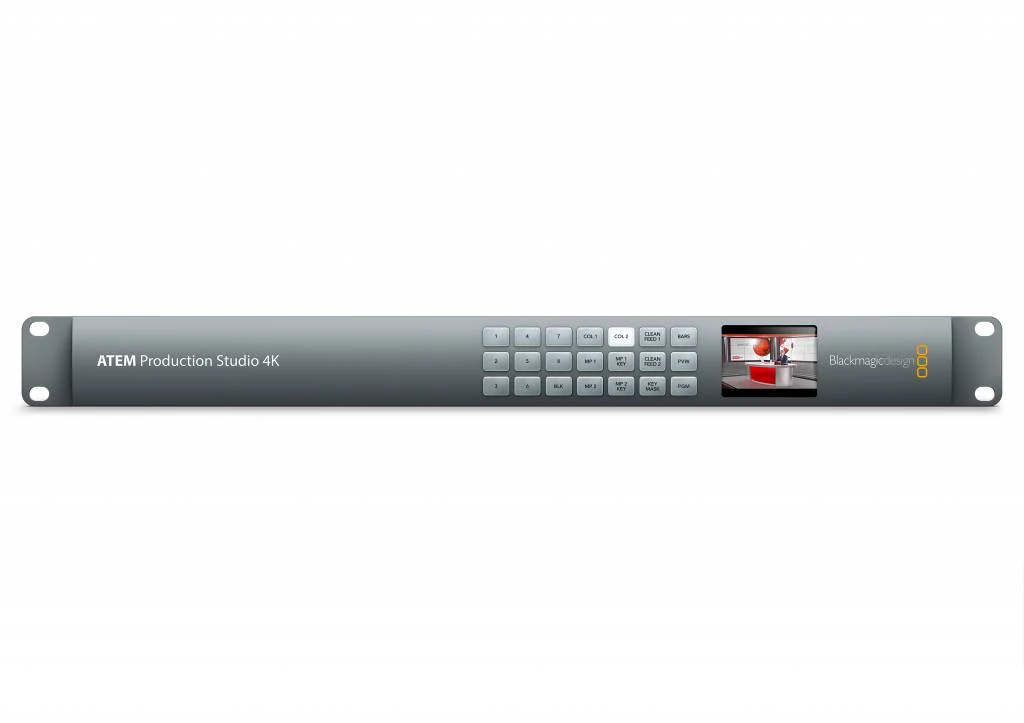

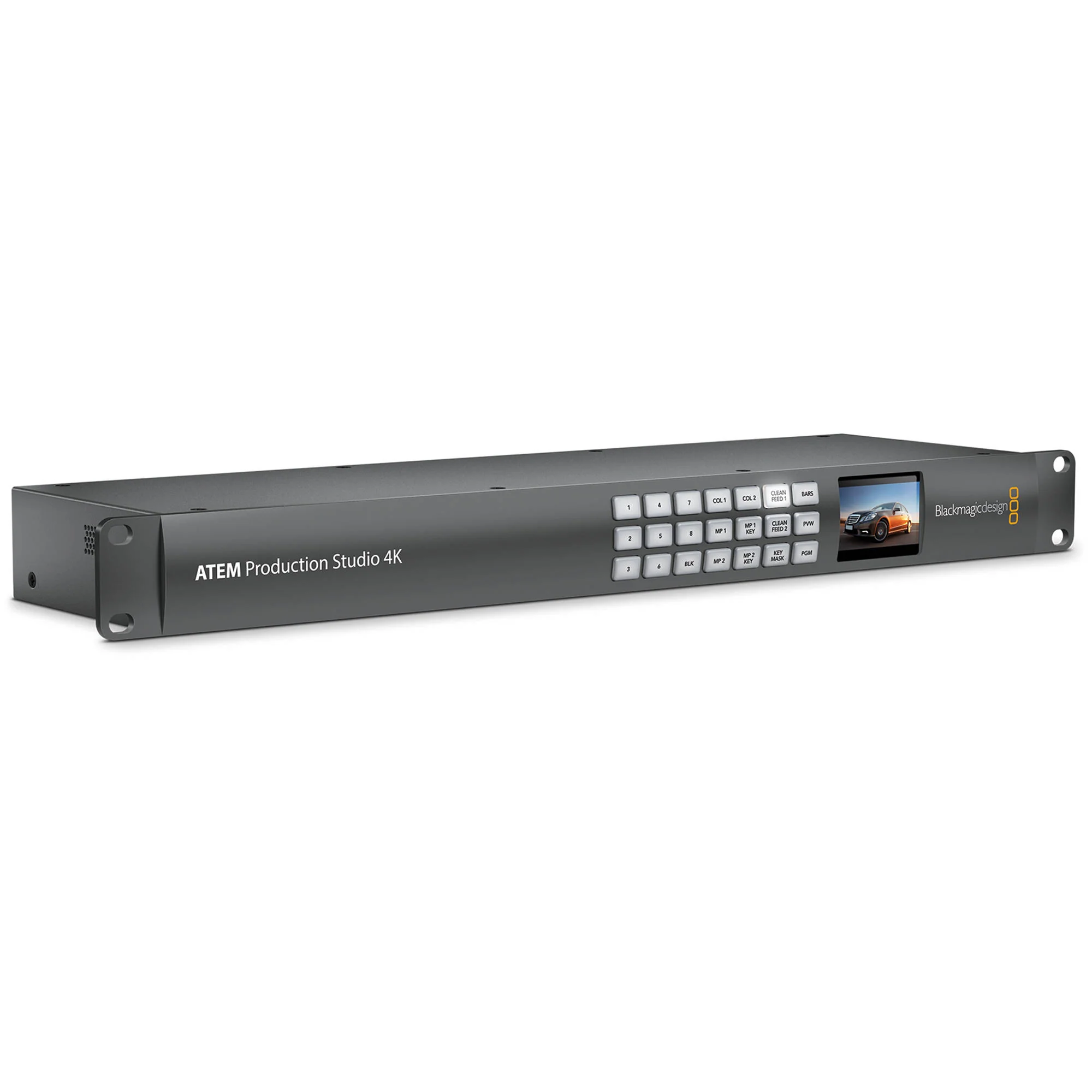

Blackmagic ATEM Production Studio 4K

Ultra HD Support

SDI

3840 x 2160p 23.98/24/25/29.97/30

HDMI: Computer Input Resolutions

3840 x 2160 23.98/24/25/29.97Hz

HD Format Support

SDI

720p 50/59.941080i 59.94

1080i 50/59.94

1080p 23.98/24/25/29.97/50/59.94

HDMI: Computer Input Resolutions

1280 x 720 50/59.94Hz

1920 x 1080 50/59.94Hz

SD Format Support

SDI

NTSC: 525/29.97 - 4:3/16:9

PAL: 625/25 - 4:3/16:9

HDMI: Computer Input Resolutions

720 x 480 59.94 Hz

720 x 576 50Hz

SDI Compliance

SMPTE 259M, 292M

Video Inputs

4 x SDI (10-bit SD/HD/Ultra HD switchable)

4 x HDMI 4K(10-bit SD/HD/Ultra HD switchable)

Audio Input

Digital

8 x Embedded audio via SDI or HDMI

1 x AES/EBU

Analog

2 x XLR

2 x RCA

Sync Input

1 x SDI: Tri-Sync or Blackburst

Frame Synchronizer

8 x Internal frame synchronizers (all inputs)

Program Output

1 x SDI (10-bit SD/HD/Ultra HD switchable)

1 x HDMI 4K (10-bit SD/HD/Ultra HD switchable)

1 x SDI (HD-SDI only)

Auxiliary Output

1 x SDI (10-bit SD/HD/Ultra HD switchable)

Multi View Output

1 x SDI (HD-SDI)

1 x HDMI (HD)

Preview (PVW) Output

None

Quantity of Multi-Views

1

SDI Audio Output

2 Channels embedded into SDI output

Analog Audio Output

2 x XLR

Ethernet

1 x 10/100/1000 BaseT input. Allows direct connection between control panel and chassis, or via network

Serial Communication

None

Tally Output

Added via Ethernet connection

Note: GPI and Tally Interface product are optional and are not included

GPI

Added via Ethernet connection

Note: GPI and Tally Interface product are optional and are not included

Software Update

Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility

Configuration

Set via ATEM Software Control Panel, excluding ATEM chassis IP address, which is set via the ATEM Switcher Utility connected via USB to chassis

Color Space Conversion

Hardware based, real time

Processing Delay

1 line

Video Sampling

4:2:2

Color Space

REC 601

REC 709

Color Precision

10-bit

Quantity

2

Channels

2 x Fill and key total (1 per Media Player)

Still Image Capacity

20

Image Format

PNG, TGA, BMP, GIF, JPEG, and TIFF

Display

Minimum monitor resolution: 1366 x 768

Number of Windows

1 Multi-view display with 10 x windows for:

Preview

Program

8 x assignable displays

Tally

Red for program and green for preview indication

Note: requires optional Blackmagic Design GPI and Tally interface product

Window Source Labels

Yes

Buttons

Illuminated button control Aux output settings

LCD Display

1 x 2" LCD display of Aux output

Software

ATEM Software Control Panel for both Mac and PC

Mac

OS x 10.7 Lion or later

OS x 10.8 Mountain Lion or later

Windows

Windows 7 64-bit

Windows 8 32/64-bit

Note: software included with purchase of ATEM Production Studio 4K

Hardware

ATEM 1 M/E Broadcast Panel

ATEM 2 M/E Broadcast Panel

Note: hardware panels are optional not included

Keyers

1 x Upstream

2 x Downstream

3 x Linear/Luma

1 x Chroma

Generators

2 x Pattern

2 x Color

Input Voltage

110/240 V AC, 50/60 Hz

Note: IEC power cord required, not included

Power Consumption

60W

Redundant Power

No

Temperature

Operating Temperature

32 to 104°F (0 to 40°C)

Storage Temperature

-4 to 140°F (-20 to 60°C)

Relative Humidity

Up to 95%

Dimensions (HxWxD)

1.7 x 19.0 x 5.0" (44 x 482 x 127mm)

1RU-sized unit with built-in rack mount ears

Weight

3.75 lb (1.7 kg)
