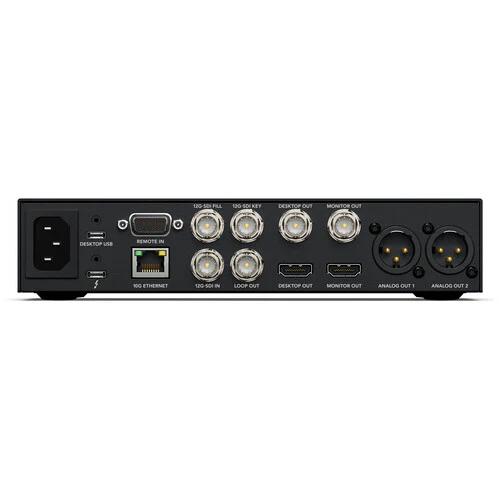

Blackmagic Design Media Player 10G

System Connection

USB-C (Thunderbolt 3) with Addition Pass-Through Port

Video I/O

Input

1x BNC (12G-SDI) Female

Output

4x BNC (12G-SDI) Female

1x BNC (12G-SDI) Female (Loop Output)

1x HDMI (Unspecified Signal) Female (Monitor)

Audio I/O

Output

2x XLR 3-Pin Analog Female

1x 1/4" TRS Analog Female

Other I/O

Input/Output

2x Thunderbolt 3 3.0 / 3.1/3.2 Gen 1

1x USB-C 3.0 / 3.1/3.2 Gen 1

1x RJ45 (10 GbE)

Input

1x DE-9/DB-9 (RS-422)

Video Resolution

BNC Input/Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)

4096 x 2160 up to 23.98/24/25/29.97/30/50/59.94/60 fps

3840 x 2160 up to 23.98/24/25/29.97/30/50/59.94/60 fps

2048 x 1080p up to 23.98/24/25/29.97/30/50/59.94/60 fps

2048 x 1080PsF up to 23.98/24/25/29.97/30 fps

1920 x 1080p up to 23.98/24/25/29.97/30/50/59.94/60 fps

1920 x 1080i up to 50/59.94/60 fps

1280 x 720 at 50/59.94/60 fps

720 x 576i at 50 fps

720 x 480i at 59.94 fps

HDMI Output (8/10/12-Bit 4:4:4/4:2:2/4:2:0)

4096 x 2160 up to 23.98/24/25/29.97/30/50/59.94/60 fps

3840 x 2160 up to 23.98/24/25/29.97/30/50/59.94/60 fps

1920 x 1080p up to 23.98/24/25/29.97/30/50/59.94/60 fps

1920 x 1080i up to 50/59.94/60 fps

1280 x 720 up to 50/59.94/60 fps

720 x 576i at 50 fps

720 x 480i at 59.94 fps

Audio Format

Analog Output: 48 kHz / 24-Bit

Embedded Audio

HDMI/LAN (RJ45)/SDI/USB

HDCP Support

No

HDR Compatibility

Yes Hybrid Log Gamma

OS Compatibility

Windows 10 to 11

macOS 13 or Later

Linux

Power I/O

1x IEC C14 (100 to 240 VAC) Input

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Storage Humidity

0 to 90%
