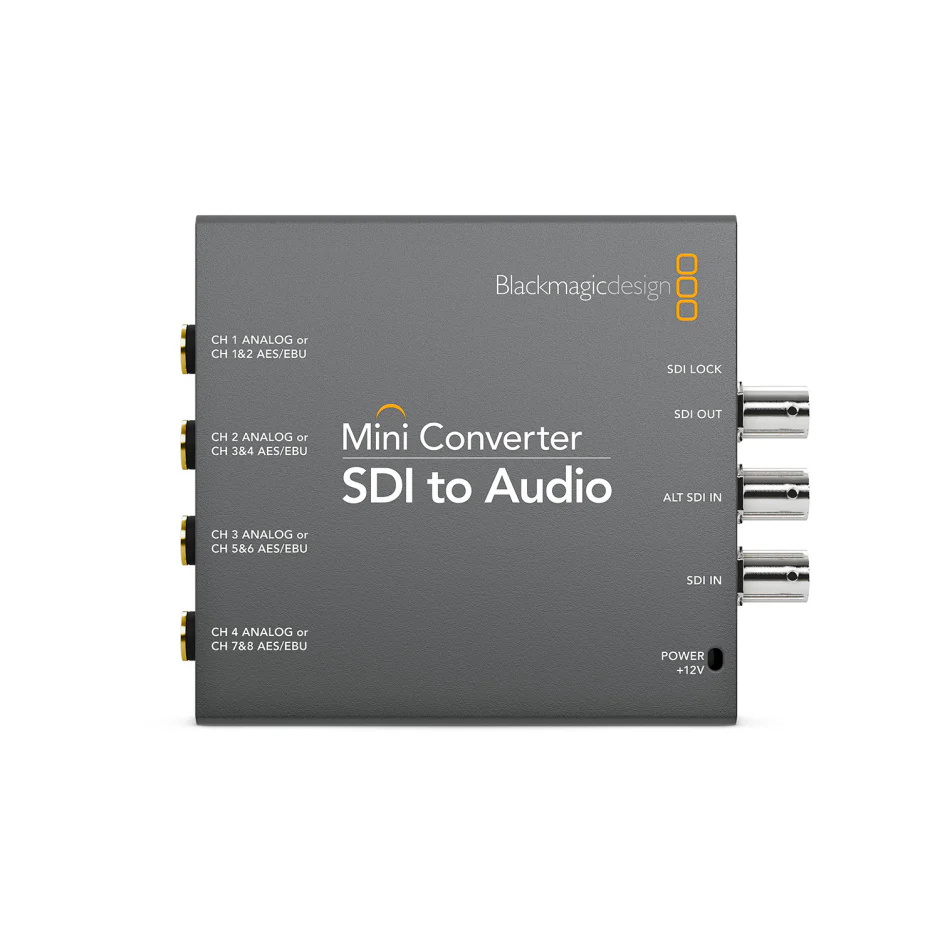

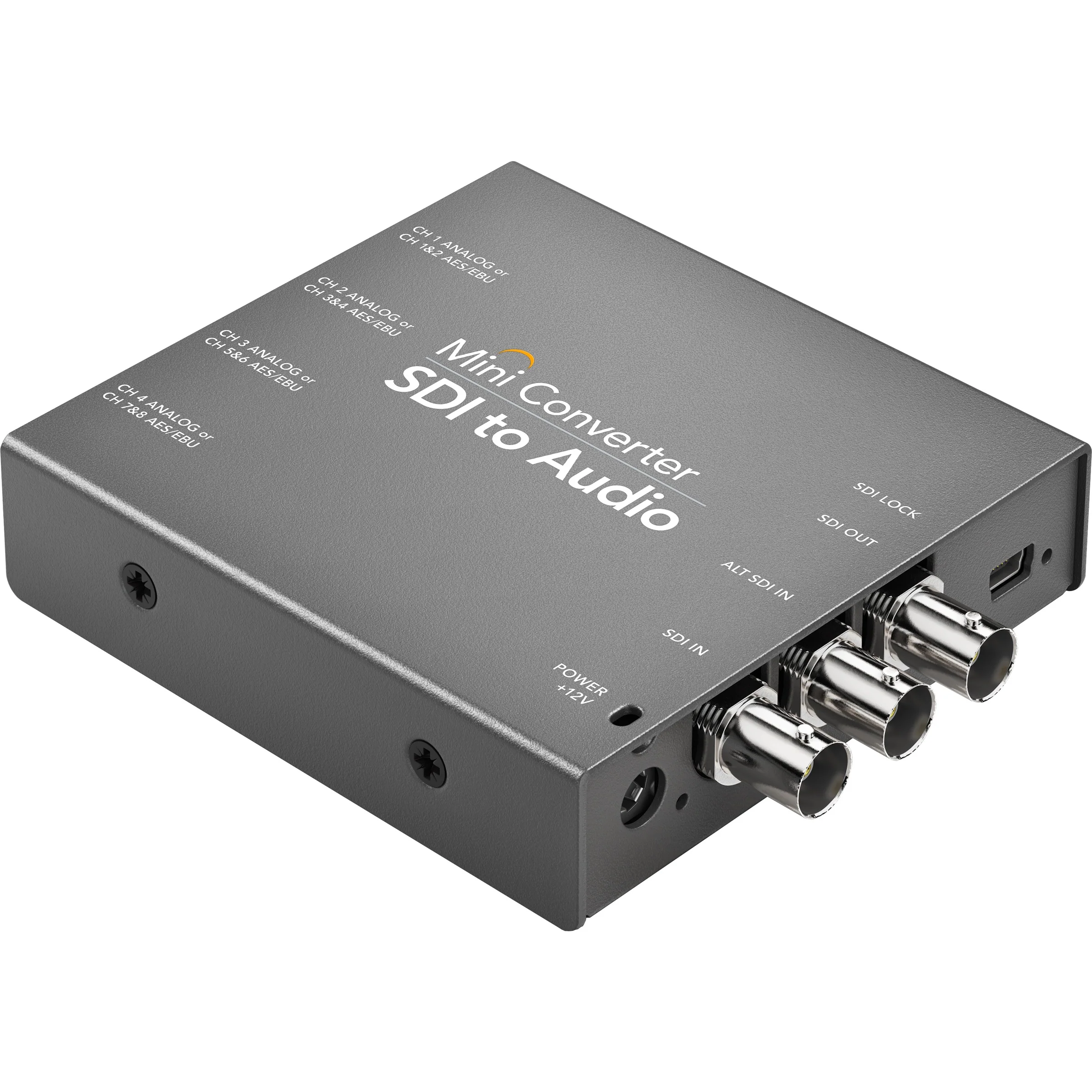

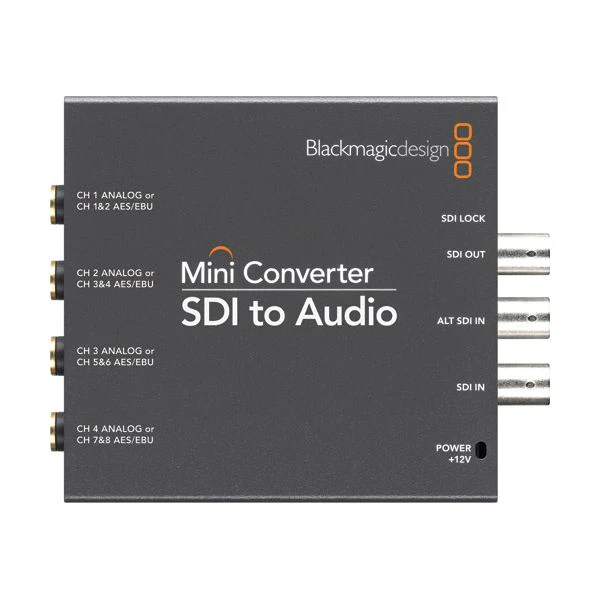

Blackmagic Mini Converter SDI to Audio

₹23,999

● In stockchecking live price…

View on Gears Of Future store ↗

Key Features:

Auto SD/HD Switching
3GB/s Technology
With Power Supply

The Blackmagic Design CONVMCSAUD includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can easily access the audio in any SDI video connection for output to audio equipment such as audio mixers, analog broadcast decks, audio monitors and more!

Auto Switching SD and HD

Mini Converters instantly switch between standard definition and high definition video formats and changeover is automatic when the video input changes. A huge range of video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.

Advanced 3 Gb/s SDI Technology

Only Mini Converters include the latest 3 Gb/s SDI technology and upgrades can be loaded via the built in USB connection for future video format compatibility. 3 Gb/s SDI is also fully compatible with all your standard definition and high definition SDI equipment.

International Power Supply

Unlike other converters, a universal power supply is included with international socket adapters for all countries. This lets you take Mini Converters with you to any location worldwide, and plug directly into the local power sockets. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight!

Technical Specifications:

SDI Input	SDI: Switchable between SD, HD and 3 Gb/s SDI SDI Redundant: Automatically switches over if main SDI input is lost
Analog Audio	4 channels of professional balanced analog audio with standard 1/4 inch jack connections
AES/EBU	8 channels of professional balanced digital with standard 1/4 inch jack connections
Format	625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
Sampling	4:2:2
Power Requirements	12VDC (includes power supply)

In the Box:

Blackmagic Design SDI to Audio Mini Converter
Universal AC Adapter
Limited 3-Year Warranty
