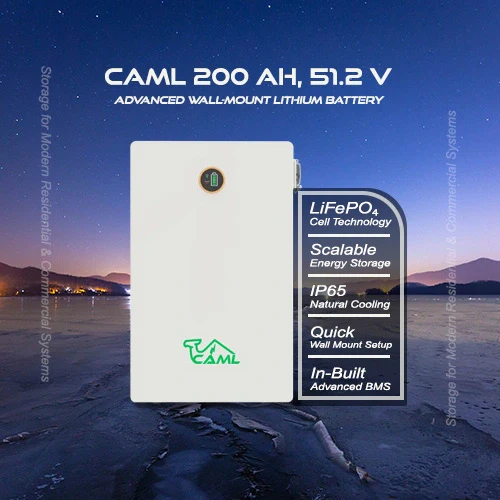

CAML 10.24 kWh (200Ah, 51.2V) LiFePO4 Battery - Wall Mount

CAML LiFePO4 (Lithium Iron Phosphate) Wall-Mount battery is designed to offer both space efficiency and high performance.  CAML 51.2 V 200 Ah Lithium-ion battery provides a Battery Management System (BMS) compatible with various inverters available in the market. It offers a remarkable 6000 charge cycles and fast charging capabilities, allowing the battery to charge fully in just 2-3 hours. This lithium battery is easy to maintain and carry and also offers a space-saving storage solution, ideal for both domestic and commercial applications. Its durability, long lifespan, and performance make it a superior choice over traditional Lead-Acid SMF batteries. This battery operates efficiently in a wide temperature range and weighs almost one-quarter of traditional SMF and Lead-Acid batteries. Additionally, the system is expandable and supports parallel configuration to increase battery bank capacity.

• Fast Charging - Battery gets fully charged 100% in just 2-3 hours.

• Longer life - Compared to Lead acid and SMF, Lithium battery has 6,000+ cycles. life, which translates into 10-15 years of usable life.
• Lightweight - The weight of a lithium battery is 1/4 that of Other comparable batteries, such as SMF and lead acid batteries.
• Zero Maintenance- Free, no memory effect.
• Expandable - Battery bank Expandable in parallel.
• Safe - Safest battery with modular design.
• Temperature Range - Wide operating temperature range.
• Installation - Quick and Easy Installation.

Features

Applications

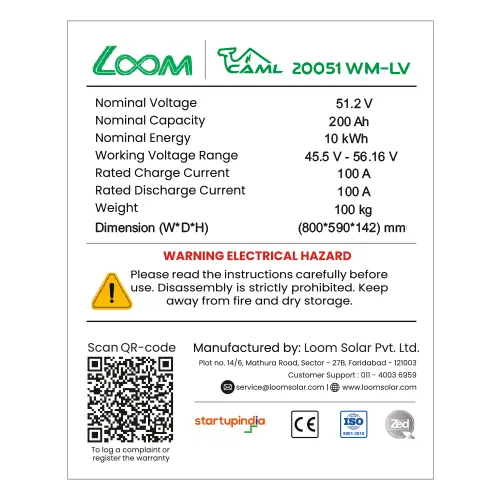

Technical Specifications

Manufacturer	Loom Solar
Rated Capacity	1024 Wh / 51.2 V / 200 Ah
Voltage	51.2 V
Charging Cut-off Voltage	56.16 V
Recommend Charge Current	0.2 C, 20 A
Max. Charge Current	0°-15°C: 20 A, 15°-45°C: 50 A
Operating Temperature Range	-20°C to 65°C
Environment	Indoor
Max. Output Power	10 kWh
Installation	Wall-Mount
Model Number	CAML 20051-WM
Communication Port	CAN / RS-485 / RS-432 for Inverter Communication
Protection Class	IP65
Grid connection	Off-grid, Hybrid grid
Product name	CAML Wall-Mount Lithium-ion Battery
Cell Technology	Lithium Iron Phosphate (LiFePO4)
Cycle life	6000 Times @ 80% DoD
Warranty	5-year
Protection	Smart BMS Protection with Communication
Efficiency	98%

Certifications

UN38.3, RoHS, MSDS, CE

Service

Free Replacement Parts Service - Enjoy free replacement parts service and online technical support for 1 year after purchase.

Caution📢

• Do not throw batteries into the fire.
• Do not short-circuit.
• Do not heat or disassemble batteries.
• Never keep batteries near sources or in high temperatures.
• Read the application's instruction manual carefully before use.
• Charging the battery with 50A constant until 56.16V at room temperature 20 degrees C+/-5 degrees C.

Warning⚠️

DANGER! Chemical Hazard & Shock Hazard

• Do not disassemble or repair the battery by yourself.
• Do not drop, deform, impact, cut, or spear the battery with a sharp object.
• Do not apply strong pressure to the batteries or handle them roughly.
• Keep batteries away from direct sunlight, high temperatures, and high humidity.
• Please keep the battery away from liquid.
• Keep batteries out of reach of children.
• If you notice signs that the battery has a problem, such as overheating, odour, leaks, bulging, or a change in colour/shape, shut off the device and move it away from anything that can catch on fire.
• Avoid charging or storing batteries at high temperatures. High temperatures might ignite the battery and cause a fire.

Danger❗

• Do not parallel connect with different batteries.
• Do not connect the battery to AC power directly.
• Do not connect the battery to PV wiring directly.
• Do not connect batteries in series.
• Do not connect the battery to a faulty or unqualified inverter or charger.
• Do not place the battery near an open flame or flammable material.
• Do not place the battery in a child or pet-touchable area
• Do not short-circuit the external connection.
• Do not place the battery under direct sunlight.

Warning⚠️

• Recharge the battery every six months.
• Recharge the battery within 10 days after the battery is fully discharged.
• Please engage the correct multiple batteries based on the inverter's maximum charge and discharge current.
• Make sure the grid power is cut off and the battery is powered off before installation.
• Make sure the earthing cable is connected correctly before operation.
• Power off the battery and disconnect the power connections before maintenance

Shipping Details

Net Weight / Gross Weight	98 kg/106 kg
Dimensions (L x W x D)	800 x 590 x 142 mm

Download

Download the CAML 20051-WM Datasheet and User Manual

Load Calculator

Calculate your power consumption with our load calculator tool.
