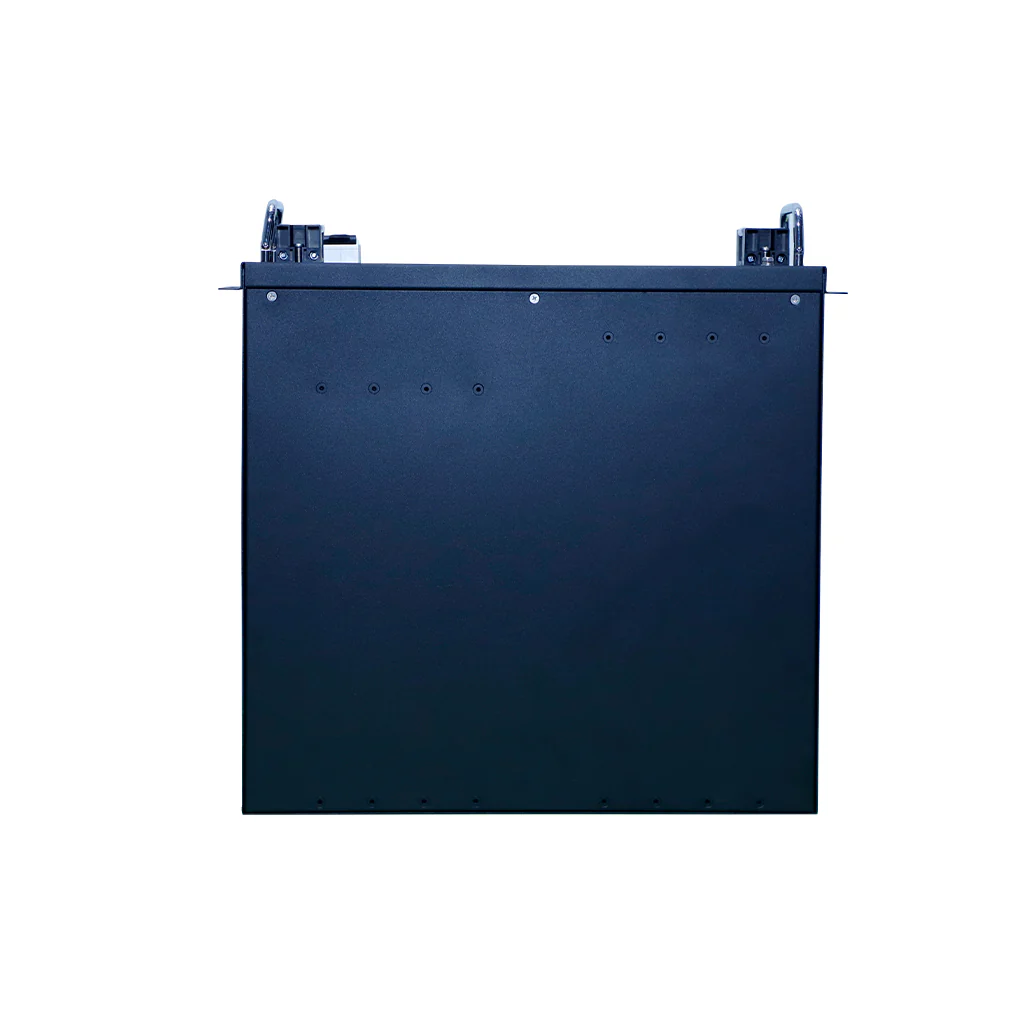

CAML 48 V 100 Ah, 5 kWh Lithium Battery - Rack Mount

Applications

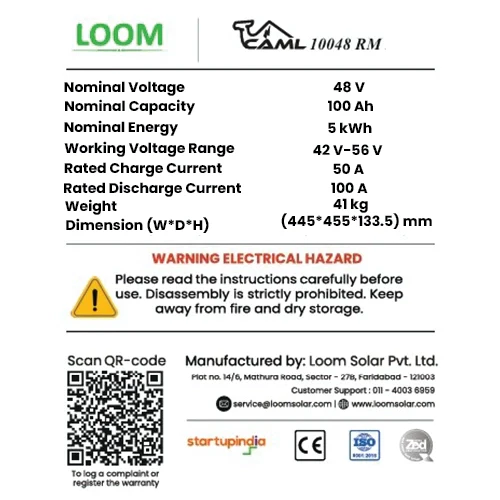

Technical Specifications

Manufacturer	Loom Solar
Rated Capacity	100 Ah
Voltage	48 V
Charging Cut-off Voltage	48 V
Recommend Charge Current	0.2 C, 20 A
Max. Charge Current	0°-15°C: 20 A, 15°-45°C: 50 A
Operating Temperature Range	-20°C to 65°C
Environment	Indoor
Max. Output Power	5.0 kW
Installation	Rack-Mount
Model Number	CAML-10048 RM
Communication Port	CAN / RS-485 for inverter communication
Protection Class	IP65
Grid connection	Off-grid, Hybrid grid
Product name	CAML Wall Mounted Lithium-Ion Battery
Cell Technology	Lithium Iron Phosphate (LiFePO4)
Cycle life	3500 Times @ 80% DoD
Warranty	5-year
Protection	Smart BMS Protection with Communication
Efficiency	98%

Certifications

UN38.3, RoHS, MSDS, CE

Service

Free Replacement Parts Service - Enjoy free replacement parts service and online technical support for 1 year after purchase.

Caution📢

• Do not throw batteries into the fire.
• Do not short-circuit.
• Do not heat or disassemble batteries.
• Never keep batteries near sources or in high temperatures.
• Read the application's instruction manual carefully before use.
• Charging the battery with 50A constant until 56.16V at room temperature 20 degrees C+/-5 degrees C.

Warning⚠️

DANGER! Chemical Hazard & Shock Hazard

• Do not disassemble or repair the battery by yourself.
• Do not drop, deform, impact, cut, or spear the battery with a sharp object.
• Do not apply strong pressure to the batteries or handle them roughly.
• Keep batteries away from direct sunlight, high temperatures, and high humidity.
• Please keep the battery away from liquid.
• Keep batteries out of reach of children.
• If you notice signs that the battery has a problem, such as overheating, odour, leaks, bulging, or a change in colour/shape, shut off the device and move it away from anything that can catch on fire.
• Avoid charging or storing batteries at high temperatures. High temperatures might ignite the battery and cause a fire.

Danger❗

• Do not parallel connect with different batteries.
• Do not connect the battery to AC power directly.
• Do not connect the battery to PV wiring directly.
• Do not connect batteries in series.
• Do not connect the battery to a faulty or unqualified inverter or charger.
• Do not place the battery near an open flame or flammable material.
• Do not place the battery in a child or pet-touchable area
• Do not short-circuit the external connection.
• Do not place the battery under direct sunlight.

Warning⚠️

• Recharge the battery every six months.
• Recharge the battery within 10 days after the battery is fully discharged.
• Please engage the correct multiple batteries based on the inverter's maximum charge and discharge current.
• Make sure the grid power is cut off and the battery is powered off before installation.
• Make sure the earthing cable is connected correctly before operation.
• Power off the battery and disconnect the power connections before maintenance

Shipping Details

Weight	42 kg

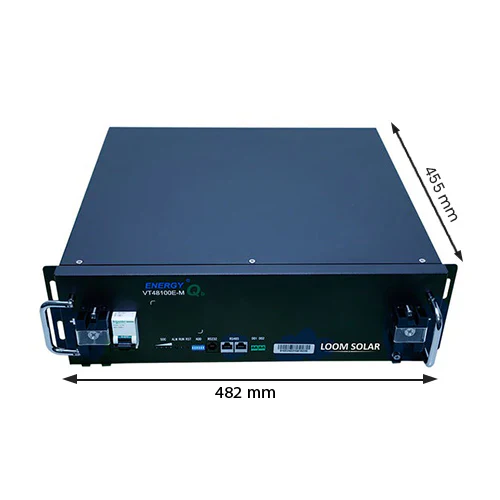

Dimensions (L x W x H)	455 x 445 x 133.5 mm

Download

Download the CAML10048 -RM Datasheet & User Manual

Power Anything...

Freezer (400W)	Slow Cooker (150W)	Microwave (1000W)	Refrigerator (100W)
12.5 hrs*	33.3 hrs*	5 hrs*	50 hrs.

Load Calculator

Calculate your power consumption with our load calculator tool.

FAQ

What is a Kilo-Watt Hour?

One kilowatt-hour (kWh) is equal to the work done or energy consumed when a device of power 1 kW is used for 1 hour.
