Parasound Zphono XRM Phono Preamplifier
The Zphono XRM is Parasound’s latest phono preamplifier. The ZPhono XRM is a compact, versatile MM/MC phono preamplifier that offers flexibility and features not usually found at this price point. Most phono preamps don’t give buyers what they really want. The Parasound Zphono XRM delivers this must-have list and more! It offers convenient on-the-fly impedance adjustment for MC cartridges, a switchable rumble filter, a stereo-mono switch and balanced XLR outputs. Additionally, many phono preamps use 'wall warts' external power supply that can add noise to the audio signal. Zphono XRM uses a far superior high-capacity, low-noise, linear power supply that won't compromise your music.
Warranty
1-year manufacturer's warranty
Key Features:

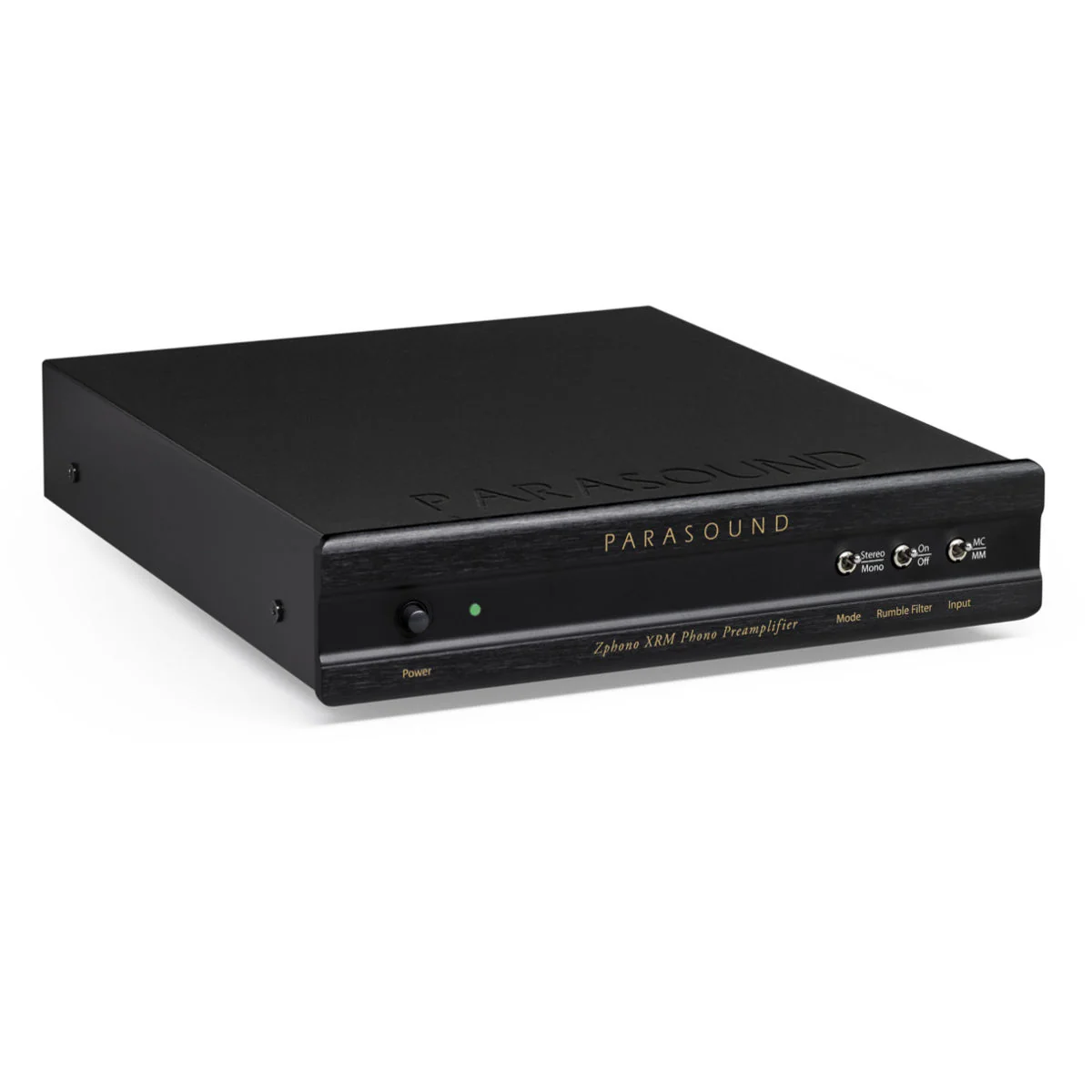

- Dual inputs for two turntables (1 MM & 1 MC)
- Front panel input select switch
- Front panel mono/stereo mode switch
- Front panel rumble filter switch
- Balanced and unbalanced outputs
- Variable MC impedance adjustment of 50-1050 ohms
- MM Gain options of 40 dB or 50 dB unbalanced (46 dB/56 dB balanced)
- MC Gain options of 50 dB or 60 dB unbalanced (56 dB/66 dB balanced)
- RIAA accurate to within 0.2 dB
- Ultra-low distortion (<0.02% THD)
- Ultra high-speed, low-noise opamps
- Audiophile grade resistors and capacitors
- Gold-plated RCA input and output jacks
- Unique half-rack width chassis; 1 rack space high
Benefits of Parasound Zphono XRM Phono Preamplifier:
Robust Performance and Features

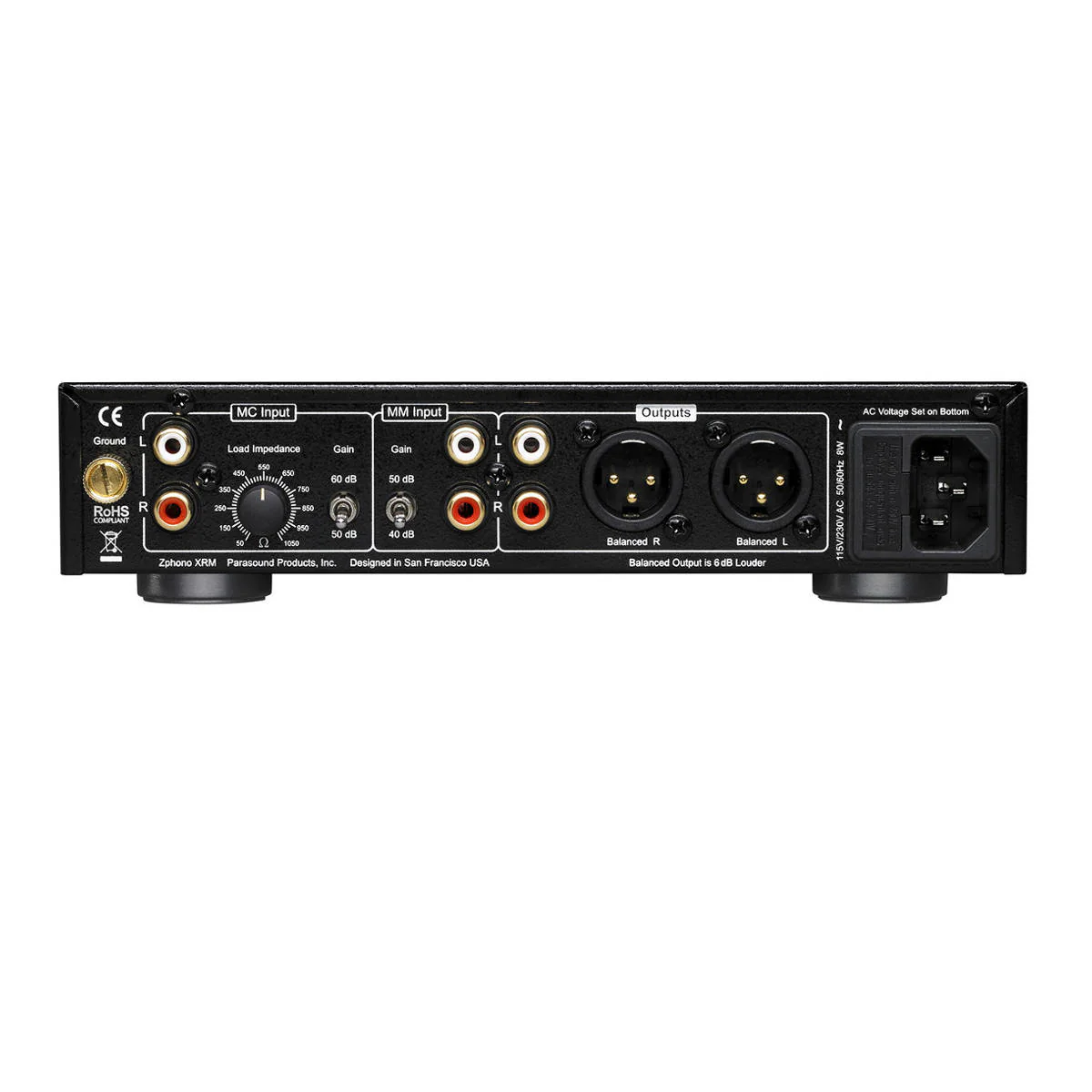

The Zphono XRM uses an ultra-low distortion design (<0.02% THD) with ultra high-speed, low-noise op amps plus audiophile grade resistors and capacitors. It is RIAA accurate to within 0.2 dB. Input and output RCA jacks are gold plated. The unique half-rack width chassis (one rack space high) makes the XRM easy to place, especially in custom installations. But don't let the compact dimensions fool you. This is one serious phono stage. The XRM is powerful proof of Parasound’s continuing support of the vinyl renaissance. The Zphono XRM has separate input jacks and circuitry for MM (moving magnet) and MC (moving coil) cartridges. Connect your turntable’s signal cables to the Input jacks on the Zphono XRM that correspond to the type of cartridge you are using. You can connect two turntables simultaneously if one turntable has an MC cartridge and the other turntable has an MM cartridge. You can also use a turntable with two tonearms, provided one is equipped with an MC cartridge and the other with an MM cartridge. The front panel input select switch makes it easy to toggle back and forth between your MM and MC connection.
Where to buy?
Buy Parasound Zphono XRM Phono Preamplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad.com team. We will help you choose better and will give you all the support you need to take the right buying decision in India.
Technical Specifications of Parasound Zphono XRM Phono Preamplifier:
| Brand & Model # | Parasound Zphono XRM |
| Frequency Response | 20-20 kHz, +/- 0.2 dB |
| Total Harmonic Distortion | 0.02% at 1 kHz |
| Signal to Noise Ratio, MM 40 dB Setting | > 94 dB, input shorted, IHF A-weighted > 90 dB, input shorted, unweighted |
| Signal to Noise Ratio, MM 50 dB Setting | > 94 dB, input shorted, IHF A-weighted > 90 dB, input shorted, unweighted |
|
Signal to Noise Ratio, MC 50 dB Setting |
> 92 dB, input shorted, IHF A-weighted > 88 dB, input shorted, unweighted |
| Signal to Noise Ratio, MC 60 dB Setting | > 82 dB, input shorted, IHF A-weighted > 80 dB, input shorted, unweighted |
| Inter-channel Crosstalk | > 80 dB at 1 kHz |
| Input Impedance | MM: 47k Ω MC: 50-1050 Ω |
| Output Impedance | Unbalanced: 150 Ω Balanced: 150 Ω per leg |
|
Input Sensitivity at 1 kHz, 4mV Input |
40 dB: 5 mV for 500mV output 50 dB: 5 mV for 1.5 Volts output 60 dB: 5 mV for 3 Volts output |
|
Input Sensitivity at 1 kHz, 1V Output |
40 dB: 10 mV for 1.0 Volt output 50 dB: 3.5 mV for 1.0 Volt output 60 dB: 1.8 mV for 1.0 Volt output |
| Total Gain |
40 dB / 50 dB / 60 dB (unbalanced output) 46 dB / 56 dB / 66 dB (balanced output) |
| Rumble Filter |
40 Hz high pass, 18 dB /oct. |
| AC Power requirement |
Standby: 0 watts Power On: 7 watts 115 VAC or 230 VAC 50 - 60 Hz (Selected on bottom) |
| Dimensions |
Width: 8.5" (220 mm) Depth: 10" (254 mm) Depth: 12" (305 mm) - cables connected Height, with feet: 2" (51 mm) Height, without feet: 1.75" (45 mm), 1U |
| Weight | Net: 3.9 lbs. (1.8kg) |
