Fusion 6 kW, 3 ø On-Grid Solar Inverter
Loom Solar Grid Tied Inverters are powerful inverters that convert direct current (DC) electricity into alternating current (AC), It is also called On grid system which works without a battery. The Main purpose of a grid- tied inverter is to supply power from the Mains supply to homes/offices and feed the Generation of solar Power to a Mains supply
Grid Tie Inverters are designed to quickly disconnect from the grid if the utility grid goes down. It ensures that in the event of a blackout, the grid-tie inverter will shut down to prevent the energy it transfers from harming any line workers who are sent to fix the power grid.
Key Features
- On-Grid/Grid-Tied inverter for saving electricity bill by selling excess generation of Solar Power to Power distribution Companies through the Net metering system.
Video
Key Technical
|

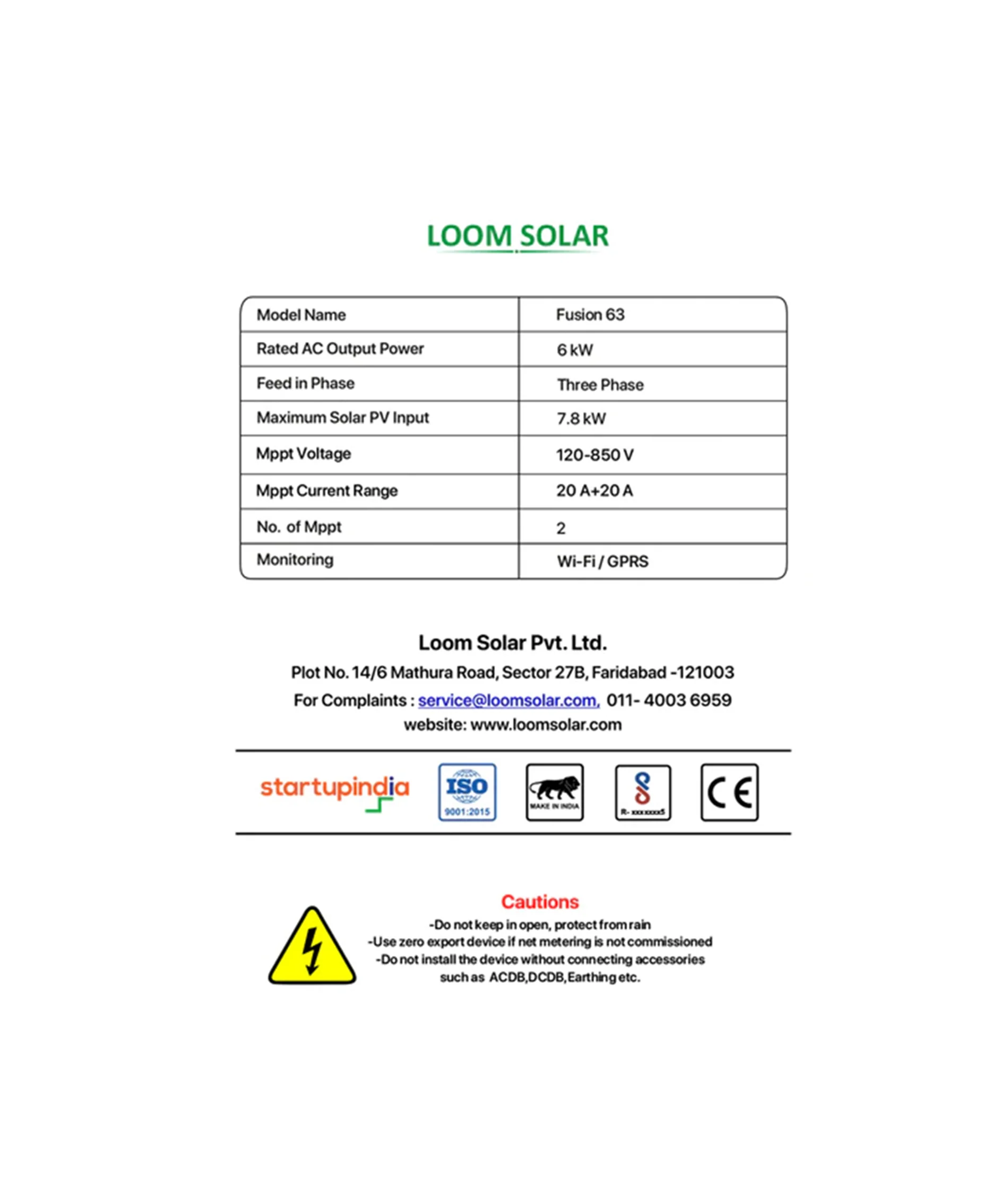

Model Name |
Fusion 63 |
| System Rating |
6 KW, Three Phase |
|
Maximum Solar Panel Connection (Watts) |
6000 Watts |
|
Efficiency |
96.80% |
|
Feed-in Phase |
Three-phase |
|
Topology |
Transformerless |
|
Number of MPPT Controller |
1 |
|
Noise |
< 30dBA |
|
Weight (kg) |
15 Kg |
|
Dimensions [L * H * W] mm |
330 * 472 * 202 |
Product Manual: Download product data sheet to know electrical parameters
