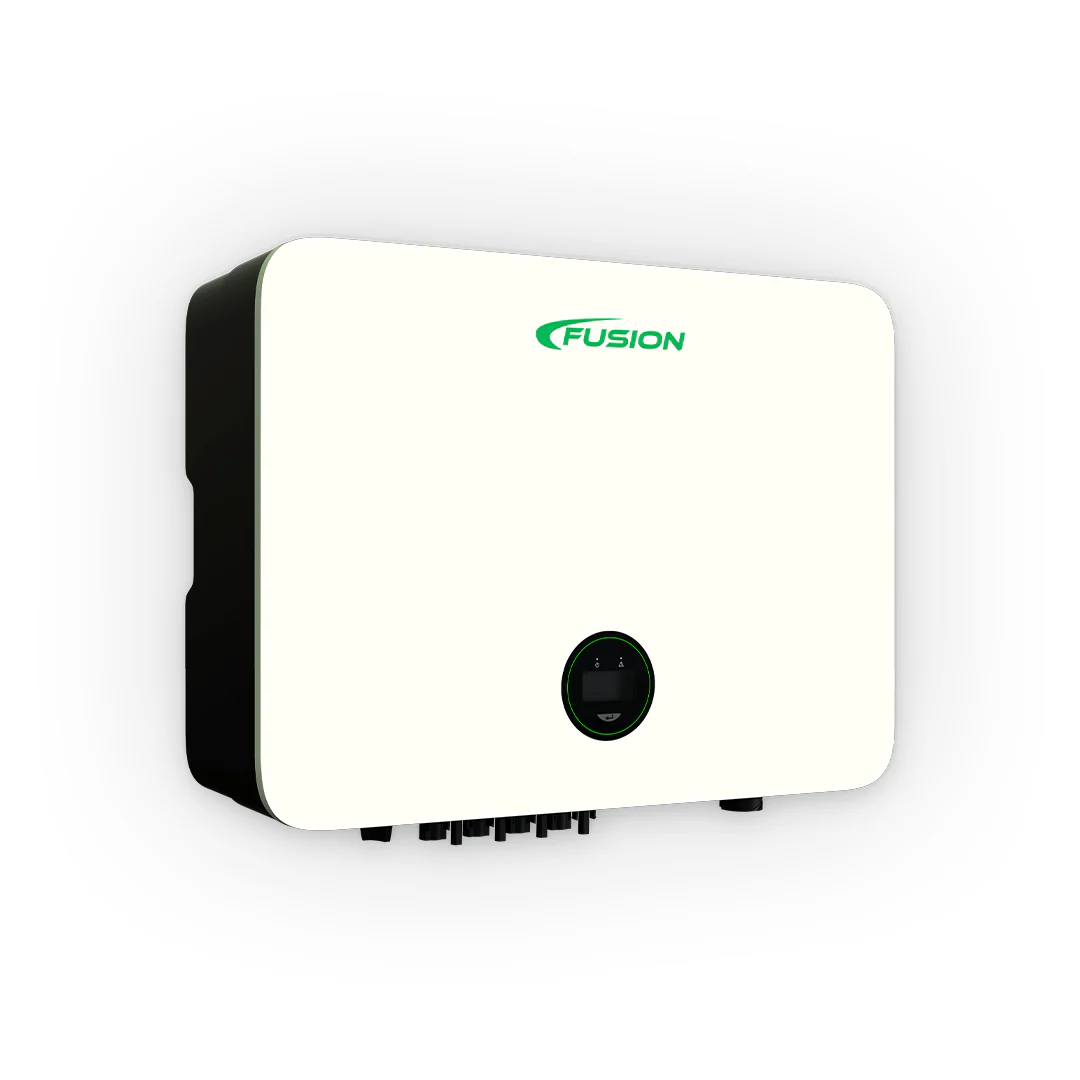

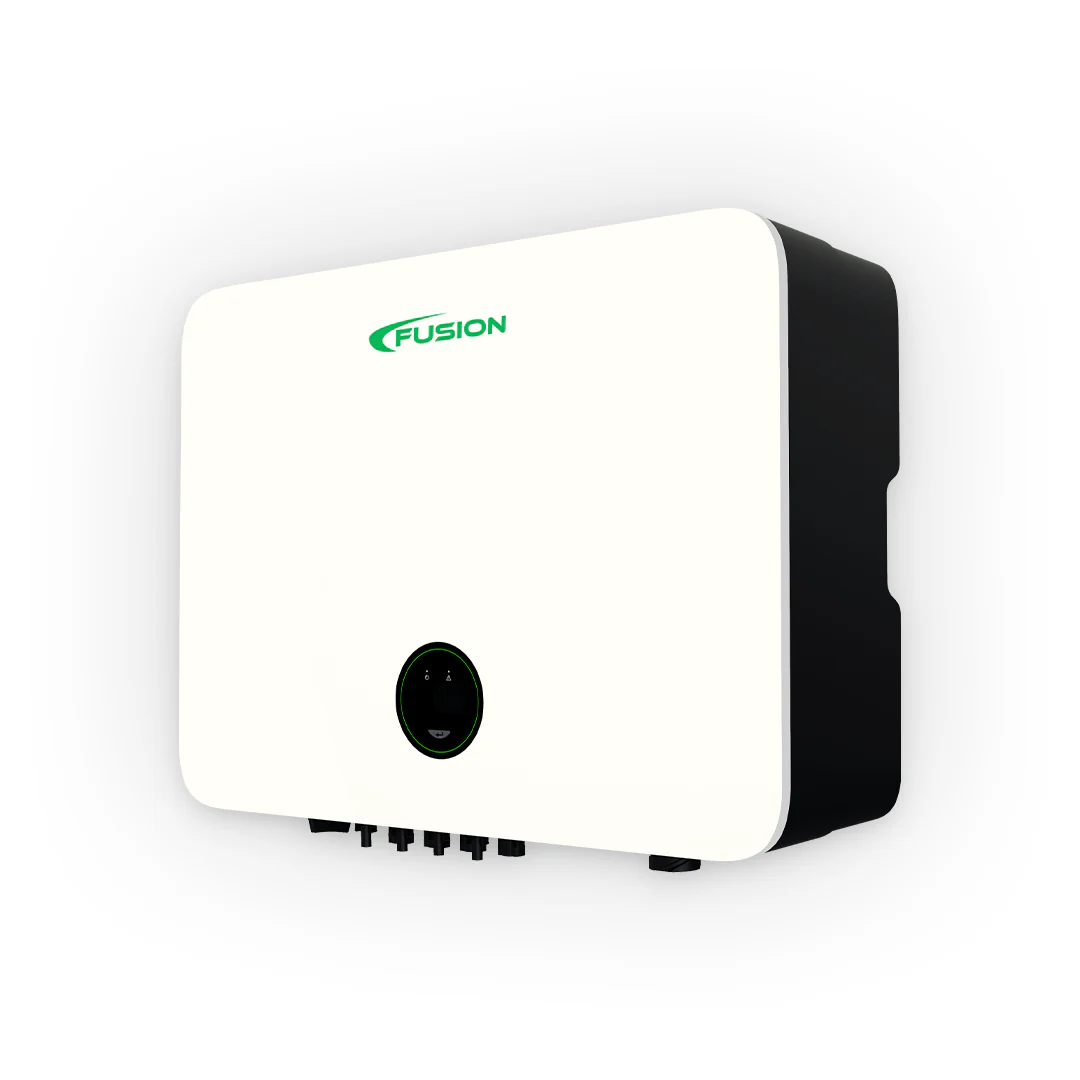

Fusion 8 kw, 3 ø on grid solar inverter
Loom Solar Grid Tied Inverters are powerful inverters that convert direct current (DC) electricity into alternating current (AC). It is also called an On-grid system which works without a battery. The Main purpose of a Grid-tied inverter is to supply power from the main supply to homes/offices and feed the Generation of solar Power to the main supply.
Grid-tie Inverters are designed to quickly disconnect from the grid if the utility grid goes down. It ensures that in the event of a blackout, the grid-tie inverter will shut down to prevent the energy it transfers from harming any line workers who are sent to fix the power grid.
Key Features
- On Gird/ Gird Tied inverter for Saving electricity bill by selling access generation of Solar Power to Power distribution Companies through Net metering system.
Video
Key Technical
|

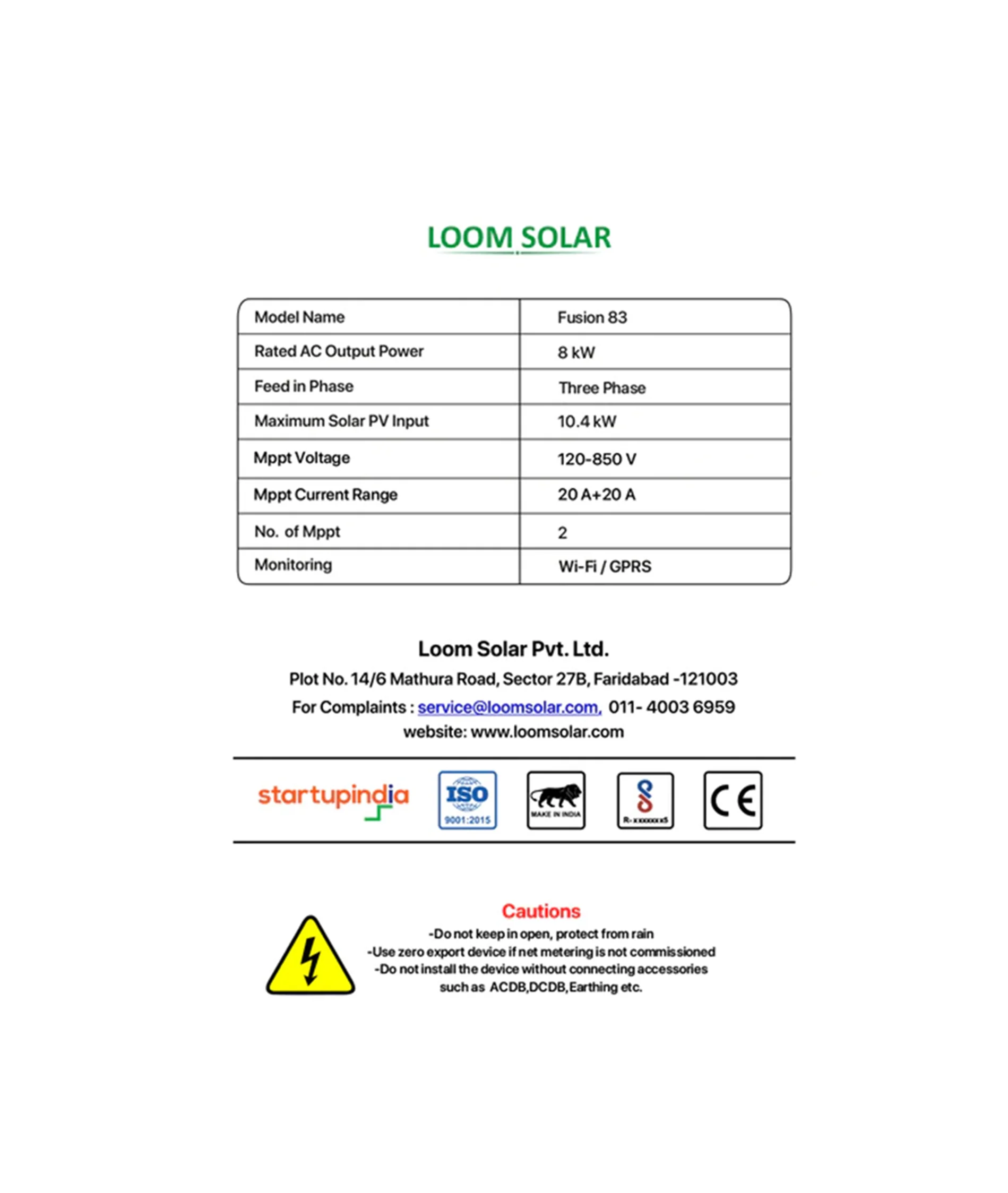

Model Name |
Fusion 83 |
| System Rating |
8 KW, Three Phase |
|
Maximum Solar Panel Connection (Watts) |
12000 Watts |
|
Efficiency |
96.80% |
|
Feed-in Phase |
Three-phase |
|
Topology |
Transformerless |
|
Number of MPPT Controller |
1 |
|
Noise |
< 30dBA |
|
Weight (kg) |
15 Kg |
|
Dimensions [L * H * W] mm |
330 * 472 * 202 |
Product Manual: Download product data sheet to know electrical parameters
