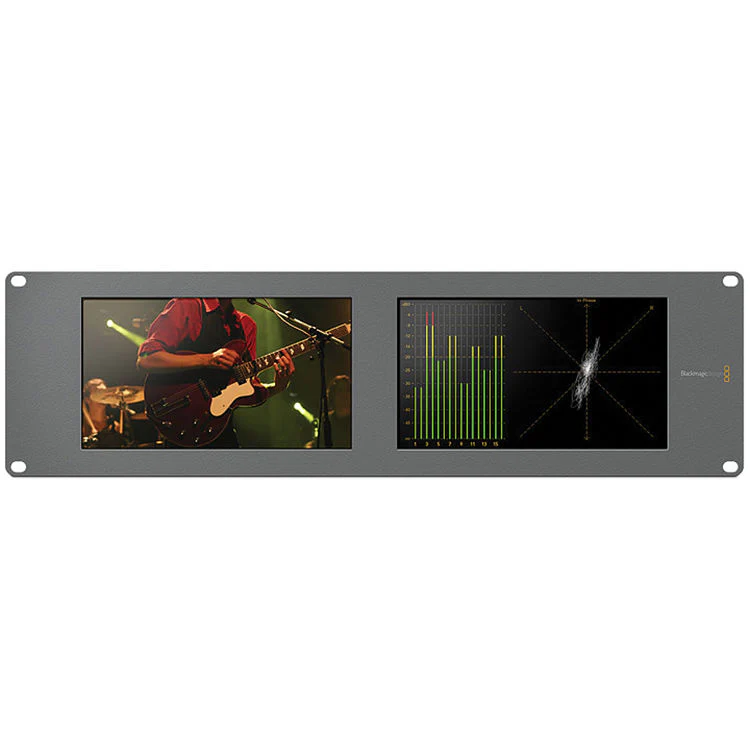

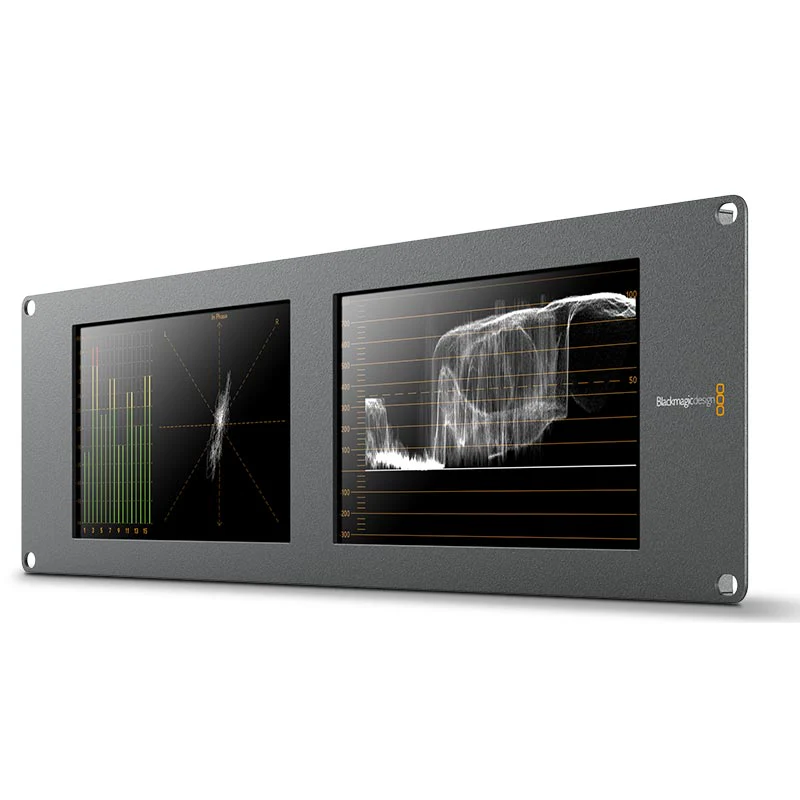

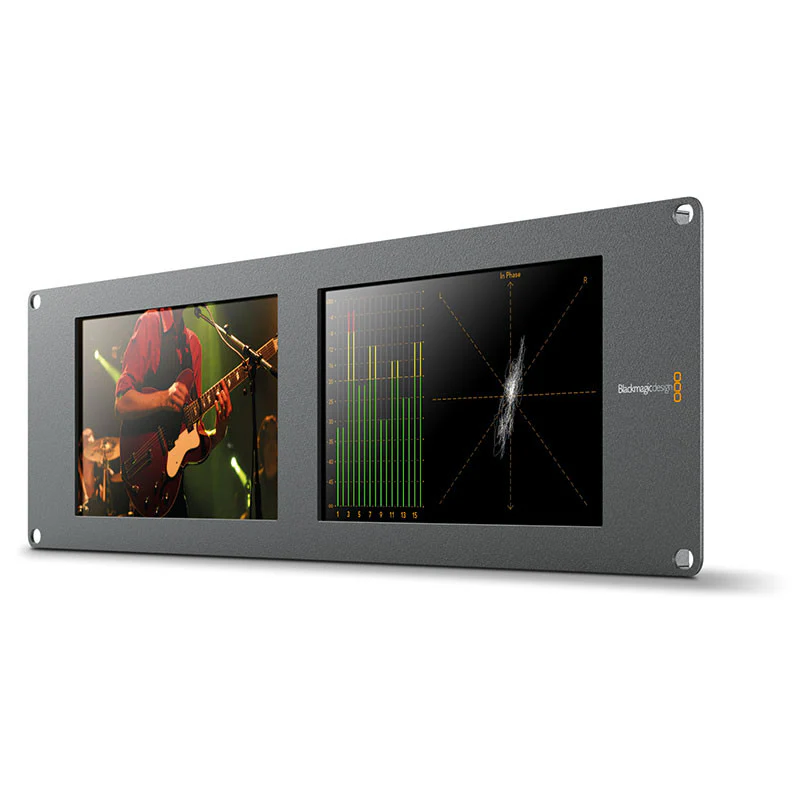

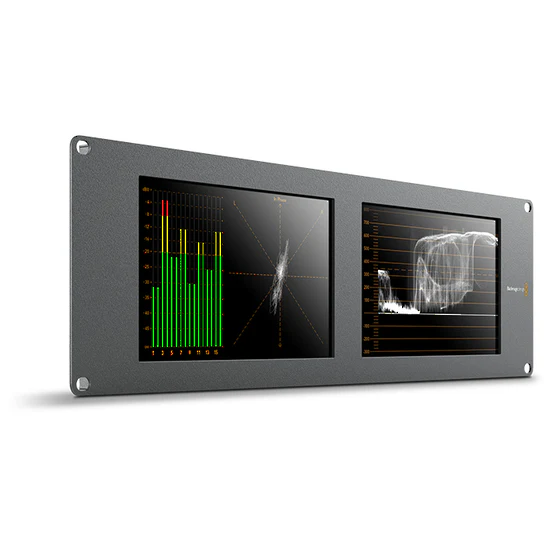

Blackmagic SmartScope Duo 4K 2

Number of Displays

2

Panel Type

TFT LCD

Display Size

8.0" / 20.3 cm

Screen Resolution

800 x 480

Aspect Ratio

16:9

Touchscreen

No

Bit Depth / Color Support

8-Bit (16.7 Million Colors)

Pixels Per Inch (ppi)

117 ppi

Real-Time LUT Monitoring

SDR

Image Controls

Blue Only, Focus Peaking, Histogram, Image Flip, Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform

Video

2 x BNC (6G-SDI) Output

2 x BNC (6G-SDI) Input

Embedded Audio

SDI: 16-Channel

Audio

None

Built-In Speaker

None

Other I/O

2 x LAN (RJ45)

1 x USB 2.0 (USB Type-A)

1 x Tally (DE-9/DB-9)

Card Slot

None

Wi-Fi

None

Video Format

SDI (4:4:4)

UHD 4K: 30/29.97/25/24/23.98

DCI 2K: 25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50

480i

576i

DC Input Power

12 to 15 VDC

Battery Type

None

Power Consumption

20 W (Maximum)

Rack Form Factor

3 RU

Operating Humidity

0 to 90%

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Dimensions (W x H x D)

19 x 5.2 x 1.3" / 48.3 x 13.3 x 3.2 cm

Weight

3.37 lb / 1.53 kg

Warranty Length

Limited 1-Year Warranty
