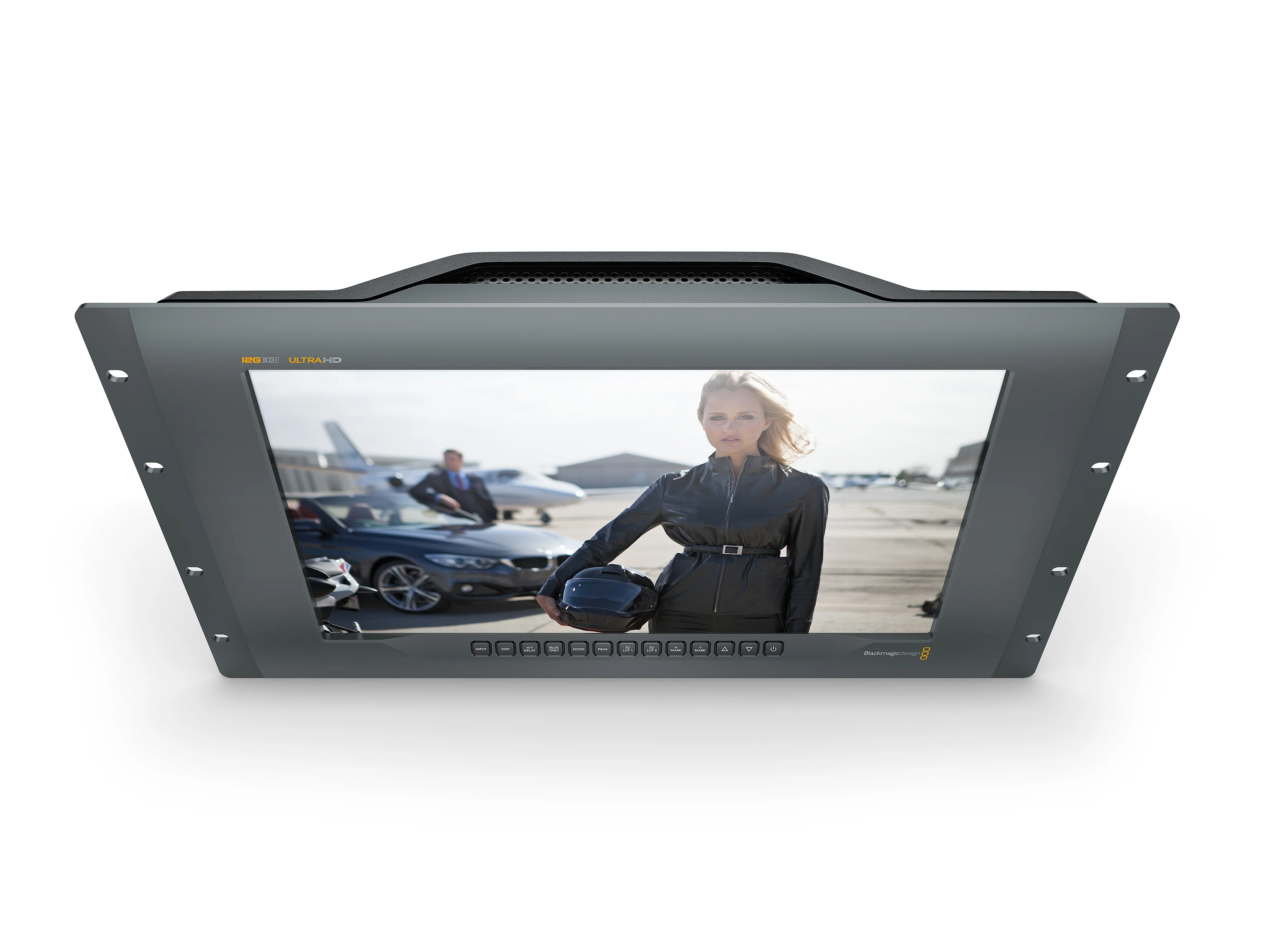

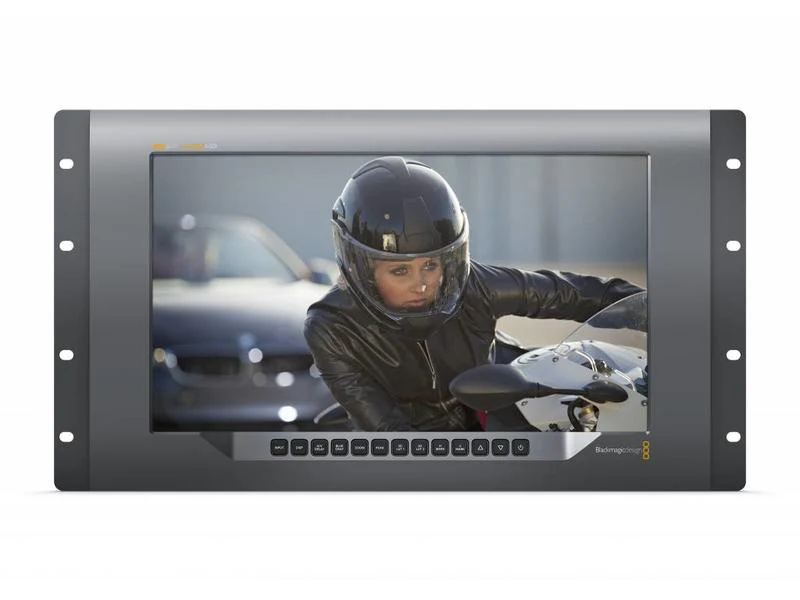

Blackmagic SmartView 4K
Key Features:
- 15.6" 3840 x 2160 Active-Matrix TFT LCD
- Supports up to DCI 4K60 Video
- 2 x Multi-Rate 12G-SDI Inputs
- 1 x Optical Fiber SDI Socket
- SDI Loop-Through Output, Tally Input
- Dual 3D LUT Support
- Peaking, Zoom & Adjustable Markers
- H/V Delay, Blue Only & Frame Markers
- Front Panel & Ethernet Control
- Upscales SD/HD to UHD
Technical Specifications:
|
Panel Type |
TFT LCD |
|
Display Size |
15.6" / 39.6 cm |
|
Aspect Ratio |
16:9 |
|
Touchscreen |
No |
|
Contrast Ratio |
1000:1 |
|
Bit Depth / Color Support |
8-Bit (16.7 Million Colors) |
|
Pixels Per Inch (ppi) |
282 ppi |
|
Response Time |
25 ms |
|
Color Gamut |
100% Rec. 709 |
|
Real-Time LUT Monitoring |
SDR, HDR |
|
Image Controls |
Blue Only, Focus Peaking, H/V Delay, Pixel Zoom |
|
Video |
2 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output |
|
Embedded Audio |
SDI: 16-Channel |
|
Audio |
None |
|
Built-In Speaker |
None |
|
Other I/O |
2 x LAN (RJ45) 1 x Tally (DE-9/DB-9) 1 x USB 2.0 (Mini-USB) |
|
Expansion Slots |
1 x SFP+ Slot |
|
Card Slot |
None |
|
Video Format |
SDI DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
|
Battery Type |
None |
|
Power Consumption |
24 W (Maximum) |
|
Rack Form Factor |
6 RU |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Operating Humidity |
0 to 90% |
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
|
Material of Construction |
Metal |
|
Dimensions |
18.98 x 10.47 x 2.75" / 48.21 x 26.59 x 6.96 cm |
|
Weight |
7.94 lb / 3.60 kg |
|
Warranty Length |
Limited 1-Year Warranty |
In the Box:
- Blackmagic Design SmartView 4K 2 15.6" DCI 4K Broadcast Monitor (6 RU)
- Limited 1-Year Warranty
