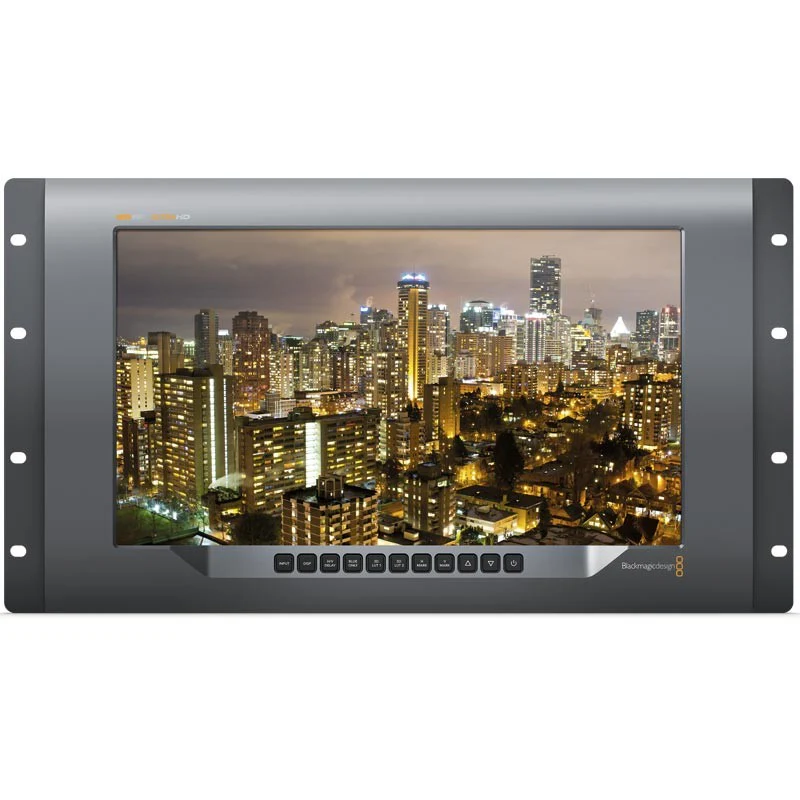

Blackmagic Design SmartView 4K G3 15.6" DCI 4K Broadcast Monitor with SMPTE 2110
- 15.6" 3840 x 2160 Active-Matrix TFT LCD
- Supports up to DCI 4K60 Video
- SMPTE 2110 IP In via RJ45, Optical Fiber
- 2 x Multi-Rate 12G-SDI Inputs
- 1 x Optical Fiber SDI Socket
- 12G-SDI Loop-Through Output, Tally Input
- SD/HD Upscaling, Dual 3D LUT Support
- Peaking, Zoom & Adjustable Markers
- H/V Delay, Blue Only & Frame Markers
- Front Panel & Ethernet Control
The Blackmagic Design SmartView 4K G3 is a professional 15.6" TFT LCD monitor that features built-in optical and copper SMPTE‑2110 IP video connections so you can connect directly to IP-based broadcast systems. It has a native resolution of 3840 x 2160 and also offers two multi-rate 12G-SDI inputs for connecting to a range of pro video equipment. The inputs automatically switch between SD, HD, and 4K formats, including up to DCI 4K60. Its design features a lightweight machined aluminum chassis and a full-resolution UHD 4K LCD screen. The on-screen overlays include focus peaking, framing guides, safe area, and more. It also has built-in 3D LUTs for adding creative looks, converting log film gamma, or handling custom HDR profiles.
Technical Specifications:
|
Panel Type |
TFT LCD |
|
Display Size |
15.6" / 39.6 cm |
|
Resolution |
3840 x 2160 |
|
Aspect Ratio |
16:9 |
|
Touchscreen |
No |
|
Contrast Ratio |
1000:1 |
|
Bit Depth / Color Support |
8-Bit (16.7 Million Colors) |
|
HDR Compatibility |
Yes |
|
Pixels Per Inch (ppi) |
282 ppi |
|
Response Time |
25 ms |
|
Color Gamut |
100% Rec. 709 100% NTSC |
|
Real-Time LUT Monitoring |
SDR, HDR |
|
Image Controls |
Blue Only, Focus Peaking, H/V Delay, Pixel Zoom |
|
Video I/O |
2x BNC (12G-SDI) Input 1x BNC (12G-SDI) Output 1x RJ45 (HDBaseT) Input |
|
Embedded Audio |
SDI: 16-Channel |
|
Audio I/O |
No |
|
Built-In Speaker |
No |
|
Other I/O |
1x RJ45 (LAN) [Shared with SMPTE-2110 IP Video Input] 1x DE-9/DB-9 (Tally) 1x Mini-USB 2.0 |
|
Expansion Slots |
1x SFP+ Slot |
|
Media/Memory Card Slot |
No |
|
Wi-Fi |
No |
|
Bluetooth |
No |
|
Mobile App Compatible |
No |
|
Video Format |
SDI (4:4:4/4:2:2) DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 NTSC: 59.94 PAL: 50 |
|
Video Standard Compliance |
SMPTE 259M/292M/296M/372M/424M-A/424M-B/425M/2110-30/2110-40/ST 2110-20/ST 2110-21/ST-2082 |
|
Input Power |
12 to 15 VDC 90 to 240 VAC, 50 / 60 Hz |
|
Built-In Battery |
Yes |
|
Power Consumption |
24 W (Maximum) |
|
Rack Form Factor |
6 RU |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Operating Humidity |
0 to 90% |
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
In the Box:
- Blackmagic Design SmartView 4K G3 15.6" DCI 4K Broadcast Monitor with SMPTE 2110
- Limited 1-Year Manufacturer Warranty
