Key Features:

Mini Converter Series
Six Output
Tri-Sync or Black Burst

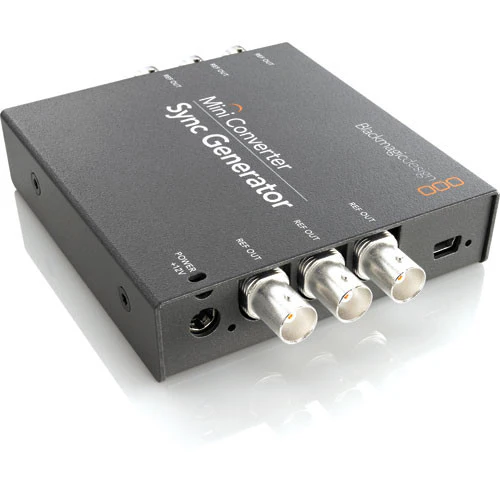

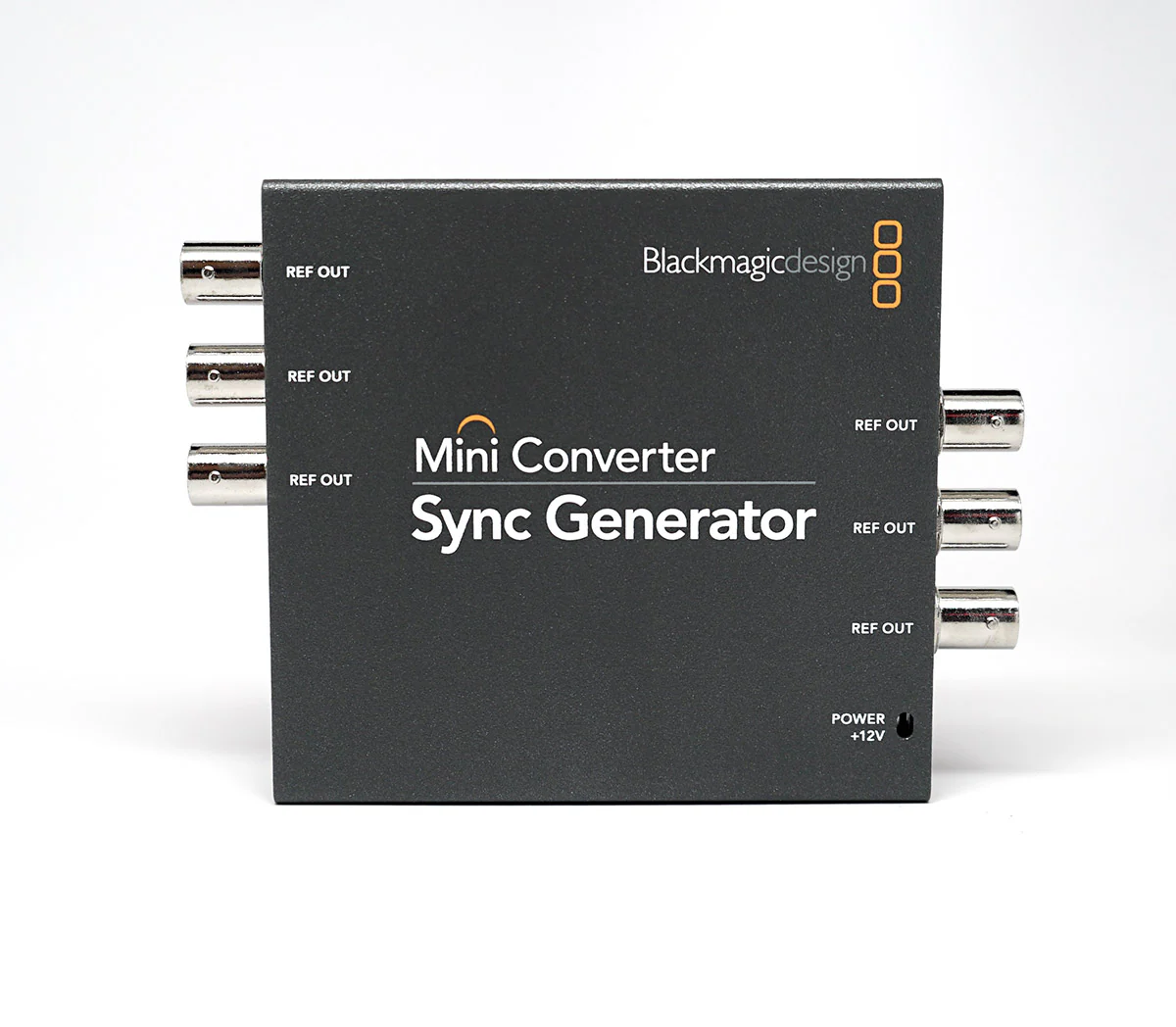

The Blackmagic Design CONVMSYNC is a sync generator. This generator will generate a reference signal in either high definition or standard definition parmeters. It is part of the Mini Converter series and offers six BNC outputs.

Space Saving

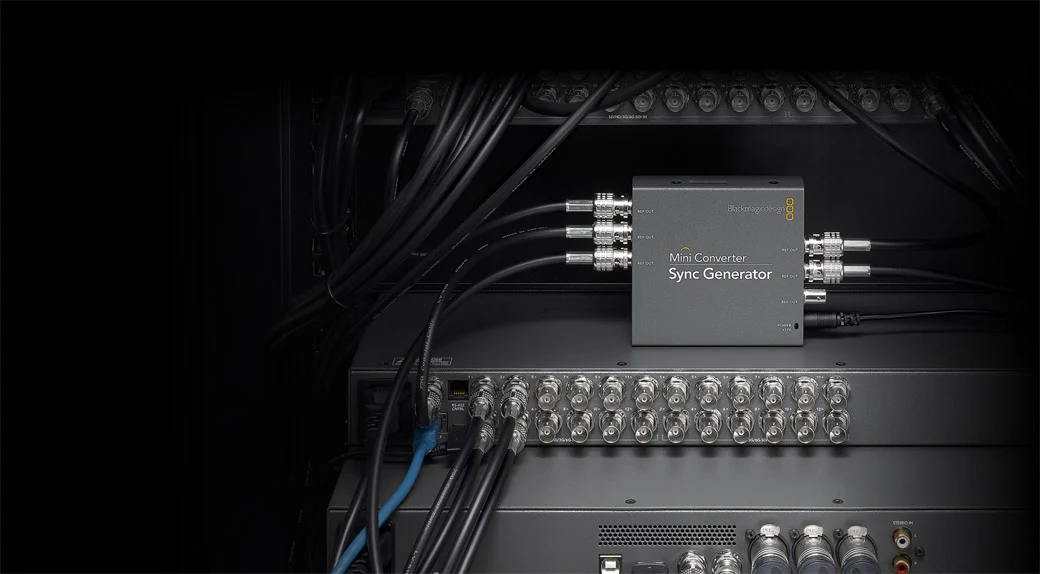

Broadcast Converter models are extremely compact, so you can install in the front or rear side of equipment racks, saving valuable equipment space.

Security

This device features a handy cable tie point to lock the power down tight and prevent your power being disconnected.

Formats

Many video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.

HD or SD

Tri-level high definition or standard definition black burst can be selected for the matching video format needed.

Technical Specifications:

Output	Reference Output x6, Analog Black Burst or Tri-Level Sync, on BNC connectors
Input	None
Television System	625/25 PAL 525/29.97 NTSC 1080PsF23.98 1080PsF24 1080i50 1080i59.94 720p50 720p59.94 Selectable

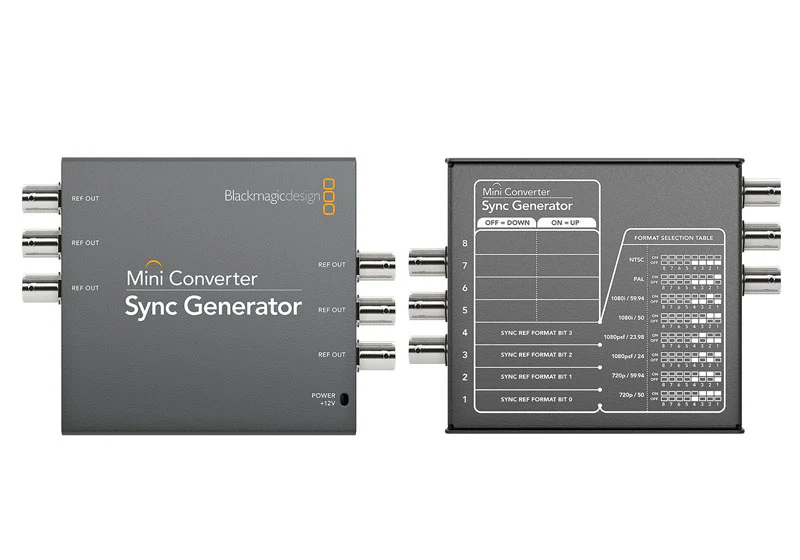

Control	Dip Switch Format Selection
Power Source	12VDC on an AC Power Adapter
Dimensions (WxDxH)	Not Specified by Manufacturer
Weight	Not Specified by Manufacturer

In the Box:

Blackmagic Design Sync Generator
Universal Power Supply
1 Year Warranty
